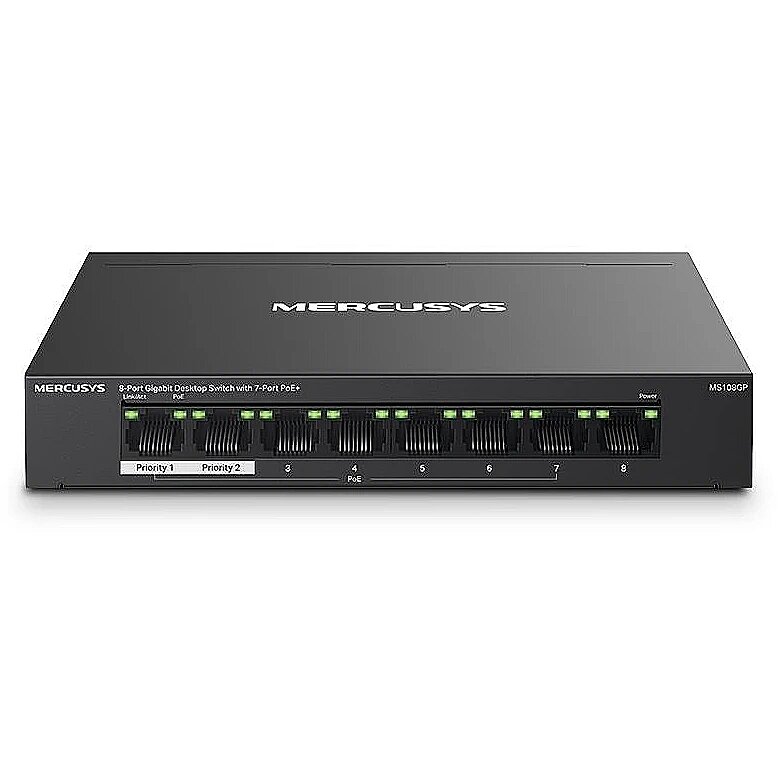

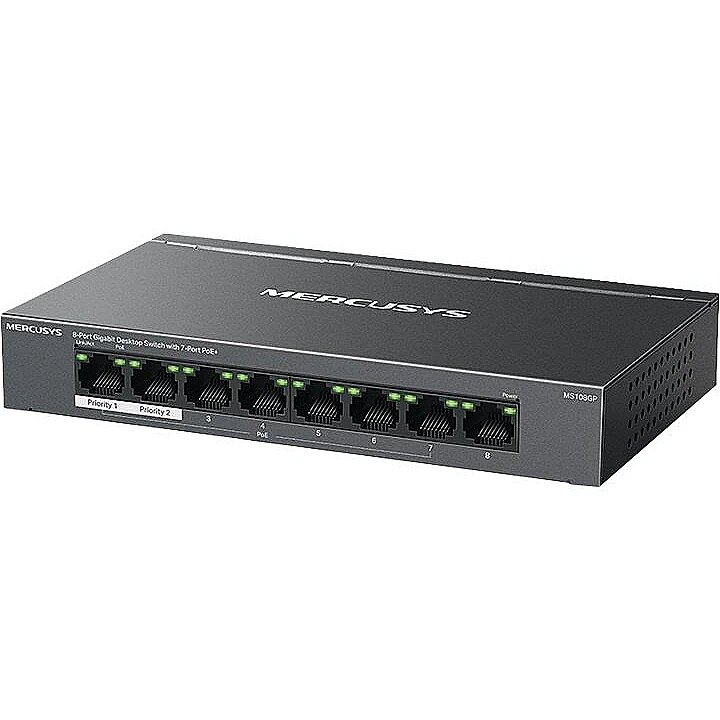

Mercusys MS108GP, 8x1GE PoE

10G support Network - No
AC input frequency Power - 50 Hz
AC input voltage Power - 220 V
Auto MDI/MDI-X Network - Yes
Basic switching RJ-45 Ethernet ports quantity Ports & interfaces - 8
Basic switching RJ-45 Ethernet ports type Ports & interfaces - Gigabit Ethernet (10/100/1000)
Cables included Packaging content - AC
Category - Root/Electronics/Networks and communication/Switchers
Category Code - SWI
Code - MS108GP
Dane techniczne: Akcesoria - zasilacz
Dane techniczne: Algorytm przełączania - store-and-forward
Dane techniczne: Dodatkowe informacje - budżet PoE: 65 W
Dane techniczne: Gwarancja - 2 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 98 mm
Dane techniczne: Liczba portów LAN 10/100/1000 - 8 szt.
Dane techniczne: Obsługiwane protokoły - IEEE 802.3
Dane techniczne: Obsługiwane protokoły - IEEE 802.3af
Dane techniczne: Obsługiwane protokoły - IEEE 802.3at
Dane techniczne: Obsługiwane protokoły - IEEE 802.3u
Dane techniczne: Obsługiwane protokoły - IEEE 802.3x flow control
Dane techniczne: Porty PoE - 7 szt.
Dane techniczne: Producent - Mercusys
Dane techniczne: Przeznaczenie - biurkowy
Dane techniczne: Rozmiar tablicy adresów MAC - 8000
Dane techniczne: Szerokość - 171 mm
Dane techniczne: Typ - niezarządzalny
Dane techniczne: Wysokość - 22 mm
Data transmission - MAC address table - 8000 entries
Data transmission - Store-and-forward - Yes
Depth Weight & dimensions - 98 mm
Description - 7 PoE+ Ports (65 W Budget) for Network Deployment
All eight ports of the MS108GP are gigabit ports, with seven PoE+ ports (1-7). Each PoE+ port supports a maximum of 30 W and is compliant with the 802.3af/at Powered Devices. The total 65 W PoE power budget* enables a variety of uses, including surveillance for offices, dormitories, and small businesses. IP cameras, access points, IP phones, PCs, video recorders, and more are all completely compatible with it. No Fuss
No need for electricians; simplify installation and deployment. Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure. Flexibility
Deployment in complex situations is made possible by more placement possibilities. Power Management
Improves power usage while intelligently protecting your gadgets from power surges. IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices. Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS108GP has 7 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas. Traffic Separation
With only one click, isolation mode divides traffic for ports 1-7 to prevent snooping/tampering and isolate broadcast storms for greater protection. Port Prioritization
Prioritizing the data of specific ports would ensure the high quality of delicate applications, such as voice and video, in crucial business domains. Plug and Play
MS108GP offers auto-negotiation (10/100/1000 M) and automated MDI/MDIX. There is no additional configuration needed. It is simple to use and saves time and effort. Durable and Silent
MS108GP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, equipment stability, and long network life. Full Gigabit Ports: 8× 10/100/1000 Mbps RJ45 portsTwo Cables in One: With 7 PoE+ ports, transfers data and power on one single cableHigh Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*Isolation Mode: One click to divide traffic for specific ports for stability and securityCompliant with Powered Devices: Works with IEEE 802.3af/at compliant PDsDurable Metal Casing: Allows for efficient heat dissipation and long network lifePlug and Play: Simple to use and saves time and effort
Design - Housing material - Metal
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
dimensionalWeight - 403
EAN - 6957939001209
Eans - 6957939001209
Flow control support Network - Yes
Full duplex Network - Yes
Half duplex Network - Yes
Heat dissipation Operational conditions - 262.922 BTU/h
Height Weight & dimensions - 27 mm
Housing material Design - Metal
Input current Power - 1.31 A
Input voltage Power - 53.5 V
MAC address table Data transmission - 8000 entries
Management features - Switch type - Managed
Management features - Traffic classification - Yes
Management features - Web-based management - Yes
Model name - MS108GP
Name - Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+ | Mercusys
Name - Mercusys MS108GP
Network - 10G support - No
Network - Auto MDI/MDI-X - Yes
Network - Flow control support - Yes
Network - Full duplex - Yes
Network - Half duplex - Yes
Network - Networking standards - IEEE 802.3af
Network - Networking standards - IEEE 802.3at
Network - Networking standards - IEEE 802.3x
Network - Policy-based routing - Yes
Networking standards Network - IEEE 802.3af, IEEE 802.3at, IEEE 802.3x
Operating relative humidity (H-H) Operational conditions - 10 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Heat dissipation - 262.922 BTU/h
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 180.00 mm
Package features > Gross height (mm) - 40.00 mm
Package features > Gross width (mm) - 110.00 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 1250 pc(s)
Package features > Paper/Pasteboard - 190.00 g
Package features > Plastic (No PET) - 10.00 g
Package features > Tare weight (kg) - 0.20 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - AC
Packaging content - Quick start guide - Yes
Policy-based routing Network - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Power - AC input frequency - 50 Hz
Power - AC input voltage - 220 V
Power - Input current - 1.31 A
Power - Input voltage - 53.5 V
Power - Power consumption (max) - 77.33 W
Power - Power consumption (typical) - 5.07 W
Power - Power source - AC
Power - Power supply included - Yes
Power consumption (max) Power - 77.33 W
Power consumption (typical) Power - 5.07 W
Power over Ethernet (PoE) - Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) power per port - 30 W
Power over Ethernet (PoE) - Power over Ethernet plus (PoE+) ports quantity - 7
Power over Ethernet (PoE) - Total Power over Ethernet (PoE) budget - 65 W
Power over Ethernet (PoE) ports quantity Power over Ethernet (PoE) - 7
Power over Ethernet (PoE) Power over Ethernet (PoE) - Yes
Power over Ethernet (PoE) power per port Power over Ethernet (PoE) - 65 W
Power over Ethernet plus (PoE+) ports quantity Power over Ethernet (PoE) - 1
Power source Power - AC
Power supply included Power - Yes
Producent: Nazwa producenta / importera - Mercusys
TP-LINK Polska Sp. z o.o.
Ożarowska 40/42
05-850 Duchnice

Producer - Mercusys
producerCode - MS108GP
ProducerCode - MS108GP
Product colour Design - Black
productName - Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+
productSize - Normal
Quick start guide Packaging content - Yes
Rack mounting Design - No
ShortDescription -
sizeX - 190
sizeY - 125
sizeZ - 85
Stackable Design - No
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -40 - 70 °C
Store-and-forward Data transmission - Yes
Summary - Mercusys 8-Port Gigabit Desktop Switch with 7-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 8000 entries. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Switch type Management features - Managed
Technical details > Gross weight - 0.80 kg
Technical details > Net weight - 0.60 kg
Technical details > Producer - Mercusys
Traffic classification Management features - Yes
Unit Box Height - 0.085
Unit Box Length - 0.125
Unit Box Width - 0.19
Unit Calculated Volume - 0.00252 cubm
Unit Calculated Weight - 0.858 kg
Units per Shipping Box - 12
Vendor Homepage - https://www.mercusys.com/en/product/details/ms108gp
Wall mountable Design - Yes
Warranty - 36
Warranty - 36 month(s)
Warranty - 36 months
warrantyLength - 36
warrantyType - G
Web-based management Management features - Yes
weight - 790
Weight & dimensions - Depth - 98 mm
Weight & dimensions - Height - 27 mm
Weight & dimensions - Width - 171 mm
Width Weight & dimensions - 171 mm
