ARTIKEL1 - SWITCH 8 PORT 10GBE SFP
ARTIKEL2 - 8 PORTS 10GBE RJ45
Brand - QNAP
BrandPartCode - QSW-M3216R-8S8T
Breite - 0
Category - Network Switches
Data transmission - Jumbo frames - 9000
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 16000 entries
Data transmission - Switching capacity - 320 Gbit/s
Data transmission - Throughput - 160 Gbit/s
Design - Form factor - 1U
Design - Product colour - Black
Design - Rack mounting - Yes
EANCode - 4711103084311
Gewicht - 2.3
GRUPPE1 - Network
GRUPPE2 - Switches Managed
GTIN - 4711103084311
HERSTELLER - QNAP
Hoehe - 0
HSTNUMMER - QSW-M3216R-8S8T
Laenge - 0

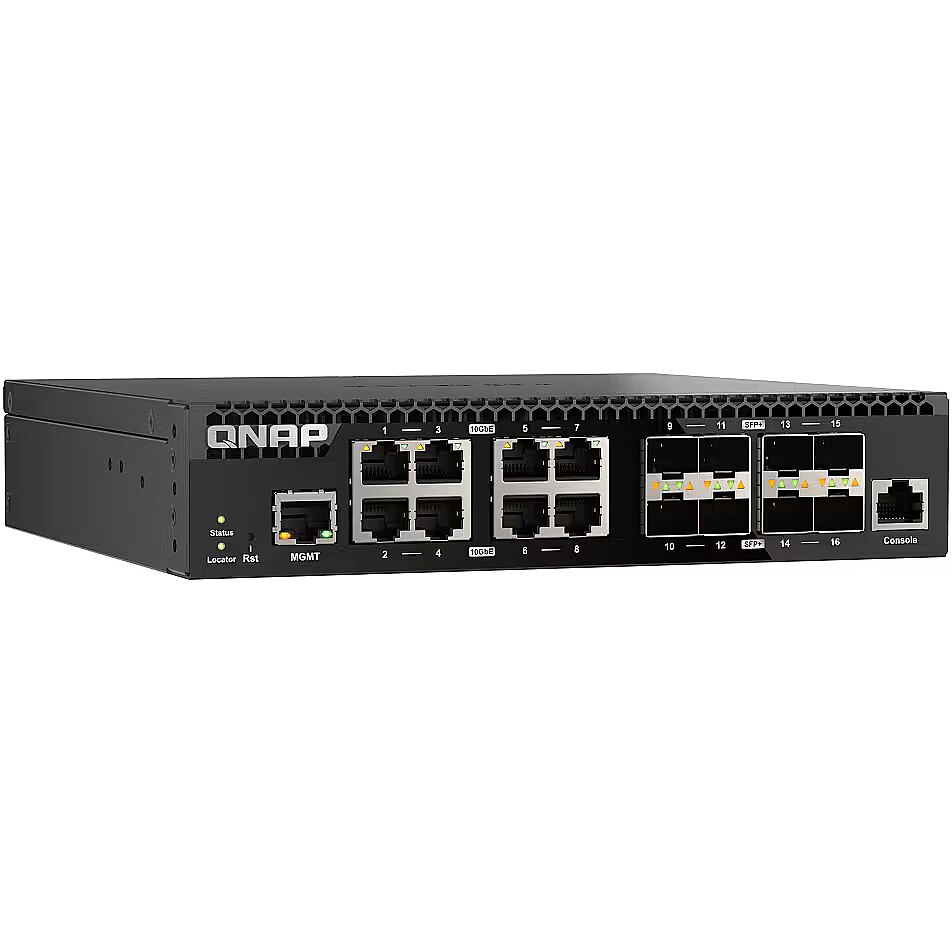

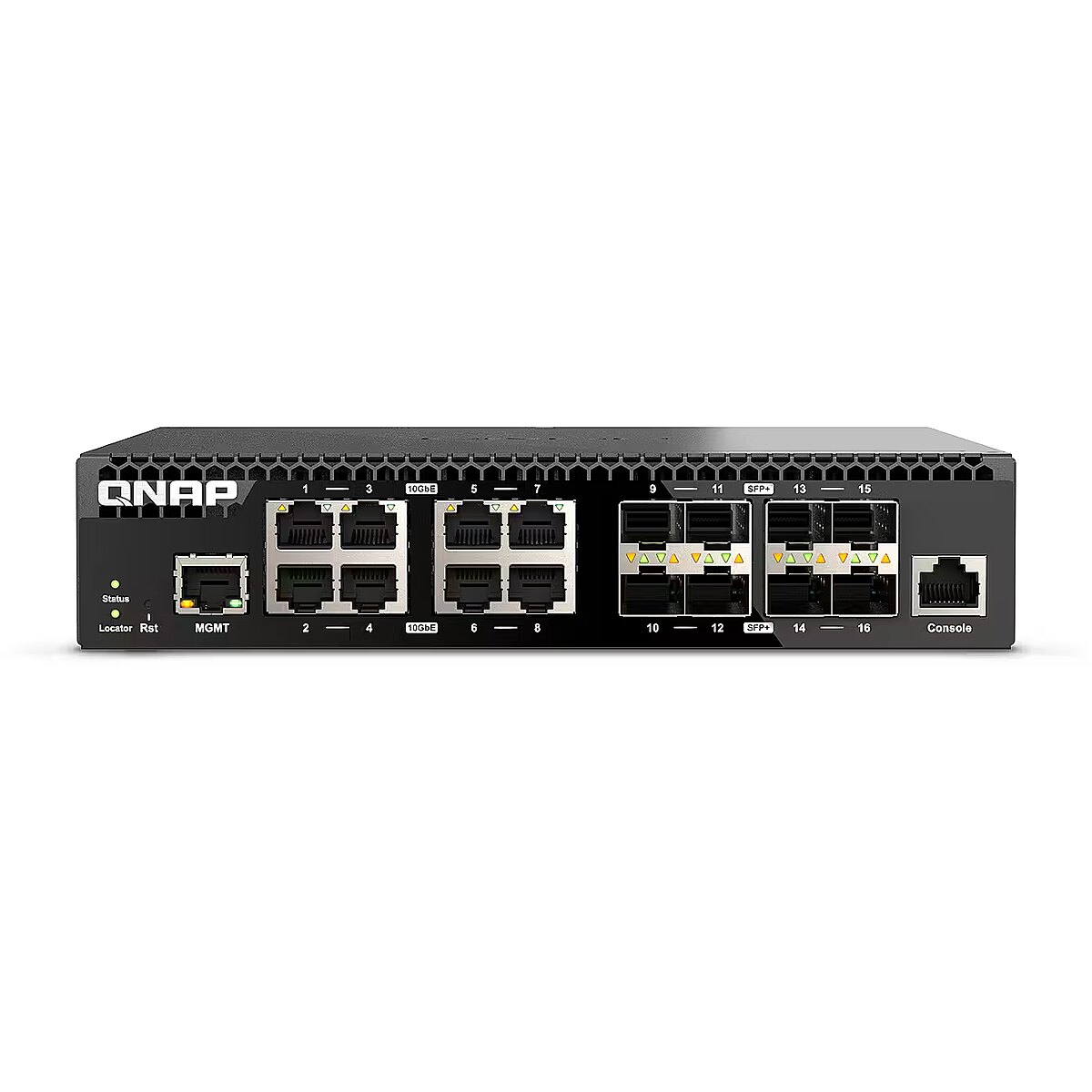

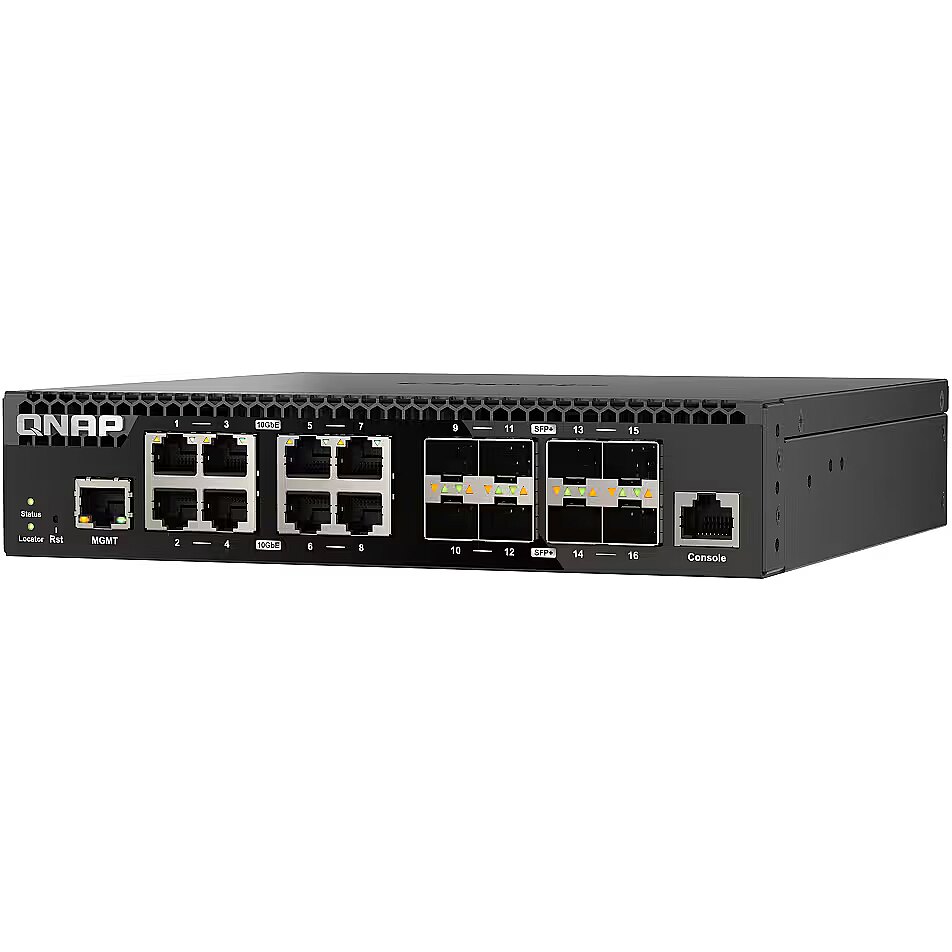

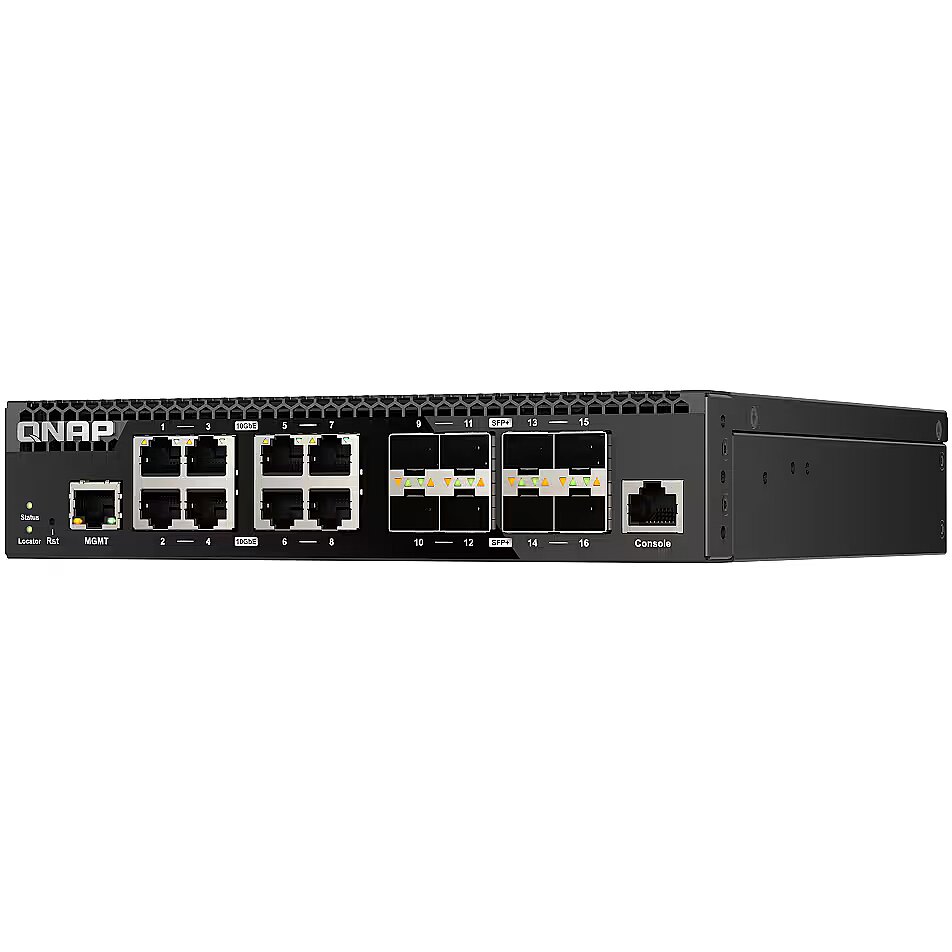

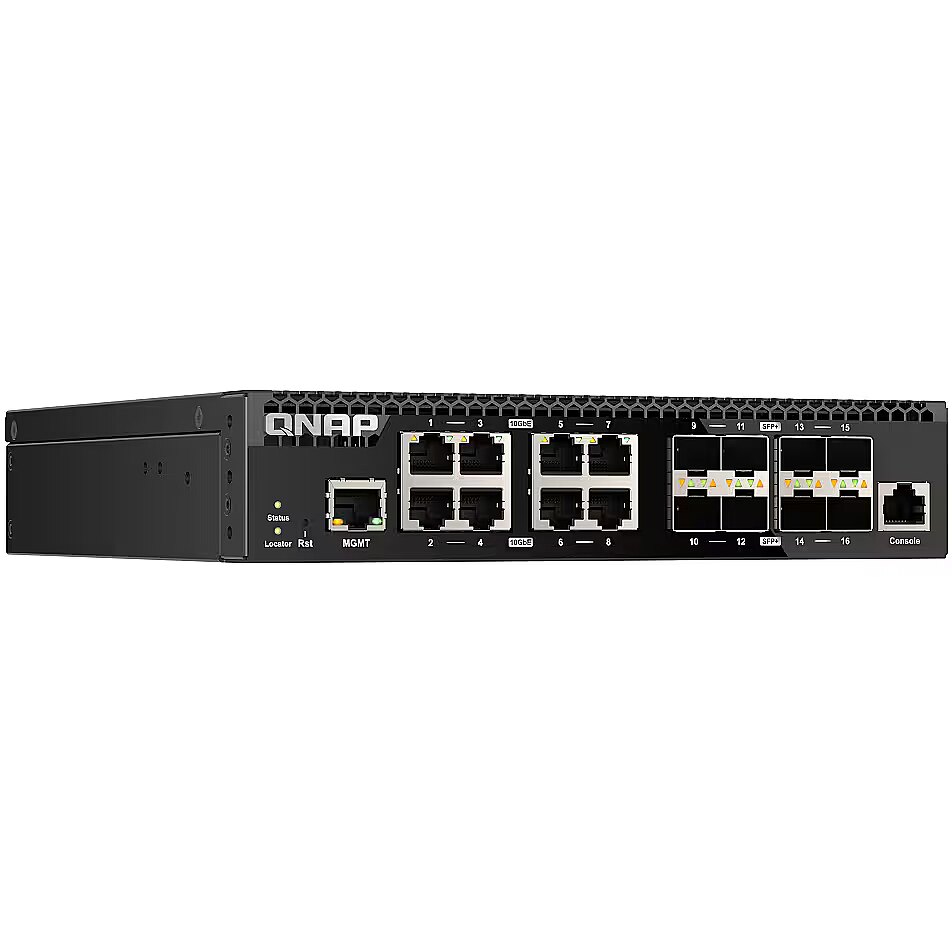

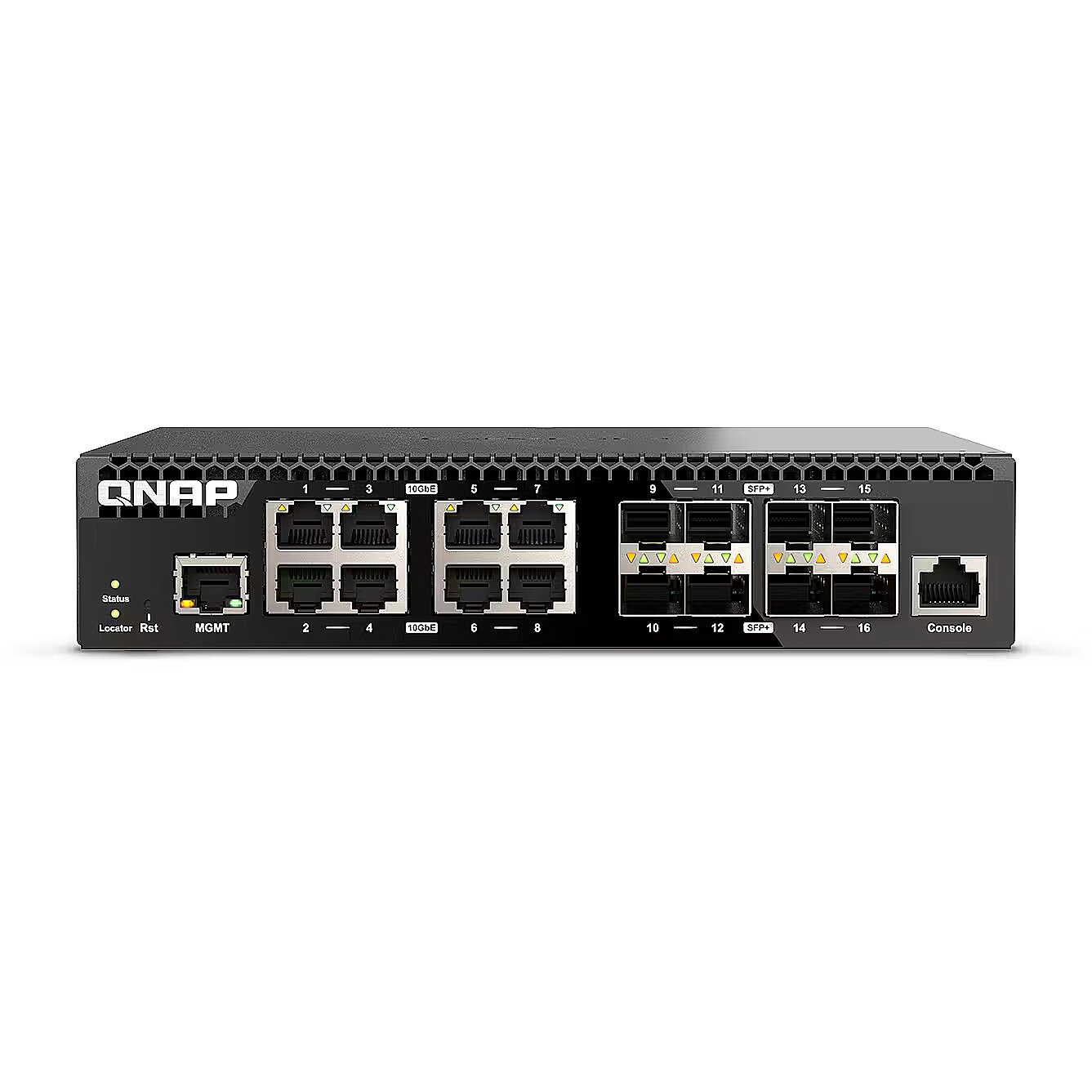

LongDesc - More 10GbE ports and more space-saving at an affordable price. The QNAP QSW-M3216R-8S8T is a half-width rackmount L2 Managed Switch with eight 10GbE SFP+ fiber ports and eight 10GbE RJ45 ports. Supporting Layer 2 switching and network management via a user-friendly web user interface, the QSW-M3216R-8S8T offers flexible deployment in high-speed network environments and provides an entry-level network management solution. With a half-width design, the QSW-M3216R-8S8T can be conveniently placed within working environments without taking up too much space, and two can be installed in a single 1U rack space. The QSW-M3216R-8S8T is made in Taiwan (MIT), providing a high-quality and reliable networking solution. 10G Multi-Gig connectivity Includes eight 10GbE RJ45 and eight 10GbE SFP+ fiber ports for connecting different interfaces. User-friendly management interface The QNAP Switch System (QSS) is easy to use and provides an overview dashboard, port management and setting guide, making central network management intuitive. Layer 2 network Provides Layer 2 management features (such as LACP, VLAN, ACL and LLDP) for IT staff to efficiently control network bandwidth and enhance security. RSTP One of the few web-managed switches that supports Rapid Spanning Tree Protocol (RSTP). Easily and efficiently deploy small/medium-scale networks that support expansion, redundancy, and loop prevention. Online firmware update QSS can be updated with just one click, helping IT staff ensure their network security. Flow Control Compliant with IEEE802.3x Flow Control in full-duplex mode, the QSW-M3216R-8S8T avoids packet loss from unparalleled bandwidth.Flexible deployment with sixteen 10GbE SFP+ and RJ45 portsThe QSW-M3216R-8S8T provides eight 10GbE SFP+ ports and eight 10GbE RJ45 ports for connecting various devices and enabling high-speed networks. With SFP+ interfaces, Direct Attach Copper (DAC) cables can be used for connecting directly to SFP+ devices. You can also use RJ45 ports to connect 10GBASE-T/NBASE-T™ devices through RJ45 Category 6 (or better) cabling. Dependable performance with effective heat dissipationWith a compact metal body that optimizes cooling performance, the QSW-M3216R-8S8T provides stable and reliable operations even when under full load. The front-panel LEDs also assist in viewing the current system status.QSS: Human-centered settings guideThe QSW-M3216R-8S8T uses the QNAP Switch System (QSS), featuring an easy-to-use Web GUI with Layer 2 management and value-added functions to simplify network set up and management.
LongProductName - Web Managed, 8 (10G/1G), 8 (10G/5G/2.5G/1G/100M), 1 x 1GbE RJ45, Internal Power supply Unit
LongSummaryDescription - QNAP QSW-M3216R-8S8T. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000), Basic switching RJ-45 Ethernet ports quantity: 8, Installed SFP+ modules quantity: 8, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z. Rack mounting, Form factor: 1U
Management features - Switch layer - L2/L3
Management features - Switch type - Managed
Network - 10G support - Yes
Network - Flow control support - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 8
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - 10G Ethernet (100/1000/10000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Installed SFP+ modules quantity - 8

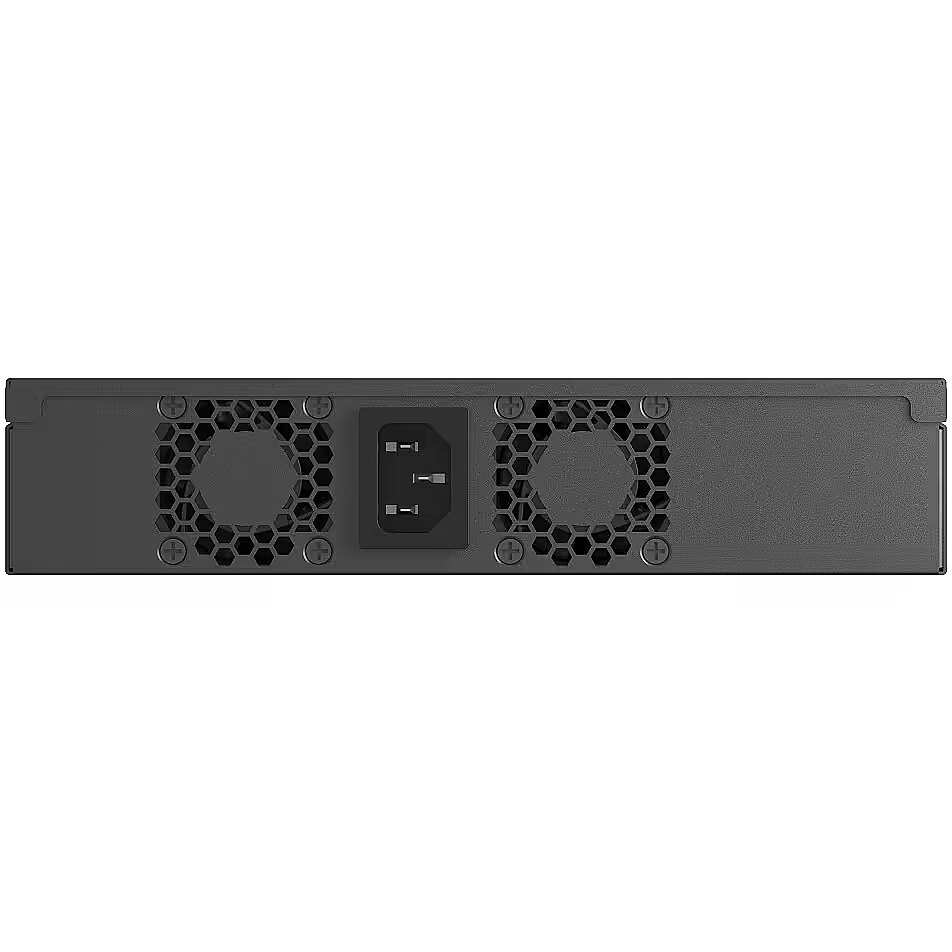

Power - AC input frequency - 50/60 Hz
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 48.632 W
Power - Power source - AC
ProductName - QSW-M3216R-8S8T
Security - Access Control List (ACL) - Yes
ShortSummaryDescription - QNAP QSW-M3216R-8S8T, Managed, L2/L3, 10G Ethernet (100/1000/10000), Rack mounting, 1U
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Title - QNAP QSW-M3216R-8S8T network switch Managed L2/L3 10G Ethernet (100/1000/10000) 1U Black
URL - https://www.qnap.com/en/product/qsw-m3216r-8s8t
WarrantyInfo -
Weight & dimensions - Depth - 199.5 mm
Weight & dimensions - Height - 43.3 mm
Weight & dimensions - Weight - 1.52 kg
Weight & dimensions - Width - 207 mm
