Data transmission - Forwarding rate - 7.44 Mpps
Data transmission - Jumbo frames - 15
Data transmission - Jumbo frames support - Yes
Data transmission - MAC address table - 2000 entries
Data transmission - Packet buffer memory - 1 MB
Data transmission - Store-and-forward - Yes
Data transmission - Switching capacity - 10 Gbit/s
Design - Certification - CE, FCC, RoHS
Design - Housing material - Plastic
Design - LED indicators - Activity
Design - LED indicators - Link
Design - LED indicators - Power
Design - Product colour - Black
Design - Rack mounting - No
Design - Stackable - No
Design - Wall mountable - Yes
dimensionalWeight - 132
Network - Auto MDI/MDI-X - Yes
Network - Cable types supported - Cat3
Network - Cable types supported - Cat5
Network - Cable types supported - Cat5e
Network - Copper ethernet cabling technology - 10BASE-T
Network - Copper ethernet cabling technology - 100BASE-TX
Network - Copper ethernet cabling technology - 1000BASE-T
Network - Full duplex - Yes
Network - MAC address auto-aging supported - Yes
Network - MAC address auto-learning supported - Yes
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3u
Network - Networking standards - IEEE 802.3x
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 90%
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Packaging data - Quick start guide - Yes
Ports & interfaces - Basic switching RJ-45 Ethernet ports quantity - 5
Ports & interfaces - Basic switching RJ-45 Ethernet ports type - Gigabit Ethernet (10/100/1000)
Ports & interfaces - Console port - RJ-45
Ports & interfaces - Gigabit Ethernet (copper) ports quantity - 5
Ports & interfaces - Power connector - DC-in jack
Power - AC input voltage - 100 - 240 V
Power - Power consumption (max) - 1.7 W
Power - Power source - AC
Power - Power supply included - Yes
Power over Ethernet (PoE) - Power over Ethernet (PoE) - No
producerCode - SG105M

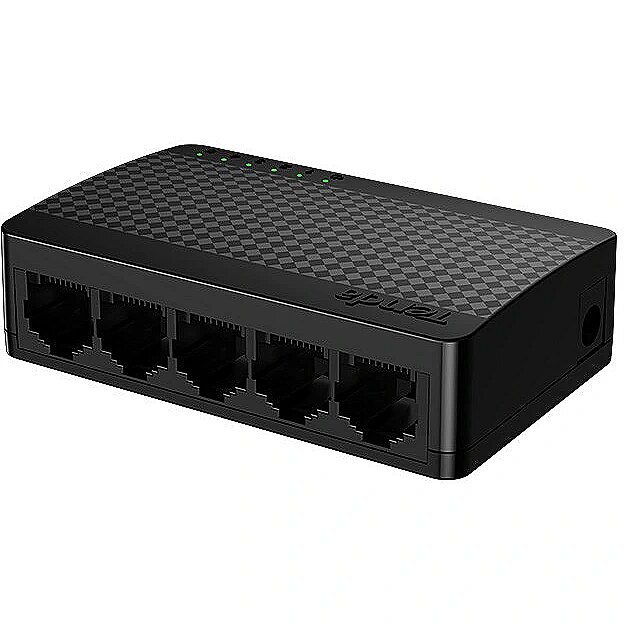

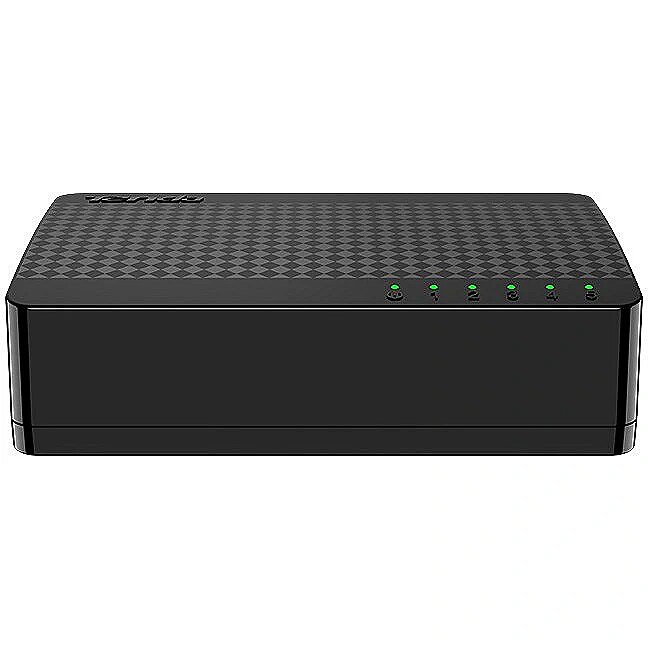

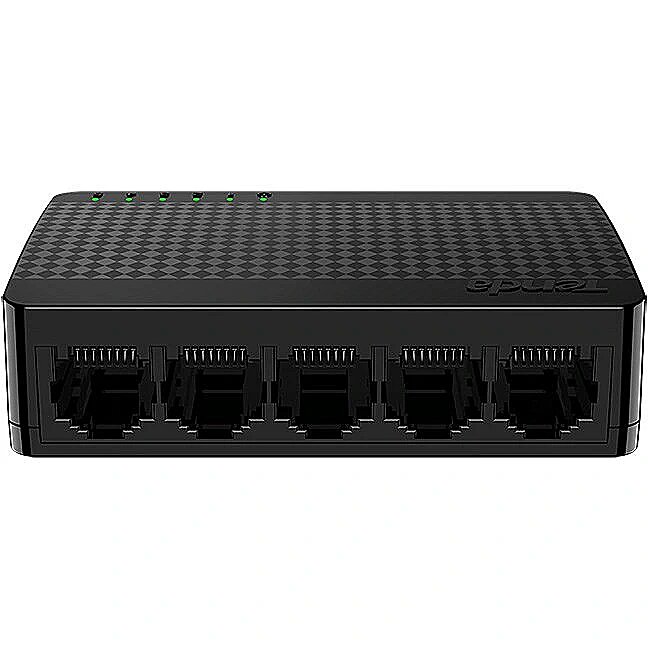

productName - Tenda SG105M network switch Gigabit Ethernet (10/100/1000) Black
productSize - Normal
sizeX - 105
sizeY - 90
sizeZ - 70
warrantyLength - 36
warrantyType - G
weight - 145
Weight & dimensions - Depth - 52 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Width - 82 mm
