Startech 2PORT 1 GBPS PCIE ETHERNET NETWORK ADAPTER - DUAL NIC IN

ARTIKEL1 - 2PORT 1 GBPS PCIE ETHERNET
ARTIKEL2 - NETWORK ADAPTER - DUAL NIC
Brand - StarTech.com
BrandPartCode - ST1000SPEXD4
Category - Network Cards
Design - Certification - CE, FCC
Design - Chipset - Realtek - RTL8111E, Asmedia - ASM1182E
Design - Internal - Yes
Design - LED indicators - Activity, Link
EANCode - 0065030859356
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030859356
GTIN - 065030859356
GTIN - 0650308593560
GTIN - 650308593560
GTIN - 0723856188004
GTIN - 723856188004
GTIN - 0822510500906
GTIN - 822510500906
HERSTELLER - STARTECH
HSTNUMMER - ST1000SPEXD4
Logistics data - Harmonized System (HS) code - 85176990

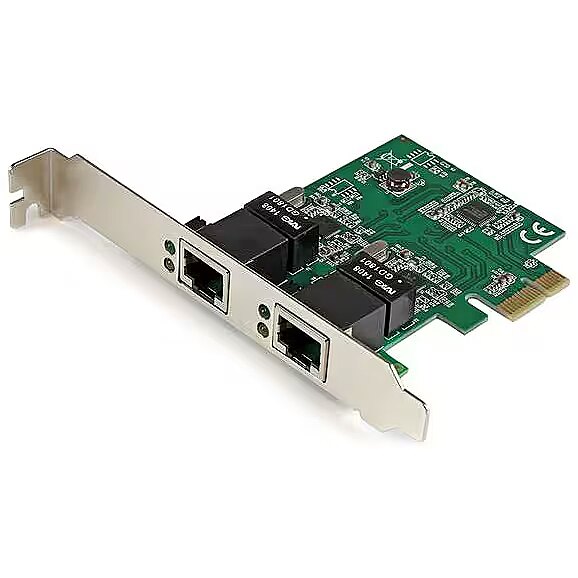

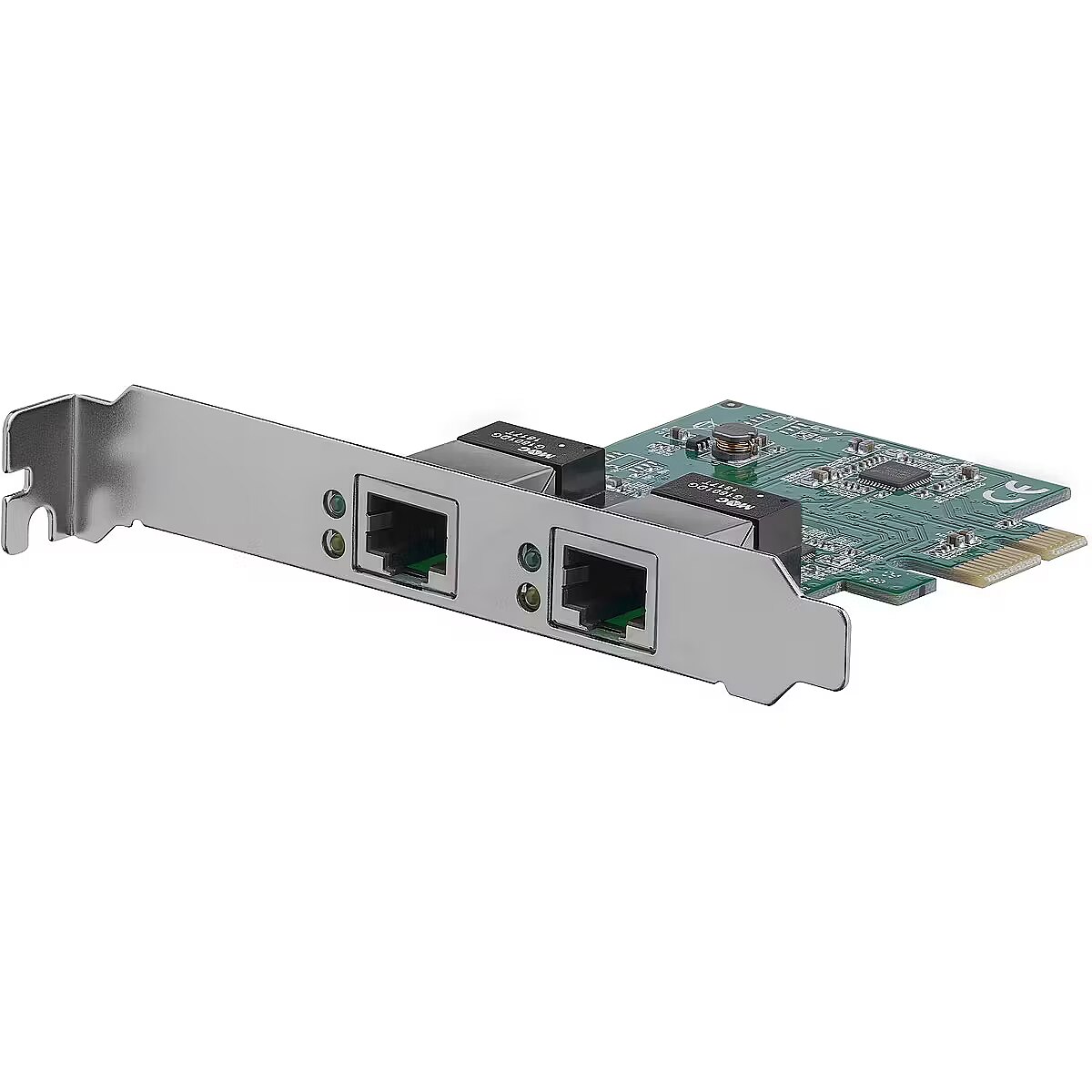

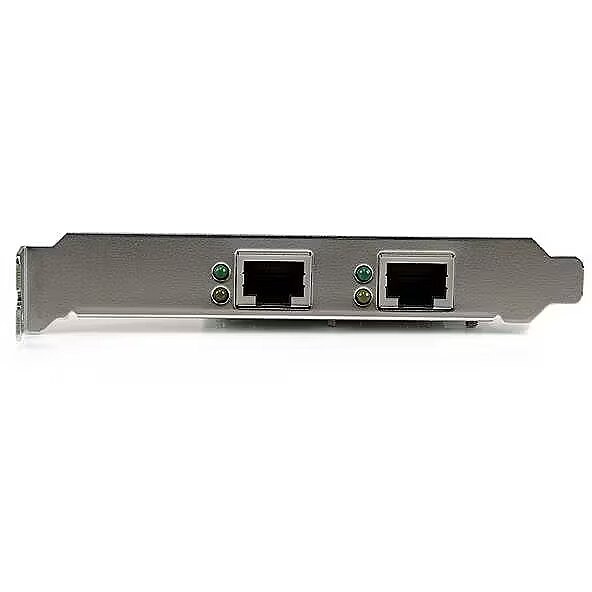

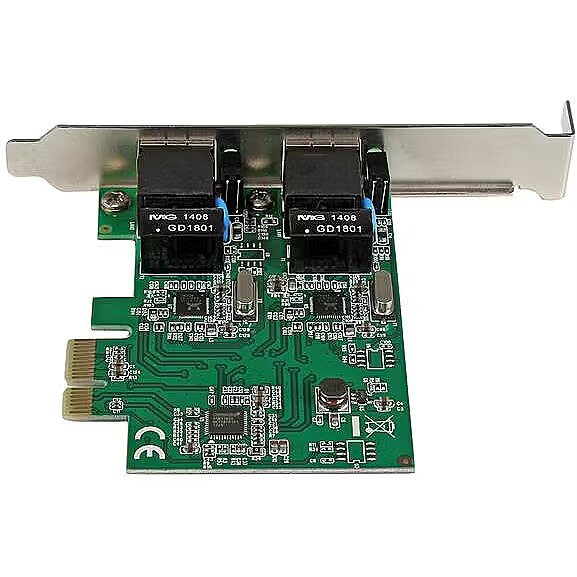

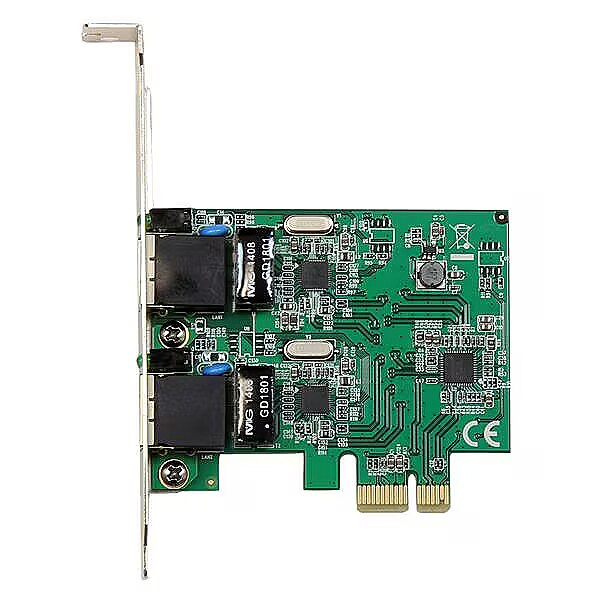

LongDesc - The ST1000SPEXD4 PCI Express Dual-Port Gigabit Network Card lets you add two gigabit Ethernet ports to a client, server or workstation through a single PCIe slot. Each port provides 10/100/1000 Mbps capable Ethernet and is fully compatible with IEEE 802.3/u/ab standards.Suitable for any standard PCI Express-enabled system, the 2-port Ethernet card supports full-duplex flow control for maximum data transfer speeds of up to 2000 Mbps - an ideal 2-port NIC for setting up dual-homed, or multi-homed host configurations providing added security to corporate networks.The dual-port server adapter is compliant with the PCIe 2.0 standard and features support for Jumbo Frames and 802.1q VLAN tagging as well as Wake on LAN (WoL). The adapter includes an optional low-profile / half-height bracket that can be used for installation into a standard or small form-factor computer chassis.The StarTech.com Advantage- Protect critical networked systems with a redundant and independent Gigabit port- Optimize network traffic with support for advanced features such as Jumbo Frames and VLAN tagging- Maximize the networking efficiency of your virtualized server, with dedicated ports
LongProductName - StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - 1 Gbps PCIe NIC - Dual Port Server Adapter - 2 Port Ethernet Card
LongSummaryDescription - StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 2000 Mbit/s
Network - Auto MDIX IEEE - Yes
Network - Cabling technology - 10/100/1000BaseT(X)
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Full duplex - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 2000 Mbit/s
Network - Networking standards - IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Network - VLAN tagging - Yes
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 10 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 0 - 100 °C
Other features - Flow control support - Yes
Packaging content - Manual - Yes
Packaging data - Drivers included - Yes
Packaging data - Low-profile bracket - Yes
Packaging data - Package depth - 143 mm
Packaging data - Package height - 30 mm
Packaging data - Package weight - 142 g
Packaging data - Package width - 170 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI version - 2.0
ProductName - Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
ShortSummaryDescription - StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s
Stck_Kart - 50
Stck_Pal - 100
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
System requirements - Server operating systems supported - Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
System requirements - Windows operating systems supported - Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com Dual Port Gigabit PCI Express Server Network Adapter Card - PCIe NIC
URL - https://www.startech.com/uk/Networking-IO/Adapter-Cards/PCI-Express-Dual-Port-Server-NIC~ST1000SPEXD4
WarrantyInfo - 2 Year
Weight & dimensions - Depth - 92.6 mm
Weight & dimensions - Height - 120 mm
Weight & dimensions - Weight - 51 g
Weight & dimensions - Width - 18 mm
