Startech 2.5GBPS POE NETWORK CARD .

ARTIKEL1 - 2.5GBPS POE NETWORK CARD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - PR22GIP-NETWORK-CARD
Breite - 0
Category - Network Cards
Design - Chipset - Intel I225-V
Design - Component for - PC/Server
Design - Internal - Yes
Design - LED indicators - Yes
EANCode - 0065030903523
Gewicht - 0.21
GRUPPE1 - Network
GRUPPE2 - Network Adapters
GTIN - 0065030903523
GTIN - 065030903523
HERSTELLER - STARTECH
Hoehe - 0
HSTNUMMER - PR22GIP-NETWORK-CARD
Laenge - 0
Logistics data - Master (outer) case height - 320 mm
Logistics data - Master (outer) case length - 420 mm
Logistics data - Master (outer) case width - 440 mm
Logistics data - Products per master (outer) case - 40 pc(s)

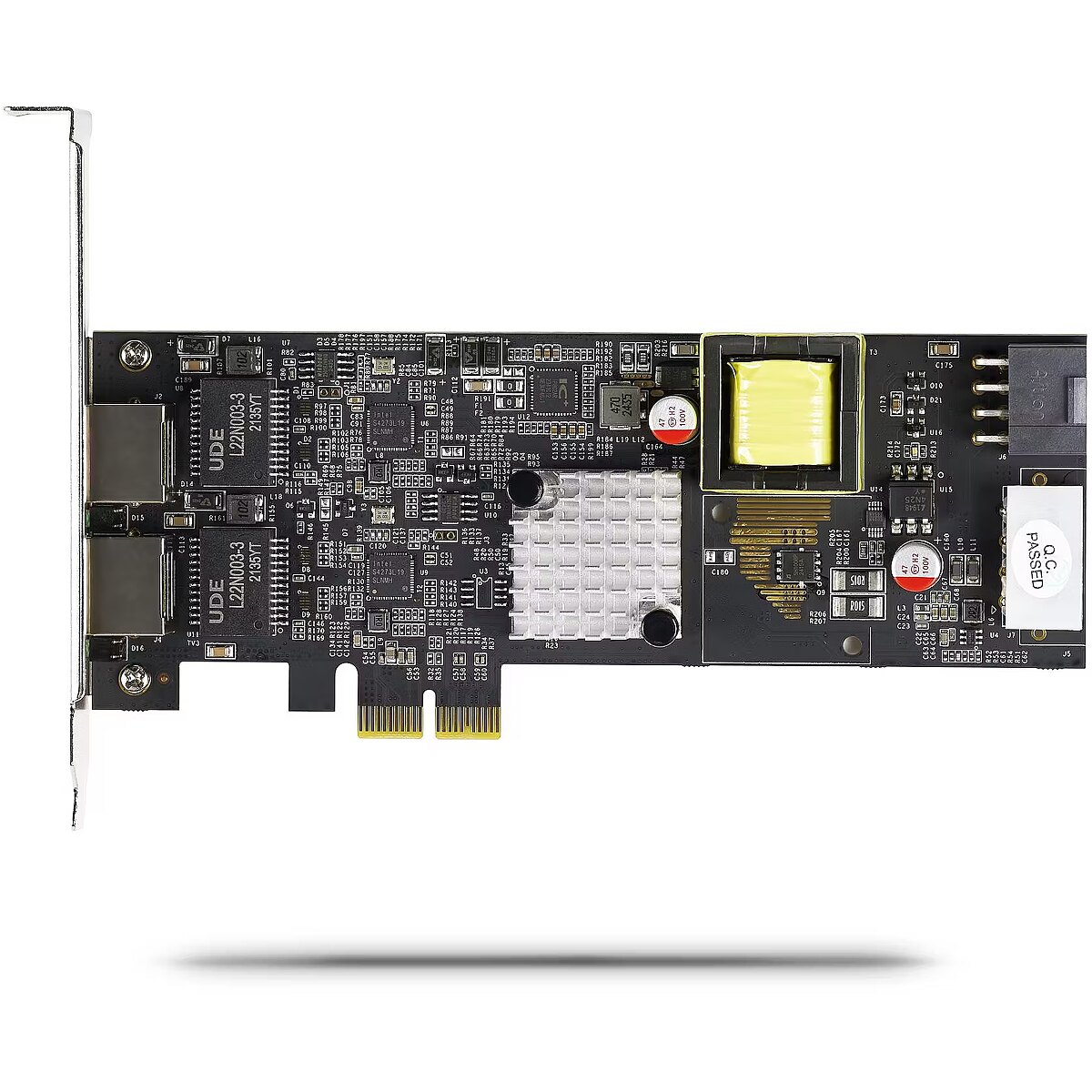

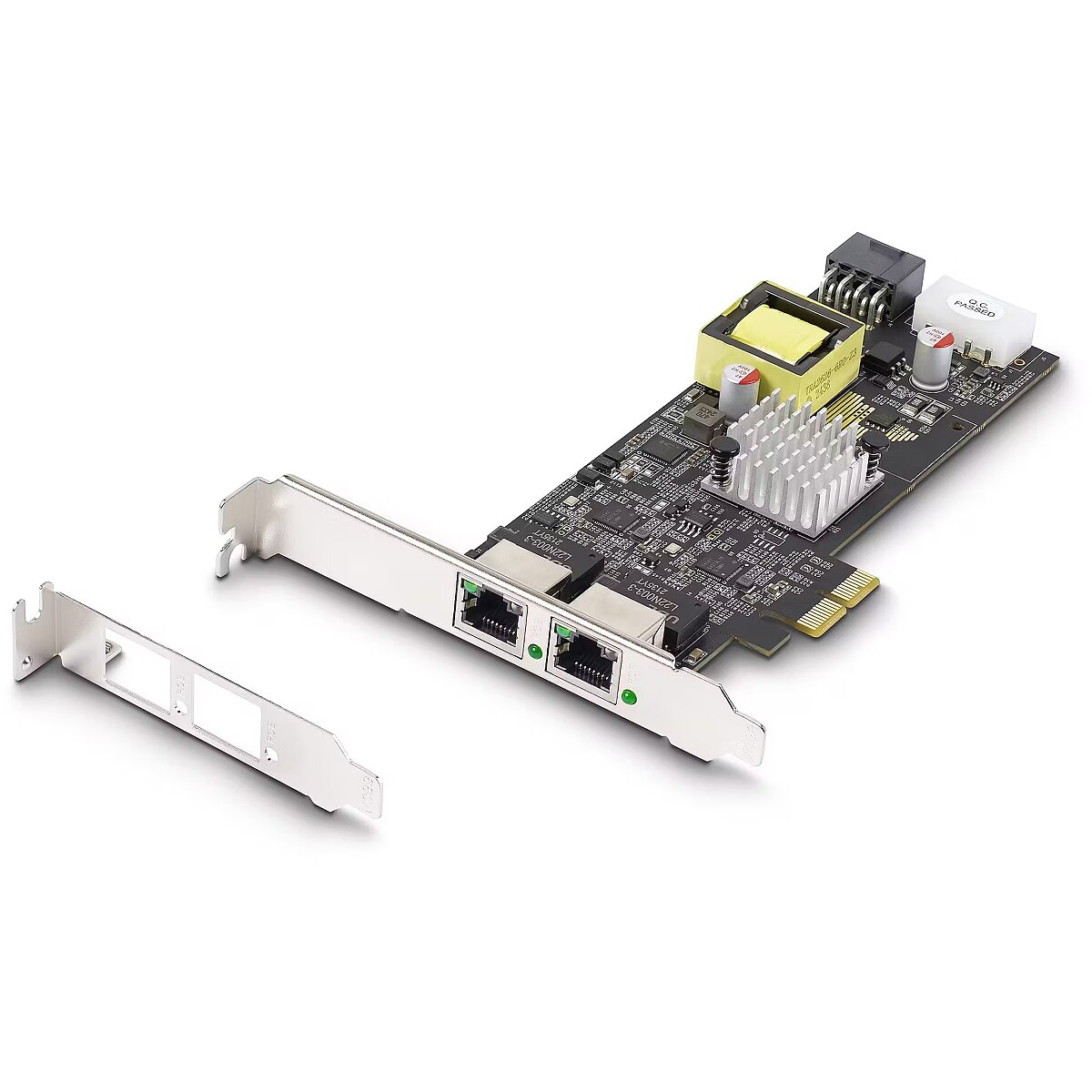

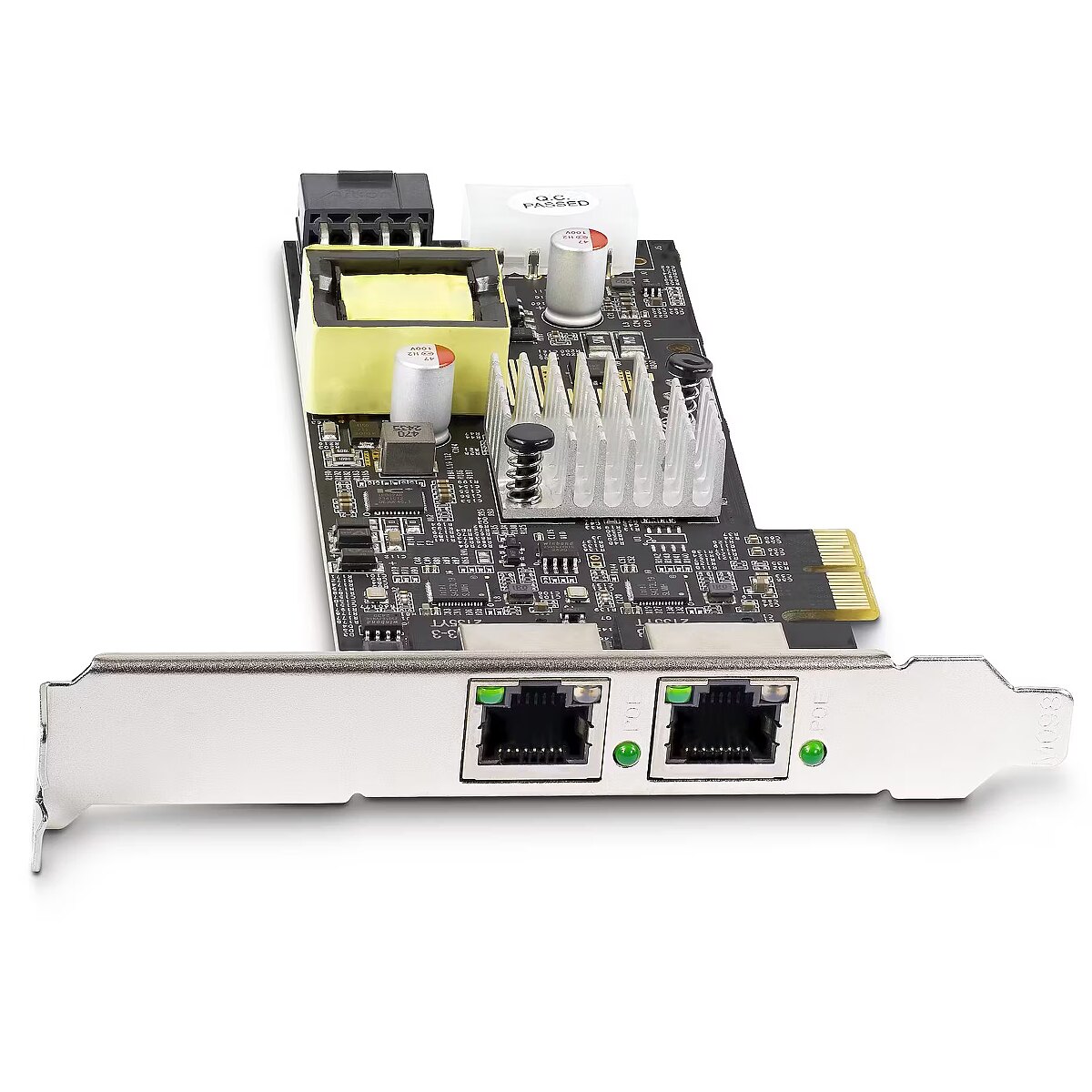

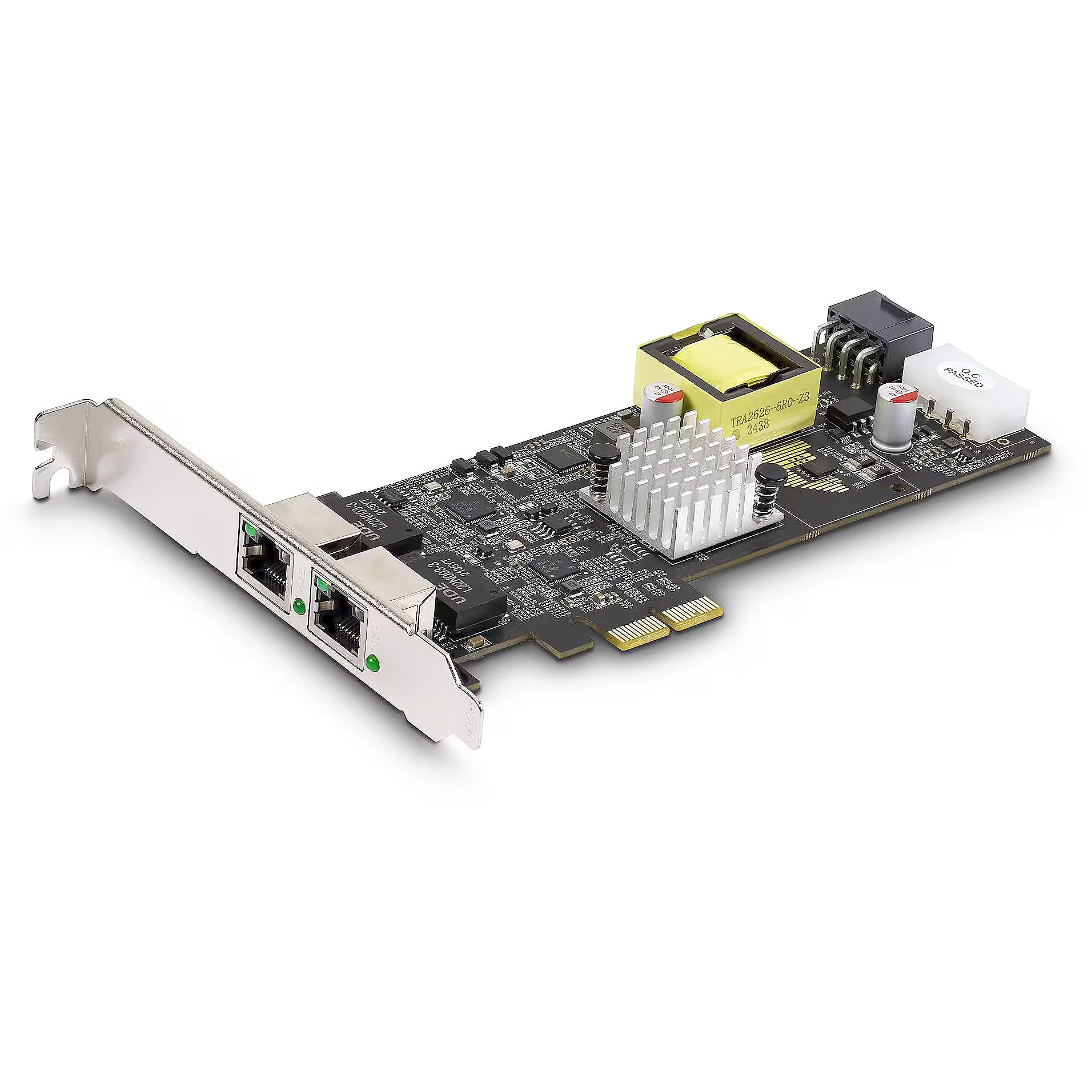

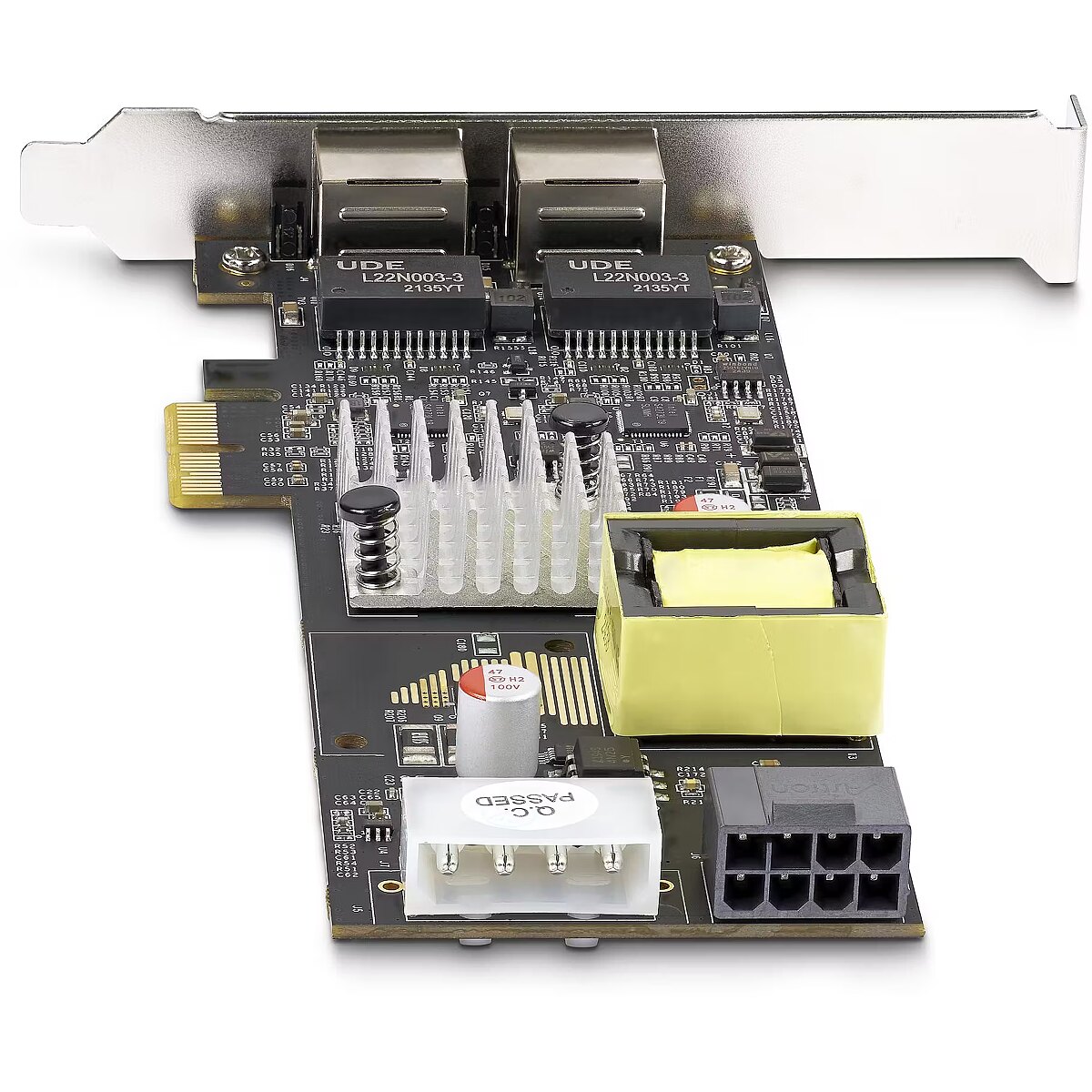

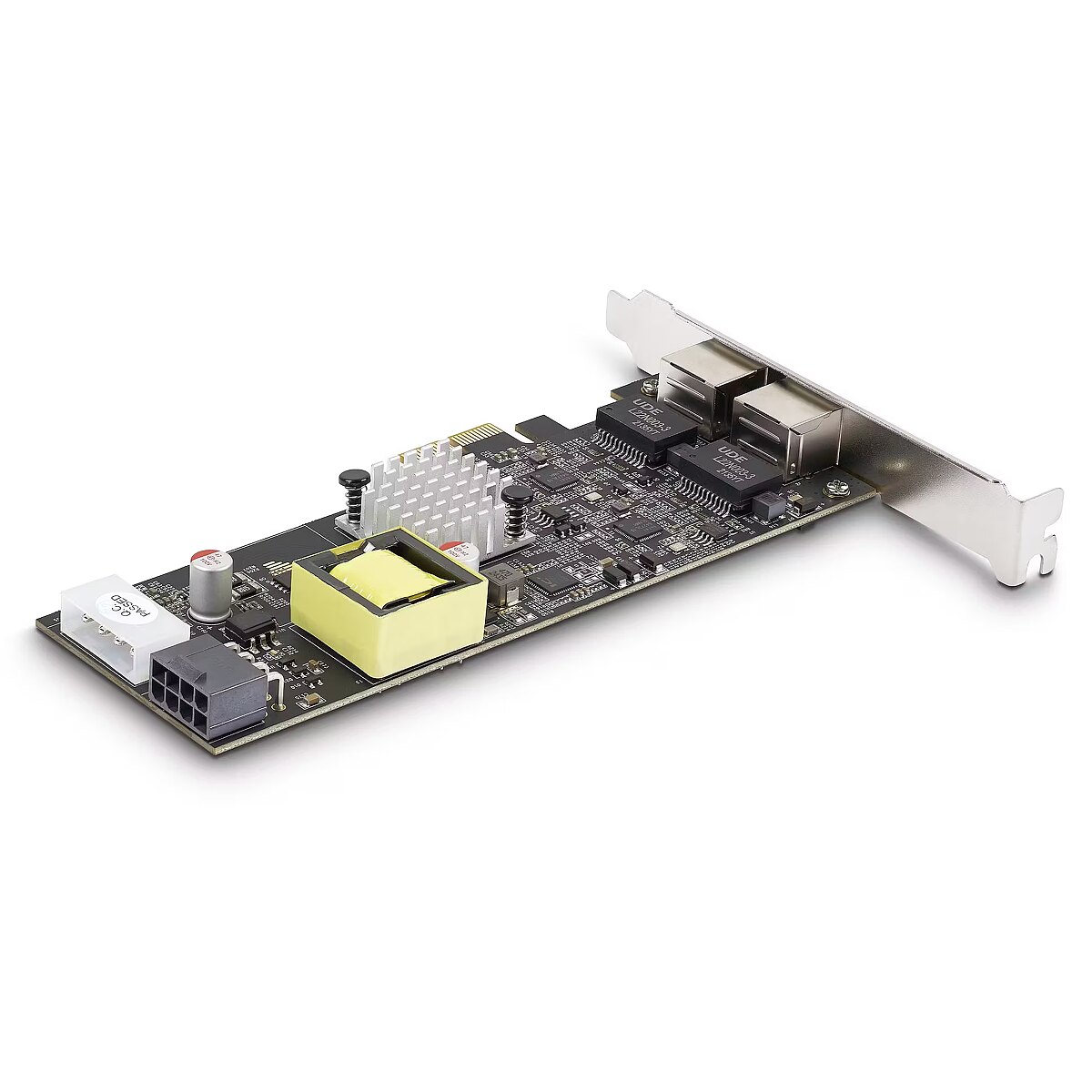

LongDesc - Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled ComputerThis 2.5 GbE network interface card (NIC) features dual Intel I225-V chipsets with Intel vPro technology to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing CAT5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.Power Over EthernetThe PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power per port to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supplies or PoE injectors for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.Increased Network SpeedThe PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network interface card connects through an available PCI Express x2 2.0 (or higher) expansion slot. The card ships with a standard-profile bracket pre-installed and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9K jumbo frame, full-duplex, and Intel vPro technology.The StarTech.com Advantage
LongProductName - StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, Windows/Linux
LongSummaryDescription - StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered. Internal. Connectivity technology: Wired, Host interface: PCI Express. Maximum data transfer rate: 2500 Mbit/s
Network - Auto MDIX IEEE - Yes
Network - Ethernet interface type - 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 10,100,1000,2500 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames - 9000
Network - Jumbo frames support - Yes
Network - Maximum data transfer rate - 2500 Mbit/s
Network - Networking standards - IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u
Network - Quality of Service (QoS) support - Yes
Network - VLAN support - Yes
Network - Wake-on-LAN ready - Yes
Operational conditions - Operating relative humidity (H-H) - 5 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 55 °C
Operational conditions - Storage temperature (T-T) - -10 - 70 °C
Packaging content - Mounting brackets included - Yes
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 144 mm
Packaging data - Package height - 38 mm
Packaging data - Package weight - 106 g
Packaging data - Package width - 207 mm
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - PCI version - 2.0
Ports & interfaces - Power over Ethernet (PoE) ports quantity - 2
Power - Output voltage - 48 V
ProductName - 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered
ShortSummaryDescription - StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered, Internal, Wired, PCI Express, 2500 Mbit/s
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
System requirements - Linux operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2019, Windows Server 2022
System requirements - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Technical details - Compliance certificates - RoHS
Title - StarTech.com 2-Port 2.5Gbps NBASE-T PoE Network Card, Dual Intel I225-V, 802.3af/at PoE+ Multi-Gigabit NIC, PCI Express Server LAN Card, LP4/8-Pin PCIe-Powered
URL - https://www.startech.com/en-us/PR22GIP-NETWORK-CARD
WarrantyInfo - 2 Years
Weight & dimensions - Depth - 180 mm
Weight & dimensions - Height - 22 mm
Weight & dimensions - Weight - 111 g
Weight & dimensions - Width - 121 mm
