Synology E10G30-T2 NW CARD 2X RJ45 10GBE

Accessories included -
Antenna - Not applicable
Cabling technology Network - 10/100/1000BaseT(X)
Category - Root/Electronics/PC parts/Controllers
Category 1 - Netzwerk
Category 2 - NAS-Systeme
Category Code - NIC
Category_1 - Network and Servers
Category_2 - NAS
Chipset type -
Code - E10G30-T2
Component for Design - Server/workstation
Connectivity technology Ports & interfaces - Wired
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Głębokość - 167.7 mm
Dane techniczne: Interfejs - PCI-E (x4)
Dane techniczne: LAN 10 Gb/s - 2 szt.
Dane techniczne: Producent - Synology
Dane techniczne: Przeznaczenie - NAS
Dane techniczne: Rodzaj komunikacji - przewodowa
Dane techniczne: Szerokość - 68.9 mm
Dane techniczne: Typ - wewnętrzna
Dane techniczne: Wysokość - 14.7 mm
Data Act - Link
Depth Weight & dimensions - 14.7 mm

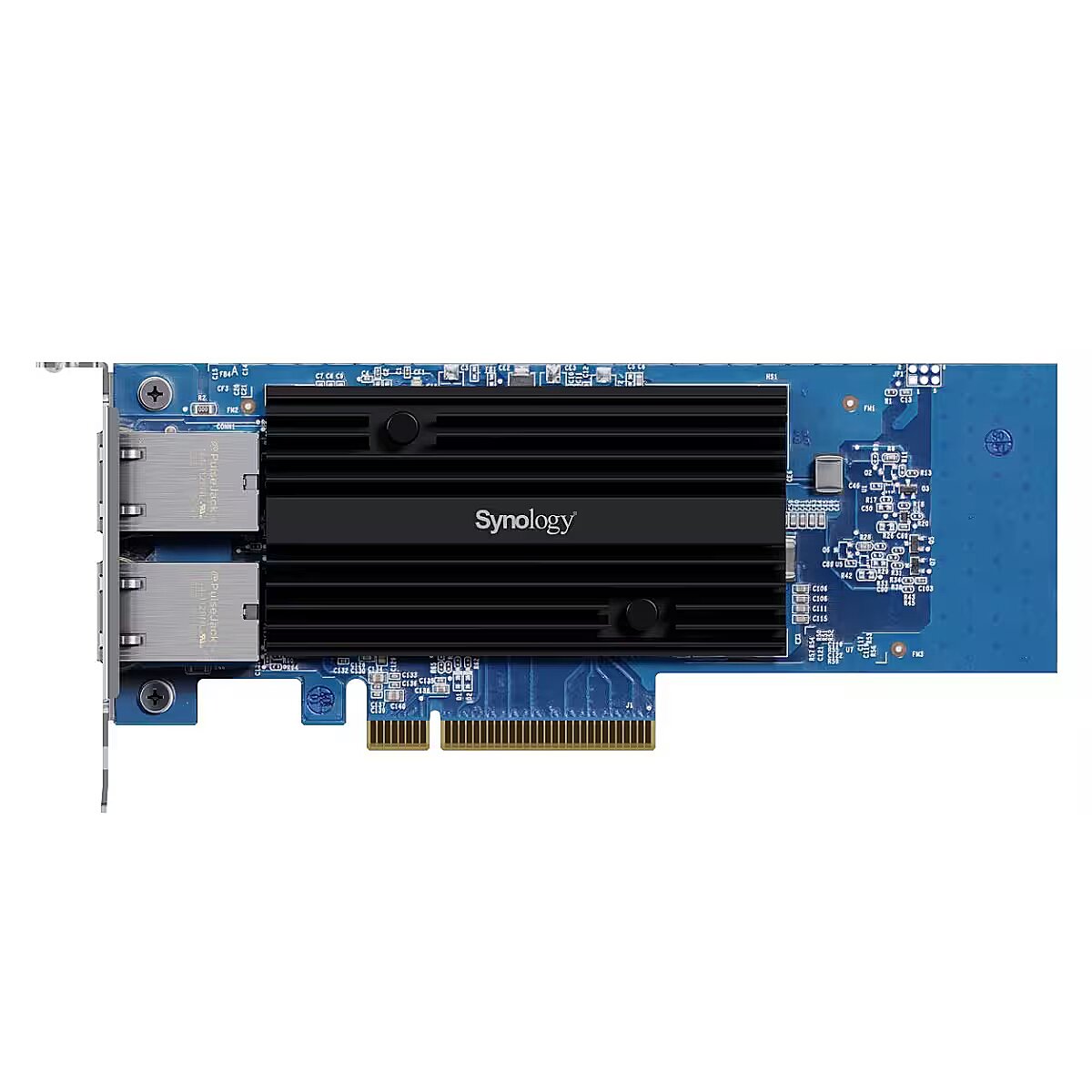

Description - E10G30-T2 Dual-port 10GbE 10GBASE-T expansion card for Synology systems Boost your bandwidth in minutes Easy deployment The familiar RJ45 connector is backwards compatible with older networks and allows for gradual expansion. Link aggregation Two 10GbE ports can be combined into a link aggregation group to increase throughput up to 20 Gbps while providing port failover and load balancing. CPU offloading and load balancing Support for CPU offloading and load balancing technologies enables optimal system performance.
Description - Throughput Increase network performance with 10GbE connectivity Flexibility Easy integration to existing deployments Compatibility Designed for maximum performance and reliability in Synology systems
Design - Component for - Server/workstation
Design - Internal - Yes
Design - Product colour - Blue
Design - Product colour - Multicolour
Designation - CE+WEEE
dimensionalWeight - 234
dimension depth - 40 mm
dimension height - 130 mm
Dimensions -  68.9 x 167.7 x 14.7 mm
dimension weight - 206 g
dimension width - 230 mm
EAN - 4711174724819
ean - 4711174724819
Eans - 4711174724819
EAN_code - 4711174724819
Ethernet interface type Network - 10 Gigabit Ethernet, Gigabit Ethernet
Ethernet LAN (RJ-45) ports Ports & interfaces - 2
Ethernet LAN data rates Network - 100,1000,10000 Mbit/s
Ethernet LAN Network - Yes
Full duplex Network - Yes
Gross Weight Kg - 1
guarantee - 60
guarantee_type - normal
Height Weight & dimensions - 68.9 mm
Host interface Ports & interfaces - PCI Express
I/O ports - 2 x 10GBASE-T
Interface - PCIe
Interface Ports & interfaces - Ethernet
Internal Design - Yes
Link - https://www.synology.com/en-me/products/E10G30-T2
Manufacturer - Synology
Manufacturer Code - E10G30-T2
Manufacturer Name - Synology
Manufacturer_code - E10G30-T2
Maximum data transfer rate Network - 10000 Mbit/s
Model - E10G30-T2
Model name - E10G30-T2
MPN - E10G30-T2
Name - E10G30-T2 - Eingebaut - Kabelgebunden - PCI Express - Ethernet - 10000 Mbit/s - Blau - Mehrfarbig
name - E10G30-T2 10GbE 10BASE Dual Port PCI-E
Name - Synology Dual-port 10GbE 10GBASE-T add-in card | E10G30-T2 | PCIe 3.0 x8
Name - Synology E10G30-T2
Name - Synology E10G30-T2, LAN adapter
Network - Cabling technology - 10/100/1000BaseT(X)
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet interface type - Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - Ethernet LAN data rates - 100
Network - Ethernet LAN data rates - 1000 Mbit/s
Network - Ethernet LAN data rates - 10000 Mbit/s
Network - Full duplex - Yes
Network - Maximum data transfer rate - 10000 Mbit/s
Network - Networking standards - IEEE 802.3ab
Network - Networking standards - IEEE 802.3an
Network - Networking standards - IEEE 802.3x
Networking standards Network - IEEE 802.3ab, IEEE 802.3an, IEEE 802.3x
Number of antennas - Not applicable
Operating frequency - Not applicable
Operating relative humidity (H-H) Operational conditions - 8 - 80%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Operational conditions - Operating relative humidity (H-H) - 8 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 5 - 95%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Other features - TCP Segmentation Offload (TSO) Receiving side scaling (RSS) General Segmentation Offload (GSO) Jumbo frame size 1.59 KB TCP/UDP checksum offloading Transmission Side Scaling (TSS) SR-IOV Large Load Offload (LRO)
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 14.7 mm
Package features > Gross height (mm) - 68.9 mm
Package features > Gross width (mm) - 167.7 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 3846 pc(s)
Package features > Paper/Pasteboard - 50 g
Package features > Plastic (No PET) - 10 g
Package features > Tare weight (kg) - 0.06 kg
Package features > Volume (m3) - 0.000169851591 m³
Package features > WEEE tax - No
PCI Card form factor Ports & interfaces - Full-height (low-profile)
PCI version Ports & interfaces - 3.0
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - Host interface - PCI Express
Ports & interfaces - Interface - Ethernet
Ports & interfaces - PCI Card form factor - Full-height (low-profile)
Ports & interfaces - PCI version - 3.0
Ports & interfaces > Host interface - PCIe 3.0 x8
Producent: Nazwa producenta / importera - Synology
Synology GmbH
Grafenberger Allee 295
40237 Düsseldorf

producer - Synology
Producer - Synology
producerCode - E10G30-T2
ProducerCode - E10G30-T2
Producer product family - Dual-port 10GbE 10GBASE-T add-in card
Producer product name - E10G30-T2
Product colour Design - Blue, Multicolour
productName - Synology E10G30-T2 network card Internal Ethernet 10000 Mbit/s
productSize - Normal
Security -
ShortDescription - Dwuportowa karta rozszerzeń 10GbE 10GBASE-T dla serwerów Synology
Short description - Synology NAS 2x 10GBase-T RJ-45 Netzwerkkarte E10G30-T2
sizeX - 225
sizeY - 130
sizeZ - 40
Standards - 802.3ab
Standards - 802.3ad
Standards - 802.3an
Standards - 802.3x
Storage relative humidity (H-H) Operational conditions - 5 - 95%
Storage temperature (T-T) Operational conditions - -20 - 60 °C
Summary - Synology E10G30-T2. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 10000 Mbit/s. Product colour: Blue, Multicolour
System Requirements -
Technical details > Gross weight - 0.26 kg
Technical details > Net weight - 0.2 kg
Technical details > Producer - Synology
Technical details > Warranty - 60 month(s)
Type - LAN
Unit Box Height - 0.03
Unit Box Length - 0.22
Unit Box Width - 0.13
Unit Calculated Volume - 0.000858 cubm
Unit Calculated Weight - 0.208 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.synology.com/en-me/products/E10G30-T2
vendpn - E10G30-T2
Warranty - 60
Warranty - 60 months
warrantyLength - 60
warrantyType - F
Weight - 0,20
Weight - 0.2
weight - 225
Weight & dimensions - Depth - 14.7 mm
Weight & dimensions - Height - 68.9 mm
Weight & dimensions - Width - 167.7 mm
Width Weight & dimensions - 167.7 mm
