Axagon HMC-U4 USB4 dock, 3x USB-A, 2x USB-C, HDMI & DP 8K/30Hz, RJ-45, SD/mSD, audio, PD

Accessories included - USB-C docking station,  cable (data) USB-C USB-C length 80 cm, cable (power) USB-A USB-C length 100 cm, multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,  packed in a cardboard box.
Audio - Built-in microphone - No
Audio - Built-in speaker(s) - No
Brand - Axagon
BrandPartCode - HMC-U4
Cable length - 0.8 m
Category - Laptop Docks & Port Replicators
category - Peripherals|Mobile Storage|Accessories|USB Hubs
Category Code - NBK
code - HMC-U4
Code - HMC-U4
Color - Black
Colour - Black
Compatible with -
Compatible with: - Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Cooling - Built-in fan - No
Description - AXAGON HMC-U4 DUAL 4K DISPLAY dock turns your laptop, tablet or phone into a multimedia centre. With the next generation USB4 technology, this docking station offers a total data throughput of up to 40 Gbps. So, you can take full advantage of even the most demanding computer accessories and enjoy a high-end experience. Whether you're watching 8K video or working with two 4K monitors simultaneously, this technology delivers the performance you need. USB4 offers the benefit of Thunderbolt compatibility while supporting backward compatibility with previous generations of USB. You will connect your laptop to the 12in1 docking station via the supplied 80 cm long cable. In no time, you have fast SD (UHS-II) and microSD card reader, and connectors for connecting two external monitors, five USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery power. HDMI and DisplayPort outputs allows you connect an external monitor, TV or projector with up to 8K/30Hz Ultra HD, 4K/144Hz Ultra HD or 2K/240Hz Quad HD resolution, with support for multi-channel audio streaming. With HDR support, you can enjoy a richer colour spectrum and sharper contrasts for an even better visual experience. By connecting two monitors simultaneously, you get resolutions up to 4K/144Hz on the DP port output and 4K/60Hz on the HDMI output. All supported resolutions and features are directly dependent on the support of the connected monitor and laptop. The docking station has a total of three 10Gbps USB-C (2x) and USB-A (1x) outputs, as well as two 5Gbps USB-A outputs. These five USB ports allow you to connect external drives, flash drives, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W. The memory card reader supports reading and writing of all versions of SD (UHS-II) and microSD (UHS-I) cards with a capacity of up to 2TB. UHS-II cards reach speeds of up to 156 MB/s (full-duplex) or 312 MB/s (half-duplex), support for older UHS-I cards (max speed 104 MB/s) is a matter of course. The card reader enables simultaneous handling of cards in both slots and direct copying between them. You can use the 3.5 mm audio output to connect stereo headphones, headset or active speakers. It is equipped with a high-quality DAC converter, which supports sampling up to 384 kHz at 24 bits. You will enjoy superior sound quality that is ideal for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC. Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card. The USB-C (PD) input is designed for a suitable Power Delivery charger. This allows both your mobile device and the dock to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. With the additional power supply via USB-C input (DC 5V), you can boost the power supply when operating without a PD charger connected and connect devices with higher power consumption such as multiple external drives to the multiport hub. The button on the top of the dock is used to turn the dock on and off. Thanks to the clever design with four rubber feet, the station stays firmly in place. Elegant ribbed surface on the top leaves no fingerprints. Vents on the underside ensure sufficient air circulation so that the dock does not overheat even at higher loads. Input (connection to computer or mobile device):
USB4 40Gbps (USB4 Version 1.0), USB-C female connector.
Compatible with Thunderbolt 3/4, USB 10Gbps, USB 5Gbps. Input (power supply):

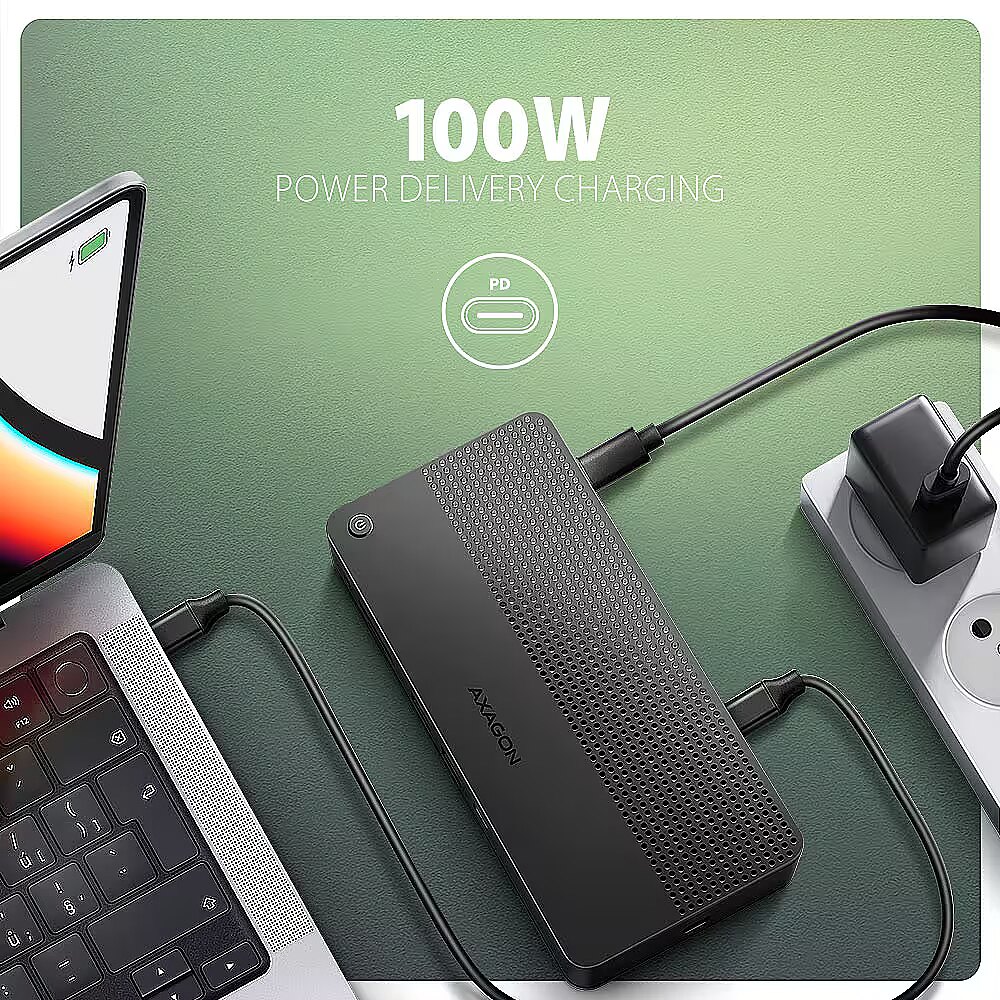

USB Power Delivery 3.0 - 100W connector (only for charging), USB-C female (PD) connector.
PD power must be supported by both the mobile device and the mains charger.
Additional power supply for external drives connected via hub, USB-C female connector (DC 5V). Recommended power supply 5V/2A. USB outputs:

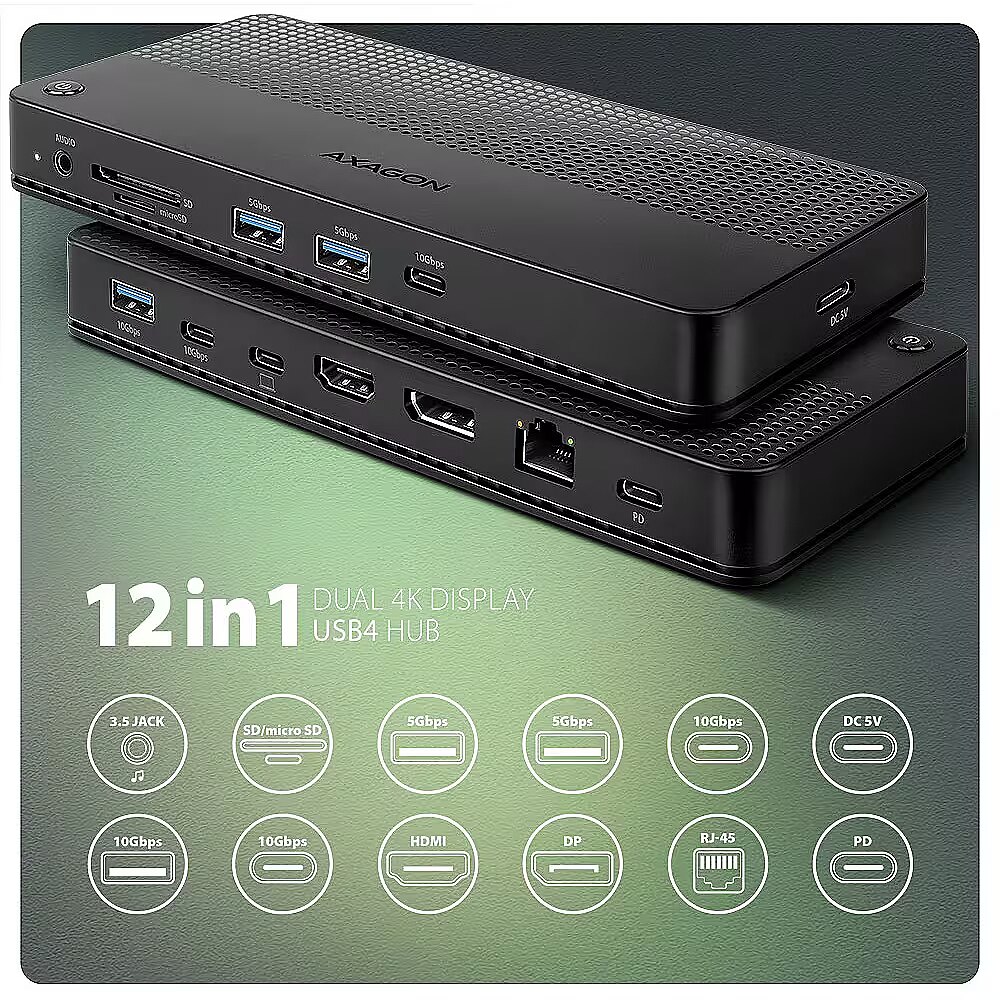

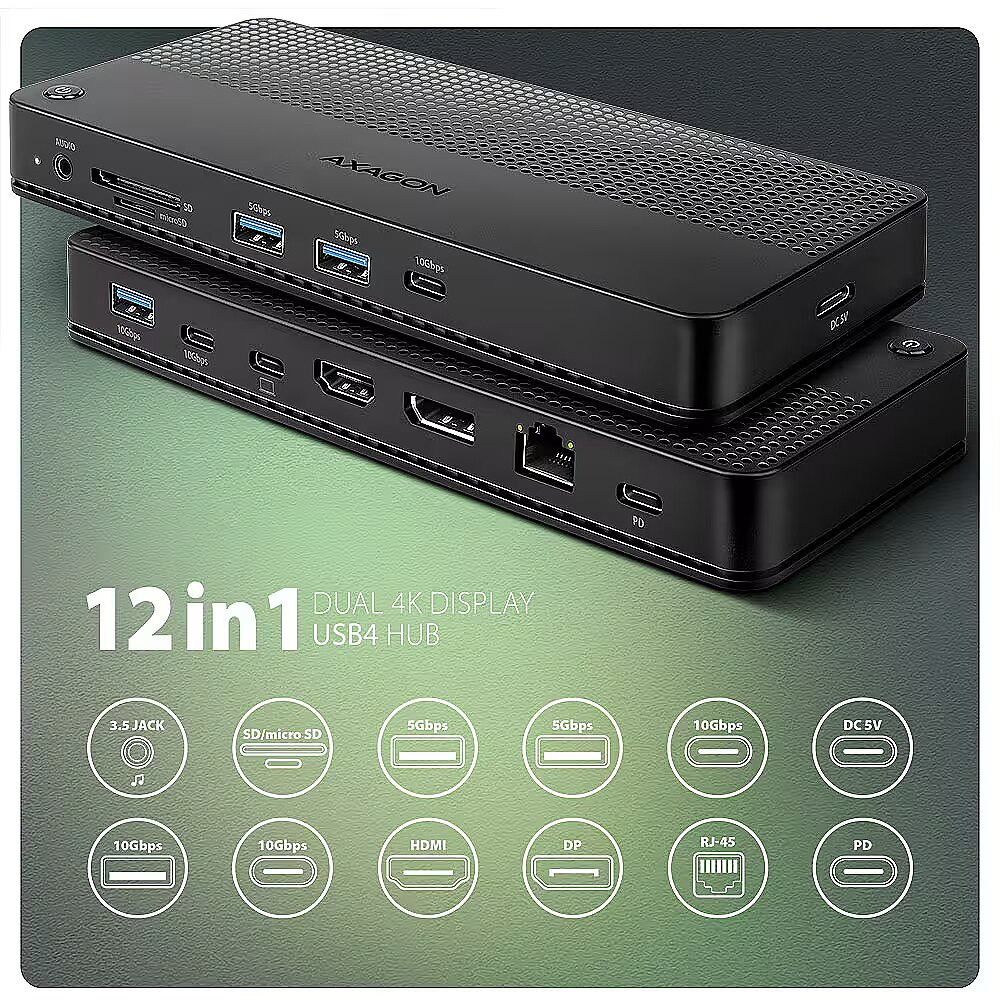

2x USB 5Gbps port, USB-A female connector.
1x USB 10Gbps port, USB-A female connector.
2x USB 10Gbps port, USB-C female connector.
USB-C hub can handle the connection of two external drives simultaneously.
Charging of mobile devices (including iPad) with a current of up to 1.5A from the hub's USB-A ports. Video outputs:

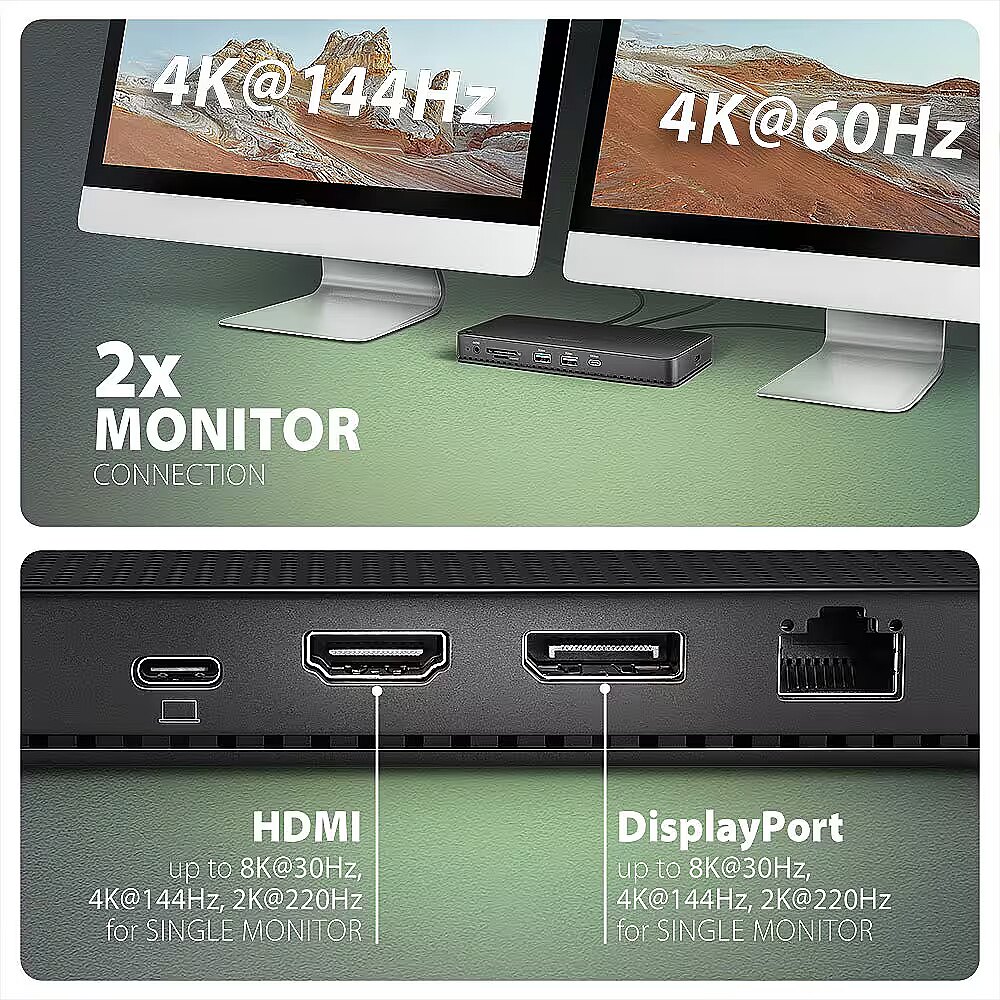

1x HDMI A port, HDMI A female connector.
1x DP port, DisplayPort female connector. Maximum supported resolution:
  Laptop with USB4 40Gbps or Thunderbolt 4 port:
1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD
2 monitors - up to 4K/144Hz + 60Hz Ultra HD, 2K/240Hz + 144Hz Quad HD, 2x 1080p/240Hz Full HD
 Notebook with USB 10Gbps port:
1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD
2 monitors - up to 2x 4K/60Hz Ultra HD, 2x 2K/144Hz + 144Hz Quad HD, 2x 1080p/240Hz Full HD  Video features:
Also compatible with devices with Thunderbolt 3 ports.
For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.
To achieve maximum resolution and frequency values on video outputs, the dock must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 4. A suitable updated OS and up-to-date graphics drivers are also required.
HDR support (High dynamic range, 10 bit support) - realistic reproduction of light and dark details.
HPD (Hot-Plug-Detect) support.
TMDS (Transition Minimized Differential Signalling) support.
HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.
Up to 8-channel LPCM audio, compressed audio (AC-3, DTC) and HBR audio format support.
Supports sample rates up to 192 kHz and up to 24-bit audio - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver. The card reader - two slots:

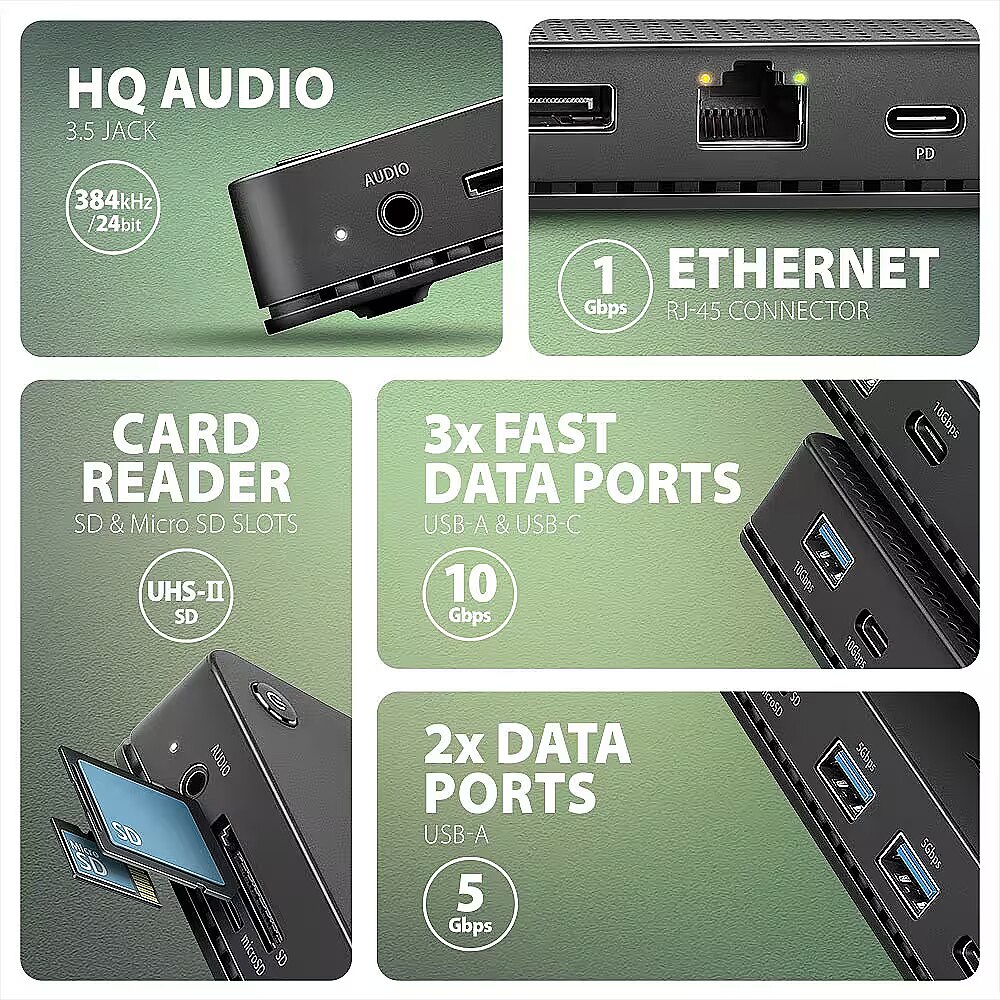

Micro SD slot: microSD / microSDHC / microSDXC / TransFlash,
SD slot: SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.
SD UHS-II support. Speeds up to 156 MB/s Full Duplex or 312 MB/s Half Duplex.
Support SD 1.0 to SD 4.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).
MicroSD UHS-I support. Speed up to 104 MB/s.
Support hardware ECC function and CRC function.
2 LUN - the reader is indicated as two disk drives. The possibility of copying from card to card. Audio output / input:
1x 3.5 mm 4 pin jack for headset, headphones or active speakers,
2-channel analog stereo output 384 kHz @ 24bit for playback,
192 kHz @ 24 bit analog microphone input for recording. RJ-45 output:
Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.
Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.
Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.
10/100/1000 Mb/s auto-detection. Other features:
Possibility to connect your device while running thanks to the Hot Plug support.
Full Plug and Play support.
Standby mode support.
Power supply via USB bus (USB bus power).
Power supply via PD charger (not included).

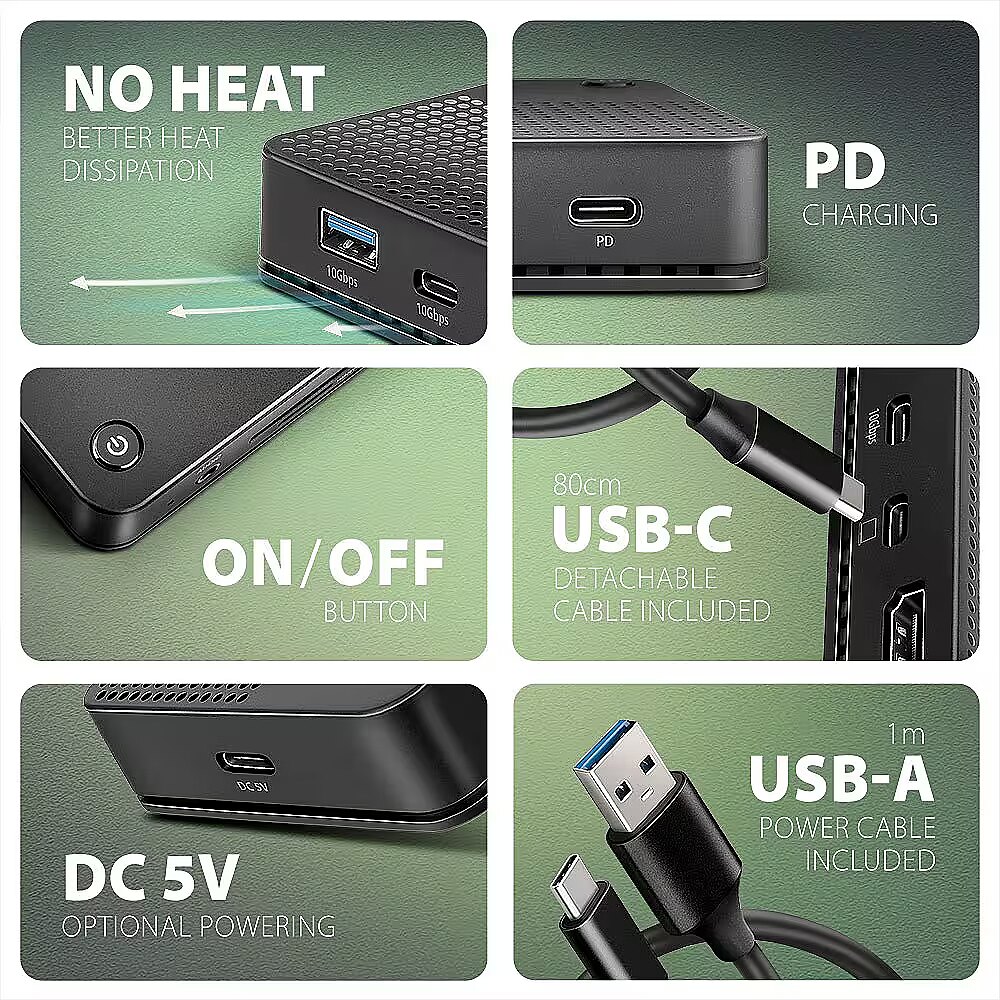

Additional power supply for USB ports (USB-C DC 5V connector). Any USB charger (not included) with 5V output voltage and 2A current can be used.
  ON/OFF buton to switch the docking station on/off.
The LED indicates the connection of the dock to the computer with a steady glow.
High quality shielded cable ensures fast communication speed and minimal unwanted interference.
Dimensions 188 x 80 x 20 mm.
Weight 164 g (without cable).

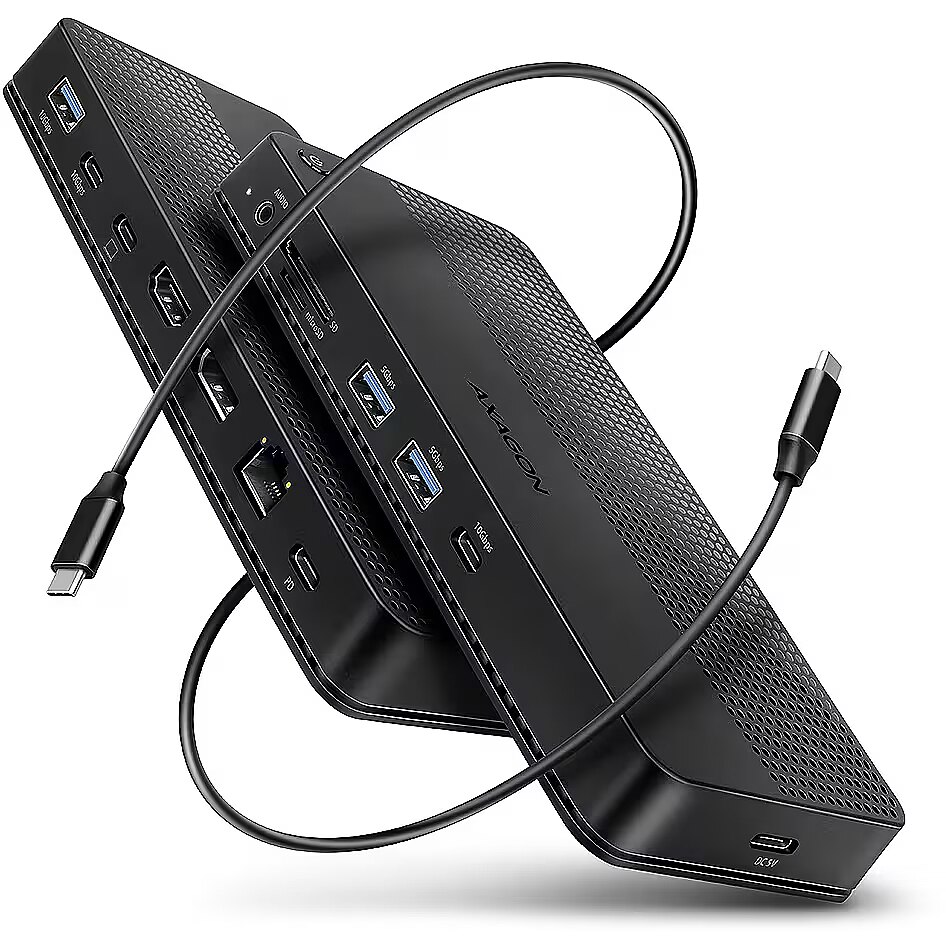

  USB-C USB-C cable 80 cm long for connecting the dock to a laptop.
USB-A USB-C cable 100 cm long for connecting additional power supply. Supported operating systems:
Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android.
Compatibility depends on the operating system and device manufacturer support.
DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone).
Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers. Package contains:

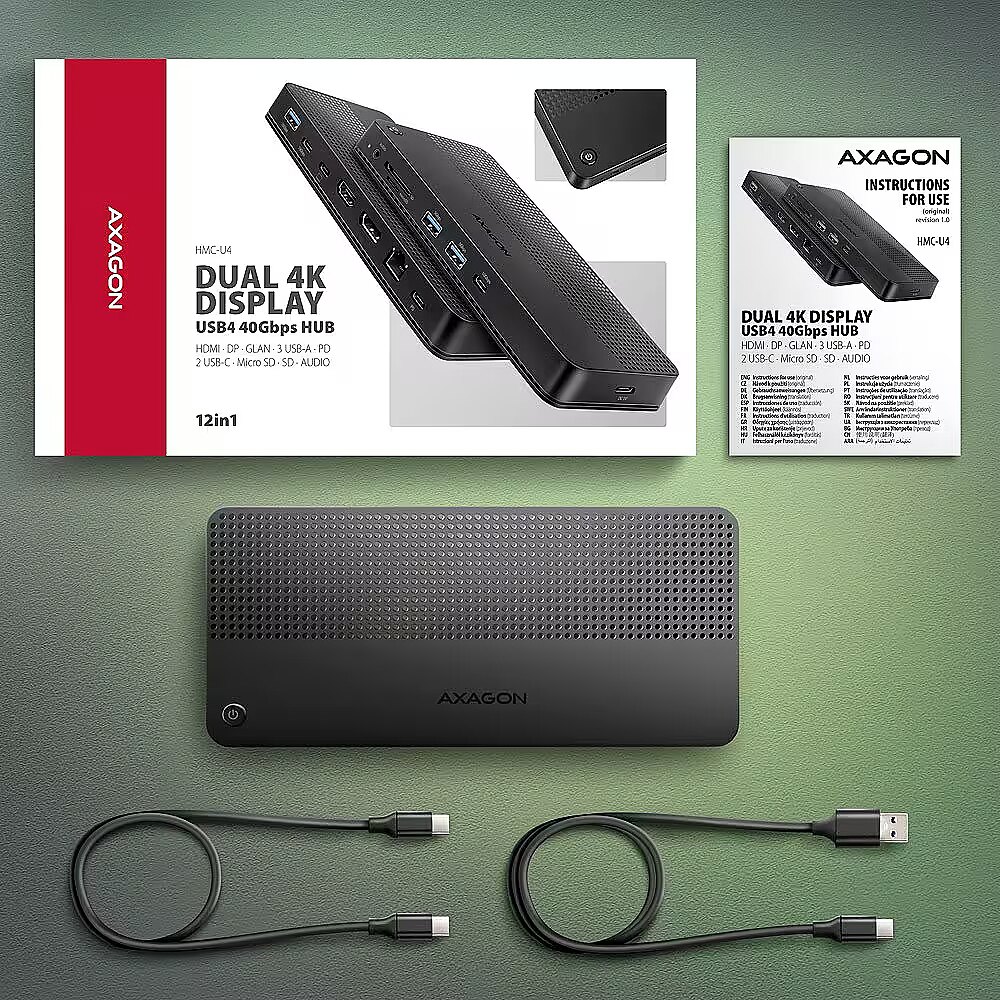

USB-C docking station,
cable (data) USB-C USB-C length 80 cm,
cable (power) USB-A USB-C length 100 cm,
multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA,
packed in a cardboard box.
Description - AXAGON HMC-U4 USB4 40Gbps DUAL 4K DISPLAY 12in1 dock USB4 40Gbps docking station with dual 4K video output. HDMI 8K, DP 8K, PD 100W and 5 USB ports. USB-C cable 80 cm. AXAGON HMC-U4 DUAL 4K DISPLAY dock turns your laptop, tablet or phone into a multimedia centre. With the next generation USB4 technology, this docking station offers a total data throughput of up to 40 Gbps. So, you can take full advantage of even the most demanding computer accessories and enjoy a high-end experience. Whether you're watching 8K video or working with two 4K monitors simultaneously, this technology delivers the performance you need. USB4 offers the benefit of Thunderbolt compatibility while supporting backward compatibility with previous generations of USB. You will connect your laptop to the 12in1 docking station via the supplied 80 cm long cable. In no time, you have fast SD (UHS-II) and microSD card reader, and connectors for connecting two external monitors, five USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery power. HDMI and DisplayPort outputs allows you connect an external monitor, TV or projector with up to 8K/30Hz Ultra HD, 4K/144Hz Ultra HD or 2K/240Hz Quad HD resolution, with support for multi-channel audio streaming. With HDR support, you can enjoy a richer colour spectrum and sharper contrasts for an even better visual experience. By connecting two monitors simultaneously, you get resolutions up to 4K/144Hz on the DP port output and 4K/60Hz on the HDMI output. All supported resolutions and features are directly dependent on the support of the connected monitor and laptop. The docking station has a total of three 10Gbps USB-C (2x) and USB-A (1x) outputs, as well as two 5Gbps USB-A outputs. These five USB ports allow you to connect external drives, flash drives, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W. The memory card reader supports reading and writing of all versions of SD (UHS-II) and microSD (UHS-I) cards with a capacity of up to 2TB. UHS-II cards reach speeds of up to 156 MB/s (full-duplex) or 312 MB/s (half-duplex), support for older UHS-I cards (max speed 104 MB/s) is a matter of course. The card reader enables simultaneous handling of cards in both slots and direct copying between them. You can use the 3.5 mm audio output to connect stereo headphones, headset or active speakers. It is equipped with a high-quality DAC converter, which supports sampling up to 384 kHz at 24 bits. You will enjoy superior sound quality that is ideal for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC. Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card. The USB-C (PD) input is designed for a suitable Power Delivery charger. This allows both your mobile device and the dock to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. With the additional power supply via USB-C input (DC 5V), you can boost the power supply when operating without a PD charger connected and connect devices with higher power consumption such as multiple external drives to the multiport hub. The button on the top of the dock is used to turn the dock on and off. Thanks to the clever design with four rubber feet, the station stays firmly in place. Elegant ribbed surface on the top leaves no fingerprints. Vents on the underside ensure sufficient air circulation so that the dock does not overheat even at higher loads.
Designation - CE+WEEE
dimension depth - 50 mm
dimension height - 225 mm
Dimensions - 188 x 80 x 20 mm
dimension weight - 460 g
dimension width - 135 mm
DisplayPort Input/Output connectors - 1
Docking connector - No
EAN - 8595247908421
ean - 8595247908421
GTIN - 8595247908421
guarantee - 24
guarantee_type - normal
HDMI Input/Output connectors - 1
Headphones jack Input/Output connectors - 1
I/O ports - 1 x 3,5 mm minijack (Combo)
I/O ports - 1 x DisplayPort
I/O ports - 1 x HDMI Type A
I/O ports - 1 x RJ-45 (LAN)
I/O ports - 1 x SD Card Reader
I/O ports - 1 x USB 3.1 Type A
I/O ports - 1 x USB 3.1 Type C
I/O ports - 1 x USB Power
I/O ports - 2 x USB 3.0 Type A
Included Accessories - USB-C docking station, cable (data) USB-C USB-C length 80 cm, cable (power) USB-A USB-C length 100 cm
Link - https://www.axagon.eu/en/produkty/hmc-u4
LongDesc - AXAGON HMC-U4 DUAL 4K DISPLAY dock turns your laptop, tablet or phone into a multimedia centre. With the next generation USB4 technology, this docking station offers a total data throughput of up to 40 Gbps. So, you can take full advantage of even the most demanding computer accessories and enjoy a high-end experience. Whether you're watching 8K video or working with two 4K monitors simultaneously, this technology delivers the performance you need. USB4 offers the benefit of Thunderbolt compatibility while supporting backward compatibility with previous generations of USB.You will connect your laptop to the 12in1 docking station via the supplied 80 cm long cable. In no time, you have fast SD (UHS-II) and microSD card reader, and connectors for connecting two external monitors, five USB devices, headphones or headset, and Power Delivery power. However, it is necessary that the USB-C port of your mobile device supports video output (DisplayPort Alternate Mode) and Power Delivery power.HDMI and DisplayPort outputs allows you connect an external monitor, TV or projector with up to 8K/30Hz Ultra HD, 4K/144Hz Ultra HD or 2K/240Hz Quad HD resolution, with support for multi-channel audio streaming. With HDR support, you can enjoy a richer colour spectrum and sharper contrasts for an even better visual experience. By connecting two monitors simultaneously, you get resolutions up to 4K/144Hz on the DP port output and 4K/60Hz on the HDMI output. All supported resolutions and features are directly dependent on the support of the connected monitor and laptop.The docking station has a total of three 10Gbps USB-C (2x) and USB-A (1x) outputs, as well as two 5Gbps USB-A outputs. These five USB ports allow you to connect external drives, flash drives, mouse, printer and other USB accessories. The USB ports also charge mobile phones and tablets with a power of up to 7.5W.The memory card reader supports reading and writing of all versions of SD (UHS-II) and microSD (UHS-I) cards with a capacity of up to 2TB. UHS-II cards reach speeds of up to 156 MB/s (full-duplex) or 312 MB/s (half-duplex), support for older UHS-I cards (max speed 104 MB/s) is a matter of course. The card reader enables simultaneous handling of cards in both slots and direct copying between them.You can use the 3.5 mm audio output to connect stereo headphones, headset or active speakers. It is equipped with a high-quality DAC converter, which supports sampling up to 384 kHz at 24 bits. You will enjoy superior sound quality that is ideal for lossless formats such as FLAC, WMA, WAV, APE, AAC and ALAC.Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card.The USB-C (PD) input is designed for a suitable Power Delivery charger. This allows both your mobile device and the dock to be powered directly from the PD charger using Power Delivery 3.0 technology with up to 100W of power. With the additional power supply via USB-C input (DC 5V), you can boost the power supply when operating without a PD charger connected and connect devices with higher power consumption such as multiple external drives to the multiport hub.The button on the top of the dock is used to turn the dock on and off. Thanks to the clever design with four rubber feet, the station stays firmly in place. Elegant ribbed surface on the top leaves no fingerprints. Vents on the underside ensure sufficient air circulation so that the dock does not overheat even at higher loads.Input (connection to computer or mobile device):• USB4 40Gbps (USB4 Version 1.0), USB-C female connector.• Compatible with Thunderbolt 3/4, USB 10Gbps, USB 5Gbps.Input (power supply):• USB Power Delivery 3.0 - 100W connector (only for charging), USB-C female (PD) connector.• PD power must be supported by both the mobile device and the mains charger.• Additional power supply for external drives connected via hub, USB-C female connector (DC 5V). Recommended power supply 5V/2A.USB outputs:• 2x USB 5Gbps port, USB-A female connector.• 1x USB 10Gbps port, USB-A female connector.• 2x USB 10Gbps port, USB-C female connector.• USB-C hub can handle the connection of two external drives simultaneously.• Charging of mobile devices (including iPad) with a current of up to 1.5A from the hub's USB-A ports.Video outputs:• 1x HDMI A port, HDMI A female connector.• 1x DP port, DisplayPort female connector.Maximum supported resolution:• Laptop with USB4 40Gbps or Thunderbolt 4 port: • 1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD • 2 monitors - up to 4K/144Hz + 60Hz Ultra HD, 2K/240Hz + 144Hz Quad HD, 2x 1080p/240Hz Full HD • Notebook with USB 10Gbps port:• 1 monitor - up to 8K/30Hz, 4K/144Hz Ultra HD, 2K/240Hz Quad HD, 1080p/360Hz Full HD • 2 monitors - up to 2x 4K/60Hz Ultra HD, 2x 2K/144Hz + 144Hz Quad HD, 2x 1080p/240Hz Full HD Video features:• Also compatible with devices with Thunderbolt 3 ports.• For Apple devices running macOS, the maximum refresh rate is usually limited to 60Hz.• To achieve maximum resolution and frequency values on video outputs, the dock must be plugged into a USB-C port supporting DisplayPort Alternate Mode (DP Alt Mode) version min. 1.4 or a USB-C port supporting min. Thunderbolt 4. A suitable updated OS and up-to-date graphics drivers are also required.• HDR support (High dynamic range, 10 bit support) - realistic reproduction of light and dark details.• HPD (Hot-Plug-Detect) support.• TMDS (Transition Minimized Differential Signalling) support.• HDCP 1.4 and 2.3 (High-bandwidth Digital Content Protection) full support.• Up to 8-channel LPCM audio, compressed audio (AC-3, DTC) and HBR audio format support.• Supports sample rates up to 192 kHz and up to 24-bit audio - depends on the source and destination device, i.e. laptop/phone and TV/monitor/AV receiver.The card reader - two slots: • Micro SD slot: microSD / microSDHC / microSDXC / TransFlash,• SD slot: SecureDigital, SDHC, SDXC, MultiMedia Card, MMC 4.0, MMC Dual Voltage, MMC mobile, RS-MMC, with adapter - miniSD, microSD / microSDHC / microSDXC, MMC Micro.• SD UHS-II support. Speeds up to 156 MB/s Full Duplex or 312 MB/s Half Duplex.• Support SD 1.0 to SD 4.0 (SDXC - Secure Digital eXtended Capacity, up to 2TB).• MicroSD UHS-I support. Speed up to 104 MB/s. • Support hardware ECC function and CRC function.• 2 LUN - the reader is indicated as two disk drives. The possibility of copying from card to card.Audio output / input:• 1x 3.5 mm 4 pin jack for headset, headphones or active speakers,• 2-channel analog stereo output 384 kHz @ 24bit for playback, • 192 kHz @ 24 bit analog microphone input for recording.RJ-45 output:• Gigabit Ethernet interface with RJ-45 connector for UTP or STP cable connection.• Supported transmission rates for the Ethernet interface 10/100/1000 Mb/s.• Supported IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T specifications.• 10/100/1000 Mb/s auto-detection.Other features: • Possibility to connect your device while running thanks to the Hot Plug support.• Full Plug and Play support.• Standby mode support.• Power supply via USB bus (USB bus power).• Power supply via PD charger (not included).• Additional power supply for USB ports (USB-C DC 5V connector). Any USB charger (not included) with 5V output voltage and 2A current can be used.• ON/OFF button to switch the docking station on/off.• The LED indicates the connection of the dock to the computer with a steady glow.• High quality shielded cable ensures fast communication speed and minimal unwanted interference.• Dimensions 188 x 80 x 20 mm.• Weight 164 g (without cable).• USB-C USB-C cable 80 cm long for connecting the dock to a laptop.• USB-A USB-C cable 100 cm long for connecting additional power supply.Supported operating systems:• Microsoft Windows 10 / 11, macOS, iPadOS, iOS, Linux, Chrome OS and Android. • Compatibility depends on the operating system and device manufacturer support.• DisplayPort Alternate Mode (DP Alt Mode) is only supported in updated OS and also depends on support from device (notebook, tablet, phone).• Graphics card drivers may also affect the correct operation of the product. We recommend downloading the latest version of drivers.Package contains:• USB-C docking station, • cable (data) USB-C USB-C length 80 cm,• cable (power) USB-A USB-C length 100 cm,• multilingual manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / SK / SWE / TR / UA / BG / CN / ARA, • packed in a cardboard box.
LongProductName - USB4 40Gbps, 2x USB-C 10Gbps, 1x USB-A 10Gbps, 2 x USB-A 5Gbps, 1x USB-C PD, HDMI, DP, RJ-45, 1x MicroSD, 1x SD, 188 x 80 x 20 mm
LongSummaryDescription - Axagon HMC-U4. Connectivity technology: Wired, Host interface: USB4, USB Power Delivery up to: 100 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Compatible memory cards: MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC,..., Data transfer rate: 40 Gbit/s. Power source type: USB, Power connector: USB Type-C, USB cable length: 0.8 m. Windows operating systems supported: Windows 10, Windows 11
MicroSD Card Slot Input/Output connectors - 1
Model - HMC-U4
name - AXAGON HMC-U4 USB-C Dock, HDMI + DP, USB 3.2 Gen 2, PD 100W - schwarz
Name - AXAGON USB4 40Gbps DUAL 4K DISPLAY 12in1 Dock | HMC-U4
name - HMC-U4 USB hub 12in1 40Gbps LAN HDMI DP PD
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Jumbo frames support - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Network - Wake-on-LAN ready - Yes
Other features -
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 135.00 mm
Package features > Gross height (mm) - 49.00 mm
Package features > Gross width (mm) - 225.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 580 pc(s)
Package features > Paper/Pasteboard - 236.80 g
Package features > Plastic (No PET) - 59.20 g
Package features > Tare weight (kg) - 0.30 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - Cables included - USB Type-C to USB Type-A, USB Type-C to USB Type-C
Packaging content - Manual - Yes
Packaging data - Package depth - 135 mm
Packaging data - Package height - 49 mm
Packaging data - Package weight - 460 g
Packaging data - Package width - 225 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Brand compatibility - Universal
Performance - Card reader integrated - Yes
Performance - Certification - CE
Performance - Charging function - Yes
Performance - Compatible memory cards - MMC, MMC Mobile, MicroSD (TransFlash), MicroSDHC, MicroSDXC, MiniSD, MiniSDHC, RS-MMC, SD, SDHC, SDXC
Performance - Country of origin - China
Performance - Data transfer rate - 40 Gbit/s
Performance - HD type - 8K Ultra HD
Performance - High Dynamic Range (HDR) supported - Yes
Performance - Hot-Plug support - Yes
Performance - Hub interfaces - 3.5mm, DisplayPort, HDMI, RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A
Performance - LED indicators - Yes
Performance - Maximum digital resolution - 7680 x 4320 pixels
Performance - Maximum refresh rate - 360 Hz
Performance - On/off switch - Yes
Performance - Plug and Play - Yes
Performance - Product colour - Black
Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDCP - Yes
Ports & interfaces - HDCP version - 1.4/2.3
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - HDMI version - 2.3
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 2
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 100 W
Power - Power connector - USB Type-C
Power - Power source type - USB
Power - USB cable length - 0.8 m
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=241024062824412296&THEME=asbis&LANG=lv
ProductCategory - Aksesuāri
ProductCode - HMC-U4
ProductDescription - HMC-U4 USB4 dock, 3x USB-A, 2x USB-C, HDMI & DP 8K/30Hz, RJ-45, SD/mSD, audio, PD
ProductName - HMC-U4
Product Net Weight - 0.164 kg
ProductType - Various Accessories
RJ45 Input/Output connectors - 1
SD Card Slot Input/Output connectors - 1
ShortSummaryDescription - Axagon HMC-U4, Wired, USB4, 100 W, 3.5 mm, 1.4/2.3, 10,100,1000 Mbit/s
Software - Linux operating systems supported - Yes
Software - Mac operating systems supported - Yes
Software - Mobile operating systems supported - Yes
Software - Other operating systems supported - Yes
Software - Server operating systems supported - Yes
Software - Windows operating systems supported - Windows 10, Windows 11
System Requirements -
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.46 kg
Technical details > Net weight - 0.16 kg
Technical details > Producer - AXAGON
Technical details > Producer product family - USB4 40Gbps DUAL 4K DISPLAY 12in1 Dock
Technical details > Producer product name - HMC-U4
Title - Axagon HMC-U4 laptop dock/port replicator Wired USB4 Black
Unit Box Height - 0.135
Unit Box Length - 0.05
Unit Box Width - 0.225
Unit Calculated Volume - 0.001519 cubm
Unit Calculated Weight - 0.46 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/hmc-u4
USB-C Input/Output connectors - 2
USB 3.2 Input/Output connectors - 3
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/hmc-u4?ami=206
vendpn - HMC-U4
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Weight - 164 g
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 20 mm
Weight & dimensions - Weight - 164 g
Weight & dimensions - Width - 188 mm
