ID: 983612
Product code: WDS500G3B0E
In stock 36 units
Warranty: 3 years

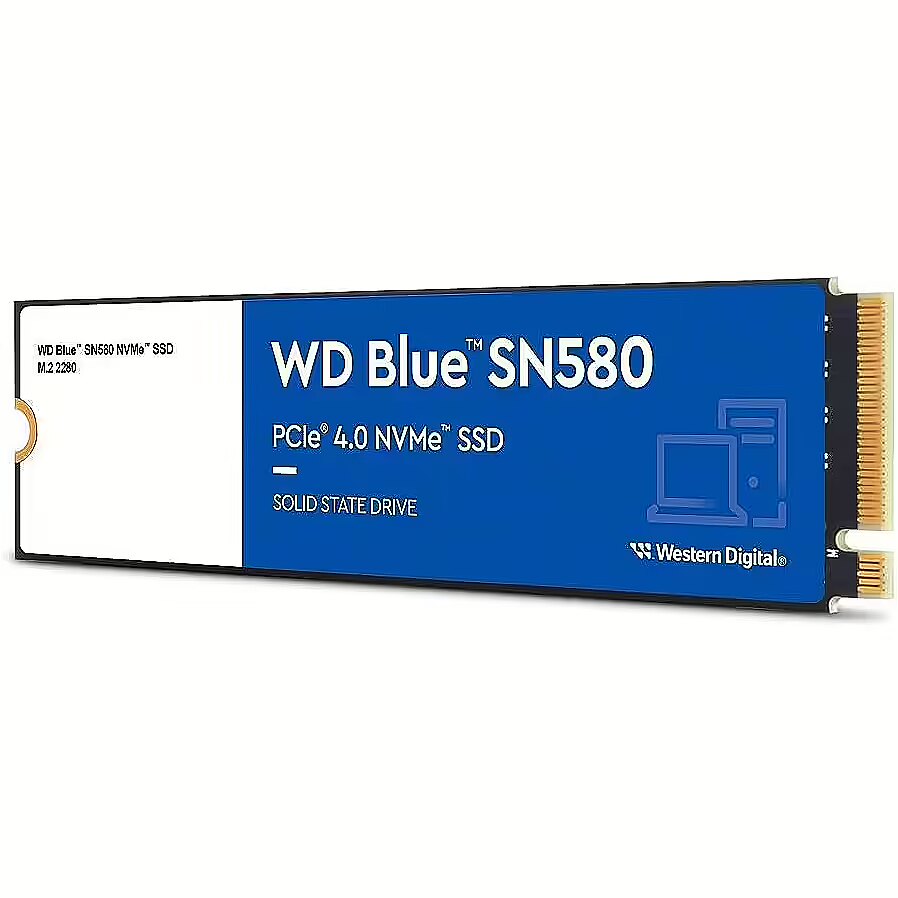

Western Digital Blue SN580, 500GB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
Delivery options
- Delivery to Smartpost 6.99 €: on Thursday, 08.05.2025
- Courier delivery 11.99 €: on Thursday, 08.05.2025
Main product parameters All parameters
- Capacity: 500 GB
- Type: NVMe
- Read speed (sequential): 4000 MB/s
- Write speed (sequential): 3600 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
Available for purchase, the Western Digital M.2 80mm (2280) format SSD disk with a large volume of 500 GB.
The disk is equipped with the currently most advanced and compact M.2 connection port.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 4000 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
The write speed (Sequential write speed) of this SSD is 3600 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.
This is an SSD disk in the M.2 80mm (2280) format.
The SSD drive has a PCIe 4.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
500 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
4000 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
3600 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Nav
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 450K
Random Write IOPS
: 750K
Endurance (TBW)
: 300 TB
More detailed specification
ARTIKEL1 - WD BLUE SN580 NVME SSD INTERNAL
ARTIKEL2 - STORAGE 500 GB
Box Height (mm) - 140 mm
Box Length (mm) - 230 mm
Box Weight Brutto (kg) - 0.46 kg
Box Width (mm) - 110.01 mm
Breite - 0.05
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Certifications - BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI
CnCode CnCode - 84717098
code - WDS500G3B0E
Depth (mm) - 80 mm
Description - WD SN580 WDS500G3B0E 500GB/BLUE Spark Your Imagination with the WD Blue SN580 NVMe SSD with PCIe Gen 4.0 for creators and professionals. Boost productivity or design creatives effortlessly by upgrading to PCIe Gen 4.0 SSDs. M.2 2280 form-factor, applications, data, and media such as photos, 4K videos, and music can be stored on the same drive. Keep creating uninterrupted when you’re in the zone or on the go with low-power storage to maximize your laptop’s battery life. The WD Blue SN580 NVMe SSD is a perfect choice for creators and professionals seeking enhanced performance and efficiency. Designed with PCIe Gen 4.0 technology, it enables effortless multitasking and swift data transfers, making it ideal for storing applications, 4K videos, photos, and music. Its M.2 2280 form factor ensures compatibility with a variety of systems. Upgrade your workflow with this energy-efficient drive, which maximizes battery life for uninterrupted productivity. Whether you’re working on-the-go or at your desk, the WD Blue SN580 helps bring your creative visions to life.
Device Location - Plug-in Module
Dimensions - 80x22x2.38 mm
Drive thickness - 2.38mm
ean - 0718037887319
EAN - 0718037887319
EAN Code - 718037887319
EANCode - 0718037887319
Eans - 718037887319
External Color - Blue
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - M.2
Form Factor - M.2 22x80mm
Full Description Line - SSD series Blue SN580|500GB|Form Factor M.2|PCIe Gen4|NVMe|Technology TLC|Write speed 3600 MBytes/sec|Read speed 4000 MBytes/sec|Drive thickness 2.38mm|TBW 300 TB|MTBF 1500000 hours
Gewicht - 0.01
Gross Weight Kg - 0,07
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
Height (mm) - 2.38 mm
HERSTELLER - SANDISK
Hoehe - 0.01
HSTNUMMER - WDS500G3B0E
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160023163159.jpg
Laenge - 0.09
Manufacturer - Western Digital
Manufacturer Code - WDS500G3B0E
Manufacturer Name - Western Digital
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 85 °C
Maximum Power Consumption - 65 mW
Maximum Random Read Rate - 450000 IOPS
Maximum Random Write Rate - 750000 IOPS
Maximum Sequential Read Rate - 4000 MB/s
Maximum Sequential Write Rate - 3600 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 3.3 mW
Model - WDS500G3B0E
MPN - WDS500G3B0E
MTBF - 1.5e+006 hours
Name - M.2 500GB WD Blue SN580 NVMe PCIe 4.0 x 4
Name - WD Blue SN580 M.2 PCIe NVMe 500GB
name - Western Digital Blue SN580, NVMe M.2 SSD, PCIe 4.0 M.2 Typ 2280 - 500 GB
NAND flash technology - TLC
Nominal Weight - 5.5 g
NVMe - Yes
Package Type - Box
Pack Height (mm) - 130 mm
Pack Length (mm) - 100 mm
Packs in Box - 10
Pack Weight Brutto (kg) - 0.046 kg
Pack Weight Netto (kg) - 0.044 kg
Pack Width (mm) - 19.99 mm
PCIe Gen4 Interface - Yes
Pieces in pack - 1
Producer - WD
ProducerCode - WDS500G3B0E
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230713061829342913&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - WDS500G3B0E
ProductDescription - SSD WD Blue (M.2, 500GB, PCIe Gen4 NVMe 1.4b)
Product Net Weight - 0.055 kg
ProductType - SSD Client
Read speed - 4000 MBytes/sec
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.61 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.5 cm
Shock Tolerance Operating - 1500G @ 0.5ms
ShortDescription -
Short description - WD SSD M.2 (2280) 500GB Blue SN580 PCIe 4.0/NVMe (Di)
Solid State Drive Features - TCG Pyrite 2.01
SSD Capacity - 500GB
SSD series - Blue SN580
Stck_Kart - 0
Stck_Pal - 0
Storage Capacity - 500 GB
Storno - Y
Supports Data Channel - NVMe PCIe® Gen4
TBW - 300 TB
Total Bytes Written (TBW) - 300 TB
Unit Box Height - 0.02
Unit Box Length - 0.125
Unit Box Width - 0.105
Unit Calculated Volume - 0.0003454 cubm
Unit Calculated Weight - 0.061 kg
Units per Shipping Box - 10
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/internal-drives/wd-blue-sn580-nvme-ssd?sku=WDS200T3B0E#WDS500G3B0E
Vibration Tolerance Operating - 5G @ 10-2000Hz
Vibration Tolerance Storage - 4.9G @ 7-800Hz
Warranty - 60L months
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
Weight - 0.04
Width (mm) - 22 mm
Write speed - 3600 MBytes/sec
ARTIKEL2 - STORAGE 500 GB
Box Height (mm) - 140 mm
Box Length (mm) - 230 mm
Box Weight Brutto (kg) - 0.46 kg
Box Width (mm) - 110.01 mm
Breite - 0.05
category - PC Components|Drives|Solid State Drives (SSDs)|M.2
Category - Root/Electronics/PC parts/Hard drives
Category 1 - SSDs
Category 2 - Interne SSDs
Category Code - SSU
Certifications - BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI
CnCode CnCode - 84717098
code - WDS500G3B0E
Depth (mm) - 80 mm
Description - WD SN580 WDS500G3B0E 500GB/BLUE Spark Your Imagination with the WD Blue SN580 NVMe SSD with PCIe Gen 4.0 for creators and professionals. Boost productivity or design creatives effortlessly by upgrading to PCIe Gen 4.0 SSDs. M.2 2280 form-factor, applications, data, and media such as photos, 4K videos, and music can be stored on the same drive. Keep creating uninterrupted when you’re in the zone or on the go with low-power storage to maximize your laptop’s battery life. The WD Blue SN580 NVMe SSD is a perfect choice for creators and professionals seeking enhanced performance and efficiency. Designed with PCIe Gen 4.0 technology, it enables effortless multitasking and swift data transfers, making it ideal for storing applications, 4K videos, photos, and music. Its M.2 2280 form factor ensures compatibility with a variety of systems. Upgrade your workflow with this energy-efficient drive, which maximizes battery life for uninterrupted productivity. Whether you’re working on-the-go or at your desk, the WD Blue SN580 helps bring your creative visions to life.
Device Location - Plug-in Module
Dimensions - 80x22x2.38 mm
Drive thickness - 2.38mm
ean - 0718037887319
EAN - 0718037887319
EAN Code - 718037887319
EANCode - 0718037887319
Eans - 718037887319
External Color - Blue
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - M.2
Form Factor - M.2 22x80mm
Full Description Line - SSD series Blue SN580|500GB|Form Factor M.2|PCIe Gen4|NVMe|Technology TLC|Write speed 3600 MBytes/sec|Read speed 4000 MBytes/sec|Drive thickness 2.38mm|TBW 300 TB|MTBF 1500000 hours
Gewicht - 0.01
Gross Weight Kg - 0,07
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
Height (mm) - 2.38 mm
HERSTELLER - SANDISK
Hoehe - 0.01
HSTNUMMER - WDS500G3B0E
Image - https://content.it4profit.com/pimg/s/resize/900x900x900x900/230726160023163159.jpg
Laenge - 0.09
Manufacturer - Western Digital
Manufacturer Code - WDS500G3B0E
Manufacturer Name - Western Digital
Maximum Non-Operating Ambient Temperature - 85 °C
Maximum Operating Ambient Temperature - 85 °C
Maximum Power Consumption - 65 mW
Maximum Random Read Rate - 450000 IOPS
Maximum Random Write Rate - 750000 IOPS
Maximum Sequential Read Rate - 4000 MB/s
Maximum Sequential Write Rate - 3600 MB/s
Mean Time Between Failures - 1500000 hr
Memory Technology - NAND Flash
Minimum Non-Operating Ambient Temperature - -40 °C
Minimum Operating Ambient Temperature - 0 °C
Minimum Power Consumption - 3.3 mW
Model - WDS500G3B0E
MPN - WDS500G3B0E
MTBF - 1.5e+006 hours
Name - M.2 500GB WD Blue SN580 NVMe PCIe 4.0 x 4
Name - WD Blue SN580 M.2 PCIe NVMe 500GB
name - Western Digital Blue SN580, NVMe M.2 SSD, PCIe 4.0 M.2 Typ 2280 - 500 GB
NAND flash technology - TLC
Nominal Weight - 5.5 g
NVMe - Yes
Package Type - Box
Pack Height (mm) - 130 mm
Pack Length (mm) - 100 mm
Packs in Box - 10
Pack Weight Brutto (kg) - 0.046 kg
Pack Weight Netto (kg) - 0.044 kg
Pack Width (mm) - 19.99 mm
PCIe Gen4 Interface - Yes
Pieces in pack - 1
Producer - WD
ProducerCode - WDS500G3B0E
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=230713061829342913&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - WDS500G3B0E
ProductDescription - SSD WD Blue (M.2, 500GB, PCIe Gen4 NVMe 1.4b)
Product Net Weight - 0.055 kg
ProductType - SSD Client
Read speed - 4000 MBytes/sec
Retail Packaging Net Weight Carton - 0 kg
Retail Packaging Net Weight Plastic - 0 kg
Shipping Box Depth Shipping/Package Box Dimensions - 23.5 cm
Shipping Box Height Shipping/Package Box Dimensions - 14 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.61 kg
Shipping Box Width Shipping/Package Box Dimensions - 10.5 cm
Shock Tolerance Operating - 1500G @ 0.5ms
ShortDescription -
Short description - WD SSD M.2 (2280) 500GB Blue SN580 PCIe 4.0/NVMe (Di)
Solid State Drive Features - TCG Pyrite 2.01
SSD Capacity - 500GB
SSD series - Blue SN580
Stck_Kart - 0
Stck_Pal - 0
Storage Capacity - 500 GB
Storno - Y
Supports Data Channel - NVMe PCIe® Gen4
TBW - 300 TB
Total Bytes Written (TBW) - 300 TB
Unit Box Height - 0.02
Unit Box Length - 0.125
Unit Box Width - 0.105
Unit Calculated Volume - 0.0003454 cubm
Unit Calculated Weight - 0.061 kg
Units per Shipping Box - 10
Vendor - WESTERN DIGITAL
Vendor Homepage - www.westerndigital.com/products/internal-drives/wd-blue-sn580-nvme-ssd?sku=WDS200T3B0E#WDS500G3B0E
Vibration Tolerance Operating - 5G @ 10-2000Hz
Vibration Tolerance Storage - 4.9G @ 7-800Hz
Warranty - 60L months
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
Warranty validation Criteria - Serial Number
Weight - 0.04
Width (mm) - 22 mm
Write speed - 3600 MBytes/sec
