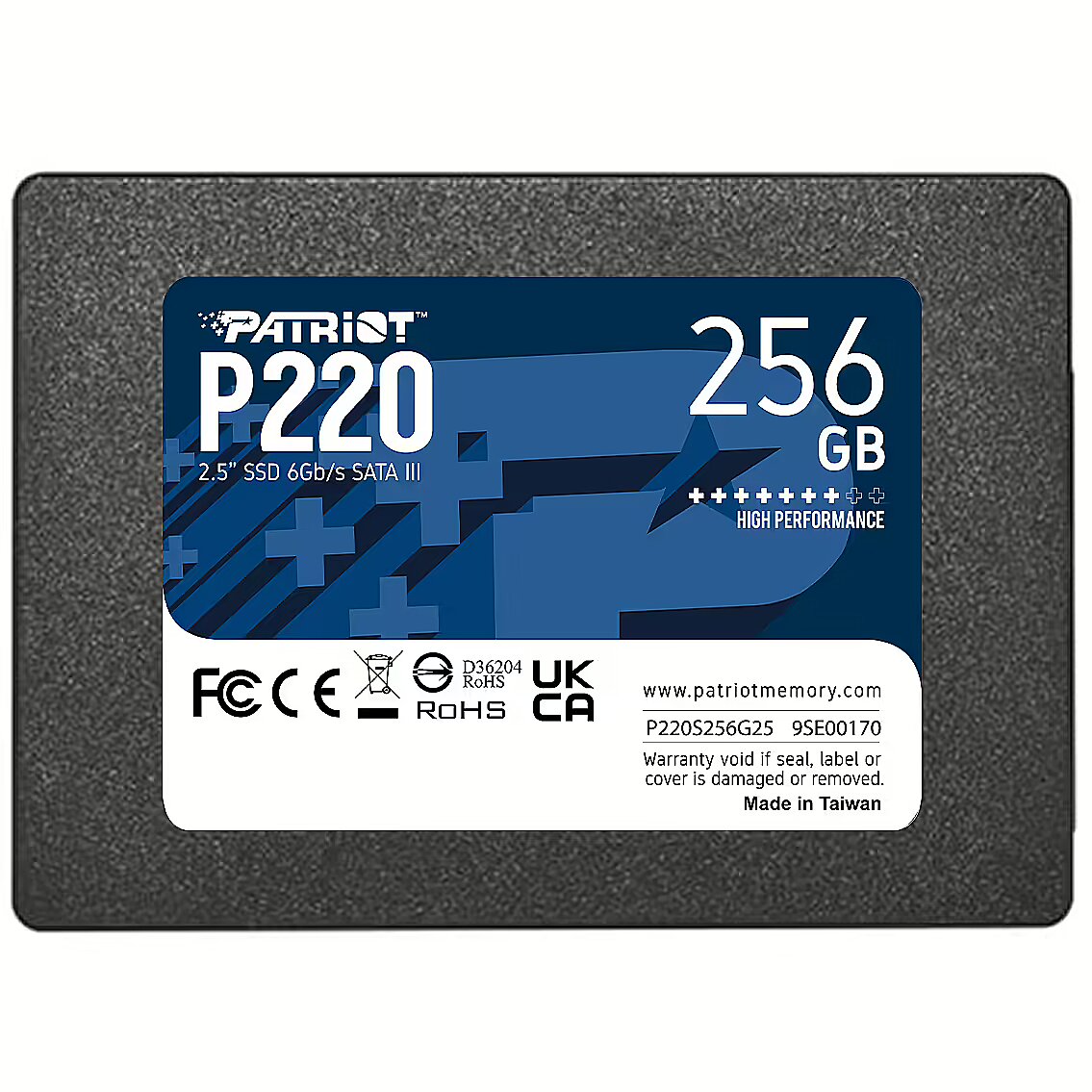

Patriot P220, 256GB

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 926272 Product code: P220S256G25
Can be ordered 172 units Availability: 14 days after order approval
Warranty: 3 years
23.07 €
Ready for dispatch
29.09.2025
starting from 6.99 €
Delivery options
  • Posti parcel machine
    Within 1-2 working days
    6.99 €
  • Delivery with Posti courier mail
    Within 1-2 working days
    10.99 €
Main product parameters All parameters
  • Capacity: 256 GB
  • Type: SATA
  • Read speed (sequential): 550 MB/s
  • Write speed (sequential): 490 MB/s
  • Form factor: 2.5"
  • Interface: SATA III (6Gb/s)
Description

Available for purchase, the Patriot 2.5" format SSD disk with a large volume of 256 GB.

The drive is equipped with the classic SATA port, which requires standard SATA data and power cables.

This is a SATA type of disk. Even though this SSD disk operates with an older SATA III protocol, it is fully suitable for both everyday tasks and situations when it's important to reduce costs.

550 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The write speed (Sequential write speed) of this SSD is 490 MB/s. However, if adequate cooling is not provided, "fast" drives may not achieve the speeds guaranteed by the manufacturer.

This SSD drive has an 2.5" format.

This SSD disk has a SATA III (6Gb/s) interface. Keep in mind that if you insert a disk with a newer interface (for example, with PCIe 4.0 or 5.0) into an older interface slot (for example, PCIe 3.0), the disk speed will decrease because the disk will not have sufficient data transfer speed (Bandwidth).

Basic information
Capacity 256 GB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : SATA
Read speed (sequential) 550 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 490 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor 2.5"

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : SATA III (6Gb/s)
Interface SATA

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : Not specified
Random Read IOPS : 40K
Random Write IOPS : 50K
Endurance (TBW) : 120 TB
More detailed specification
Category - Root/Electronics/PC parts/Hard drives
Category_1 - Hard Drives and Pendrives
Category_2 - Internal SSD
Color - Not applicable
Dane fizyczne: Długość - 100 mm
Dane fizyczne: Szerokość - 69.96 mm
Dane fizyczne: Waga - 50 g
Dane fizyczne: Wysokość - 7 mm
Dane techniczne: Format - 2.5 cala
Dane techniczne: Grupa produktowa - Dyski Patriot
Dane techniczne: Gwarancja - 3 lata w serwisie sprzedawcy
Dane techniczne: Interfejs - Serial ATA III
Dane techniczne: Pojemność - 256 GB
Dane techniczne: Producent - Patriot
Dane techniczne: Rodzaj dysku - wewnętrzny
Dane techniczne: Typ - SSD
Dane techniczne: Uwaga - Gwarancja ograniczona parametrem TBW
Depth - 100 mm
Description - Patriot is proud to present the next generation 2. 5 SATA III SSD: the P220. Designed with the latest SATA 3 controller, the P220 is the ultimate storage solution designed with system performance in mind. With read and write speeds of up to 550 and 500 MB/s, the P220 delivers the performance you need to get the job done. The P220 is a compact 7mm, 2.5" SSD that delivers greater overall performance and productivity. The P220 is ideal for fast upgrades, storing large files and delivering workspace performance at an attractive price point. Backed by Patriot's 3-year warranty and customer support, Patriot's P220 SSD is one of the most reliable and high-performance SSDs available on the market today.
Designation - CE+WEEE
dimensionalWeight - 61
dimension depth - 3 mm
dimension height - 180 mm
dimension weight - 63 g
dimension width - 133 mm
Disk type - SSD
Drive type - Internal
ean - 4711378422344
Eans - 4711378422344
EAN_code - 4711378422344
Features - Component for - PC/Laptop
Features - Interface - Serial ATA III
Features - Random read (4KB) - 40000 IOPS
Features - Random write (4KB) - 50000 IOPS
Features - S.M.A.R.T. support - Yes
Features - Sequential read speed (CDM) - 550 MB/s
Features - Sequential write speed (CDM) - 490 MB/s
Features - SSD capacity - 256 GB
Features - SSD form factor - 2.5"
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 7
Features - Windows operating systems supported - Windows 8
Features - Windows operating systems supported - Windows 8.1
Features - Windows operating systems supported - Windows 10
Form factor (width) - 2,5'' (SFF)
guarantee - 36
guarantee_type - normal
HDD capacity - 256 GB
HDD interface - SATA III - 6 Gb/s
Height - 7 mm
Informacje dodatkowe: Model - Patriot P220
Informacje dodatkowe: Seria - Patriot P
Informacje dodatkowe: Zastosowane technologie - S.M.A.R.T.
Informacje dodatkowe: Zastosowane technologie - TRIM
Logistics data - Master (outer) case height - 195 mm
Logistics data - Master (outer) case length - 394 mm
Logistics data - Master (outer) case net weight - 6 kg
Logistics data - Master (outer) case width - 324 mm
Logistics data - Products per master (outer) case - 120 pc(s)
Manufacturer - Patriot
Manufacturer_code - P220S256G25
Model - P220
Name - Patriot P220 256GB
Name - Patriot P220 SSD - 256 GB - SATA - 2.5
name - SSD drive P220 256GB 550/480 MB/s SATA III 2.5
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
Packaging data - Package depth - 80 mm
Packaging data - Package height - 178 mm
Packaging data - Package type - Hanging box
Packaging data - Package weight - 50 g
Packaging data - Package width - 133 mm
Producent: Nazwa producenta / importera - PatriotPATRIOT MEMORY BVInnsbruckweg 190-1923047AH RotterdamHolandiaEmail: eusales@patriotmemory.com
producer - Patriot
Producer - Patriot
producerCode - P220S256G25
ProducerCode - P220S256G25
productName - Patriot Memory P220 256GB 2.5" Serial ATA III
productSize - Normal
Random read IOPS (max) - 40 K
Random write IOPS (max) - 50 K
Reading speed - 550 MB/s
Safety warning - Warnings - Do not disassemble the unit yourself.
Safety warning - Warnings - Do not expose to high temperatures.
Safety warning - Warnings - Protect against moisture.
ShortDescription - 2,5" | SSD | 550/490 MB/s | 7mm
sizeX - 133
sizeY - 177
sizeZ - 13
TBW - 120 TB
Technical details - Sustainability certificates - CE
Technical details - Sustainability certificates - Federal Communications Commission (FCC)
Technical details - Sustainability certificates - RoHS
Trwałość: TBW - 120 TB
vendpn - P220S256G25
warrantyLength - 36
warrantyType - G
Weight - 0,09
Weight - 46 g
weight - 56
Weight & dimensions - Depth - 100 mm
Weight & dimensions - Height - 7 mm
Weight & dimensions - Weight - 46 g
Weight & dimensions - Width - 69.9 mm
Width - 69.9 mm
Writing speed - 490 MB/s
Wydajność: Prędkość obrotowa - nie dotyczy obr./min.
Wydajność: Szybkość odczytu - 550 MB/s
Wydajność: Szybkość zapisu - 490 MB/s
