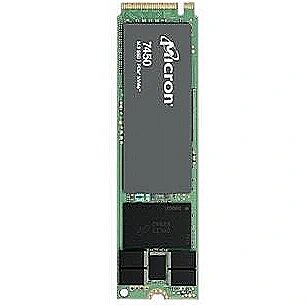

Micron SSD|MICRON|7450 PRO|960GB|M.2|NVMe|3D NAND|Write speed 1400 MBytes/sec|Read speed 5000 MBytes/sec|TBW 1700 TB|MTBF 2000000 hours|MTFDKBA960TFR-1BC1ZABYYR

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.

ID: 901493 Product code: MTFDKBA960TFR-1BC1ZABYYR

Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years

Compare

Main product parameters All parameters

Capacity: 960 GB
Type: NVMe
Read speed (sequential): 5000 MB/s
Write speed (sequential): 1400 MB/s
Form factor: M.2 80mm (2280)

Similar Products

Basic information
	This product Micron SSD\|MICRON\|7450 PRO\|960GB\|M.2\|NVMe\|3D NAND\|Write speed 1400 MBytes/sec\|Read speed 5000 MBytes/sec\|TBW 1700 TB\|MTBF 2000000 hours\|MTFDKBA960TFR-1BC1ZABYYR	ADATA Ultimate SU650, 960GB	ADATA Ultimate SU650, 256GB	Samsung 990 PRO, 1TB, M.2 Gen4 x4	Samsung 990 PRO, 4TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.	210.87 €	52.96 €	20.59 €	108.99 €	310.87 €
Capacity	960 GB	960 GB	256 GB	1 TB	4 TB
Type	NVMe	SATA	SATA	NVMe	NVMe
Read speed (sequential)	5000 MB/s	520 MB/s	520 MB/s	7450 MB/s	7450 MB/s
Write speed (sequential)	1400 MB/s	450 MB/s	450 MB/s	6900 MB/s	6900 MB/s
Functionality
Radiators		Nav	Nav	Nav	Nav
Lighting		Nav	Nav	Nav	Nav
Ports and equipment
Form factor	M.2 80mm (2280)	2.5"	2.5"	M.2 80mm (2280)	M.2 80mm (2280)
Interface		SATA III (6Gb/s)	SATA III (6Gb/s)	PCIe 4.0 x4	PCIe 4.0 x4
Interface		SATA	SATA	M.2	M.2
Specifikācija
Memory type	TLC (Triple-Level Cell)	Not specified	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)	TLC (Triple-Level Cell)
Random Read IOPS		40K	40K	1.2m	1.4M
Random Write IOPS		75K	75K	1.55M	1.55M
Endurance (TBW)	1700 TB	560 TB	560 TB	600 TB	1200 TB

Basic information

Capacity 960 GB

The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.

Type : NVMe

Read speed (sequential) 5000 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 1400 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Ports and equipment

Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Specifikācija

Memory type : TLC (Triple-Level Cell)

Endurance (TBW) : 1700 TB

More detailed specification

Box Weight Brutto (kg) - 0.1 kg
Category Code - SSP
Description - Micron 7450 Pro 960GB (MTFDKBA960TFR)
Device Location - Plug-in Module
dimensionalWeight - 9
Dimensions - 22 x 80 мм
EAN Code - 649528924582
Features - Component for - Server/workstation
Features - DWPD - 1
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Product series - 7450 PRO
Features - Random read (4KB) - 520000 IOPS
Features - Random write (4KB) - 82000 IOPS
Features - Read latency - 80 µs
Features - SSD capacity - 960 GB
Features - SSD form factor - M.2
Features - Target workload - Read Intensive (RI)
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write latency - 15 µs
Flash Memory Cell Technology - Triple-Level Cell
Form Factor - M.2
Form Factor - M.2 22x80mm
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/250212170013997579.jpg
Maximum Operating Ambient Temperature - 70 °C
Maximum Power Consumption - 8 W
Maximum Random Read Rate - 520000 IOPS
Maximum Random Write Rate - 82000 IOPS
Maximum Sequential Read Rate - 5000 MB/s
Maximum Sequential Write Rate - 1400 MB/s
Mean Time Between Failures - 2000000 hr
Memory Technology - 3D NAND
Minimum Operating Ambient Temperature - 0 °C
Model - MTFDKBA960TFR-1BC1ZABYY
MTBF - 2000000 hours
NAND flash technology - 3D NAND
Non-Recoverable Errors - 1 per 10^17
NVMe - Yes
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Package Type - Retail
Packing type - Retail
Packs in Box - 5
Pack Weight Brutto (kg) - 0.02 kg
Pieces in pack - 1
producerCode - MTFDKBA960TFR-1BC1ZABYYR
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=220829121912037778&THEME=asbis&LANG=lv
ProductCategory - SSD
ProductCode - MTFDKBA960TFR-1BC1ZABYYR
ProductDescription - Micron 7450 PRO 960GB NVMe M.2 (22x80) Non-SED Enterprise SSD [Single Pack]
productName - SSD Micron 7450 PRO 960GB M.2 (22x80) NVMe PCI 4.0 MTFDKBA960TFR-1BC1ZABYYR (DWPD 1)
Product Net Weight - 0 kg
productSize - Normal
ProductType - SSD Server
Read speed - 5000 MBytes/sec
sizeX - 175
sizeY - 5
sizeZ - 55
Solid State Drive Features - Power-loss Protection (data at rest)
SSD Capacity - 960GB
SSD series - 7450 PRO
Storage Capacity - 960 GB
Supports Data Channel - NVMe PCIe® Gen4
TBW - 1700 TB
Total Bytes Written (TBW) - 1700 TB
Unit Box Height - 0.005
Unit Box Length - 0.175
Unit Box Width - 0.055
Unit Calculated Volume - 0 cubm
Unit Calculated Weight - 0 kg
Units per Shipping Box - 1
Vendor - MICRON
Vendor Homepage - media-www.micron.com/-/media/client/global/documents/products/product-flyer/7450_nvme_ssd_product_brief.pdf
Warranty - 60L months
warrantyLength - 60
Warranty Products Returnable - Yes
Warranty Term (month) - 60 mēneši
warrantyType - G
Warranty validation Criteria - Serial Number
weight - 15
Write speed - 1400 MBytes/sec
