ID: 1410339
Product code: DHI-SSD-C970N1TB
Can be ordered 115 units Availability: 14 days after order approval
Warranty: 3 years

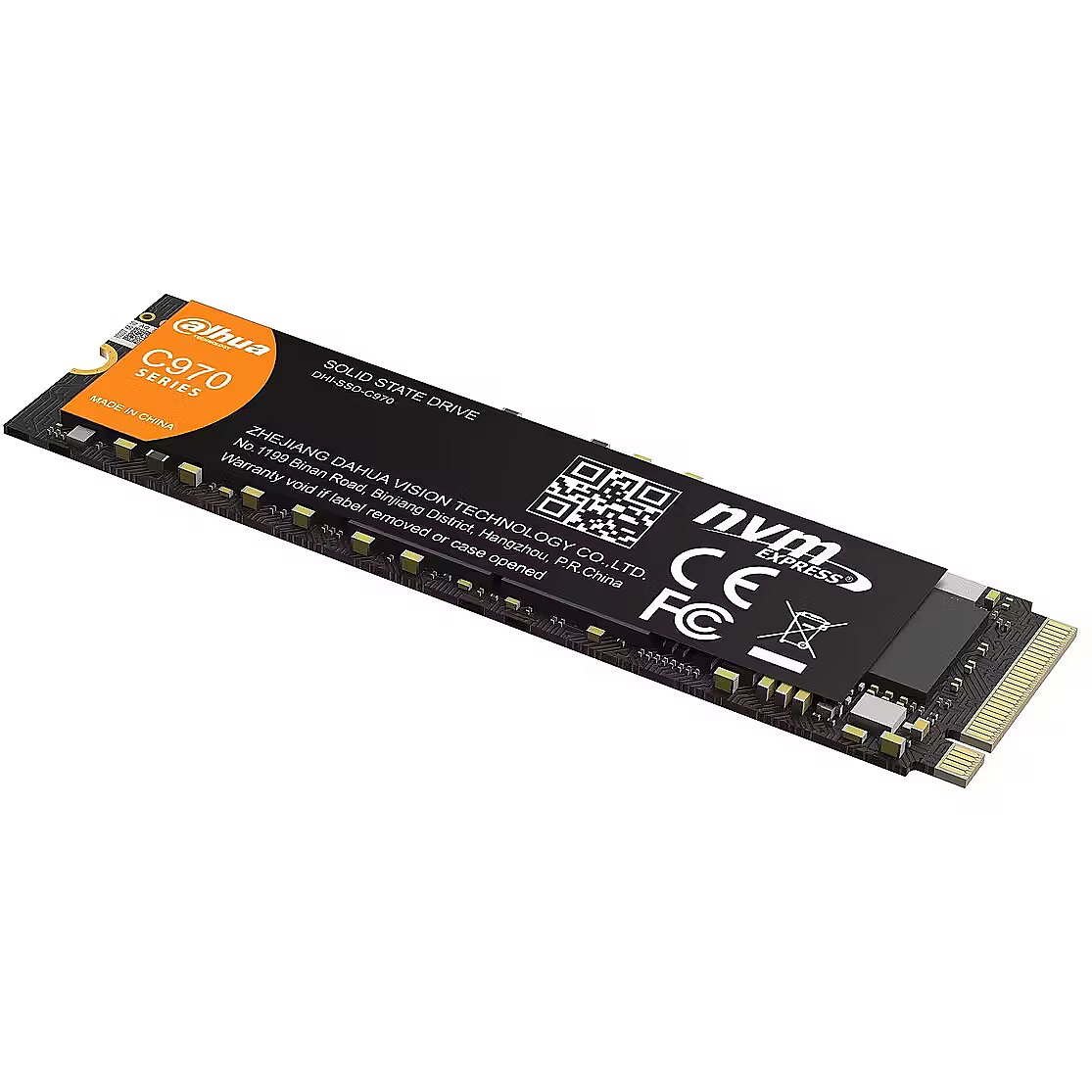

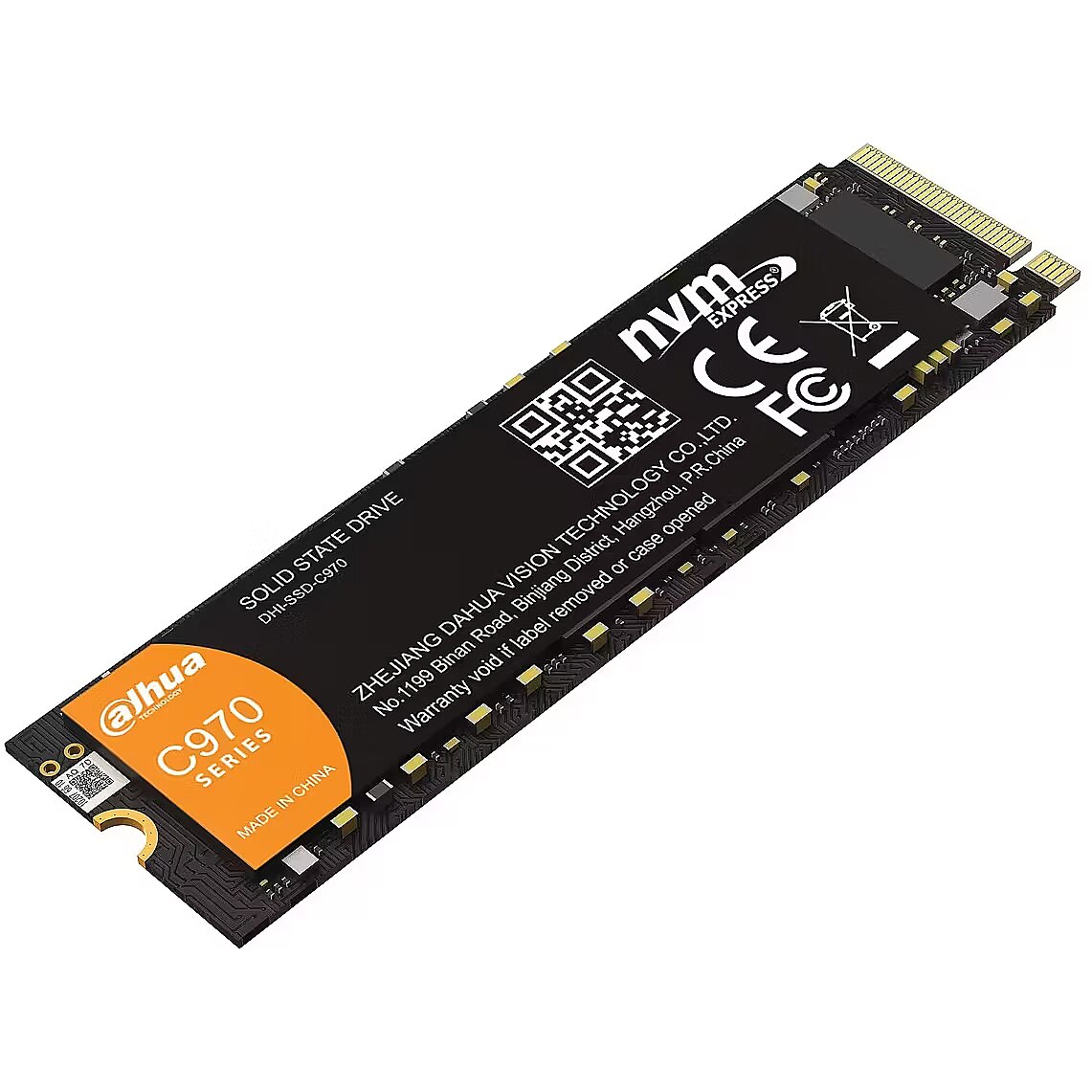

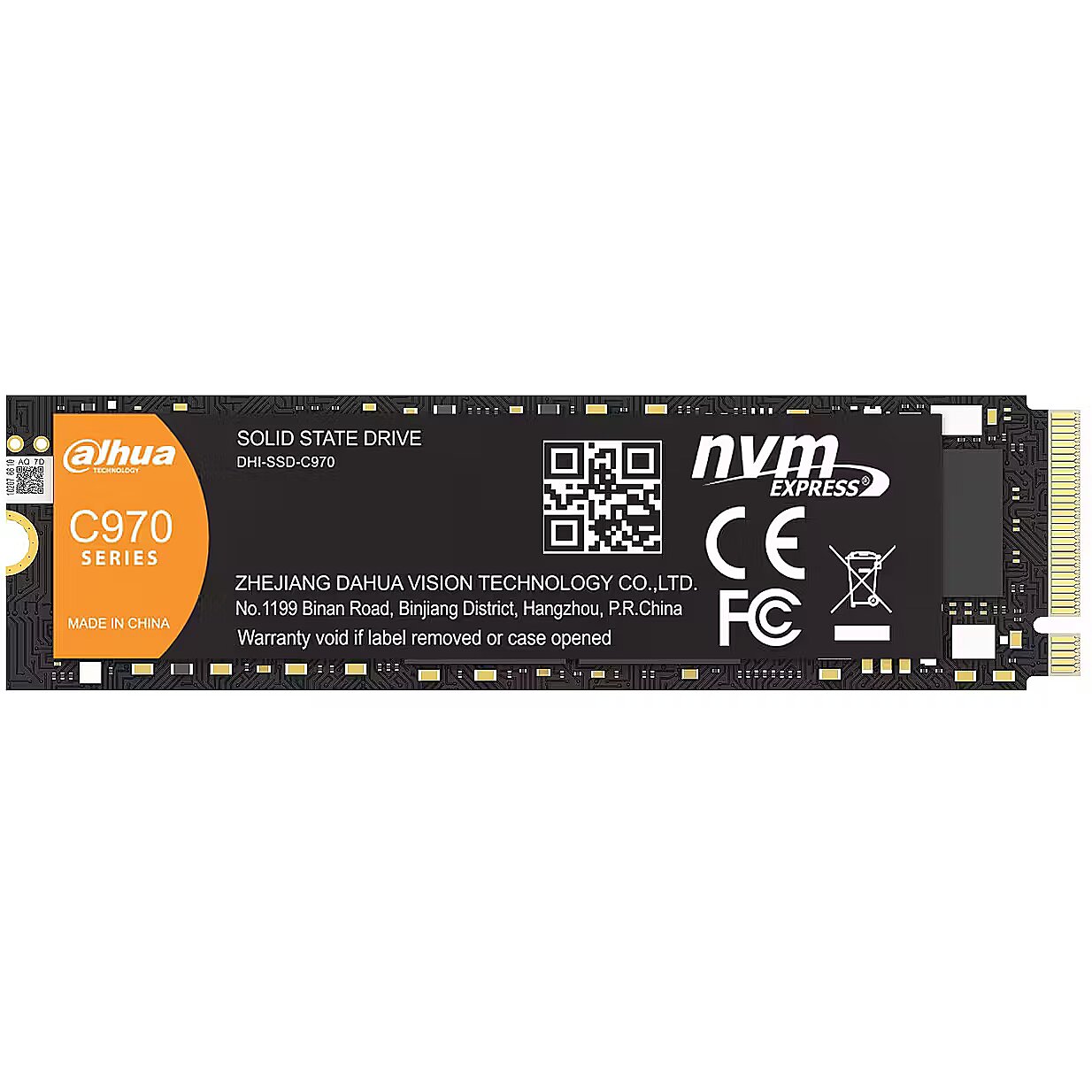

Dahua C970 Series, 1TB, M.2 Gen4 x4
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Capacity: 1 TB
- Type: NVME
- Read speed (sequential): 4450 MB/s
- Write speed (sequential): 4280 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Description
We offer to purchase a Dahua M.2 80mm (2280) format SSD drive with a 1 TB capacity.
This SSD drive has a compact and modern M.2 connector.
This is a fast-acting NVME SSD drive, based on PCIe technology. It allows data to be transmitted in parallel over multiple channels, ensuring excellent performance. This type of drive is perfectly suited for activities such as processing large files, gaming, and video editing, where maximum data transmission speed is required.
The read speed for this SSD drive reaches 4450 MB/s. However, it's crucial to note - if the "fast" drives are not provided with adequate cooling, they may not be able to operate at the speed indicated by the manufacturer.
4280 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
The format of this SSD drive (physical size of the drive) is M.2 80mm (2280).
This SSD drive interface is PCIe 4.0 x4. If you insert this drive into an older interface slot, the speed of the drive will decrease, as the drive will not have sufficient data transfer speed (Bandwidth).
Basic information
Capacity
1 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVME
Read speed (sequential)
4450 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
4280 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: None
Lighting
: None
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 4.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specification
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: Not specified
Random Write IOPS
: Not specified
Endurance (TBW)
: 2000 TB
More detailed specification
Brand - Dahua Technology
BrandPartCode - DHI-SSD-C970N1TB
Category - Internal Solid State Drives
dimensionalWeight - 51
Features - Component for - PC
Features - Hardware encryption - No
Features - Interface - PCI Express 4.0
Features - Low-density parity-check (LDPC) - Yes
Features - Mean time between failures (MTBF) - 1500000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 495000 IOPS
Features - Random write (4KB) - 750000 IOPS
Features - Read speed - 5000 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TBW rating - 2000
Features - TRIM support - Yes
Features - Write speed - 4700 MB/s
GTIN - 6923172545084
LongDesc - As a new generation of NVMe SSD high-performance product, Dahua C970 series adopts high-performance PCIe Gen4.0 controller IG5220, and original high-quality 3D NAND Flash memory chip. It has a 4-channel high-speed data transmission system, and data transmission speed up to 5000 MB/s. Based on the advanced hybrid intelligent temperature control algorithm, this product with stable controller and flash memory chip ensures high efficiency for a long time even while taking a heavy workload on the read/write state.
LongProductName - 1TB PCIe Gen4x4 SSD
LongSummaryDescription - Dahua Technology 1TB PCIe Gen4x4 SSD. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 5000 MB/s, Write speed: 4700 MB/s, Component for: PC
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Operating vibration - 3.08 G
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features - Compliance certificates - CE
Other features - Compliance certificates - CE, Federal Communications Commission (FCC), WEEE
Other features - Compliance certificates - Federal Communications Commission (FCC)
Other features - Compliance certificates - WEEE
Other features - Warranty period - 3 year(s)
Packaging data - Package depth - 140.5 mm
Packaging data - Package height - 15.5 mm
Packaging data - Package width - 105.5 mm
Power - Power consumption (idle) - 1.5 W
Power - Power consumption (max) - 4.65 W
producerCode - DHI-SSD-C970N1TB
ProductName - 1TB PCIe Gen4x4 SSD
productName - Dahua Technology 1TB PCIe Gen4x4 SSD
productSize - Normal
ShortSummaryDescription - Dahua Technology 1TB PCIe Gen4x4 SSD, 1 TB, M.2, 5000 MB/s
sizeX - 105
sizeY - 145
sizeZ - 17
Sustainability - Sustainability compliance - Yes
Title - Dahua Technology 1TB PCIe Gen4x4 SSD
URL - https://www.dahuasecurity.com/products/All-Products/Dahua-Memory/Internal-SSD/C970/SSD-C970N1TB
WarrantyInfo - 3 Years
warrantyLength - 60
warrantyType - G
weight - 45
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 2.25 mm
Weight & dimensions - Weight - 8 g
Weight & dimensions - Width - 22 mm
