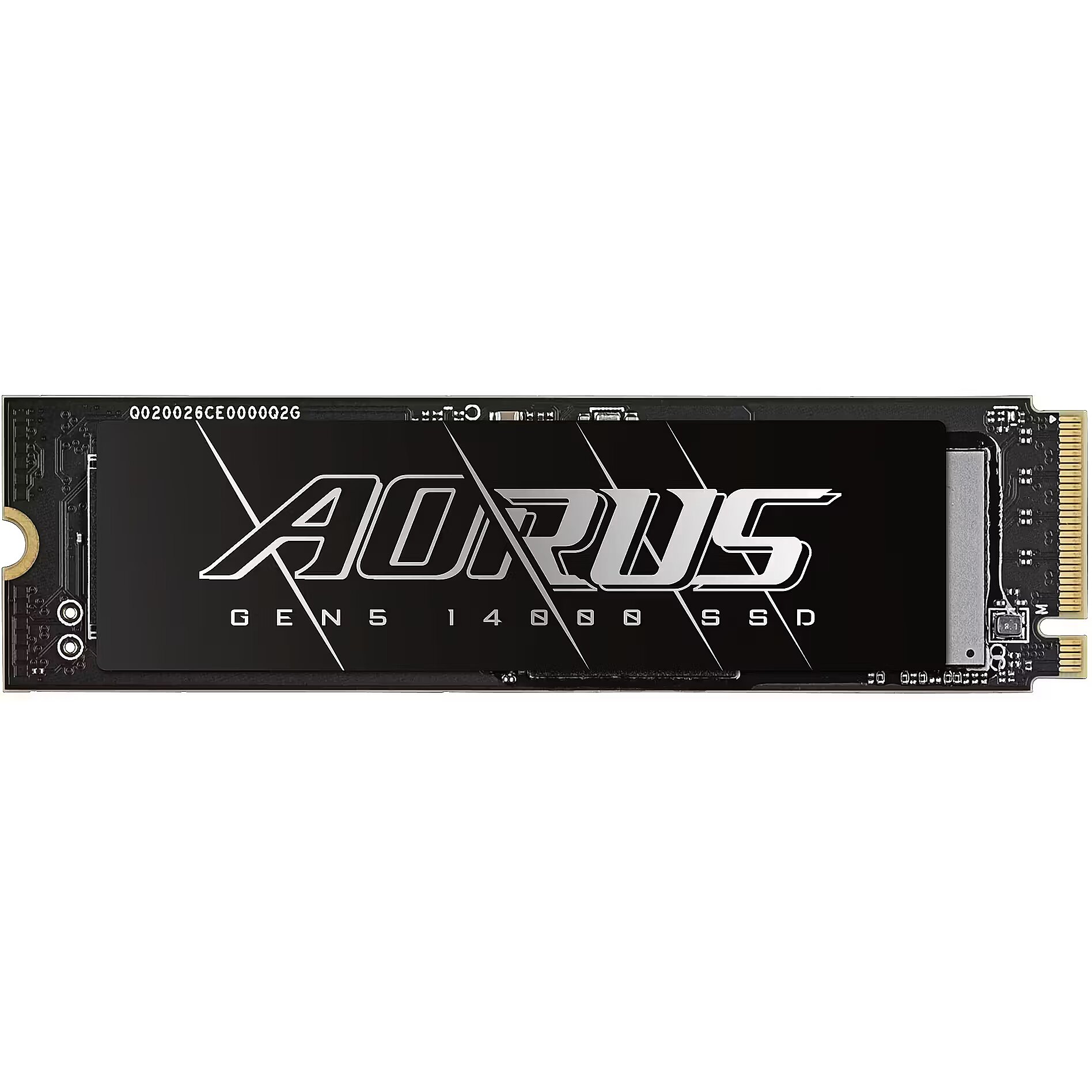

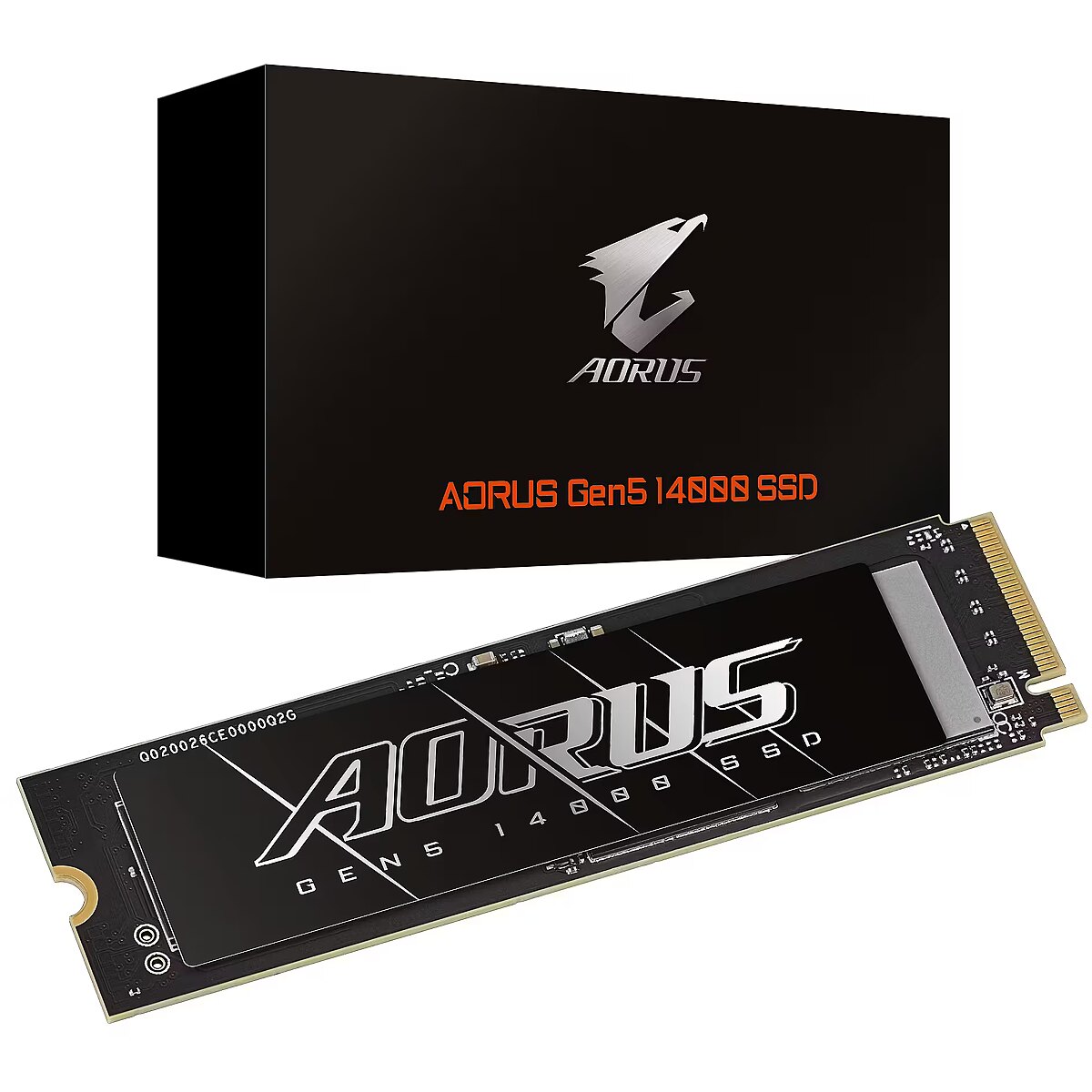

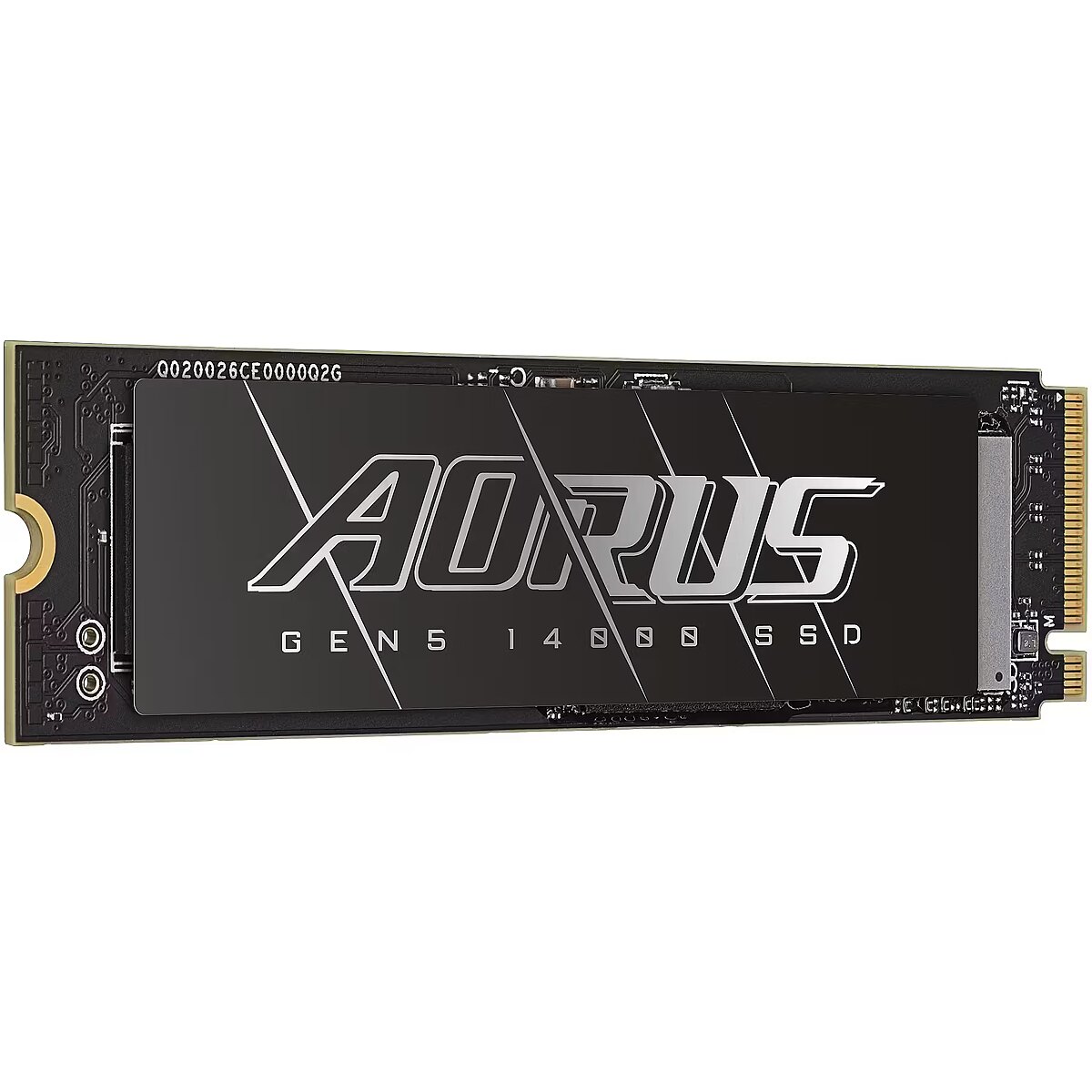

Gigabyte AORUS Gen5 14000, 4TB, M.2 Gen5 x4

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1277379 Product code: AG514K4TB
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 3 years
Main product parameters All parameters
  • Capacity: 4 TB
  • Type: NVMe
  • Read speed (sequential): 14100 MB/s
  • Write speed (sequential): 12600 MB/s
  • Form factor: M.2 80mm (2280)
  • Interface: PCIe 5.0 x4
Similar Products
This product Gigabyte AORUS Gen5 14000, 4TB, M.2 Gen5 x4
Recommended Western Digital Black SN8100, 4TB, M.2 Gen5 x4
Recommended Samsung 9100 PRO, 2TB, M.2 Gen5 x4
Recommended ADATA XPG Mars 980 Blade, 2TB, M.2 Gen5 x4
Recommended Crucial P310, 4TB, M.2 Gen4 x4
Show similar specs. Hide similar specs.
430.50 €
531.27 €
304.76 €
253.58 €
338.31 €
Basic information
Capacity 4 TB 4 TB 2 TB 2 TB 4 TB
Type NVMe NVMe NVMe NVMe NVMe
Read speed (sequential) 14100 MB/s 14900 MB/s 14700 MB/s 14000 MB/s 7100 MB/s
Write speed (sequential) 12600 MB/s 14000 MB/s 13400 MB/s 13000 MB/s 6000 MB/s
Functionality
Radiators Nav Nav Nav Nav Nav
Lighting Nav Nav Nav Nav Nav
Ports and equipment
Form factor M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280) M.2 80mm (2280)
Interface PCIe 5.0 x4 PCIe 5.0 x4 PCIe 5.0 x4 PCIe 5.0 x4 PCIe 4.0 x4
Interface M.2 M.2 M.2 M.2 M.2
Specifikācija
Memory type TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) TLC (Triple-Level Cell) QLC (Quad-Level Cell)
Random Read IOPS Not specified 2.3M 1.85M 2M 1m
Random Write IOPS Not specified 2.4M 2.6M 1.6M 1m
Endurance (TBW) 3000 TB 2400 TB 1200 TB 1480 TB 800 TB
Description

We offer to purchase a Gigabyte M.2 80mm (2280) format SSD drive with a 4 TB capacity.

This disc uses the latest generation compact M.2 port.

This SSD drive uses the latest NVME standard with PCIe interface, which allows simultaneous data transmission across multiple data lines. Thanks to this technology, the drive is ideally suited for those who work with large files, play computer games or deal with video editing.

14100 MB/s – this is the data reading speed that this SSD disk is capable of reaching. However, we must remember one crucial nuance - "fast" disks may not show the performance promised by the manufacturer if adequate cooling is not provided.

The writing speed for this SSD disk reaches 12600 MB/s. Without a suitable cooling mechanism, "fast" disks may not be able to achieve the performance indicators promised by the manufacturer.

This SSD drive has an M.2 80mm (2280) format.

The SSD drive has a PCIe 5.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.

Basic information
Capacity 4 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type : NVMe
Read speed (sequential) 14100 MB/s

Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.

If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.

Write speed (sequential) 12600 MB/s

The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.

Functionality
Radiators : Nav
Lighting : Nav
Ports and equipment
Form factor M.2 80mm (2280)

Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.

1.8" discs are intended for the ultra-compact class portable computers.

PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.

Interface : PCIe 5.0 x4
Interface M.2

SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.

The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.

Specifikācija
Memory type : TLC (Triple-Level Cell)
Random Read IOPS : Not specified
Random Write IOPS : Not specified
Endurance (TBW) : 3000 TB
More detailed specification
Additional information in manufacturers website Gigabyte AORUS Gen5 14000, 4TB, M.2 Gen5 x4
Brand - GIGABYTE
BrandPartCode - AG514K4TB
Category - Internal Solid State Drives
Features - Component for - PC
Features - Controller type - Phison PS5026-E26
Features - External DDR cache - Yes
Features - External DDR cache quantity - 8192 MB
Features - Hardware encryption - No
Features - Interface - PCI Express 5.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 1600000 h
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - PCI Express interface data lanes - x4
Features - Read speed - 14100 MB/s
Features - SSD capacity - 4 TB
Features - SSD form factor - M.2
Features - TBW rating - 3000
Features - Windows operating systems supported - Windows 10 x64, Windows 11 x64
Features - Write speed - 12600 MB/s
GTIN - 4719331862596
LongDesc - Unleash unparalleled speed with AORUS Gen5 14000 SSDRedefining Speed, Efficiency, and AI Application PerformancePowered by the PCIe Gen5.0 x4 controller Phison PS5026-E26 and boasting brand-new 232-layer 3D TLC NAND Flash, the AORUS Gen5 14000 SSD redefines the pinnacle of speed and efficiency. With blazing sequential read/write speeds of up to 14,100 / 12,600 MB/s, this SSD is engineered to meet the demands of PC enthusiasts, gamers, and rendering professionals. Experience lightning-fast data transfers and enjoy a smoother, lower-latency gaming experience with the AORUS Gen5 14000 SSD. Unlock the true potential of your system and elevate your gaming prowess to unprecedented levels.Unleash the Power of PCIe 5.0 x4, NVMe 2.0With PCIe 5.0 x4, The PS5026-E26 controller is manufactured with the advanced 12nm process, which ensures sufficient computing power. It also supports up to 8 NAND flash channels with 64CEs, DDR4 caching and complies with the NVMe 2.0 standard. The speed of the AORUS Gen5 14000 SSD is doubled compared to PCIe 4.0 x4, so that data can be transported at a significantly higher speed.NAND Flash Selected for High Quality and PerformanceLeveraging the superior throughput and high-quality combination that 3D TLC NAND provides, AORUS Gen5 14000 SSD brings a better experience in work.Pairing with Motherboard-Integrated HeatsinksWhen utilizing AORUS Gen5 14000 SSD, it is crucial to pair it with a motherboard equipped with a built-in heatsink. The high-speed data transfer capabilities of PCIe5.0 x4 SSD demand efficient heat dissipation to maintain optimal performance and prevent thermal throttling.GIGABYTE CONTROL CENTER (GCC)GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.- Unified software platform for all Gigabyte supported products- Intuitive user interface for an eased experience- Modularized control components only for installed hardware- Auto update function to keep system up to date and support future products
LongProductName - 4 TB, M.2, PCI Express 5.0 x4, NVMe 2.0, 3D TLC NAND Flash
LongSummaryDescription - GIGABYTE AORUS Gen5 14000. SSD capacity: 4 TB, SSD form factor: M.2, Read speed: 14100 MB/s, Write speed: 12600 MB/s, Component for: PC
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Packaging data - Manual - Yes
Packaging data - Package type - Box
Power - Power consumption (idle) - 0.144 W
Power - Power consumption (read) - 11.5 W
Power - Power consumption (write) - 11.5 W
ProductName - AORUS Gen5 14000
ShortSummaryDescription - GIGABYTE AORUS Gen5 14000, 4 TB, M.2, 14100 MB/s
Title - GIGABYTE AORUS Gen5 14000 4 TB M.2 PCI Express 5.0 NVMe 3D TLC NAND
URL - https://www.gigabyte.com/SSD/AORUS-Gen5-14000-SSD-4TB
WarrantyInfo - 5 years limited
Weight & dimensions - Depth - 80 mm
Weight & dimensions - Height - 3.5 mm
Weight & dimensions - Width - 22 mm
