ID: 1226416
Product code: SMAR-980P-2TCI
Can be ordered 11 units Availability: 14 days after order approval
Warranty: 3 years

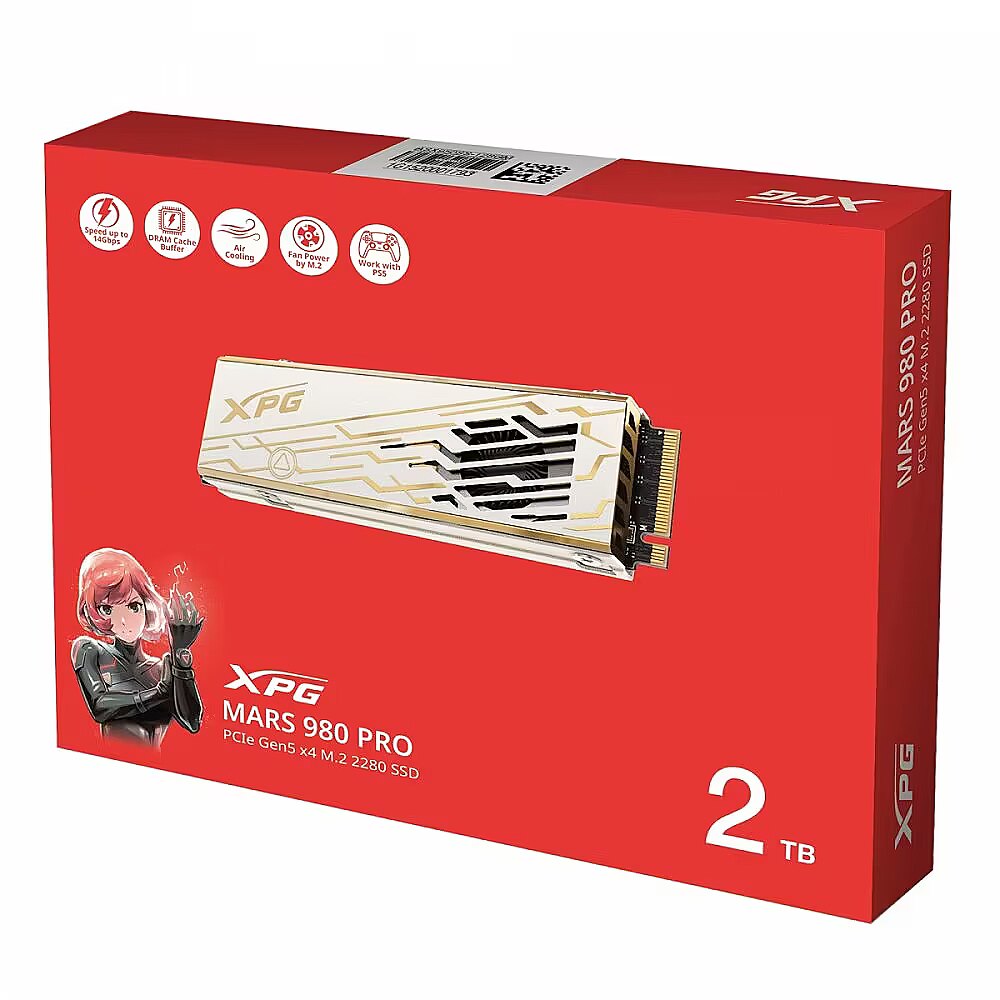

ADATA XPG Mars 980 Pro, 2TB, M.2 Gen5 x4, with Heatsink
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Capacity: 2 TB
- Type: NVMe
- Read speed (sequential): 14000 MB/s
- Write speed (sequential): 13000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 5.0 x4
Description
We offer to purchase a Adata M.2 80mm (2280) format SSD drive with a 2 TB capacity.
This SSD drive has a compact and modern M.2 connector.
This is an NVME type SSD drive. It uses the PCI-e protocol, which allows data to be transmitted over multiple lines at the same time. This type of drive is ideal for processing large files, gaming, video editing, and other resource-intensive tasks.
This SSD disk read speed (Sequential read speed) is 14000 MB/s. Keep in mind that "fast" disks without a proper cooling solution may not reach the speeds indicated by the manufacturer.
13000 MB/s - this SSD drive is capable of achieving such data writing speed. The speed parameters promised by the manufacturer may not be reached if the "fast" disk is not provided with an appropriate cooling system.
This SSD drive is equipped with a heatsink or a cooler, which helps to keep the memory chips cool and ensure stable writing and reading speed during prolonged operation. Even if a "fast" drive without a heatsink is chosen, in 99% of cases the system board will be equipped with an M.2 slot cooler.
This is an SSD disk in the M.2 80mm (2280) format.
The SSD drive has a PCIe 5.0 x4 interface. If it is inserted into an older interface slot, the potential speed of the drive will not be fully utilized, as the older interface will not provide sufficient data transfer bandwidth.
Basic information
Capacity
2 TB
The HDD capacity in Gigabytes indicates how much information can be stored by the HDD. The capacity of the HDD is fixed and cannot be increased after buying the HDD. Therefore, upon buying the HDD you should verify its compliance with your current volume requirements and provides a reserve for future needs.
Type
: NVMe
Read speed (sequential)
14000 MB/s
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
Write speed (sequential)
13000 MB/s
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Functionality
Radiators
: Ir
Lighting
: Nav
Ports and equipment
Form factor
M.2 80mm (2280)
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
Interface
: PCIe 5.0 x4
Interface
M.2
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
Specifikācija
Memory type
: TLC (Triple-Level Cell)
Random Read IOPS
: 2M
Random Write IOPS
: 1.6M
Endurance (TBW)
: 1480 TB
More detailed specification
Brand - ADATA
BrandPartCode - SMAR-980P-2TCI
Category - Internal Solid State Drives
Color - Not applicable
Depth - 80.5 mm
Description -
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 130 mm
dimension weight - 70 g
dimension width - 105 mm
Disk type - SSD
Drive type - Internal
ean - 4711085949431
Features - Certification - CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS
Features - Component for - PC/Notebook/Game console
Features - Hardware encryption - Yes
Features - Interface - PCI Express 5.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - Random read (4KB) - 2000 IOPS
Features - Random write (4KB) - 1650 IOPS
Features - Read speed - 14000 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1480
Features - Write speed - 13000 MB/s
Form factor (width) - M.2 2280
GTIN - 0842243034721
GTIN - 842243034721
GTIN - 4711085949431
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCIe 5.0
Height - 11.2 mm
LongDesc - MARS 980 PROFast Moves, Stay CoolCoolest Games Time - Next-Level Gen5 GearThe MARS 980 PRO is a gaming PCIe 5.0 SSD with air cooling for quiet, stable performance. Featuring PCIe Gen5 x4 and NVMe 2.0 support, it excels in AI workloads and supports the latest Intel and AMD platforms—built to break boundaries.Boss Mode On. Enemies Down.The MARS 980 PRO features a sequential read/write speed of 14,000/13,000MB per second, which is double the performance of PCIe Gen4 SSDs and 8x faster than standard Gen3 SSDs. It is fully backward compatible with PCIe 4.0 and 3.0 platforms. Complete every challenge in mere seconds!Active Cooling, Maximum Heat DropNo more lag! The MARS 980 PRO features a precision-engineered aluminum fin heatsink¹ and a hollow airflow structure that separates hot and cool air for optimized ventilation.An integrated turbo fan accelerates heat dissipation, while the unique active cooling system delivers up to 15% lower temperatures² compared to fanless designs.With advanced air cooling, your system runs smoother than ever.¹ The heatsink is pre-installed. Please ensure your system has sufficient space before installation. If your motherboard includes a pre-mounted M.2 heatsink, please remove it before installing this product. Refer to your motherboard manual for instructions.² Cooling performance is based on internal lab test conditions. Actual results may vary depending on system configuration and environment.³ Disassembling this product may void warranty and affect functionality.Expand PS5 Storage CapacityThe MARS 980 PRO utilizes a PCIe 5.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the MARS 980 PRO fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces. *According to Sony, even if the read and write speed is higher than the official standard, not all games can actually experience the same performance as the PS5 console's built-in SSD.Do More with Less HassleCable management is annoying and complicated installations are such a headache! The MARS 980 PRO's built-in fan does not require an additional power cable and the SSD is ready to use as soon as it is plugged into the M.2 slot. Simplifying complexity is the best solution.Attention! Large Capacity Incoming!Carefully selected 232-layer 3D NAND flash memory allows the MARS 980 PRO to feature an ultra-large capacity of up to 4TB, and the SSD uses a variety of data protection and error correction technologies to greatly improve TBW (Total Bytes Written) and durability to meet high load requirements.Beyond EliteMARS 980 PRO comes with SLC Caching and DRAM Cache Buffer for advantages in system loading and data caching. It features 4K random read/write of up to 2000K/1650K IOPS for smoother multitasking.SSD Toolbox value-added software for real-time status monitoringSSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
LongProductName - PCIe Gen5 x4, 2TB, M.2 2280, 3D NAND, 30.3g
LongSummaryDescription - ADATA MARS 980 PRO. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 14000 MB/s, Write speed: 13000 MB/s, Component for: PC/Notebook/Game console
Model - MARS 980 PRO
name - SSD XPG MARS 980 PRO 2TB PCIe 5x4 14/13 GB/s M2
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Warranty period - 5 year(s)
producer - Adata
ProductName - MARS 980 PRO
Random read IOPS (max) - 2000 K
Random write IOPS (max) - 1650 K
Reading speed - 14000 MB/s
ShortSummaryDescription - ADATA MARS 980 PRO, 2 TB, M.2, 14000 MB/s
TBW - 1480 TB
Title - ADATA MARS 980 PRO 2 TB M.2 PCI Express 5.0 NVMe 3D NAND
URL - https://www.xpg.com/us/xpg/solid-state-drive-mars-980-pro
vendpn - SMAR-980P-2TCI
WarrantyInfo - 5-year limited warranty
Weight - 30.3 g
Weight & dimensions - Depth - 80.5 mm
Weight & dimensions - Height - 11.2 mm
Weight & dimensions - Weight - 30.3 g
Weight & dimensions - Width - 24.2 mm
Width - 24.2 mm
Writing speed - 13000 MB/s
BrandPartCode - SMAR-980P-2TCI
Category - Internal Solid State Drives
Color - Not applicable
Depth - 80.5 mm
Description -
Designation - CE+WEEE
dimension depth - 20 mm
dimension height - 130 mm
dimension weight - 70 g
dimension width - 105 mm
Disk type - SSD
Drive type - Internal
ean - 4711085949431
Features - Certification - CE, FCC, BSMI, KC, Morocco, EAC, RCM, UKCA, RoHS
Features - Component for - PC/Notebook/Game console
Features - Hardware encryption - Yes
Features - Interface - PCI Express 5.0
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Mean time between failures (MTBF) - 2000000 h
Features - Memory type - 3D NAND
Features - NVMe - Yes
Features - NVMe version - 2.0
Features - Random read (4KB) - 2000 IOPS
Features - Random write (4KB) - 1650 IOPS
Features - Read speed - 14000 MB/s
Features - SSD capacity - 2 TB
Features - SSD form factor - M.2
Features - TBW rating - 1480
Features - Write speed - 13000 MB/s
Form factor (width) - M.2 2280
GTIN - 0842243034721
GTIN - 842243034721
GTIN - 4711085949431
guarantee - 60
guarantee_type - normal
HDD capacity - 2 TB
HDD interface - PCIe 5.0
Height - 11.2 mm
LongDesc - MARS 980 PROFast Moves, Stay CoolCoolest Games Time - Next-Level Gen5 GearThe MARS 980 PRO is a gaming PCIe 5.0 SSD with air cooling for quiet, stable performance. Featuring PCIe Gen5 x4 and NVMe 2.0 support, it excels in AI workloads and supports the latest Intel and AMD platforms—built to break boundaries.Boss Mode On. Enemies Down.The MARS 980 PRO features a sequential read/write speed of 14,000/13,000MB per second, which is double the performance of PCIe Gen4 SSDs and 8x faster than standard Gen3 SSDs. It is fully backward compatible with PCIe 4.0 and 3.0 platforms. Complete every challenge in mere seconds!Active Cooling, Maximum Heat DropNo more lag! The MARS 980 PRO features a precision-engineered aluminum fin heatsink¹ and a hollow airflow structure that separates hot and cool air for optimized ventilation.An integrated turbo fan accelerates heat dissipation, while the unique active cooling system delivers up to 15% lower temperatures² compared to fanless designs.With advanced air cooling, your system runs smoother than ever.¹ The heatsink is pre-installed. Please ensure your system has sufficient space before installation. If your motherboard includes a pre-mounted M.2 heatsink, please remove it before installing this product. Refer to your motherboard manual for instructions.² Cooling performance is based on internal lab test conditions. Actual results may vary depending on system configuration and environment.³ Disassembling this product may void warranty and affect functionality.Expand PS5 Storage CapacityThe MARS 980 PRO utilizes a PCIe 5.0 transmission interface and can be installed in the PS5 as an expansion hard drive to alleviate PS5 storage insufficiency issues. Not only does the MARS 980 PRO fit perfectly into the PS5'a drive slot, it also provides a smooth and no-lag gaming experience while enjoying triple A masterpieces. *According to Sony, even if the read and write speed is higher than the official standard, not all games can actually experience the same performance as the PS5 console's built-in SSD.Do More with Less HassleCable management is annoying and complicated installations are such a headache! The MARS 980 PRO's built-in fan does not require an additional power cable and the SSD is ready to use as soon as it is plugged into the M.2 slot. Simplifying complexity is the best solution.Attention! Large Capacity Incoming!Carefully selected 232-layer 3D NAND flash memory allows the MARS 980 PRO to feature an ultra-large capacity of up to 4TB, and the SSD uses a variety of data protection and error correction technologies to greatly improve TBW (Total Bytes Written) and durability to meet high load requirements.Beyond EliteMARS 980 PRO comes with SLC Caching and DRAM Cache Buffer for advantages in system loading and data caching. It features 4K random read/write of up to 2000K/1650K IOPS for smoother multitasking.SSD Toolbox value-added software for real-time status monitoringSSD Toolbox ensures users utilize the latest Firmware version for the best performance and employs Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) to understand the health and remaining lifespan of SSDs, as well as the current operating temperature and storage capacity, so that users can track of SSD status at any time.
LongProductName - PCIe Gen5 x4, 2TB, M.2 2280, 3D NAND, 30.3g
LongSummaryDescription - ADATA MARS 980 PRO. SSD capacity: 2 TB, SSD form factor: M.2, Read speed: 14000 MB/s, Write speed: 13000 MB/s, Component for: PC/Notebook/Game console
Model - MARS 980 PRO
name - SSD XPG MARS 980 PRO 2TB PCIe 5x4 14/13 GB/s M2
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - -40 - 85 °C
Other features -
Other features - Warranty period - 5 year(s)
producer - Adata
ProductName - MARS 980 PRO
Random read IOPS (max) - 2000 K
Random write IOPS (max) - 1650 K
Reading speed - 14000 MB/s
ShortSummaryDescription - ADATA MARS 980 PRO, 2 TB, M.2, 14000 MB/s
TBW - 1480 TB
Title - ADATA MARS 980 PRO 2 TB M.2 PCI Express 5.0 NVMe 3D NAND
URL - https://www.xpg.com/us/xpg/solid-state-drive-mars-980-pro
vendpn - SMAR-980P-2TCI
WarrantyInfo - 5-year limited warranty
Weight - 30.3 g
Weight & dimensions - Depth - 80.5 mm
Weight & dimensions - Height - 11.2 mm
Weight & dimensions - Weight - 30.3 g
Weight & dimensions - Width - 24.2 mm
Width - 24.2 mm
Writing speed - 13000 MB/s
