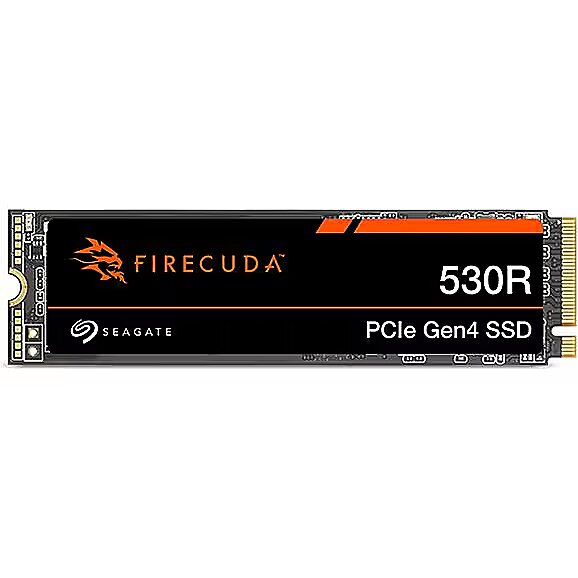

Seagate FireCuda 530R, 1TB, M.2 Gen4 x4

-
Itella parcel machineWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
- Capacity: 1 TB
- Type: NVMe
- Read speed (sequential): 7400 MB/s
- Write speed (sequential): 7000 MB/s
- Form factor: M.2 80mm (2280)
- Interface: PCIe 4.0 x4
Sequential read speed or the mean data reading speed is the most important criterion of the high-speed operation of the SSD. The data from the SSD will be read much more often than written to it because the operating system stores the processed data in the RAM in most cases.
If you want the reading speed of the purchased SSD to exceed the speed of the classic HDD considerably you should choose the SSD with the reading speed of 200 MB/s or above. The additional increase in the performance will be achieved on the account of the data search (SeekTime) which is of much higher level with SSDs than any HDD.
The writing speed is almost as important as the reading speed. Also this parameter determines the performance of the SSD, however, as the writing to the disc happens not as often as the data reading and average user will find it subjectively difficult to distinguish between any speed above 100 MB/s and higher indices, except the cases when the SSD is used in a server, for audio/video recording, etc.
Thanks to the small size provided by the SSD technology the standard size of the discs is 2.5", and it is suitable for an average portable computer. It is possible to install the 2.5" disc in the desktop computer if the transition 2.5" -> 3.5" is used, and this transition can be bought at a low cost at TopPC.fi section"Adapteri". The discs with the format 2.5" + 3.5" have this transition included.
1.8" discs are intended for the ultra-compact class portable computers.
PCI-Express SSDs are intended for desktop computers with a free PCI-Express plug available. This technology in most cases is used for ensuring the performance that exceeds the possibilities of other types of connections.
SSDs with SATAII and SATAIII connection are compatible with the connections of both types in the motherboard. Still, it has to be taken into account that the motherboard SATAII connection can provide maximum about 300 MB/s transmission capacity which can reduce the actual transmission capacity of the SSDs whose reading and/or writing speed exceeds this level to the capacity limits of the SATAII.
The situation is similar with the PCI-Express and SATAIII connection slots. Although the SATAIII standard can provide up to 600 MB/s data transmission capacity there are SSDs with the speed exceeding this limit, in this case the manufacturer chooses the PCI-Express connection slot with a higher transmission capacity. The PCI-Express discs cannot be connected to the portable computer.
ARTIKEL2 - PCIE GEN4 3D TLC
Brand - Seagate
BrandPartCode - ZP1000GM3A063
Breite - 0.16
Category - Internal Solid State Drives
EANCode - 8719706437691
Features - Component for - PC
Features - Interface - PCI Express 4.0
Features - Linux operating systems supported - Yes
Features - M.2 SSD size - 2280 (22 x 80 mm)
Features - Memory type - 3D TLC
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Random read (4KB) - 1300000 IOPS
Features - Random write (4KB) - 1300000 IOPS
Features - Read speed - 7400 MB/s
Features - S.M.A.R.T. support - Yes
Features - SSD capacity - 1 TB
Features - SSD form factor - M.2
Features - TRIM support - Yes
Features - Windows operating systems supported - Windows 10, Windows 11
Features - Write speed - 7000 MB/s
GRUPPE1 - Hard Drive/Optical
GRUPPE2 - Solid State Drive
GTIN - 0763649183083
GTIN - 763649183083
GTIN - 8719706437691
HERSTELLER - SEAGATE
Hoehe - 0.03
HSTNUMMER - ZP1000GM3A063
Laenge - 0.29
LongDesc -
LongProductName - 1000GB, M.2, PCIe, Windows 11, Windows 10, Linux
LongSummaryDescription - Seagate FireCuda 530R. SSD capacity: 1 TB, SSD form factor: M.2, Read speed: 7400 MB/s, Write speed: 7000 MB/s, Component for: PC
Operational conditions - Non-operating shock - 1500 G
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Operational conditions - Storage temperature (T-T) - 40 - 85 °C
Other features - Compliance certificates - RoHS
Packaging data - Package depth - 109 mm
Packaging data - Package height - 24 mm
Packaging data - Package type - Box
Packaging data - Package weight - 70 g
Packaging data - Package width - 155 mm
Power - Power consumption (average) - 8.3 W
ProductName - FireCuda 530R
ShortSummaryDescription - Seagate FireCuda 530R, 1 TB, M.2, 7400 MB/s
Stck_Kart - 0
Stck_Pal - 0
Storno - Y
Technical details - Doesn't contain - Halogen
Title - Seagate FireCuda 530R 1 TB M.2 PCI Express 4.0 NVMe 3D TLC
URL - https://www.seagate.com/gb/en/support/internal-hard-drives/ssd/firecuda-530r-ssd/
WarrantyInfo -
Weight & dimensions - Depth - 22.1 mm
Weight & dimensions - Height - 2.23 mm
Weight & dimensions - Weight - 7.3 g
Weight & dimensions - Width - 80.8 mm
