Accessories included -
ACoutletsquantity -
ACoutlettypes - C13 coupler, C19 coupler
AC outlet types Ports & interfaces - C13 coupler, C19 coupler
Active power - 2200 W
Apparent power - 2200 VA
ARTIKEL1 - EATON 5PX 2200I RT3U G2
ARTIKEL2 -
Automatic battery test Battery - Yes
AutomaticVoltageRegulationAVR -
Battery -
Battery - Automatic battery test - Yes
Battery - Hot-swap battery - Yes
Batterycapacity -
Batterytechnology -
Batteryvoltage -
Breite - 0.59
Cablesincluded -
Category Code - UPW
Certificates - CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR certified
Certificates - Certification - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Certificates - Compliance certificates - CE
Certification Certificates - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Chassis type - Rack
Chassis type - Tower
Color - Black
Color - Gray
Compliance certificates Certificates - CE
Depth - 483 mm
Depth Weight & dimensions - 483 mm
Description - Exceptional efficiency, manageability and energy metering capabilities for IT managers Performance and efficiency - Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio. Management and Cybersecurity - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools. Availability and flexibility - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
Description - Zasilacz UPS Eaton 5PX Gen2 2200 VA Wyjątkowa wydajność, łatwość zarządzania i możliwości dla menedżerów IT.
Design -
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 3U
Designation - CE+WEEE
dimensionalWeight - 25009
dimension depth - 580 mm
dimension height - 280 mm
Dimensions - 438 x 483 x 129 mm
dimension weight - 35000 g
dimension width - 770 mm
Displaytype - LCD
Display type Design - LCD
ean - 743172104762
EANCode - 0743172104762
Efficiency -
Environment requirements - Temperatura pracy 0 do 40°C Poziom hałasu < 40 dB przy typowym obciążeniu
Features -
Features - Input frequency - 47/70 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 40 dB
Features - Output power - 2200 W
Features - Output power capacity - 2.2 kVA
Features - Power protection features - Overdischarge
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Formfactor - Rackmount/Tower
Form factor Design - Rackmount/Tower
Gewicht - 34.4
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
Harmonized System (HS) code Logistics data - 85078000
Heatdissipation -
Height - 129 mm
Height Weight & dimensions - 129 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.29
Hot-swap battery Battery - Yes
Hotswapbattery - Yes
HSTNUMMER - 5PX2200IRT3UG2
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 160 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C20
Laenge - 0.77
LED indicators Design - Yes
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
Management card included Packaging data - No
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5PX2200IRT3UG2.pdf
name - 5PX 2200i RT3U G2 2200VA / 2200W
Networkcardslot -
Noiselevel - 40 dB
Noise level Features - 40 dB
Nominal output voltage Other features - 230 V
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C

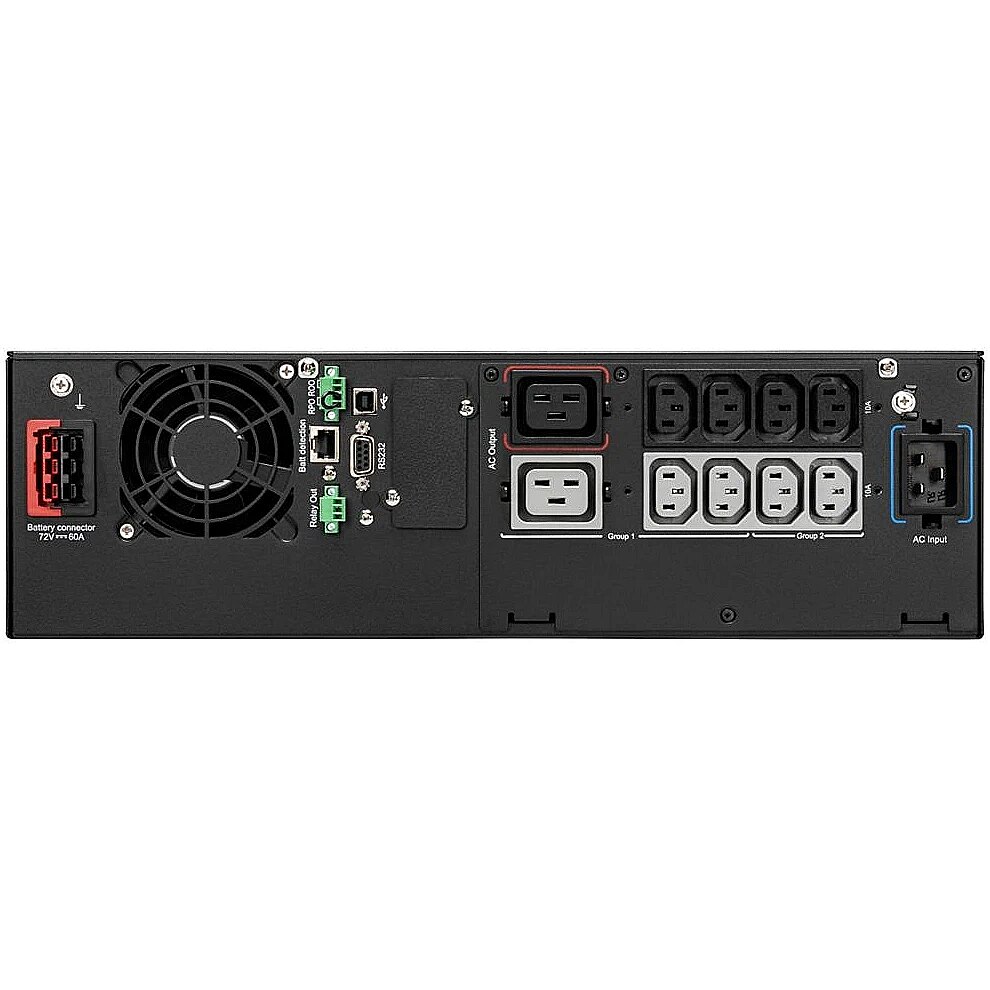

Other features - 1 USB port + 1 serial RS232 port + 1 mini-terminal block dla Remote ON/OFF + 1 mini-terminal block dla Remote Power OFF + 1 mini-terminal block
Other features - Nominal output voltage - 230 V
Other features - Output connections - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Output connections Other features - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Outputfrequency -
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 2200 W
Outputpowercapacity - 2.2 kVA
Output power capacity Features - 2.2 kVA
Output power Features - 2200 W
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packagingcontent -
Packaging data - Management card included - No
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
Power plug Ports & interfaces - C20 coupler
Power protection features Features - Overdischarge
ProdDesc - Eaton 5PX 2200i RT3U G2
producer - Eaton
producerCode - 5PX2200IRT3UG2
Productcolour - Black
Product colour Design - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 2.2 kVA 2200 W
- Waveform: Pure sine
- Rackmount/Tower Black
productName - Eaton 5PX2200IRT3UG2 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5PX2200IRT3UG2_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - Normal
Quickinstallationguide -
Rack capacity Design - 3U
Rackmountkit -
RS232ports -
Safety regulation & standards - Safety - IEC/EN 62040-1, UL1778, CSA22.2
Safety Safety regulation & standards - IEC/EN 62040-1, UL1778, CSA22.2
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
sizeX - 770
sizeY - 580
sizeZ - 280
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Wydajność energetyczna, redukcja kosztów energii i chłodzenia Zapewnia czystą falę sinusoidalną Zapewnia większą moc rzeczywistą (W), aby chronić więcej urządzeń dzięki współczynnikowi mocy Unity (VA=W) Wyświetlacz LCD do wyświetlania stanu w czasie rzeczywistym i pomiary Długi czas podtrzymania z maksymalnie 4 opcjonalnymi EBM Licznik zużycia energii (do zarządzanych grup gniazdek) Uniwersalny produkt do instalacji w szafie lub wieży 1 gniazdo na opcjonalną kartę com (karta zarządzania siecią, karta przekaźnikowa lub sieć i przemysł karty) Zgodny ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) 1 port USB + 1 port szeregowy
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Summary - Eaton 5PX2200IRT3UG2. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RS-232. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 3U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability - Sustainability certificates - ENERGY STAR
Sustainability - Sustainability compliance - Yes
Sustainability certificates Sustainability - ENERGY STAR
Sustainability compliance Sustainability - Yes
Typicalbackuptimeathalfload -
Unit Box Height - 0.29
Unit Box Length - 0.77
Unit Box Width - 0.58
Unit Calculated Volume - 0.1295 cubm
Unit Calculated Weight - 34.9 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://www.eaton.com/
vendpn - 5PX2200IRT3UG2
Video -
Warranty - 3 lata po rejestracji
Warranty - 12 months
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - G
Waveform - Pure sine
Waveform Features - Pure sine
Weight - 27.5 kg
Weight - 27.5 kg
weight - 34400
Weight & dimensions - Depth - 483 mm
Weight & dimensions - Height - 129 mm
Weight & dimensions - Weight - 27.5 kg
Weight & dimensions - Width - 438 mm
Weightdimensions -
Weight Weight & dimensions - 27.5 kg
Width - 438 mm
Width Weight & dimensions - 438 mm
