ID: 761816
Product code: 5PX2200IRTNG2
In stock 1 units
Warranty: 2 years
(Warranty for business entities 1 year)

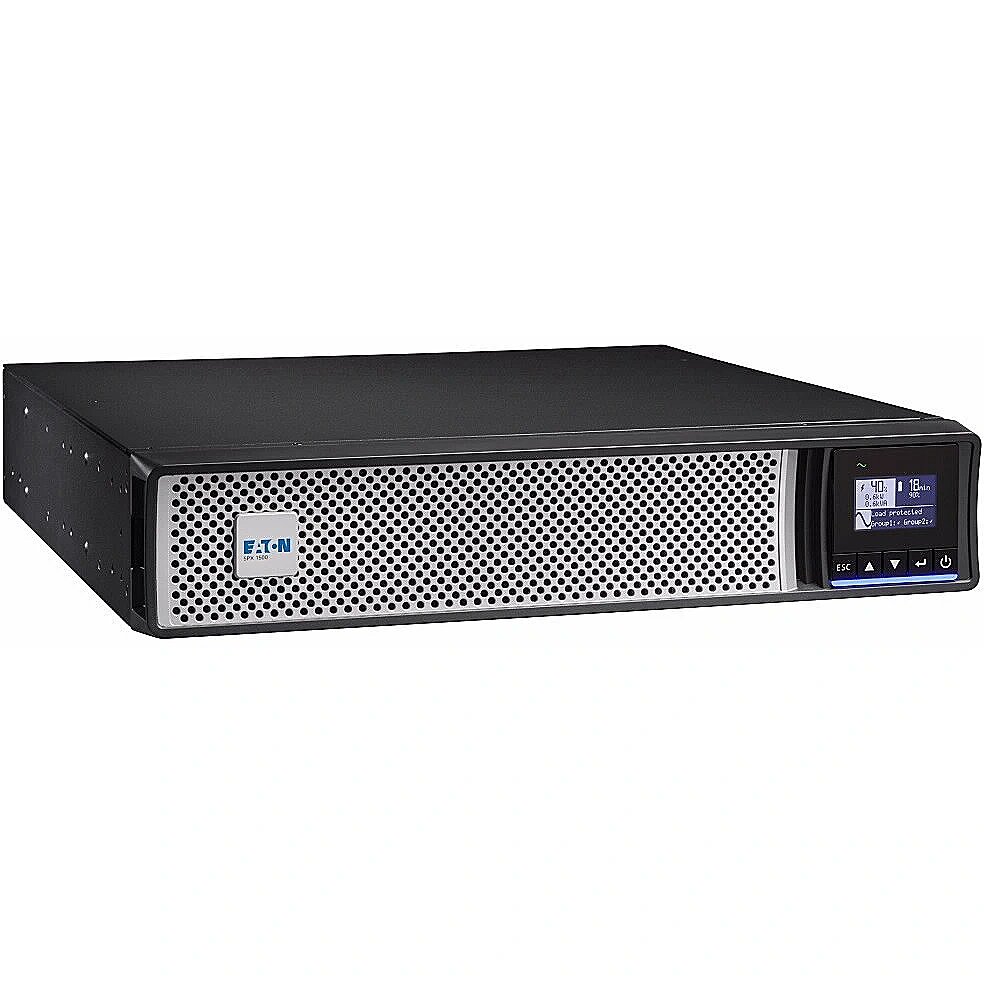

Eaton 5PX2200IRTNG2, 2200VA 2200W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery with Posti courier mailWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 2200
- Output power (W): 2200
Description
This UPS Eaton 5PX2200IRTNG2, 2200VA 2200W, IEC 2U with an output power of 2200 W and battery capacity of 2200 VA is designed for servers and IT infrastructure. It provides high load resistance and sufficient backup time for stable system operation.
A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.
A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
All parameters
Model
: 5PX2200IRTNG2
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
2200
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 2200
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
ACoutletsquantity -
ACoutlettypes - C13 coupler, C19 coupler
AC outlet types Ports & interfaces - C13 coupler/C19 coupler
Active power - 220 W
Apparent power - 2200 VA
ARTIKEL1 - EATON 5PX 2200I RT2U
ARTIKEL2 - NETPACK G2
Automatic battery test Battery - Yes
AutomaticVoltageRegulationAVR -
Battery -
Battery - Automatic battery test - Yes
Batterycapacity -
Batterytechnology -
Batteryvoltage -
Cablesincluded -
Category Code - UPW
Certificates - CE cTUVus EAC Cm UKCA Ukr KCC ENERGY STAR certified
Certification Certificates - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Chassis type - Rack
Chassis type - Tower
Color - Black
Color - Gray
Compliance certificates Certificates - CE
Depth - 603 mm
Depth Weight & dimensions - 603 mm
Description - Exceptional efficiency, manageability and energy metering capabilities for IT managers Performance and efficiency - Eaton 5PX Gen 2 provides Unity power factor (W=VA) capability. With 11% more power than other UPS it can protect more servers.
- Energy Star 2.0 certified, 5PX Gen2 offers best-in-class efficiency performance to reduceenergy consumption and cooling costs. - When operating in battery mode the 5PX provides a high-quality output signal for any sensitive equipment connected, such as active PFC (power factor corrected) servers.
- Each 5PX Gen2 battery configuration provides the best size /runtime ratio. Management and Cybersecurity - Innovative graphical LCD display brings all operating information at first sight. It also enhances commissioning and configuration capabilities.
- 5PX Gen2 Netpack models are delivered with Eaton Gigabit network management card, which provides Dual cybersecurity certifications (UL 2900-1 & IEC 62443-4-2) and enables connection to Eaton Cyber Secured Monitoring solutions.
- Together with 5PX Gen2, Eaton Gigabit network management card allows both remote UPS settings and remote firmware upgrade to ensure easy deployment (fleet management) and reduced maintenance cost. - 5PX Gen2 meters energy consumption right down to the managed outlet groups. kWh values can be monitored using the LCD or Eaton’s Intelligent Power Software.
- Eaton’s Intelligent Power Software seamlessly integrates with leading virtualization environments and cloud orchestration tools. Availability and flexibility - 5PX Gen2 2200VA & 3000VA are available in RT2U format (optimized for rack mounting) or RT3U (for tower installation or short-depth racks). Pedestals and rail kits are included with all models.
- 5PX Gen2 load segment control enables prioritized shutdowns of non-essential equipment to maximize battery runtime for critical devices (2 groups). - Eaton ABM® battery management technology uses a three stage charging technique that optimizes battery health and extends lifetime by up to 50%.
- Up to 4 external hot-swappable battery modules can be added for longer power availability.
Description - Zasilacz UPS Eaton 5PX Gen2 2200 VA z kartą sieciową. Wyjątkowa wydajność, łatwość zarządzania i możliwości dla menedżerów IT.
Design -
Design - Certification - IEC/EN 62040-2, FCC B, CISPR22 B
CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm
Design - Display type - LCD
Design - Form factor - Rackmount/Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC/EN 62040-1, UL1778, CSA22.2
Designation - CE+WEEE
dimensionalWeight - 21583
dimension depth - 58 mm
dimension height - 24 mm
Dimensions - 438 x 603 x 85.5 mm
dimension weight - 0.35 g
dimension width - 78 mm
Displaytype - LCD
Display type Design - LCD
ean - 743172104847
EANCode - 0743172104847
Efficiency -
Environment requirements - Temperatura pracy 0 do 40°C Poziom hałasu < 40 dB przy typowym obciążeniu
Features -
Features - Input frequency - 47/70 Hz
Features - Input operation voltage (max) - 294 V
Features - Input operation voltage (min) - 160 V
Features - Noise level - 40 dB
Features - Output power - 2200 W
Features - Output power capacity - 2.2 kVA
Features - Power protection features - Overdischarge
Features - UPS topology - Line-Interactive
Features - Waveform - Pure sine
Formfactor - Rackmount/Tower
Form factor Design - Rackmount/Tower
Gewicht - 37
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
Harmonized System (HS) code Logistics data - 85078000
Heatdissipation -
Height - 85.5 mm
Height Weight & dimensions - 85.5 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery -
HSTNUMMER - 5PX2200IRTNG2
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 160 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C20
Laenge - 0.79
LED indicators Design - Yes
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
Management card included Packaging data - Yes
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5PX2200IRTNG2.pdf
name - 5PX 2200i RT2U G2 Netpack 2200VA / 2200W
Networkcardslot -
Noiselevel - 40 dB
Noise level Features - 40 dB
Nominal output voltage Other features - 230 V
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - 1 USB port + 1 serial RS232 port + 1 mini-terminal block dla Remote ON/OFF + 1 mini-terminal block dla Remote Power OFF + 1 mini-terminal block
Other features - Nominal output voltage - 230 V
Other features - Output connections - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Output connections Other features - 8 x IEC C13 (10A)
2 x IEC C19 (16A)
Outputfrequency -
Outputoperationvoltagemax -
Outputoperationvoltagemin -
Outputpower - 2200 W
Outputpowercapacity - 2.2 kVA
Output power capacity Features - 2.2 kVA
Output power Features - 2200 W
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Packagingcontent -
Packaging data - Management card included - Yes
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - USB port - Yes
Portsinterfaces -
Powerfactor -
Powerplug - C20 coupler
Power plug Ports & interfaces - C20 coupler
Power protection features Features - Overdischarge
ProdDesc - Eaton 5PX 2200i RT2U Netpack G2
producer - Eaton
producerCode - 5PX2200IRTNG2
Productcolour - Black
Product colour Design - Black
Productcondition - Original
ProductHighLights -
productName - Eaton 5PX Gen2 uninterruptible power supply (UPS) Line-Interactive 2.2 kVA 2200 W
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5PX2200IRTNG2_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - SmallPallet
Quickinstallationguide -
Rack capacity Design - 2U
Rackmountkit -
RS232ports -
Safety Safety regulation & standards - IEC/EN 62040-1, UL1778, CSA22.2
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
sizeX - 785
sizeY - 235
sizeZ - 585
Software -
Special functions - Automatyczna regulacja napięcia (AVR) Wydajność energetyczna, redukcja kosztów energii i chłodzenia Zapewnia czystą falę sinusoidalną Zapewnia większą moc rzeczywistą (W), aby chronić więcej urządzeń dzięki współczynnikowi mocy Unity (VA=W) Wyświetlacz LCD do wyświetlania stanu w czasie rzeczywistym i pomiary Długi czas podtrzymania z maksymalnie 4 opcjonalnymi EBM Licznik zużycia energii (do zarządzanych grup gniazdek) Uniwersalny produkt do instalacji w szafie lub wieży 1 gniazdo na opcjonalną kartę com (karta zarządzania siecią, karta przekaźnikowa lub sieć i przemysł karty) Zgodny ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) 1 port USB + 1 port szeregowy
Stck_Kart - 1
Stck_Pal - 3
Storno - Y
Summary - Eaton 5PX Gen2. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 2200 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, Serial interface type: RS-232. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Compliance certificates: CE, Certification: IEC/EN 62040-2, FCC B, CISPR22 B CB (TUV) / cTUVus / EAC / UKCA / Ukr / Cm. Safety: IEC/EN 62040-1, UL1778, CSA22.2
Sustainability compliance Sustainability - Yes
Technical details - Sustainability certificates - CE
Technical details - Sustainability compliance - Yes
Typicalbackuptimeathalfload -
Unit Box Height - 0.237
Unit Box Length - 0.782
Unit Box Width - 0.581
Unit Calculated Volume - 0.1077 cubm
Unit Calculated Weight - 35.5 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://www.eaton.com/
vendpn - 5PX2200IRTNG2
Video -
Warranty - 3 lata po rejestracji
Warranty - 12 months
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 24
warrantyType - G
Waveform - Pure sine
Waveform Features - Pure sine
Weight - 28.2 kg
Weight - 28.2 kg
weight - 34900
Weight & dimensions - Depth - 603 mm
Weight & dimensions - Height - 85.5 mm
Weight & dimensions - Weight - 28.2 kg
Weight & dimensions - Width - 438 mm
Weightdimensions -
Weight Weight & dimensions - 28200 g
Width - 438 mm
Width Weight & dimensions - 438 mm
