ID: 641750
Product code: FGCERAPL1602SCH
In stock 20 units
Warranty: 2 years

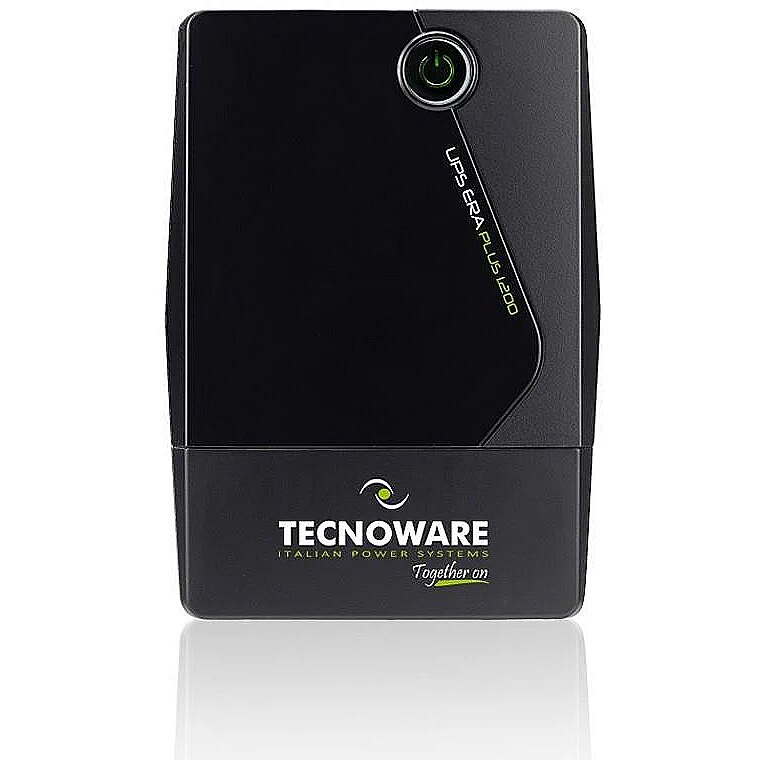

Tecnoware UPS/AVR ERA PLUS 1600VA/FGCERAPL1602SCH
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 1600 VA
- Output power (W): 20
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
1600 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4h
Output power (W)
: 20
Ports and equipment
Number of nests (total)
: 2
Number of sockets (Battery Backup)
: 2
RJ-45
: 1
Socket type
: Schuko
USB
: 1
More detailed specification
AC outlets quantity Ports & interfaces - 2 AC outlet(s)
AC outlet types Ports & interfaces - Type F
Automatic Voltage Regulation (AVR) Features - Yes
Battery technology Battery - Sealed Lead Acid (VRLA)
Category Code - UPW
Certification Certificates - CE
Depth Weight & dimensions - 279 mm
Description - UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.Complete protection against blackout and power surges (overvoltages and undervoltages)Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registersNot suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motorsAVR Automatic Voltage Regulator electronic circuitn 2 Italy / Schuko output sockets and n 1 schuko input cableoutputs socket protected against blackoutoutputs socket protected against overvoltagesmultifunction LED and on-off buttonUSB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager softwareUPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Form factor Design - Compact
Height Weight & dimensions - 142 mm
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 172.5 V
International Protection (IP) code Design - IP20
LED indicators Design - Yes
Noise level Features - 40 dB
Number of input phases Features - 1
Number of output phases Features - 1
Operating altitude Operational conditions - 0 - 300 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - 0 - 55 °C
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 230 V
Output operation voltage (min) Features - 230 V
Output power capacity Features - 1.6 kVA
Output power Features - 1120 W
Output voltage regulation Features - 5%
Package depth Packaging data - 340 mm
Package height Packaging data - 220 mm
Package width Packaging data - 180 mm
Power factor Features - 0.7
Product colour Design - Black
Response time Features - 2 ms
Summary - Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
Typical backup time at full load Battery - 10 min
Unit Box Height - 0.22
Unit Box Length - 0.34
Unit Box Width - 0.18
Unit Calculated Volume - 0.01346 cubm
Unit Calculated Weight - 5.35 kg
Units per Shipping Box - 1
UPS topology Features - Line-Interactive
USB 2.0 ports quantity Ports & interfaces - 1
USB port Ports & interfaces - Yes
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/56
Warranty - 24/12L months
Waveform Features - Sine
Weight Weight & dimensions - 5 kg
Width Weight & dimensions - 101 mm
AC outlet types Ports & interfaces - Type F
Automatic Voltage Regulation (AVR) Features - Yes
Battery technology Battery - Sealed Lead Acid (VRLA)
Category Code - UPW
Certification Certificates - CE
Depth Weight & dimensions - 279 mm
Description - UPS ERA PLUS 1600VA, 12V 11Ah battery, It has 1 fixed SCHUKO input cable and 2 SCHUKO outputs protected against blackout, overvoltages and undervoltages. Line Interactive Plus technology. Dimensions 10x14x28 cm, weight 5.5 kg. Equipped with On-Off button with integrated multifunction LED with audible alarm for signaling the operating status and USB interface for controlling UPS continuity and programming on / off via the free tecnomanager win / mac software. Designed to protect PC Office, DVR for video surveillance, ADSL-Fiber Modem / router, Cash Register. Totally silent.Complete protection against blackout and power surges (overvoltages and undervoltages)Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registersNot suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motorsAVR Automatic Voltage Regulator electronic circuitn 2 Italy / Schuko output sockets and n 1 schuko input cableoutputs socket protected against blackoutoutputs socket protected against overvoltagesmultifunction LED and on-off buttonUSB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager softwareUPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Form factor Design - Compact
Height Weight & dimensions - 142 mm
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 172.5 V
International Protection (IP) code Design - IP20
LED indicators Design - Yes
Noise level Features - 40 dB
Number of input phases Features - 1
Number of output phases Features - 1
Operating altitude Operational conditions - 0 - 300 m
Operating relative humidity (H-H) Operational conditions - 0 - 95%
Operating temperature (T-T) Operational conditions - 0 - 55 °C
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 230 V
Output operation voltage (min) Features - 230 V
Output power capacity Features - 1.6 kVA
Output power Features - 1120 W
Output voltage regulation Features - 5%
Package depth Packaging data - 340 mm
Package height Packaging data - 220 mm
Package width Packaging data - 180 mm
Power factor Features - 0.7
Product colour Design - Black
Response time Features - 2 ms
Summary - Tecnoware Era Plus 1600. UPS topology: Line-Interactive, Output power capacity: 1.6 kVA, Output power: 1120 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: USB Type-B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Certification: CE
Typical backup time at full load Battery - 10 min
Unit Box Height - 0.22
Unit Box Length - 0.34
Unit Box Width - 0.18
Unit Calculated Volume - 0.01346 cubm
Unit Calculated Weight - 5.35 kg
Units per Shipping Box - 1
UPS topology Features - Line-Interactive
USB 2.0 ports quantity Ports & interfaces - 1
USB port Ports & interfaces - Yes
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/56
Warranty - 24/12L months
Waveform Features - Sine
Weight Weight & dimensions - 5 kg
Width Weight & dimensions - 101 mm
