ID: 622385
Product code: FGCERAPL1202SCH
In stock 7 units
Warranty: 2 years

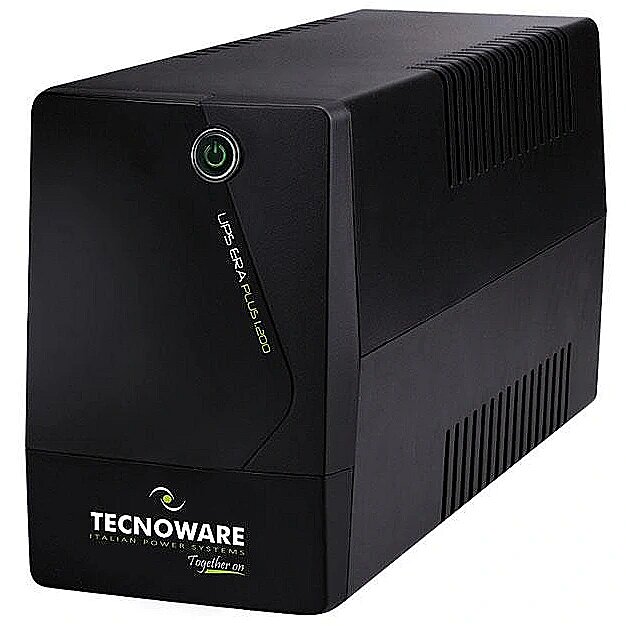

Tecnoware ERA PLUS 1200 SCHUKO TOGETHER ON, 1200VA 840W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 1200
- Output power (W): 840
Description
This UPS Tecnoware ERA PLUS 1200 SCHUKO TOGETHER ON, 1200VA 840W with an output power of 840 W and battery capacity of 1200 VA is suitable for workstations and data storage solutions. It reduces the risk of operational downtime in case of power fluctuations.
The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.
The use of Schuko connection type in a UPS device ensures a stable electrical connection and grounding protection for the connected equipment. This standard simplifies cable attachment and replacement, reduces the risk of accidental disconnection, and maintains reliable device performance under typical load.
Warranty
Tecnoware provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: ERA PLUS 1200 SCHUKO TOGETHER ON
Display characteristics
Display
: There isn't
Basic information
Battery capacity (VA)
1200
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 840
Ports and equipment
Number of nests (total)
: 2
Number of sockets (Battery Backup)
: 2
RJ-45
: 0
Socket type

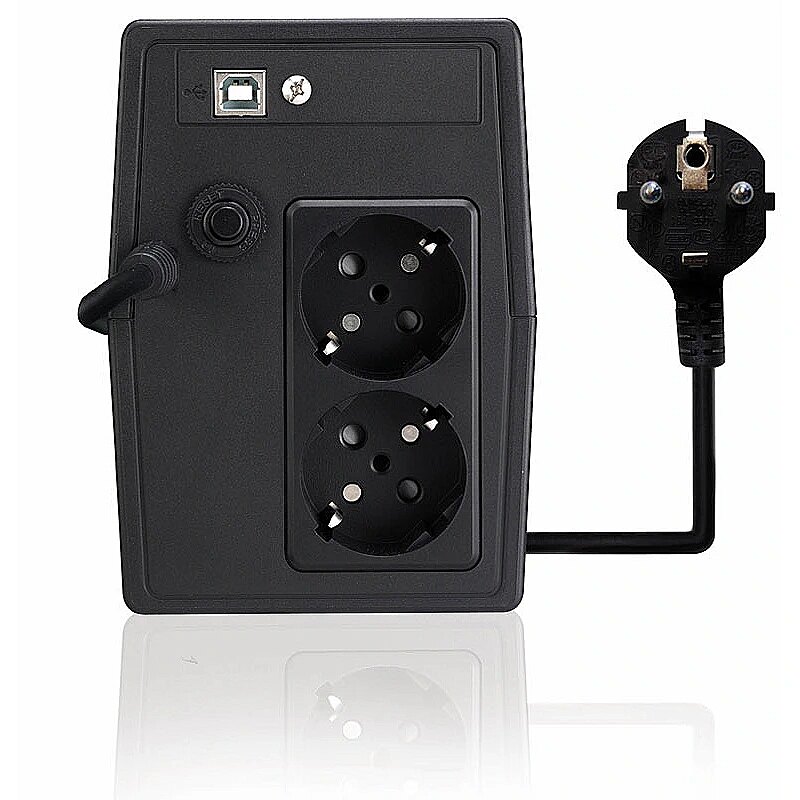

: Schuko
USB
: 0
More detailed specification
AC outlets quantity Ports & interfaces - 2 AC outlet(s)
AC outlet types Ports & interfaces - Type F
Battery technology Battery - Sealed Lead Acid (VRLA)
Category Code - UPW
Depth Weight & dimensions - 279 mm
Description - Complete protection against blackout and power surges (overvoltages and undervoltages)Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registersNot suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motorsAVR Automatic Voltage Regulator electronic circuitn 2 Italy / Schuko output sockets and n 1 schuko input cableoutputs socket protected against blackoutoutputs socket protected against overvoltagesmultifunction LED and on-off buttonUSB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager softwareUPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Form factor Design - Compact
Height Weight & dimensions - 142 mm
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 230 V
Input operation voltage (min) Features - 230 V
International Protection (IP) code Design - IP20
Noise level Features - 40 dB
Number of input phases Features - 1
Number of output phases Features - 1
Operating temperature (T-T) Operational conditions - 20 - 25 °C
Output frequency Features - 50/60 Hz
Output operation voltage (min) Features - 230 V
Output power capacity Features - 1.2 kVA
Output power Features - 840 W
Package depth Packaging data - 340 mm
Package height Packaging data - 220 mm
Package width Packaging data - 180 mm
Power factor Features - 0.7
Product colour Design - Black
Summary - Tecnoware FGCERAPL1202SCH. UPS topology: Standby (Offline), Output power capacity: 1.2 kVA, Output power: 840 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: Micro-USB B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min, Typical backup time at half load: 40 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm
Typical backup time at full load Battery - 10 min
Typical backup time at half load Battery - 40 min
Unit Box Height - 0.22
Unit Box Length - 0.34
Unit Box Width - 0.185
Unit Calculated Volume - 0.01384 cubm
Unit Calculated Weight - 4.75 kg
Units per Shipping Box - 1
UPS topology Features - Standby (Offline)
USB port Ports & interfaces - Yes
USB port type Ports & interfaces - Micro-USB B
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/55
Warranty - 24/12L months
Weight Weight & dimensions - 4.5 kg
Width Weight & dimensions - 101 mm
AC outlet types Ports & interfaces - Type F
Battery technology Battery - Sealed Lead Acid (VRLA)
Category Code - UPW
Depth Weight & dimensions - 279 mm
Description - Complete protection against blackout and power surges (overvoltages and undervoltages)Recommended for Personal Computers, DVR / NVR and video surveillance systems, ADSL / fiber modem, switch / router, cash registersNot suitable with power supplies with Active PFC circuit (Server, PC game, video game console, workstation, Mac computer), lamps and electric motorsAVR Automatic Voltage Regulator electronic circuitn 2 Italy / Schuko output sockets and n 1 schuko input cableoutputs socket protected against blackoutoutputs socket protected against overvoltagesmultifunction LED and on-off buttonUSB port for UPS control / monitoring and ignition programming / shutdown via Tecnomanager softwareUPS management software TecnoManager compatible with Windows, Mac OS X, Linux etc
Form factor Design - Compact
Height Weight & dimensions - 142 mm
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 230 V
Input operation voltage (min) Features - 230 V
International Protection (IP) code Design - IP20
Noise level Features - 40 dB
Number of input phases Features - 1
Number of output phases Features - 1
Operating temperature (T-T) Operational conditions - 20 - 25 °C
Output frequency Features - 50/60 Hz
Output operation voltage (min) Features - 230 V
Output power capacity Features - 1.2 kVA
Output power Features - 840 W
Package depth Packaging data - 340 mm
Package height Packaging data - 220 mm
Package width Packaging data - 180 mm
Power factor Features - 0.7
Product colour Design - Black
Summary - Tecnoware FGCERAPL1202SCH. UPS topology: Standby (Offline), Output power capacity: 1.2 kVA, Output power: 840 W. AC outlet types: Type F, AC outlets quantity: 2 AC outlet(s), USB port type: Micro-USB B. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 10 min, Typical backup time at half load: 40 min. Form factor: Compact, Product colour: Black, International Protection (IP) code: IP20. Width: 101 mm, Depth: 279 mm, Height: 142 mm
Typical backup time at full load Battery - 10 min
Typical backup time at half load Battery - 40 min
Unit Box Height - 0.22
Unit Box Length - 0.34
Unit Box Width - 0.185
Unit Calculated Volume - 0.01384 cubm
Unit Calculated Weight - 4.75 kg
Units per Shipping Box - 1
UPS topology Features - Standby (Offline)
USB port Ports & interfaces - Yes
USB port type Ports & interfaces - Micro-USB B
Vendor Homepage - https://www.tecnoware.com/en-US/Dettaglio/Articolo/55
Warranty - 24/12L months
Weight Weight & dimensions - 4.5 kg
Width Weight & dimensions - 101 mm
