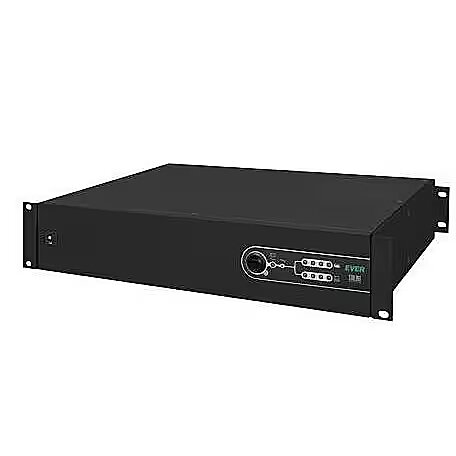

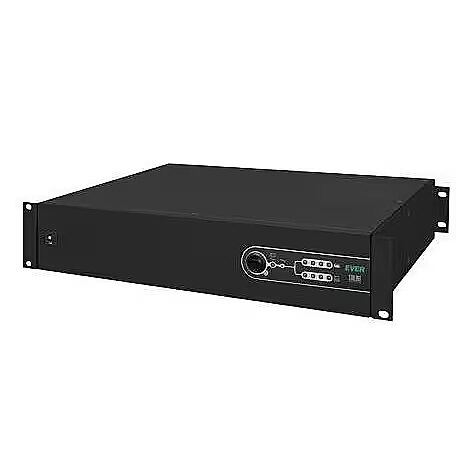

Ever SINLINE 1200 2U 19 inch RACK L-inter. HID
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days12.99 €
Main product parameters All parameters
- Battery capacity (VA): 1200
- Output power (W): 780
Description
This UPS Ever SINLINE 1200 2U 19 inch RACK L-inter. HID with an output power of 780 W and a battery capacity of 1200 VA is designed for high load systems. It provides stable power supply for multiple devices at the same time and extends the autonomous operation time.
The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Ever provides a 3 year warranty for this model at all certified service centres.
All parameters
Model
: SINLINE 1200 2U 19 inch RACK L-inter. HID
Display characteristics
Display
: There isn't
Basic information
Battery capacity (VA)
1200
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 7
Output power (W)
: 780
Ports and equipment
Number of nests (total)
: 6
Number of sockets (Battery Backup)
: 6
RJ-45
: 0
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included -
Active power - 780 W
Apparent power - 1200 VA
Backup time (100% load) - 4.5 min
Battery - Battery capacity - 7 Ah
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Battery voltage - 12 V
Battery - Cold start - Yes
Battery - Number of batteries supported - 2
Battery capacity - 7 Ah
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Charging time - 7 h
Chassis type - Rack
Color - Black
Data Act - Link
Description - The SINLINE series provides professional protection for small LANs, servers, workstations and DTP stations. Similarly to other Sinline UPS units, the SINLINE series features unique systems developed by EVER engineers: Clear Digital Sinus (CDS), a hardware digital system that generates, in mains and battery mode, a clear sine wave voltage in the UPS output, and Cool Battery Charging (CBC), a system that significantly extends the lifespan of batteries. Additionally, the series uses automatic mains voltage regulation (AVR) and USB communication interface. Application: servers, PCs, computer terminals, device sensitive to power losses, telecommunication devices. SINLINE stands for intelligent and safe power supply for PCs, with guaranteed, clear sine wave in the output when operating in battery mode.
Design - Form factor - Rackmount
Design - International Protection (IP) code - IP20
Design - Product colour - Black
Design - Rack capacity - 2U
Designation - CE+WEEE
dimensionalWeight - 6687
dimension depth - 390 mm
dimension height - 170 mm
Dimensions - 8.8 x 48.3 x 32 cm
dimension weight - 18200 g
dimension width - 500 mm
ean - 5907683606480
Eans - 5907683606480
Environment requirements -
Features - Automatic Voltage Regulation (AVR) - Yes
Features - EMI/RFI noise filtering - Yes
Features - Input frequency - 50 Hz
Features - Input operation voltage (max) - 264 V
Features - Input operation voltage (min) - 160 V
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 264 V
Features - Output operation voltage (min) - 184 V
Features - Output power - 780 W
Features - Output power capacity - 1.2 kVA
Features - UPS topology - Line-Interactive
Features - Waveform - Sine
Filters / protection - Circuit
Filters / protection - Overload
Filters / protection - Surge
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 3 ms
I/O connectors - 1 x USB 2.0
Input power ports - IEC-C14
Name - Ever Sinline 1200 USB HID 19'' 2U
name - SINLINE 1200 2U 19 inch RACK L-inter. HID
No. of batteries - 2
Number of phases input - 1 (230V)
Operational conditions - Operating relative humidity (H-H) - 20 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 20 - 95%
Operational conditions - Storage temperature (T-T) - 0 - 40 °C
Other features -

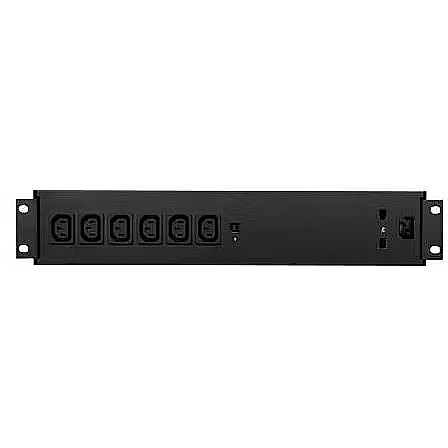

Output power ports - 6 x IEC-C13
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
producer - EVER
Producer - Ever
producerCode - W/SL00RM-001K20/07
ProducerCode - W/SL00RM-001K20/07
productName - Ever SINLINE 1200 USB HID Line-Interactive 1.2 kVA 780 W 6 AC outlet(s)
productSize - Normal
Safety warning - Warnings - Do not disassemble the unit housing, there may be a risk of electric shock.
Safety warning - Warnings - Keep away from sources of fire and water.
Safety warning - Warnings - Use the appliance in well-ventilated areas to avoid overheating.
ShortDescription -
sizeX - 391
sizeY - 506
sizeZ - 169
Software - PowerSoft Professional
Special functions -
UPS Architecture - line-interactive
vendpn - W/SL00RM-001K20/07
warrantyLength - 36
warrantyType - G
Weight - 17 kg
weight - 17700
Weight & dimensions - Depth - 320 mm
Weight & dimensions - Height - 88 mm
Weight & dimensions - Package height - 160 mm
Weight & dimensions - Package width - 515 mm
Weight & dimensions - Weight - 17 kg
Weight & dimensions - Width - 483 mm
