ID: 498605
Product code: 3S850D
In stock 11 units
Warranty: 2 years
(Warranty for business entities 1 year)

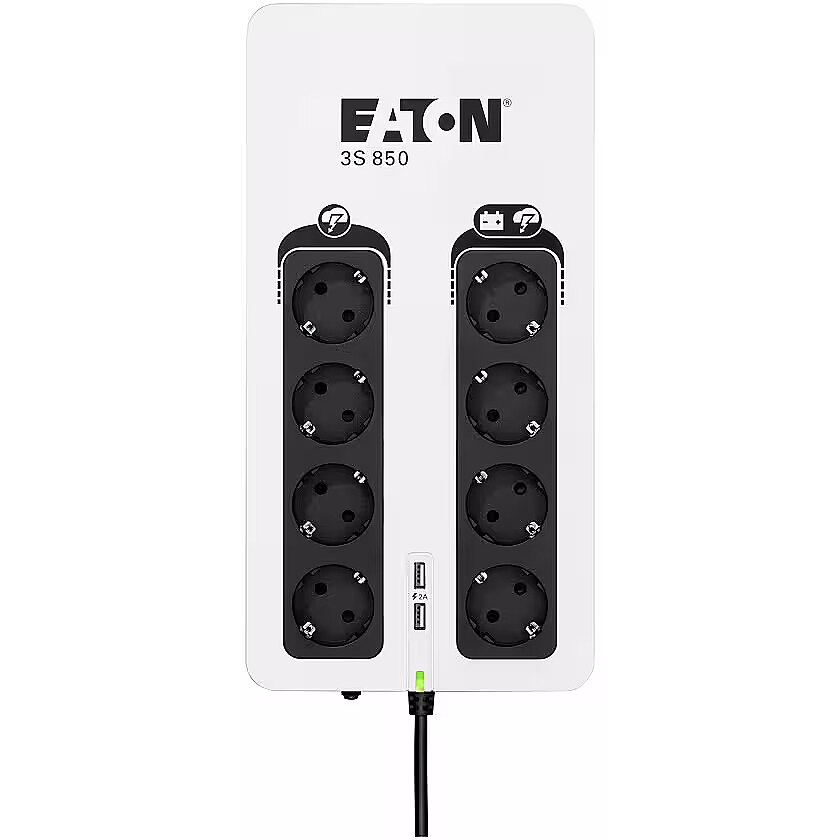

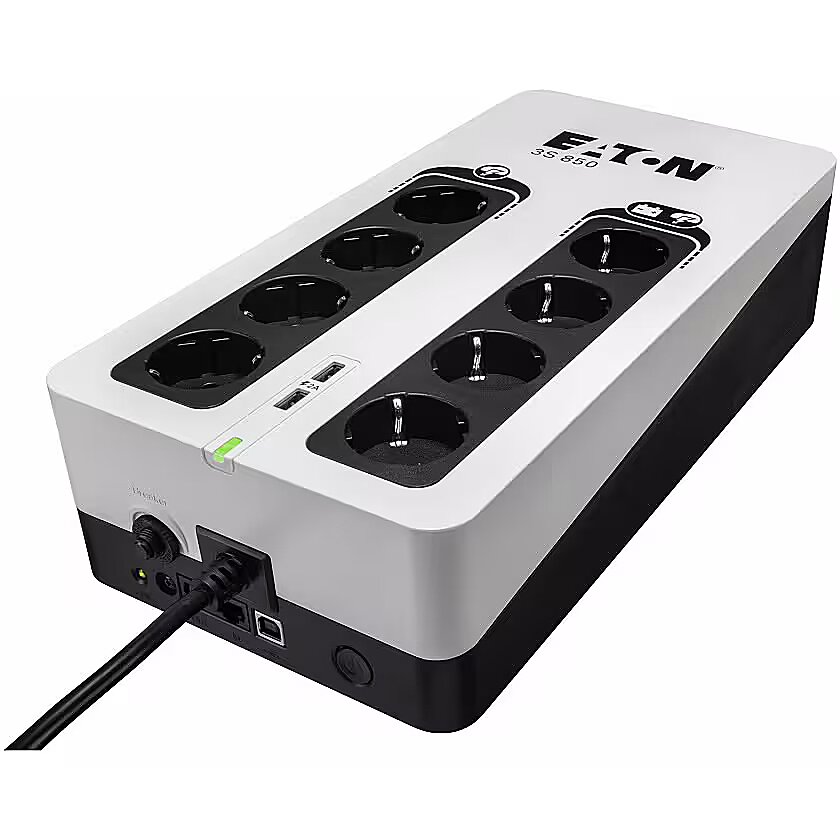

Eaton 3S850D, 850VA 510W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 850 VA
- Output power (W): 510 W
Display characteristics
Display
: Nav
Basic information
Battery capacity (VA)
850 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 510 W
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 4
RJ-45
: 2
Socket type
: Schuko
USB
: 2
More detailed specification
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes -
ARTIKEL1 - EATON 3S 850 DIN
ARTIKEL2 - .
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Category Code - UPW
Certificates > Certification - EAC, IEC/EN 62040-2, CE, IEC/EN 62040-1
Code - 3S850D
Depth - 170 mm
Description - The Eaton 3S provides power and surge protection for desktop computers, wireless networks, game consoles and other important devices in the home or office. During a power outage, the Eaton 3S provides emergency power via the battery and advanced overvoltage protection to prevent damage from lightning strikes or mains surges. In the event of a power failure that lasts longer than expected, Eaton software will safely shut down your computer without losing data. To protect routers from interference over the data line, the Eaton 3S also includes RJ11/xDSL data line protection
Design -
Design > Form factor - Tower
Dimensions - 335x86x170 mm
Displaytype -
EAN - 743172101778
EANCode - 0743172101778
Efficiency -
Features -
Features > Colour of product - Black/White
Formfactor -
Gewicht - 5.15
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Heatdissipation -
Height - 86 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - No
HSTNUMMER - 3S850D
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 284 V
Inputoperationvoltagemin - 161 V
Link - https://www.eaton.com/pt/en-gb/skuPage.3S850D.html
LongDesc -
ManufDatasheet -
Name - Eaton | UPS | 3S 850 DIN | 850 VA | 510 W
Networkcardslot -
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 510 W
Outputpowercapacity - 0.85 kVA
Output power capacity, VA - 850 VA
Output power capacity, W - 510 Watts
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 395 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 243 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 113 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.70 kg
Package features > TI weight (kg) - 3.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0153576 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 850 VA
Performance > UPS topology - Off line
Portsinterfaces -
Powerfactor -
Powerplug -
ProdDesc - Eaton 3S 850 UPS DIN
Producer product family - UPS
Producer product name - 3S 850 DIN
Productcolour - Black, White
Productcondition - Original
ProductHighLights -
Product Net Weight - 4 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/3S850D_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/3S850D_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/3S850D_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/3S850D_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/3S850D_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/3S850D_6.jpg
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Stck_Kart - 9998
Stck_Pal - 5
Storno - Y
Technical details > Capacity - 510 W
Technical details > Gross weight - 5.15 kg
Technical details > Net weight - 4.45 kg
Technical details > Other features - Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Technical details > Producer - Eaton
Topology - Offline
Typicalbackuptimeathalfload -
Unit Box Height - 0.243
Unit Box Length - 0.396
Unit Box Width - 0.161
Unit Calculated Volume - 0.01549 cubm
Unit Calculated Weight - 5.15 kg
Units per Shipping Box - 1
UPStopology - Standby (Offline)
USBport - Yes
USBporttype -
Vendor Homepage - www.eaton.com/us/en-us.html
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Warrantyandmisc -
Waveform -
Weight - 4.3 kg
Weightdimensions -
Width - 335 mm
ACoutlettypes -
ARTIKEL1 - EATON 3S 850 DIN
ARTIKEL2 - .
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Category Code - UPW
Certificates > Certification - EAC, IEC/EN 62040-2, CE, IEC/EN 62040-1
Code - 3S850D
Depth - 170 mm
Description - The Eaton 3S provides power and surge protection for desktop computers, wireless networks, game consoles and other important devices in the home or office. During a power outage, the Eaton 3S provides emergency power via the battery and advanced overvoltage protection to prevent damage from lightning strikes or mains surges. In the event of a power failure that lasts longer than expected, Eaton software will safely shut down your computer without losing data. To protect routers from interference over the data line, the Eaton 3S also includes RJ11/xDSL data line protection
Design -
Design > Form factor - Tower
Dimensions - 335x86x170 mm
Displaytype -
EAN - 743172101778
EANCode - 0743172101778
Efficiency -
Features -
Features > Colour of product - Black/White
Formfactor -
Gewicht - 5.15
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
Heatdissipation -
Height - 86 mm
HERSTELLER - EATON
HighLights -
Hotswapbattery - No
HSTNUMMER - 3S850D
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 284 V
Inputoperationvoltagemin - 161 V
Link - https://www.eaton.com/pt/en-gb/skuPage.3S850D.html
LongDesc -
ManufDatasheet -
Name - Eaton | UPS | 3S 850 DIN | 850 VA | 510 W
Networkcardslot -
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Operatingaltitude - 0 - 3000 m
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 510 W
Outputpowercapacity - 0.85 kVA
Output power capacity, VA - 850 VA
Output power capacity, W - 510 Watts
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 395 mm
Package features > Gross height (mm) - 160.00 mm
Package features > Gross width (mm) - 243 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 113 pc(s)
Package features > Paper/Pasteboard - 600.00 g
Package features > Plastic (No PET) - 100.00 g
Package features > Tare weight (kg) - 0.70 kg
Package features > TI weight (kg) - 3.50 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.0153576 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 850 VA
Performance > UPS topology - Off line
Portsinterfaces -
Powerfactor -
Powerplug -
ProdDesc - Eaton 3S 850 UPS DIN
Producer product family - UPS
Producer product name - 3S 850 DIN
Productcolour - Black, White
Productcondition - Original
ProductHighLights -
- Eaton 3S supplies battery backup power during outage and advanced surge protection to prevent damage from lightning strikes or accidental grid surge
Product Net Weight - 4 kg
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/3S850D_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/3S850D_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/3S850D_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/3S850D_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/3S850D_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/3S850D_6.jpg
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
Stck_Kart - 9998
Stck_Pal - 5
Storno - Y
Technical details > Capacity - 510 W
Technical details > Gross weight - 5.15 kg
Technical details > Net weight - 4.45 kg
Technical details > Other features - Software compatibility: Eaton UPS Companion (enables safe system shutdown, energy usage metering and configuration of UPS settings)
Technical details > Producer - Eaton
Topology - Offline
Typicalbackuptimeathalfload -
Unit Box Height - 0.243
Unit Box Length - 0.396
Unit Box Width - 0.161
Unit Calculated Volume - 0.01549 cubm
Unit Calculated Weight - 5.15 kg
Units per Shipping Box - 1
UPStopology - Standby (Offline)
USBport - Yes
USBporttype -
Vendor Homepage - www.eaton.com/us/en-us.html
Warranty - 12 months
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
Warrantyandmisc -
Waveform -
Weight - 4.3 kg
Weightdimensions -
Width - 335 mm
