ID: 190049
Product code: 9PX3000IRTN
In stock 2 units
Warranty: 2 years

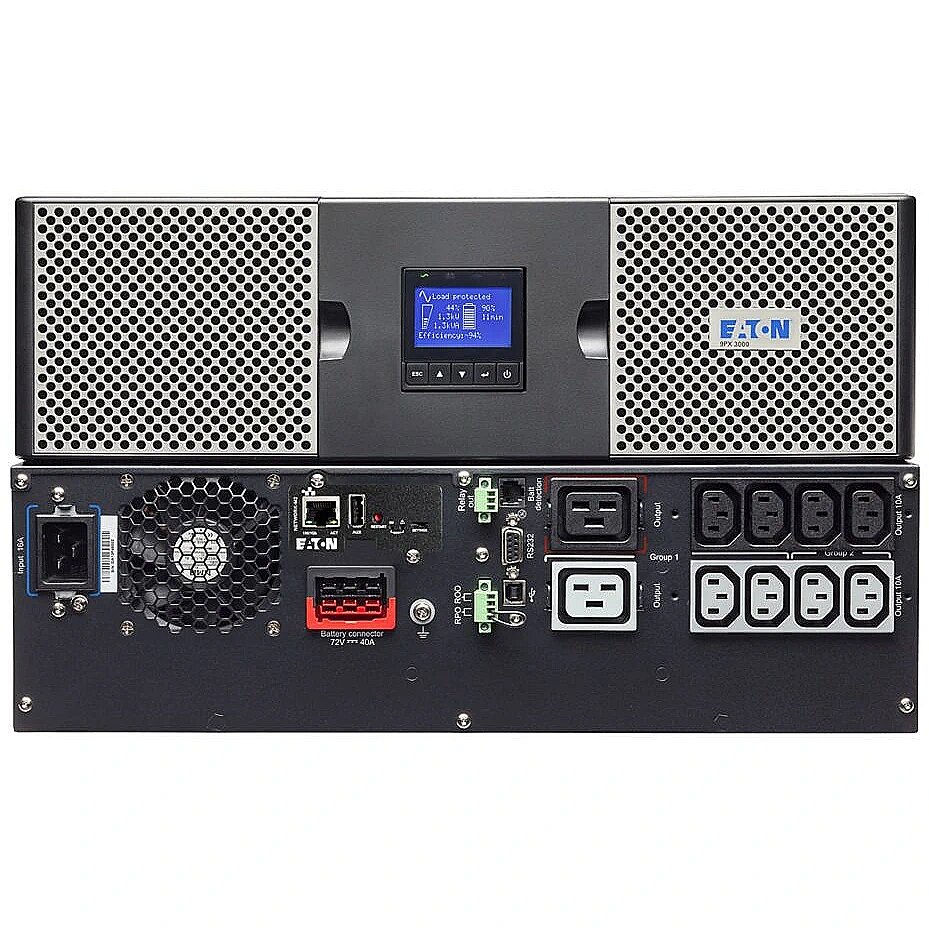

Eaton 9PX3000IRTN, 3000VA 3000W, IEC 2U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery with Posti courier mailWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 3000
- Output power (W): 3000
Description
This UPS Eaton 9PX3000IRTN, 3000VA 3000W, IEC 2U with an output power of 3000 W and battery capacity 3000 VA is suitable for a professional environment, where high reliability and protection against power supply interruptions is required.
A UPS with a display provides direct access to the device's technical information. This reduces the need for external system solutions and facilitates monitoring during autonomous operation.
The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: 9PX3000IRTN
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
3000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 3000
Ports and equipment
Number of nests (total)
: 10
Number of sockets (Battery Backup)
: 10
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included -
AC outlets quantity Ports & interfaces - 10 AC outlet(s)
AC outlet types Ports & interfaces - C13 coupler, C19 coupler
Active power - 3000 W
Apparent power - 3000 VA
ARTIKEL1 - EATON 9PX 3000I RT2U NETPACK
ARTIKEL2 - IN
Automatic battery test Battery - Yes
Battery technology Battery - Sealed Lead Acid (VRLA)
Bundled software Packaging data - Intelligent Power Software suite
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Category Code - UPW
Certification Certificates - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC /RCM / KC / Energy Star
Chassis type - Rack
Code - 9PX3000IRTN
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Connectors - RS-232 (COM)
Depth Weight & dimensions - 605 mm
Description -
Designation - CE+WEEE
dimension depth - 240 mm
dimension height - 785 mm
Dimensions - 86,5 x 440 x 605 mm
dimension weight - 35200 g
dimension width - 585 mm
Display type Design - LCD
EAN - 743172081445
ean - 743172081445
EANCode - 7431720814456
Eans - 743172081445
Efficiency Features - 94%
Environment requirements -
Form factor Design - Rackmount/Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - normal
Harmonized System (HS) code Logistics data - 85078000
Height Weight & dimensions - 86.5 mm
HERSTELLER - EATON
Hot-swap battery Battery - Yes
HSTNUMMER - 9PX3000IRTN
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 176 V
Input power ports - IEC-C20
LED indicators Design - Yes
Link - https://www.eaton.com/za/en-gb/skuPage.9PX3000IRTN.html
Management card included Packaging data - Yes
Name - Eaton 9PX3000iRTN
Name - Eaton UPS | 9PX3000IRTN | 3000 VA | 3000 W
name - UPS 9PX3000IRTN 3000W/VA RT2U Netpack
Noise level Features - 40 dB
Nominal input voltage Other features - 230 V
Nominal output voltage Other features - 230 V
Number of input phases Features - 1
Number of phases input - 1 (230V)
Operating temperature (T-T) Operational conditions - 0 - 40 °C
Other features -
Other features > Dimensions (WxDxH) - 440 x 605 x 86.5 mm
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 208 V
Output power capacity Features - 3 kVA
Output power Features - 3000 W
Output power ports - 2 x IEC-C19
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 550.00 mm
Package features > Gross height (mm) - 165.00 mm
Package features > Gross width (mm) - 595.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 3000.00 g
Package features > Plastic (No PET) - 960.00 g
Package features > Tare weight (kg) - 3.96 kg
Package features > TI weight (kg) - 1.5 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.05 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Performance > Capacity - 3000 VA
Performance > UPS topology - On line
Power factor Features - 1
Power plug Ports & interfaces - C20 coupler
producer - Eaton
Producer - Eaton
ProducerCode - 9PX3000iRTN
Product colour Design - Black
Rack capacity Design - 2U
Rack dimensions - 2U
Rack mount kit Packaging content - Yes
RS-232 ports Ports & interfaces - 1
Safety Safety regulation & standards - IEC/EN 62040-1, UL 1778, CSA 22.2
ShortDescription -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Summary - Eaton 9PX3000IRTN. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 3000 W. AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler, AC outlets quantity: 10 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 9.5 min. Form factor: Rackmount/Tower, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2, FCC Class B, CISPR22 Class B, CE /CB report...
Sustainability certificates Sustainability - ENERGY STAR
Technical details > Capacity - 3000 W
Technical details > Gross weight - 31.96 kg
Technical details > Net weight - 28.00 kg
Technical details > Producer - Eaton
Technical details > Producer product family - UPS
Technical details > Producer product name - 9PX3000IRTN
Typical backup time at half load Battery - 9.5 min
Unit Box Height - 0.25
Unit Box Length - 0.77
Unit Box Width - 0.58
Unit Calculated Volume - 0.1116 cubm
Unit Calculated Weight - 34 kg
Units per Shipping Box - 1
UPS Architecture - on-line double conversion
UPS topology Features - Double-conversion (Online)
USB 2.0 ports quantity Ports & interfaces - 1
USB port Ports & interfaces - Yes
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.9PX3000IRTN.html
vendpn - 9PX3000IRTN
Video -
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Waveform Features - Pure sine
Weight Weight & dimensions - 27.6 kg
Width Weight & dimensions - 440 mm
