ID: 176982
Product code: 9SX3000I
In stock 1 units
Warranty: 2 years

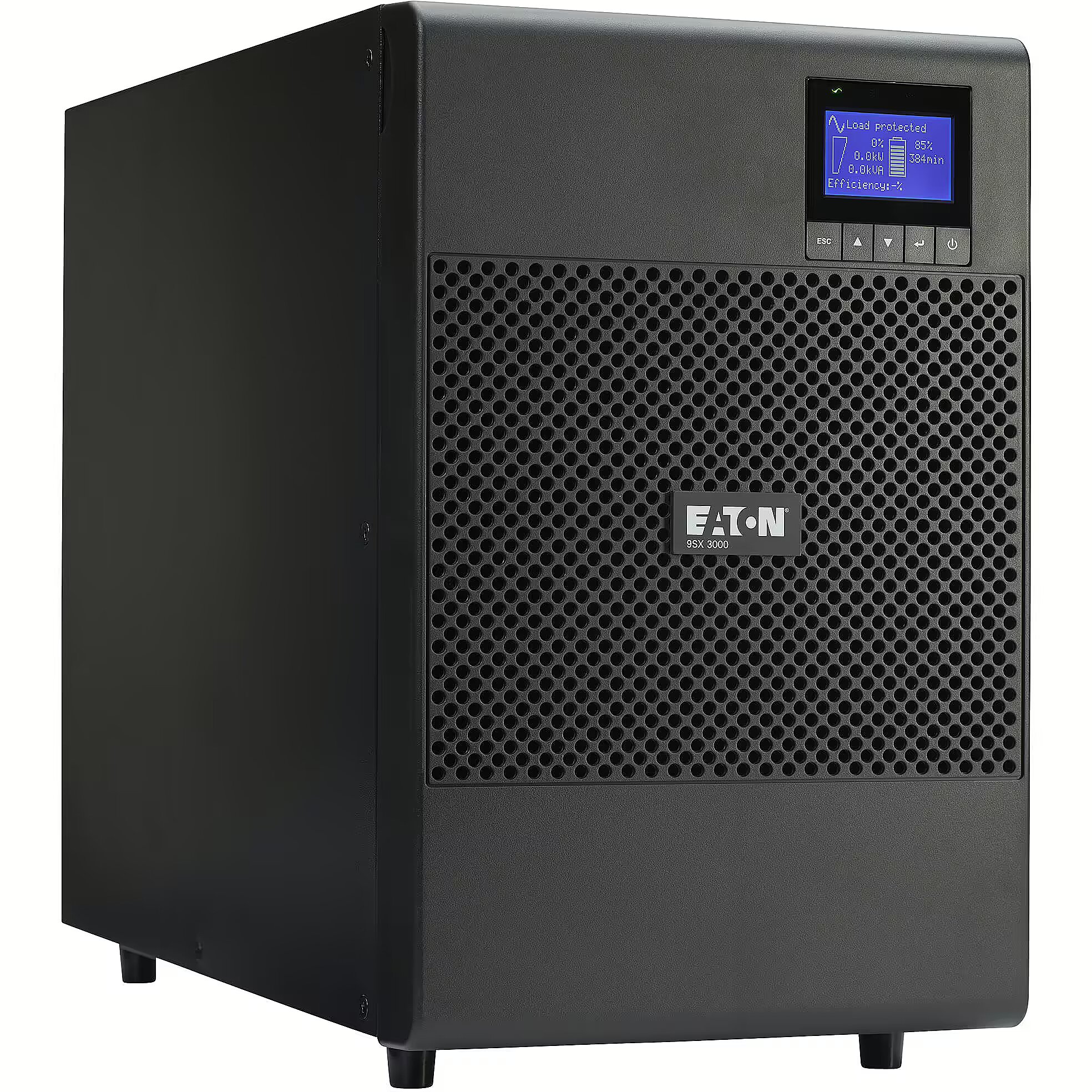

Eaton 9SX3000I, 3000VA 2700W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery with Posti courier mailWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 3000 VA
- Output power (W): 2700 W
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
3000 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 2700 W
Ports and equipment
Number of nests (total)
: 9
Number of sockets (Battery Backup)
: 9
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - 1 European 16 A input power cable (1.8 m), 2 IEC10A output wires (1.8 m), 1 USB cable (1.8 m), 1 serial cable (1.8 m), Short instruction manual, Safety instructions.
Active power - 2700 W
Alarm - -
Apparent power - 3000 VA
ARTIKEL1 - EATON 9SX 3000I
ARTIKEL2 - .
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Hot-swap battery - Yes
Battery - Typical backup time at half load - 15.5 min
BatteryType - -
Charging time - 30 min
Chassis type - Tower
Color - -
Color - Black
ControlPanel - Multilingual graphical LCD display
Depth - 412 mm
Description - UPS with double conversion online 3000 VA / 2700 W, multilingual LCD display, energy meter, 8 IEC 10 A + 1 IEC 16 A sockets (2 manageable groups), slot for optional management card, USB and serial ports, potential-free contacts, connector RPO, power management software compatible with the virtual environment, batteries replaceable while the device is in operation, long failover time with four optional EBM modules.
Design - Certification - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Design - Display type - LCD
Design - Form factor - Tower
Design - Product colour - Black
Design - Safety - IEC/EN 62040-1, UL 1778, CSA 22.2
Designation - CE+WEEE
dimensionalWeight - 18339
dimension depth - 320 mm
dimension height - 580 mm
Dimensions - 346 x 214 x 412 mm
dimension weight - 37000 g
dimension width - 490 mm
ean - 743172090997
EANCode - 0743172090997
Environment requirements - Temperature during operation: 0-40°C Noise level: 45 dB
Features - ECO mode - No
Features - Input frequency - 40/70 Hz
Features - Input operation voltage (max) - 276 V
Features - Input operation voltage (min) - 200 V
Features - Noise level - 45 dB
Features - Number of input phases - 1
Features - Number of output phases - 1
Features - Output frequency - 50/60 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Power factor - 0.9
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Pure sine
Filters / protection - Overdischarge
FormFactor - Tower
GrossWeight - 36.000 kg
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Height - 346 mm
HERSTELLER - EATON
HSTNUMMER - 9SX3000I
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
InputConnections - IEC-320-C20
InputFrequency - 40-70 Hz
Input power ports - IEC-C20
InputVoltage - 200-276V without derating (up to 140-276V with derating)
InterfacePorts -USB port serial RS232 port mini-terminal block for Remote Power Off mini-terminal block for Output relay slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards
Logistics data - Harmonized System (HS) code - 85078000
LongDesc -
MANUFDATASHEET - https://www.eaton.com/gb/en-gb/skuPage.9SX3000I.specifications.html
name - UPS 9SX 3000i Tower LCD/USB/RS232
Number of phases input - 1 (230V)
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - 1 mini-terminal block for remote power off (configurable) 1 block of mini-terminals to the output relay 1 socket for the optional communication module
Other features - Input connection type - IEC C20
Other features - Nominal input voltage - 230 V
Other features - Nominal output voltage - 230 V

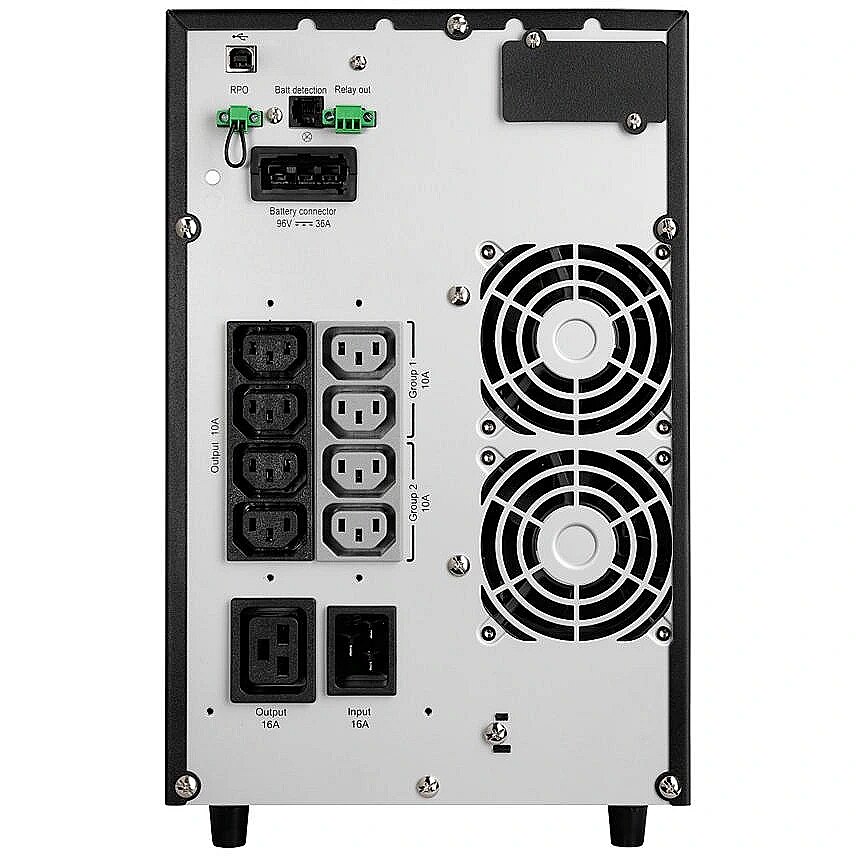

OutputConnections -8x IEC-320-C13 IEC-320-C19
OutputFrequency - 50/60 Hz autoselect, frequency converter as standard
Output power ports - 1 x IEC-C19
Output power ports - 8 x IEC-C13
OutputVoltage - 230V
PackageContents - -
Packaging data - Bundled software - Intelligent Power Software suite
Packaging data - Management card included - No
Ports & interfaces - AC outlets quantity - 9 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - AC outlet types - C19 coupler
Ports & interfaces - Power plug - C20 coupler
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
PowerVAW - 3000 VA
PowerW - 2700 W
ProdDesc - Eaton 9SX 3000i
producer - Eaton
producerCode - 9SX3000I
productName - Eaton 9SX uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
ProductPicture - http://www.tdbaltic.ee/images/ds4/9SX3000I-01.jpg
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
productSize - SmallPallet
RechargeTime - -
RJ45 - -
Runtime - 16/6
sizeX - 325
sizeY - 570
sizeZ - 495
SmartSlot - -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Topology - Online
UPS Architecture - on-line double conversion
USB - -
vendpn - 9SX3000I
Voltage - 230 V
Warranty - -
warrantyLength - 24
warrantyType - G
WaveformType - On-line double conversion with Power Factor Correction (PFC) system
Weight - 33.4 kg
Weight - 33.400 kg
weight - 36700
Weight & dimensions - Depth - 412 mm
Weight & dimensions - Height - 346 mm
Weight & dimensions - Weight - 33.4 kg
Weight & dimensions - Width - 214 mm
Width - 214 mm
