Accessories included - IEC10A output wires (1.8 m) x 2 USB cable (1.8 m) Serial cable (1.8 m) Short instruction manual Safety instructions
ACoutletsquantity - 6 AC outlet(s)
AC outlets quantity Ports & interfaces - 6 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 1350 W
Apparent power - 1500 VA
ARTIKEL1 - EATON 9SX 1500I
ARTIKEL2 - .
Automatic battery test Battery - Yes
AutomaticVoltageRegulationAVR -
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Battery technology Battery - Sealed Lead Acid (VRLA)
Batteryvoltage -
Breite - 0.39
Bundled software Packaging data - Intelligent Power Software suite
Cablesincluded -
Category Code - UPW
Certification Certificates - IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Charging time - 50 min
Chassis type - Tower
Color - Black
Depth - 437 mm
Depth Weight & dimensions - 437 mm

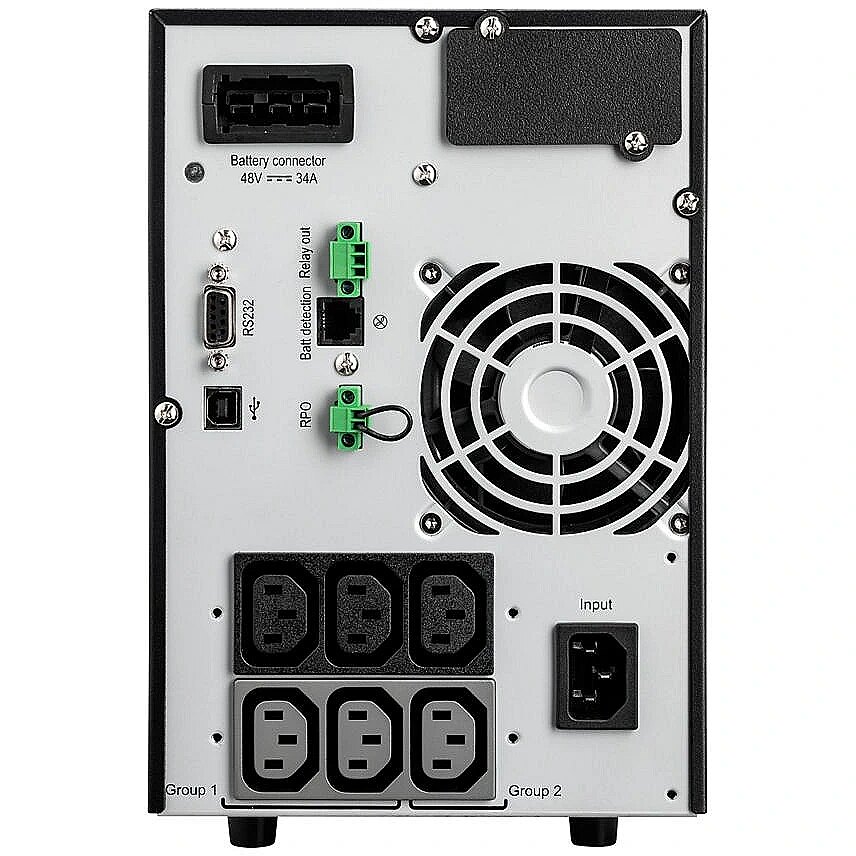

Description - UPS with double conversion online 1500 VA/1350 W, multilingual LCD display, energy meter, 6 IEC 10 A sockets (2 manageable groups), slot for optional management board, USB and serial ports, potential-free contacts, RPO connector, management software power supply compatible with the virtual environment, batteries replaceable during operation of the device, long emergency work time with four optional EBM modules.
Design -
Designation - CE+WEEE
dimension depth - 290 mm
dimension height - 370 mm
Dimensions - 252 x 160 x 437 mm
dimension weight - 21000 g
dimension width - 570 mm
Displaytype - LCD
Display type Design - LCD
ean - 743172090935
EANCode - 0743172090935
ECO mode Features - No
Efficiency -
Environment requirements - Temperature during operation: 0-40 °C Noise level: 43 dB
Features -
Filters / protection - Overdischarge
Formfactor - Tower
Form factor Design - Tower
Gewicht - 20.84
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Harmonized System (HS) code Logistics data - 85078000
Heatdissipation -
Height - 252 mm
Height Weight & dimensions - 252 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.3
Hot-swap battery Battery - Yes
Hotswapbattery - Yes
HSTNUMMER - 9SX1500I
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB 2.0
Input connection type Other features - IEC C14
Inputfrequency - 40/70 Hz
Input frequency Features - 40/70 Hz
Input operation voltage (max) Features - 276 V
Input operation voltage (min) Features - 190 V
Inputoperationvoltagemax - 276 V
Inputoperationvoltagemin - 190 V
Input power ports - IEC-C14
Laenge - 0.58
LongDesc -
Management card included Packaging data - No
ManufDatasheet -
name - UPS 9SX 1500i Tower LCD/USB/RS232
Networkcardslot -
Noiselevel - 43 dB
Noise level Features - 43 dB
Nominal input voltage Other features - 230 V
Nominal output voltage Other features - 230 V
Numberofbatterycells -
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features - Mini-terminal block for remote power off (configurable) Block of mini-terminals to the output relay Socket for the optional communication module
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 1350 W
Outputpowercapacity - 1.5 kVA
Output power capacity Features - 1.5 kVA
Output power Features - 1350 W
Output power ports - 6 x IEC-C13
Packagingcontent -
Portsinterfaces -
Powerfactor - 0.9
Power factor Features - 0.9
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 9SX 1500i
producer - Eaton
Productcolour - Black
Product colour Design - Black
Productcondition - Original
ProductHighLights -
- Double-conversion (Online)
- 1.5 kVA 1350 W
- Waveform: Pure sine
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/9SX1500I_1.jpg
ProductPicture1 -
ProductPicture2 -
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide -
Rackmountkit -
RS-232 ports Ports & interfaces - 1
RS232ports - 1
Safety Safety regulation & standards - IEC/EN 62040-1, UL 1778, CSA 22.2
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity -
Software -
Special functions -
Stck_Kart - 1
Stck_Pal - 2
Storno - Y
Summary - Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 1.5 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Typical backup time at half load: 16 min. Form factor: Tower, Product colour: Black, Display type: LCD. Certification: IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report...
Typicalbackuptimeathalfload - 16 min
Typical backup time at half load Battery - 16 min
Unit Box Height - 0.36
Unit Box Length - 0.57
Unit Box Width - 0.3
Unit Calculated Volume - 0.06156 cubm
Unit Calculated Weight - 20.6 kg
Units per Shipping Box - 1
UPS Architecture - on-line double conversion
UPStopology - Double-conversion (Online)
UPS topology Features - Double-conversion (Online)
USB 2.0 ports quantity Ports & interfaces - 1
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.9SX1500I.html
vendpn - 9SX1500I
Video -
Voltage - 230 V
Warranty - 12 months
Warranty - 24 months
Warrantyandmisc -
Waveform - Pure sine
Waveform Features - Pure sine
Weight - 18.5 kg
Weight - 24.5 kg
Weightdimensions -
Weight Weight & dimensions - 24.5 kg
Width - 160 mm
Width Weight & dimensions - 160 mm
