Accessories included - - Oprogramowanie na CD
- Kabel USB
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 750 W
Apparent power - 1200 VA
ARTIKEL1 - EATON ELLIPSE PRO 1200 IEC
ARTIKEL2 - IN
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 2 min
Battery -
Battery - Automatic battery test - Yes
Battery - Battery technology - Sealed Lead Acid (VRLA)
Battery - Cold start - Yes
Battery - Hot-swap battery - No
Battery - Typical backup time at half load - 9 min
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Breite - 0.34
Cablesincluded -
Chassis type - Rack
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RJ-45
Depth - 390 mm

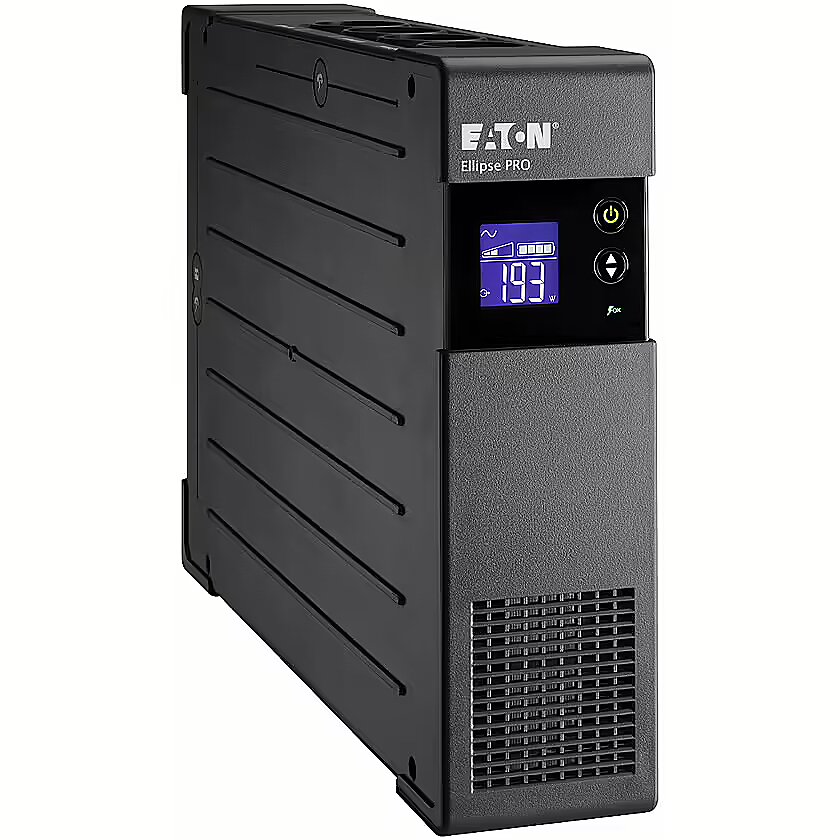

Description - Eaton Ellipse PRO 1200 IEC
UPS Eaton Ellipse PRO 650-1600 VA jest zasilaczem UPS line-interactive specyficznie zaprojektowanym do ochrony stacji roboczych obsługujących wymagające aplikacje. Ellipse PRO wyróżnia się wyświetlaczem LCD pokazującym w czasie rzeczywistym stan pracy i wyniki pomiarów. Zasilacz posiada także gniazda wyjściowe z funkcją EcoControl, które umożliwiają oszczędność energii nawet do 20% oraz posiada zaawansowany ogranicznik przepięć (ASR), który całkowicie spełnia wymagania normy IEC 616431-1.
Link do specyfikacji: http://powerquality.eaton.com/ELP1200IEC.aspx?CX=65
Design -
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
Design - Rack capacity - 2U
Design - Safety - IEC/EN 62040-1, IEC/EN 62040 -2, CB, CE
Designation - CE+WEEE
dimensionalWeight - 1774
dimension depth - 160 mm
dimension height - 330 mm
Dimensions - - Wysokość: 275 mm
- Szerokość: 82 mm
- Głębokość: 390 mm
dimension weight - 11200 g
dimension width - 490 mm
Displaytype - LCD
ean - 743172437952
EANCode - 0743172437952
Efficiency -
Environment requirements -
Features -
Features - Emergency Power Off (EPO) - Yes
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 285 V
Features - Input operation voltage (min) - 150 V
Features - Output frequency - 50 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 750 W
Features - Output power capacity - 1.2 kVA
Features - Surge protection - Yes
Features - Surge protection features - Fax
Features - Surge protection features - Modem
Features - Surge protection features - Network
Features - Surge protection features - Telephone
Features - UPS topology - Line-Interactive
Formfactor - Tower
Gewicht - 10.97
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - normal
Heatdissipation -
Height - 275 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.15
Hotswapbattery - No
HSTNUMMER - ELP1200IEC
Inputfrequency - 50/60 Hz
Inputoperationvoltagemax - 285 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Laenge - 0.5
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - The Eaton Ellipse PRO 650–1600VA is a line interactive UPS specifically developed to protect workstations running demanding applications. The Ellipse PRO features an LCD display for real-time status and measurements. It also features EcoControl power outlets, which enable energy savings up to 20 percent and Advanced Surge Reduction (ASR) that complies fully with the requirements of the IEC 616431-1 standard.
ManufDatasheet -
name - UPS Ellipse PRO 1200 IE ELP1200IEC
Networkcardslot -
Noiselevel -
Numberofbatterycells -
Numberofinputphases -
Numberofoutputphases -
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT -
Operationalconditions -
Other features - - Do montażu Rack wymagany opcjonalny zestaw !
- Zakres napięcia wejściowego: 165-285V (230V) 50-60Hz
- Napięcie wyjściowe: 230V (regulowane 220/230/240V)
- Automatyczny test baterii akumulatorów
- Ochrona przed głębokim rozładowaniem
- Funkcja "zimnego startu"
- Wymienialne baterie
Other features - Nominal input voltage - 230 V
Outputfrequency - 50 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 220 V
Outputpower - 750 W
Outputpowercapacity - 1.2 kVA

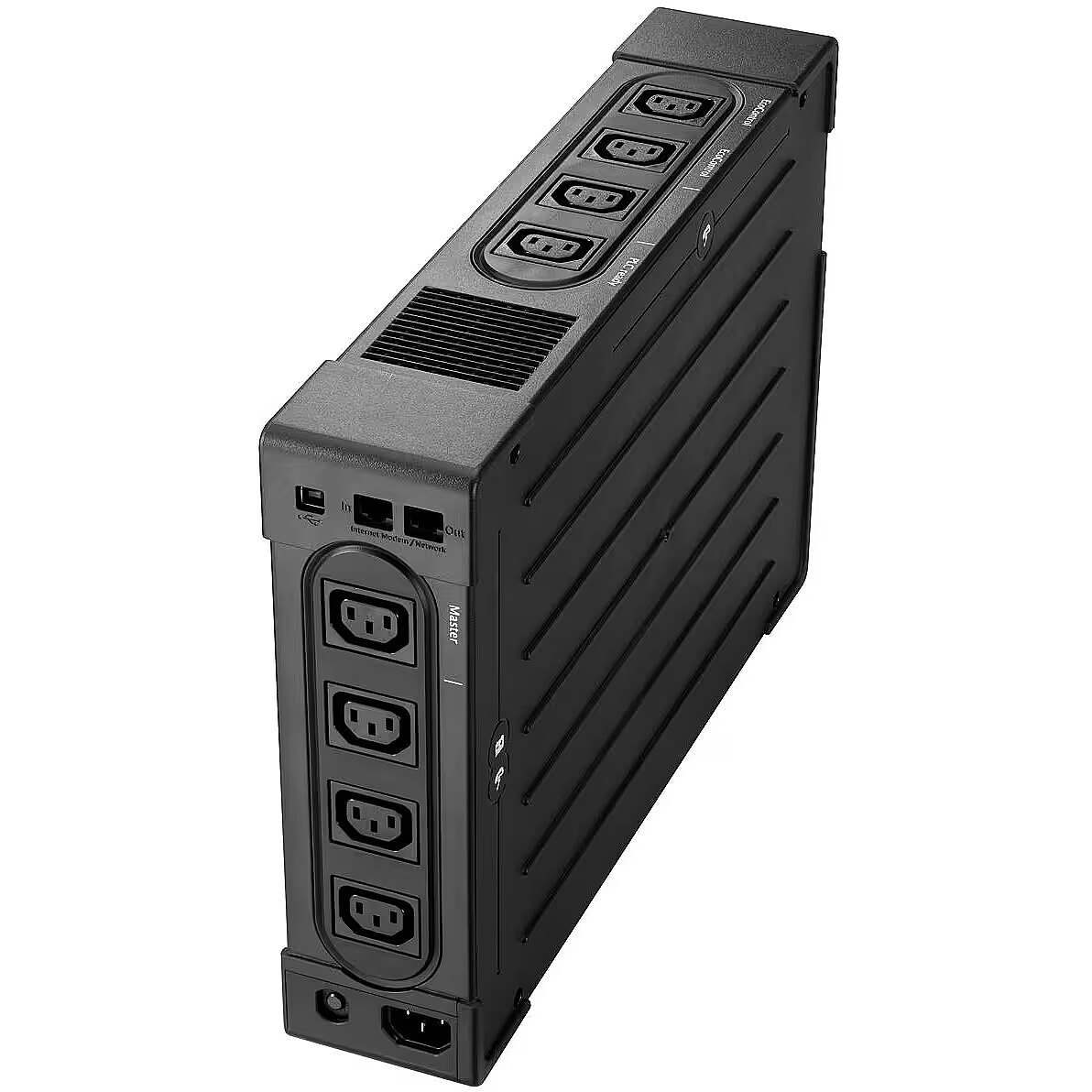

Output power ports - 8 x IEC-C13
Packagingcontent -
Ports & interfaces - AC outlets quantity - 8 AC outlet(s)
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Ethernet LAN (RJ-45) ports - 1
Ports & interfaces - Modem (RJ-11) ports - 1
Ports & interfaces - Power plug - C14 coupler
Ports & interfaces - USB 2.0 ports quantity - 1
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 1200VA/750W UPS, line-interactive, IEC 4+4
producer - Eaton
producerCode - ELP1200IEC
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 1.2 kVA 750 W
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
productName - Eaton Ellipse PRO 1200 IEC uninterruptible power supply (UPS) Line-Interactive 1.2 kVA 750 W 8 AC outlet(s)
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/ELP1200IEC_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/ELP1200IEC_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/ELP1200IEC_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
productSize - Normal
Quickinstallationguide -
Rackmountkit -
RS232ports -
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
sizeX - 195
sizeY - 325
sizeZ - 140
Software - Eaton UPS Companion
Special functions - - Wyświetlacz LCD wskazujący stan pracy i pomiary w czasie rzeczywistym
- Dostarcza niezakłóconą energię na wyjściu z automatyczną regulacją napięcia (AVR)
- Funkcja EvoCOntrol umożliwia oszczędność energii (do 20%)
- Zaawansowany ogranicznik przepięć (norma IEC 616431-1)
- Wygodna i wyjątkowo płaska konstrukcja dla łatwej instalacji w dowonym pomieszczeniu
- Port USB i oprogramowanie Eaton UPS Companion
- Chroni podłączone sieci danych (Ethernet/Internet/linie telefoniczne)
Stck_Kart - 1
Stck_Pal - 8
Storno - Y
Typicalbackuptimeathalfload - 9 min
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport -
USBporttype -
vendpn - ELP1200IEC
Video -
Warranty - 24 months
Warrantyandmisc -
warrantyLength - 36
warrantyType - F
Waveform -
Weight - 9.9 kg
Weight - 9.9 kg
weight - 11245
Weight & dimensions - Depth - 390 mm
Weight & dimensions - Height - 275 mm
Weight & dimensions - Weight - 9.9 kg
Weight & dimensions - Width - 82 mm
Weightdimensions -
Width - 82 mm
