ID: 1410594
Product code: DN-170130
In stock 1 units
Warranty: 2 years

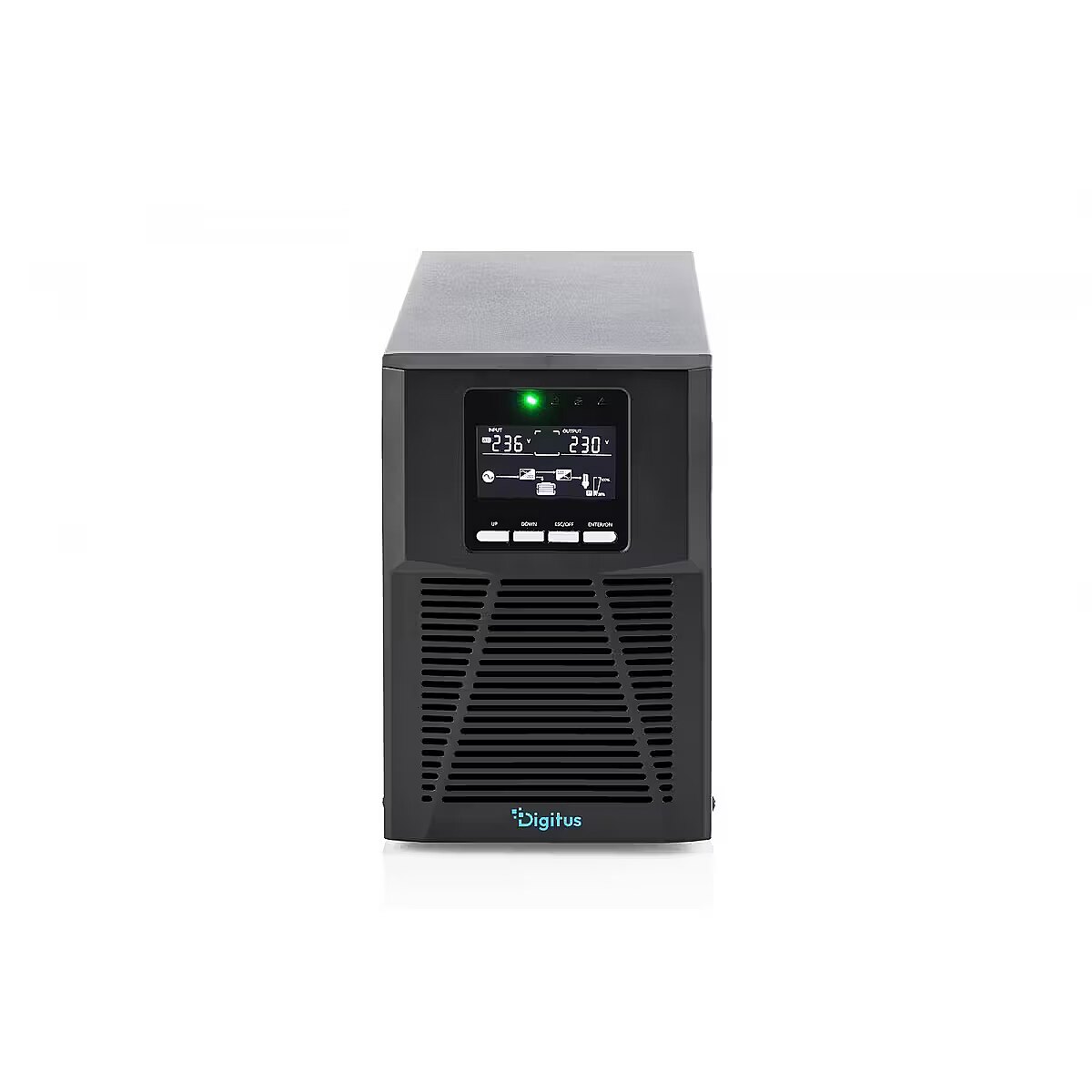

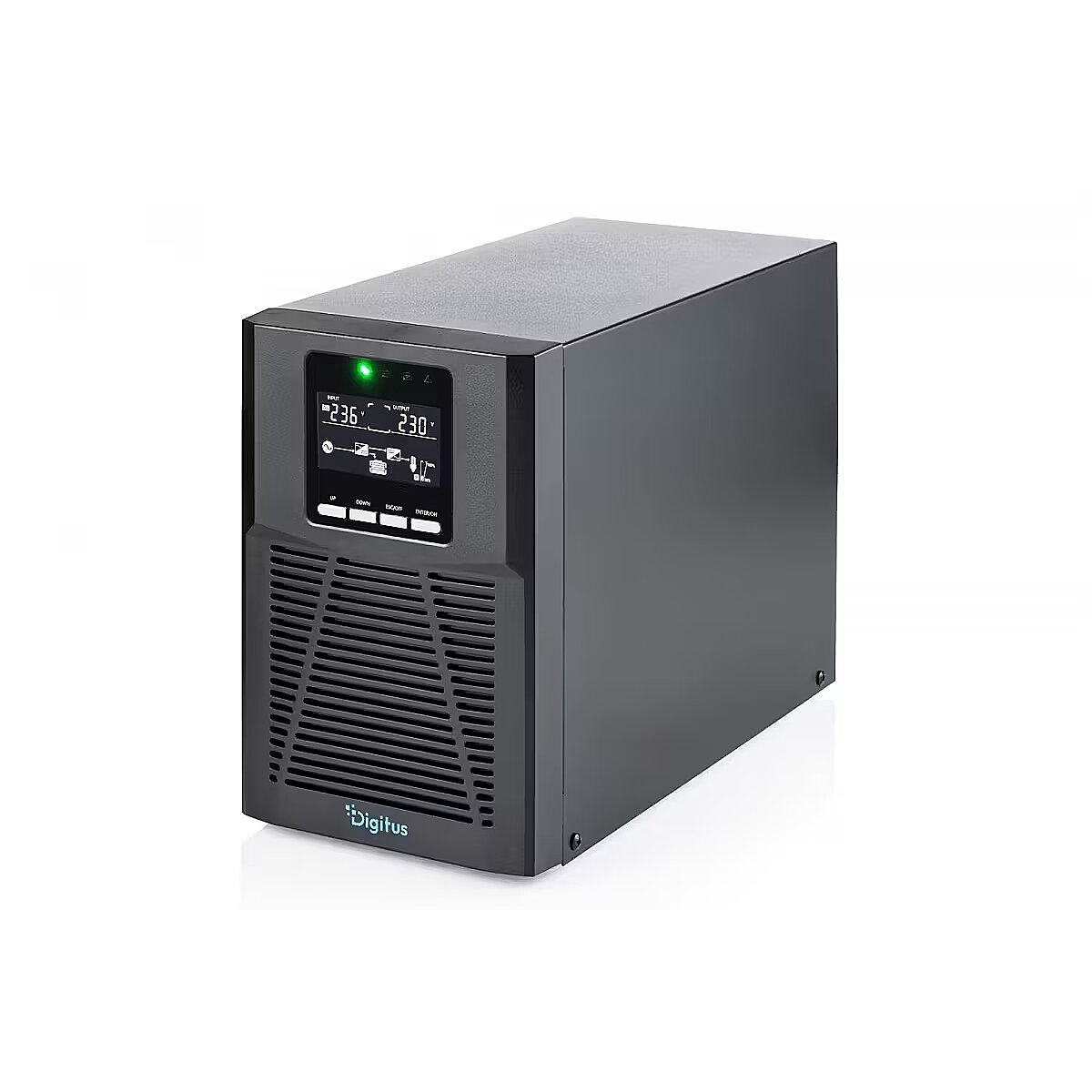

Digitus ONLINE TOWER USV 1000VA/1000W 12V/9AHX2BATTERY8XC13LCD-DISP
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days12.99 €
Main product parameters All parameters
- Battery capacity (VA): 1000
- Output power (W): 1000
Description
This UPS Digitus ONLINE TOWER USV 1000VA/1000W 12V/9AHX2BATTERY8XC13LCD-DISP with an output power of 1000 W and a battery capacity of 1000 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.
Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
Digitus provides a 2 year warranty for this model at all certified service centres.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4
Output power (W)
: 1000
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 2
Socket type
: IEC320
USB
: 1
More detailed specification

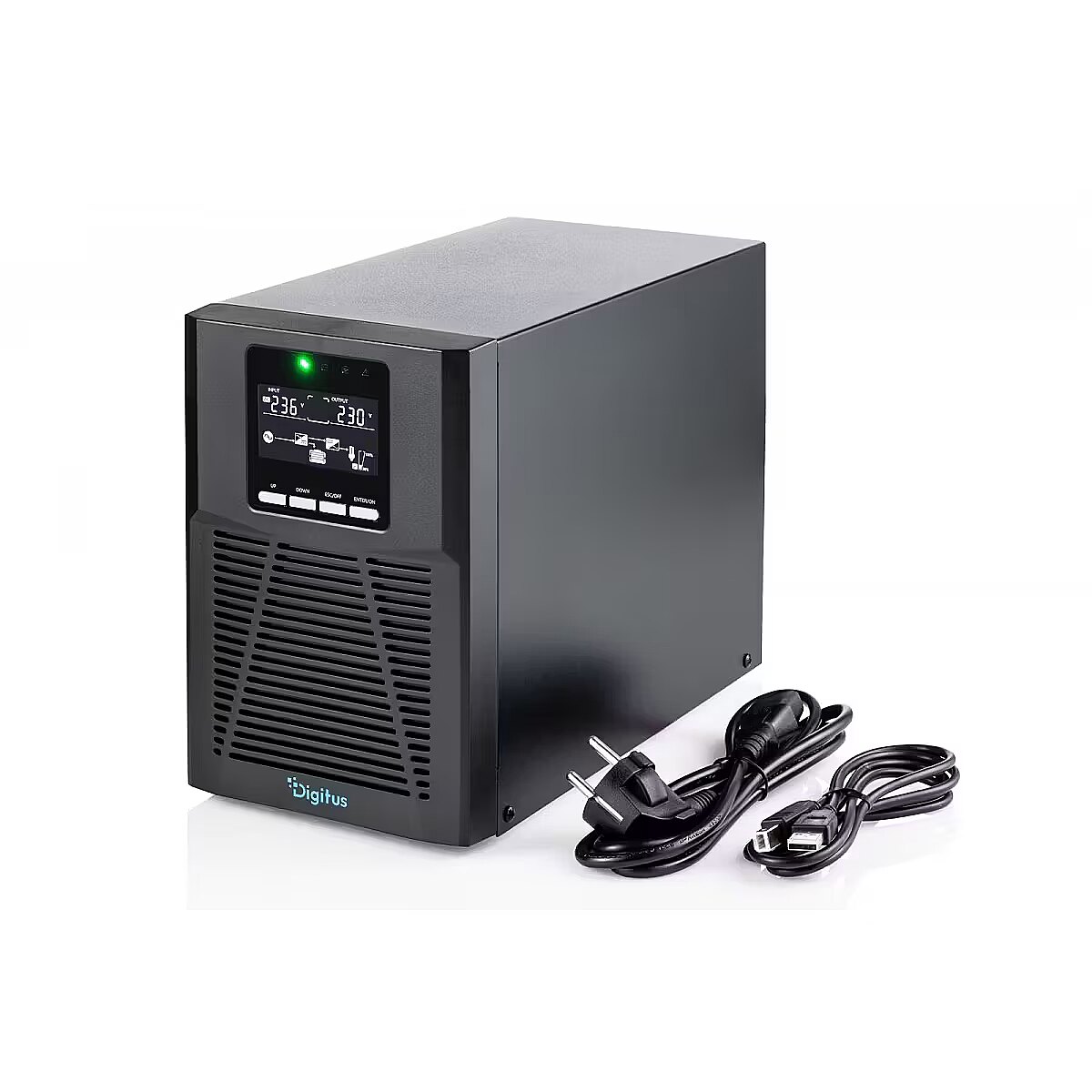

Accessories included - OnLine UPS, Tower, 1000 VA/1000 W Power cord USB cable RS232 cable Quick installation guide
Active power - 1000 W
Apparent power - 1000 VA
ARTIKEL1 - ONLINE TOWER USV 1000VA/1000W
ARTIKEL2 - 12V/9AHX2BATTERY8XC13LCD-DISP
Battery capacity - 9 Ah
Breite - 0
Charging time - 4 h
Chassis type - Tower
Color - Black
Description - DIGITUS OnLine UPS systems reliably protect critical business applications from power outages, voltage fluctuations, and mains interference, ensuring smooth operation. OnLine double-conversion technology continuously stabilizes the power supply and completely isolates it from mains interference. Connected devices receive high-quality, reliable power at all times, regardless of the power grid quality. In the event of a power outage, the UPS responds immediately and smoothly. This ensures systems are protected and ready for operation, while also providing sufficient time for a controlled shutdown. This minimizes risk, prevents data loss, and protects valuable equipment. Thanks to its compact tower design, the UPS can be flexibly integrated into a wide range of environmentsfrom offices, server rooms, and professional infrastructures. High efficiency and space-saving design make it an ideal choice for modern work environments. The integrated display and various interfaces enable easy integration with existing systems, as well as convenient monitoring and control. Combined with its robust design and reliable technology, it offers a long-term solution for maximum operational reliability. Uninterruptible Power Supply with 0 ms transfer time Pure sinewave output voltage with high voltage stability to protect sensitive devices from interference and failures Space-saving and high-performance - ideal for small server rooms and business environments Wide input voltage range reduces battery consumption and increases battery life in unstable electrical conditions Optimized charging management ensures longer battery life and faster recovery after a power outage Multiple protection features: short circuit, overload, overheating, overcharge, and deep discharge, low output voltage alarm, and fan fault
Designation - CE+WEEE
dimension depth - 208 mm
dimension height - 368 mm
Dimensions - 144 × 293 × 209 mm
dimension weight - 10100 g
dimension width - 309 mm
ean - 4016032507925
EANCode - 4016032507925
Environment requirements - Operating Temperature (°C): 0 ~ 40 Storage Temperature (°C): -25 ~ 55 Humidity Range: 20 ~ 95% RH at 0 ~ 40 °C (non-condensing)
Filters / protection - Circuit
Filters / protection - Overcharging
Filters / protection - Overdischarge
Filters / protection - Overheating
Filters / protection - Overload
Filters / protection - Voltage drop
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0
HSTNUMMER - DN-170130
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
I/O connectors - 2 x RJ-45 LAN
Input power ports - Type F Schuko
Laenge - 0
name - OnLine Tower UPS Module DN-170130 LCD 1000VA/1000W 2x12V/9Ah 4xC13 1xC14 USB RS232 RJ45
No. of batteries - 2
Number of phases input - 1 (230V)
Other features - Efficiency (VA/W): 1000 / 1000 Input: IEC60320 C20 socket, 208/220/230/240 Vac Output: 4 x IEC60320 C13, max. 10 A per socket Input: Nominal Voltage (VAC): 208/220/230/240 Operating Voltage Range (VAC): 110 ~ 300 (176 ~ 264 at 100% load) Power Factor: 1.0 Bypass Frequency Range (Hz): 40 ~ 70 (50 / 60) auto-sensing Output: Nominal Voltage (VAC): 208/220/230/240 Voltage Regulation: 1% Output Frequency (Hz): On-line: 46 ~ 54 or 56 ~ 64; Battery Operation: (50 / 60 0.1%) Crest Factor: 3:1 Total Harmonic Distortion (THDv): 3% with linear load; 5% with non-linear load Switching Time (ms): Switching from mains to battery: 0; Transfer from Inverter to Bypass: 4 (typical) Waveform: Pure Sine Wave Efficiency: On-line: Up to 90% / ECO: Up to 95% Battery Type: VRLA (Maintenance-Free Lead Acid) Battery Number: 2 x 12 V / 9.0 Ah Battery Voltage (Vdc): 24 Charging Current (Max) (A): 2 Emergency Power Off (EPO) Contact for Emergency UPS Shutdown Generator Compatible Cold Start Feature Typical Recharge Time (hours): 4 (up to 90% of full capacity) Network Connection: Optional SNMP/Webcard (part number DN-170100-1) allows remote monitoring of the UPS Local Communication Ports: USB, RS-232 (serial), SNMP (optional) Operating Height (m): < 1000, power reduction required between 1000 and 3000 Noise level (dB): < 50
Output power ports - 4 x IEC-C13
producer - Digitus
Stck_Kart - 9998
Stck_Pal - 0
Storno - Y
The shape of the output voltage - Full sine wave
UPS Architecture - on-line double conversion
vendpn - DN-170130
Voltage - 12 V
Weight - 10.07 kg
