ID: 1288992
Product code: 9PX5KIRTNBPG2
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 3 years

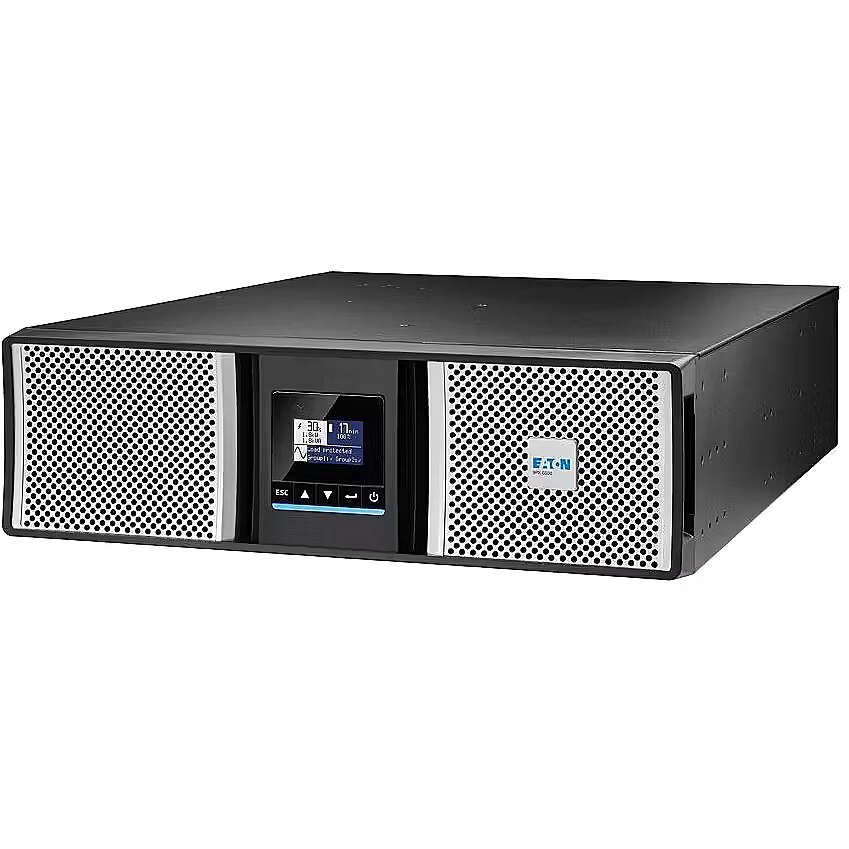

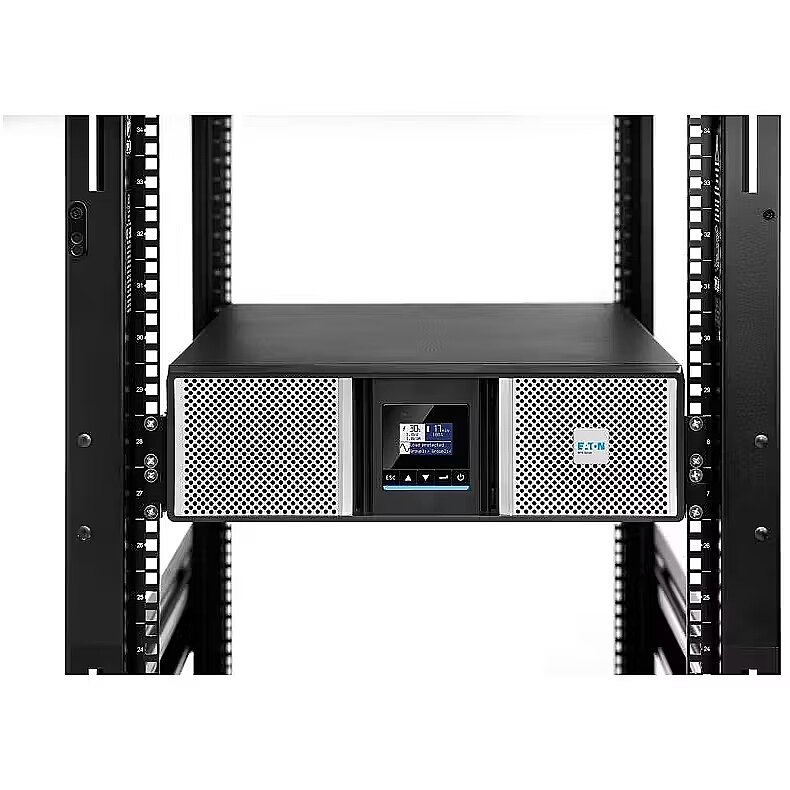

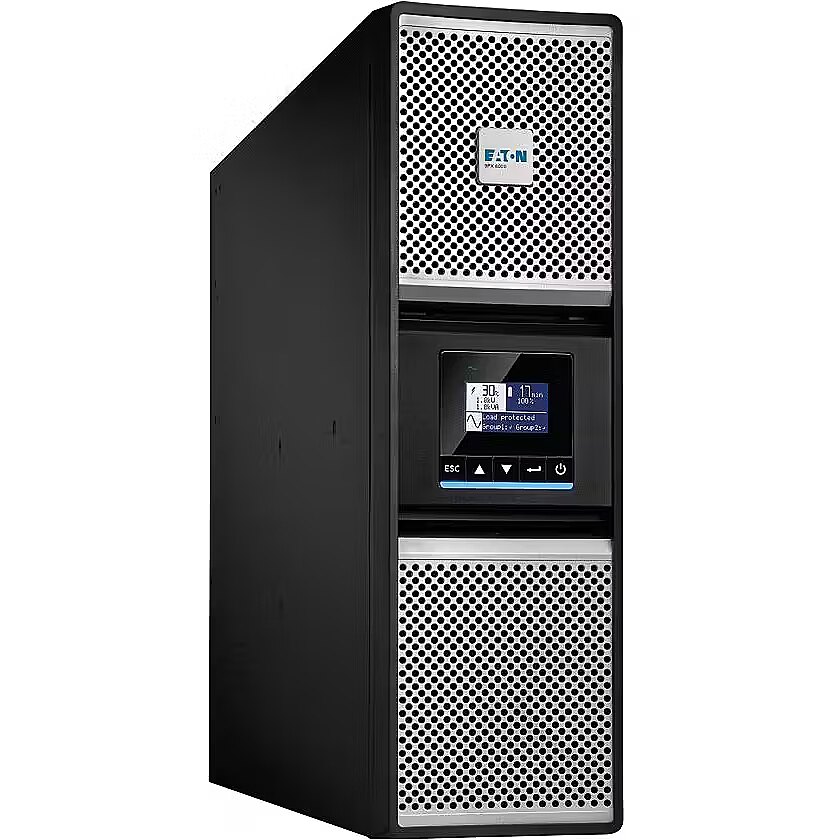

Eaton UPS 9PX 5000i RT3U HotSwap Netpack G2
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery with Posti courier mailWithin 1-2 working days19.99 €
Main product parameters All parameters
- Battery capacity (VA): 5000
- Output power (W): 5000
Description
Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
The use of a lead-acid battery in a UPS device ensures predictable operation during both short-term and prolonged power outages. This battery technology is characterized by stable output parameters, good compatibility with classic UPS schemes, and clear operating conditions in standard working environments.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
5000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 3
Output power (W)
: 5000
Ports and equipment
Number of nests (total)
: 3
Number of sockets (Battery Backup)
: 3
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - UPS power supply 2 × cable glands 2 × IEC-to-IEC output cables (1.2 m) USB cable (1.8 m) Network card Maintenance bypass Tower mounting brackets Rack mounting kit with brackets and UPS rails Maintenance bypass installation kit Safety instructions Quick start guide
Active power - 5000 W
Apparent power - 5 kVA
ARTIKEL1 - EATON 9PX 5000I RT3U HOTSWAP
ARTIKEL2 - NETPACK G2
Battery capacity - 5 Ah
Chassis type - Rack
Chassis type - Tower
Color - Black
Color - Silver
Designation - CE+WEEE
dimension depth - 630 mm
dimension height - 650 mm
Dimensions - 130 x 440 x 684 mm
dimension weight - 62000 g
dimension width - 980 mm
ean - 3553340710568
EANCode - 3553340710568
Environment requirements - Altitude: 3,000 m Noise level: below 40 dB at a distance of 1 m Relative humidity: 0-95%, non-condensing Operating temperature range: 0°C to 40°C (32°F to 104°F)
Filters / protection - Overdischarge
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 36
guarantee_type - external
HERSTELLER - EATON
HSTNUMMER - 9PX5KIRTNBPG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x USB (Type B)
Input power ports - Input terminal
name - UPS 9PX 5000i RT3U HotSwap Netpack G2
No. of batteries - 15
Number of phases input - 1 (230V)
Output power ports - 3 x IEC-C13
Output power ports - 3 x IEC-C39
Output power ports - Output terminals
producer - Eaton
Software - Eaton Brightlayer Software suite
Special functions - ABM+ (predictive battery life monitoring) and temperature-compensated charging (user selectable) Automatic battery test Automatic detection of external battery modules
Stck_Kart - 1
Stck_Pal - 1
Storno - N
The shape of the output voltage - Full sine wave
UPS Architecture - on-line double conversion
vendpn - 9PX5KIRTNBPG2
Voltage - 12 V
Warranty - 3-year warranty on electronics and 2-year warranty on batteries; after registration, a full 3-year warranty applies.
Weight - 45.1 kg
