ID: 128359
Product code: 5P1150I
In stock 1 units
Warranty: 3 years

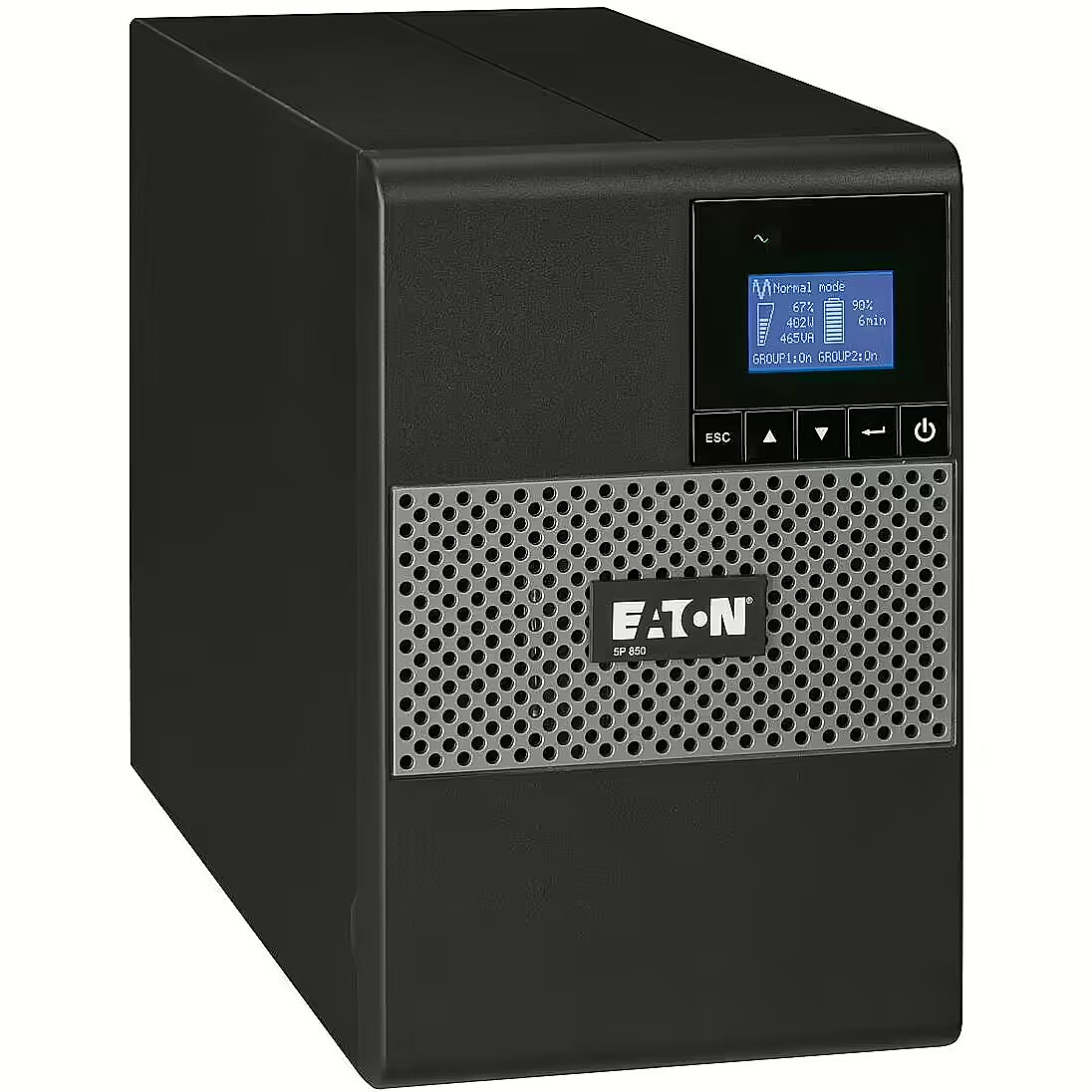

Eaton 5P1150I, 1150VA 770W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days12.99 €
Main product parameters All parameters
- Battery capacity (VA): 1150
- Output power (W): 770
Description
The presence of a display on the UPS device allows real-time monitoring of operational parameters. This simplifies system control, allows timely detection of deviations and makes technically justified operational decisions.
A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.
A UPS with a IEC320 connection type is designed for flexible connection of multiple devices without the need for rigid installation. The use of a standard connector ensures convenient operation, reduces installation requirements, and allows the system to be quickly adapted to changes in equipment configuration.
Warranty
Eaton provides a 3 year warranty for this model at all certified service centres.
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1150
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 770
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included -
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 770 W
Apparent power - 1150 VA
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 4 min
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)
Depth - 345 mm
Description - Eaton 5P 1150i VA - stackable version
New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.
Link to the specifications: http://powerquality.eaton.com/5P1150i.aspx?CX=65
Design -
Designation - CE+WEEE
dimension depth - 435 mm
dimension height - 325 mm
Dimensions - - Height: 230 mm
- Width: 150 mm
- Depth: 345 mm
dimension weight - 12500 g
dimension width - 230 mm
Displaytype - LCD
ean - 743172042842
Eans - 743172042842
Efficiency - 98%
Environment requirements - - Operating Temperature: 0 to 35 degrees C
- Noise level:
Features -
Filters / protection - Overdischarge
Formfactor - Tower
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 230 mm
HighLights -
Hotswapbattery - Yes
Inputfrequency - 40/70 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C14
LongDesc - The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
ManufDatasheet -
Name - Eaton 5P 1150i
name - UPS 5P 1150 Tower 5P1150i; 1150VA / 770W; RS232/USB
Networkcardslot -
Noiselevel - 40 dB
Numberofbatterycells -
Numberofinputphases - 1
Numberofoutputphases - 1
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 35 °C
Operationalconditions -
Other features - - Input voltage without the use of batteries: 160-294V 47-70Hz
- Output voltage: 200/208/220/230 / 240V; 50/60 Hz
- Two groups of outlets 2 x IEC C13 (10A)
- Automatic battery test
- 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off
- 1 card slot Communication Network-MS, ModBus-MS, MS-Relay
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 770 W
Outputpowercapacity - 1.15 kVA

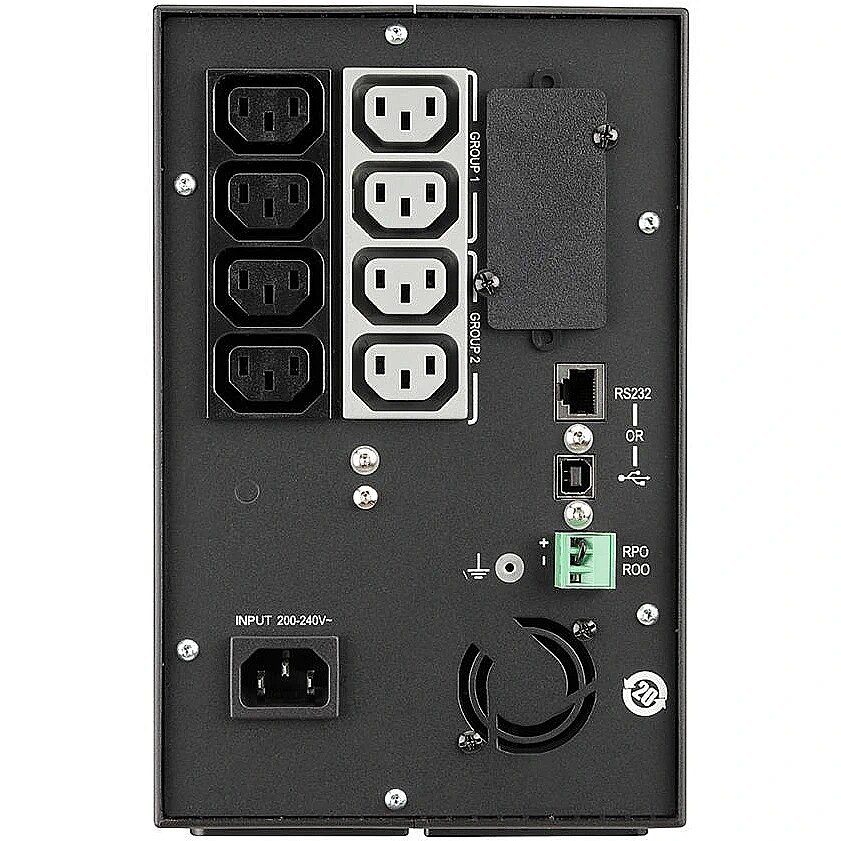

Output power ports - 8 x IEC-C13
Packagingcontent -
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 5P 1150VA/770W, line interactive pure sinus output, 4 min at full load, 3 years warranty (2 years for batteries)
producer - Eaton
Producer - Eaton
ProducerCode - 5P1150i
Productcolour - Black
Productcondition - Original
ProductHighLights -
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1150i_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_6.jpg
Quickinstallationguide -
Rackmountkit -
RS232ports - 1
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
Software -
Special functions - - Graphic LCD display (7 languages)
- Energy efficiency up to 98%
- Energy measurement
- Discontinuous charging
- Switchable group of outlets
- Sinusoidal waveform output
- Multiple communication options (compatible with virtual environments)
- Warranty 3 years electronics, 2 years on batteries
Typicalbackuptimeathalfload - 12 min
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport - Yes
USBporttype -
vendpn - 5P1150i
Video -
Warranty - 36 months
Warrantyandmisc -
Waveform - Pure sine
Weight - 11.1 kg
Weight - 11.1 kg
Weightdimensions -
Width - 150 mm
ACoutletsquantity - 8 AC outlet(s)
ACoutlettypes - C13 coupler
Active power - 770 W
Apparent power - 1150 VA
AutomaticVoltageRegulationAVR -
Backup time (100% load) - 4 min
Battery -
Batterycapacity -
Batterytechnology - Sealed Lead Acid (VRLA)
Batteryvoltage -
Cablesincluded -
Category - Root/Accessories | Exploitation/Power supply/UPSs and power strips/UPSs
Chassis type - Tower
Color - Black
Connectors - 1 x USB (Typ B)
Connectors - RS-232 (COM)
Depth - 345 mm
Description - Eaton 5P 1150i VA - stackable version
New Eaton 5P is a new generation of UPS line-interactive power of 650 VA-1550 VA, with modern LCD equipped with a function of energy measurement. 5P is the ideal power supply for protection of IT equipment and network, such as servers, switches, routers and data storage devices, performed tower and rack-mounted.
Link to the specifications: http://powerquality.eaton.com/5P1150i.aspx?CX=65
Design -
Designation - CE+WEEE
dimension depth - 435 mm
dimension height - 325 mm
Dimensions - - Height: 230 mm
- Width: 150 mm
- Depth: 345 mm
dimension weight - 12500 g
dimension width - 230 mm
Displaytype - LCD
ean - 743172042842
Eans - 743172042842
Efficiency - 98%
Environment requirements - - Operating Temperature: 0 to 35 degrees C
- Noise level:
Features -
Filters / protection - Overdischarge
Formfactor - Tower
guarantee - 36
guarantee_type - external
Heatdissipation -
Height - 230 mm
HighLights -
Hotswapbattery - Yes
Inputfrequency - 40/70 Hz
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C14
LongDesc - The new Eaton 5P is the next generation of 650VA-1550VA line-Interactive UPS with advanced LCD and energy metering feature. 5P is the perfect UPS to protect IT & networking devices such as servers, switches, routers and storage devices, in tower or rack format.
ManufDatasheet -
Name - Eaton 5P 1150i
name - UPS 5P 1150 Tower 5P1150i; 1150VA / 770W; RS232/USB
Networkcardslot -
Noiselevel - 40 dB
Numberofbatterycells -
Numberofinputphases - 1
Numberofoutputphases - 1
Number of phases input - 1 (230V)
Operatingaltitude -
OperatingrelativehumidityHH -
OperatingtemperatureTT - 0 - 35 °C
Operationalconditions -
Other features - - Input voltage without the use of batteries: 160-294V 47-70Hz
- Output voltage: 200/208/220/230 / 240V; 50/60 Hz
- Two groups of outlets 2 x IEC C13 (10A)
- Automatic battery test
- 1 mini terminal block for remote on. / Off. and the Remote Emergency Power Off
- 1 card slot Communication Network-MS, ModBus-MS, MS-Relay
Outputfrequency - 50/60 Hz
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 770 W
Outputpowercapacity - 1.15 kVA
Output power ports - 8 x IEC-C13
Packagingcontent -
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
ProdDesc - 5P 1150VA/770W, line interactive pure sinus output, 4 min at full load, 3 years warranty (2 years for batteries)
producer - Eaton
Producer - Eaton
ProducerCode - 5P1150i
Productcolour - Black
Productcondition - Original
ProductHighLights -
- Line-Interactive
- 1.15 kVA 770 W
- Waveform: Pure sine
- 8 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower Black
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1150i_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_4.jpg
ProductPicture4 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_5.jpg
ProductPicture5 - https://www.tdbaltic.ee/images/products/EATON/5P1150i_6.jpg
Quickinstallationguide -
Rackmountkit -
RS232ports - 1
Serialinterface -
Serialinterfacetype -
Serialportsquantity -
ShortDescription -
Software -
Special functions - - Graphic LCD display (7 languages)
- Energy efficiency up to 98%
- Energy measurement
- Discontinuous charging
- Switchable group of outlets
- Sinusoidal waveform output
- Multiple communication options (compatible with virtual environments)
- Warranty 3 years electronics, 2 years on batteries
Typicalbackuptimeathalfload - 12 min
UPS Architecture - line-interactive
UPStopology - Line-Interactive
USBport - Yes
USBporttype -
vendpn - 5P1150i
Video -
Warranty - 36 months
Warrantyandmisc -
Waveform - Pure sine
Weight - 11.1 kg
Weight - 11.1 kg
Weightdimensions -
Width - 150 mm
