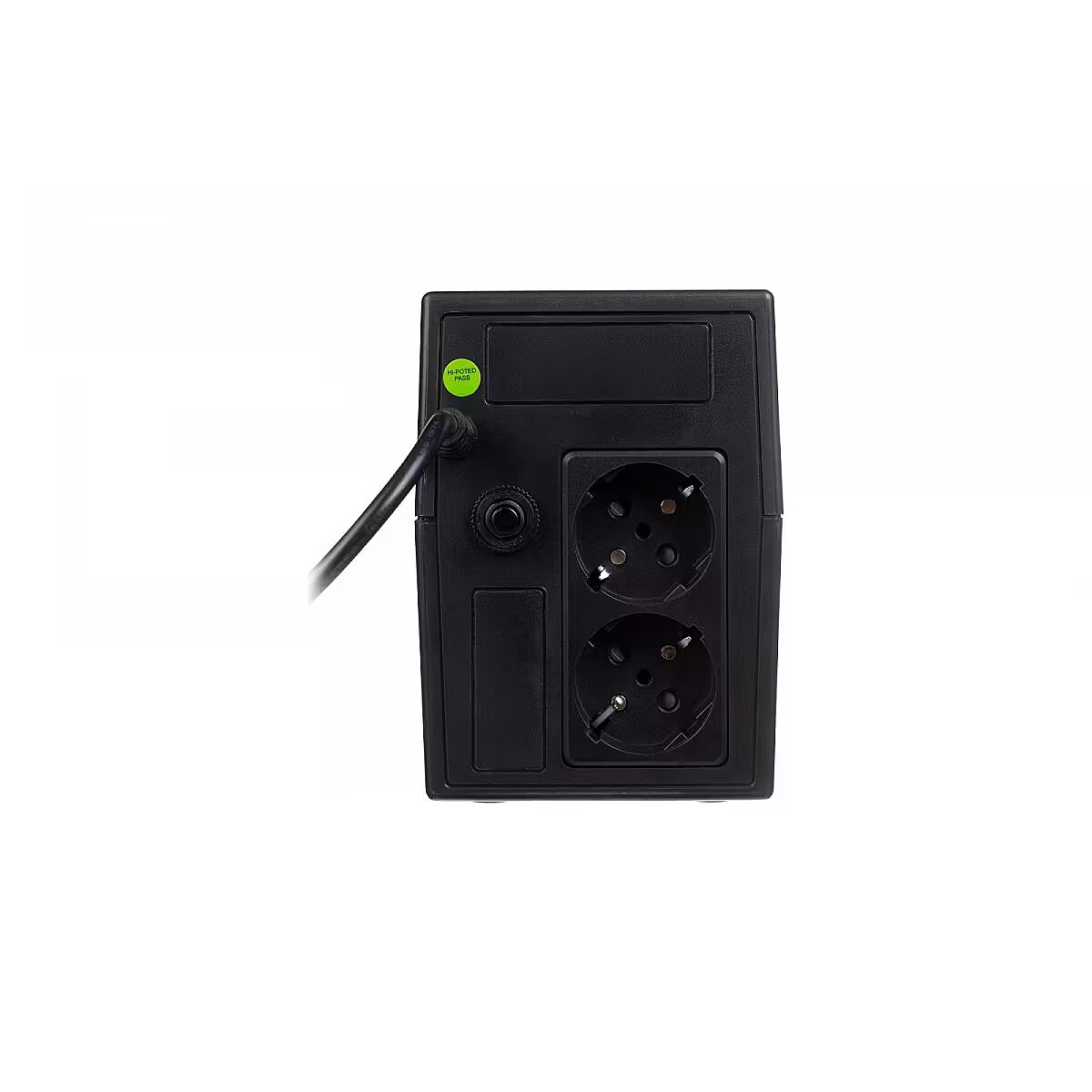

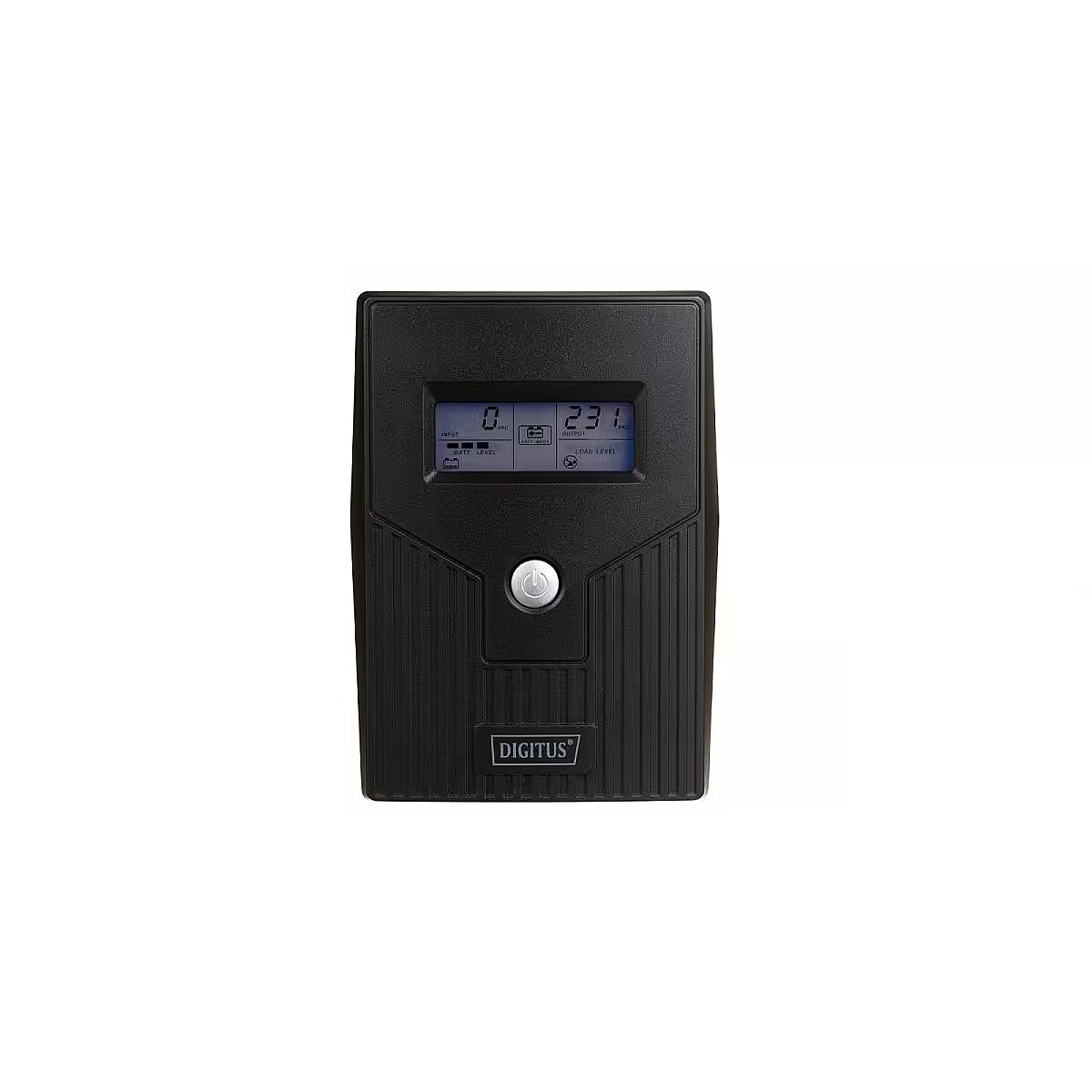

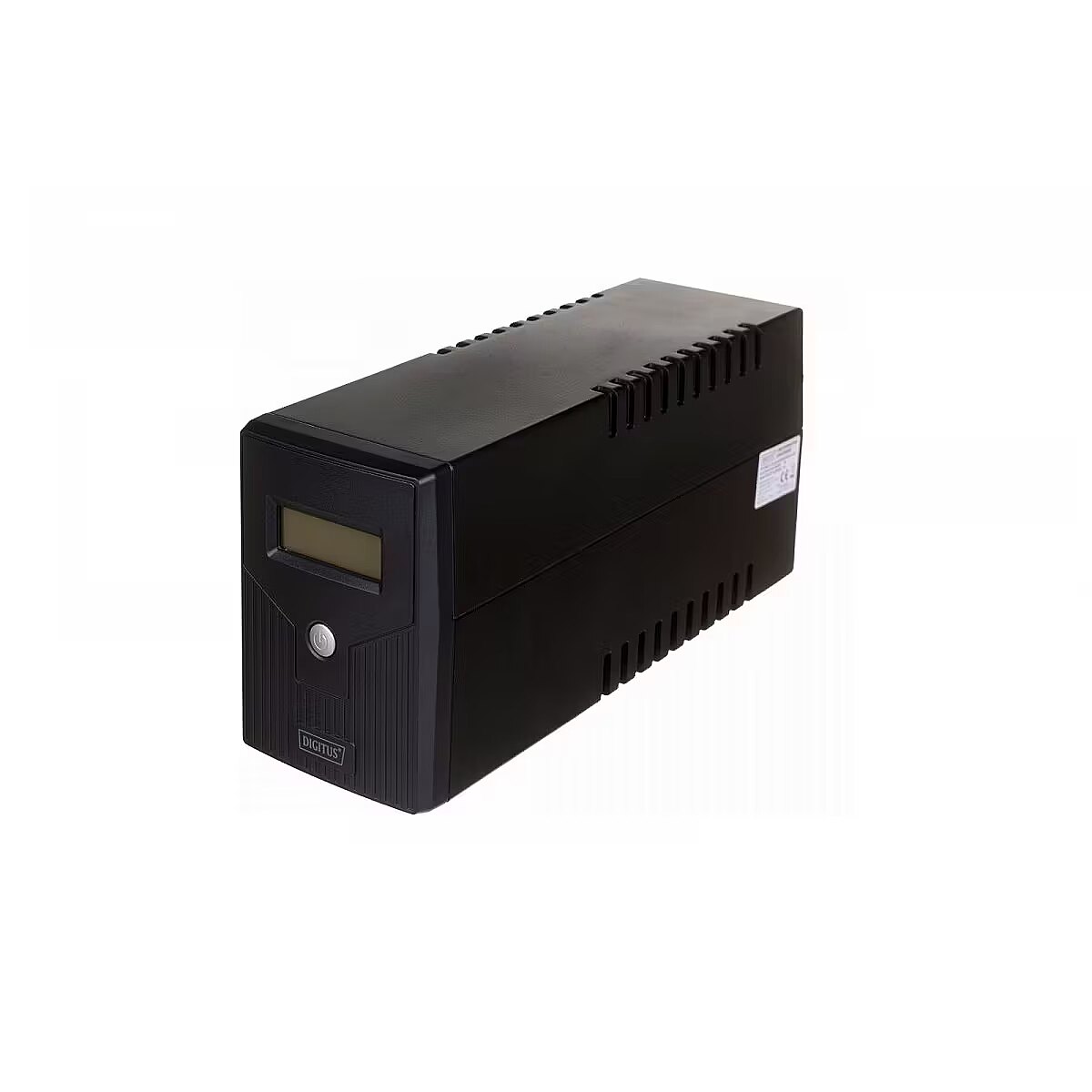

Digitus UPS Line-Ineractive DN-170063-LCD-B

Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
ID: 1200815 Product code: DN-170063-LCD-B
Goods are not available at the moment We do not accept orders for the delivery of this product. We do not have information as to when this product will be available. Our suppliers currently do not provide information about possible delivery times of the product and the possible price when it is on sale again.

TopPC.fi website provides information about this product for information only, so that customers can see the product and compare it to the products available for sale now.

Warranty: 2 years
Main product parameters All parameters
  • Battery capacity (VA): 600
  • Output power (W): 360
Similar Products
This product Digitus UPS Line-Ineractive DN-170063-LCD-B
Digitus UPS Line-Ineractive DN-170063-B
Digitus DN-170063-LCD Line-Ineractive, 600VA 360W
Digitus DN-170064-LCD Line-Ineractive, 800VA 480W
Digitus DN-170064 Line-Ineractive, 800VA 480W
Show similar specs. Hide similar specs.
56.46 €
42.78 €
61.29 €
72.91 €
67.78 €
Model DN-170063-LCD-B DN-170063-B DN-170063-LCD DN-170064-LCD DN-170064
Display characteristics
Display Is Is Is Is There isn't
Basic information
Battery capacity (VA) 600 600 600 800 800
Battery type Lead acid Lead acid Not specified Not specified Not specified
Charging time (hours) 8 8 8 8 8
Output power (W) 360 360 360 480 480
Ports and equipment
Number of nests (total) 2 2 2 2 2
Number of sockets (Battery Backup) 2 2 2 2 2
RJ-45 0 0 0 0 0
Socket type Schuko Schuko Schuko Schuko Schuko
USB 0 0 0 0 0
Description

This UPS Digitus UPS Line-Ineractive DN-170063-LCD-B with an output power of 360 W and a battery capacity of 600 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.

Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.

The use of a Lead-acid battery in a UPS device ensures stable operation over a wide load range and predictable discharge characteristics. This technology stands out for its high reliability, resistance to temperature fluctuations and well-researched service life, which facilitates technical maintenance and planning for battery replacement.

A UPS with a Schuko connection type allows devices to be connected without additional adapters, ensuring safe grounding. The standard connector reduces mechanical load on the contacts, simplifies technical maintenance, and is compatible with a wide range of household and office equipment.

Warranty

Digitus provides a 2 year warranty for this model at all certified service centres.
*When purchasing the device for a legal entity, the manufacturer's warranty is 1 year.

All parameters
Model : DN-170063-LCD-B
Display characteristics
Display : Is
Basic information
Battery capacity (VA) 600
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type : Lead acid
Charging time (hours) : 8
Output power (W) : 360
Ports and equipment
Number of nests (total) : 2
Number of sockets (Battery Backup) : 2
RJ-45 : 0
Socket type : Schuko
USB : 0
More detailed specification
Accessories included -
Active power - 360 W
Apparent power - 600 VA
Battery capacity - 7 Ah
Charging time - 8 h
Chassis type - Desktop
Color - Black
Description - Gwarantuje niezawodną ochronę przed utratą danych oraz szkodami spowodowanymi przez zmiany napięcia w biurze oraz w domu. Zasilacze UPS Line-Interactive firmy DIGITUS posiadają kompaktowe rozmiary i są kontrolowane mikroprocesorem, co gwarantuje wysoką niezawodność. Są łatwe w obsłudze i zapewniają wysoką skuteczność i bezpieczeństwo dla systemów firmowych i biurowych pod względem utraty danych i uszkodzeń. Właściwości, takie jak zabezpieczenie przed przeciążeniem, wyładowaniem i przeładowaniem, funkcja zimnego startu oraz energooszczędność i akustyczny system alarmowy, to tylko niektóre zalety zasilaczy UPS Line-Interactive firmy DIGITUS. Stabilizacja napięcia - układ AVR Szybki czas przełączania w przypadku awarii zasilania Kompaktowa obudowa zapewniająca oszczędność miejsca w infrastrukturze IT Szybki czas ładowania
Designation - CE+WEEE
dimension depth - 150 mm
dimension height - 215 mm
Dimensions - Wysokość 142 x szerokość 101 x głębokość 298 mm
dimension weight - 3700 g
dimension width - 355 mm
ean - 4016032498636
Environment requirements - Wilgotność: 0-95% wilgotności względnej przy 0 °C do +40 °C (bez kondensacji) Poziom hałasu: poniżej 40 dB
Filters / protection - Overcharging
Filters / protection - Overdischarge
Filters / protection - Overload
guarantee - 24
guarantee_type - external
Hold-up time (maks) - 6 ms
I/O connectors - None
Input power ports - Type F Schuko
name - UPS Line-Ineractive DN-170063-LCD-B
No. of batteries - 1
Number of phases input - 1 (230V)
Other features - Złącza: 2× gniazdo wtykowe z stykiem ochronnym Schuko CEE 7/3 Napięcie wejściowe: 230 V AC Zakres napięcia: 162-290 V AC Zakres częstotliwości: 50 Hz (automatyczne wykrywanie) Napięcie wyjściowe: 230 V AC 10% Regulacja prądu zmiennego (tryb bateryjny): 10% Zakres częstotliwości (tryb bateryjny): 50 Hz 1% Standardowy czas transferu: 2-6 ms Kształt fali (tryb bateryjny): Symulowana fala sinusoidalna Bateria: 12 V/7 Ah x 1 Standardowy czas ładowania: 6-8 godziny dla uzyskania 90% naładowania Dźwięki alarmowe: tryb bateryjny (rozbrzmiewa co 10 sekund), niski poziom baterii (rozbrzmiewa co sekundę), przeciążenie (rozbrzmiewa co 0,5 sekundy), usterka (rozbrzmiewa bez przerwy) Stabilizacja napięcia (AVR przekształtnik obniżający/podwyższający) Automatyczne ponowne uruchomienie po przywróceniu napięcia Wyświetlacz LCD
Output power ports - 2 x C/F type (Schuko)
producer - Digitus
Software -
Special functions -
The shape of the output voltage - Modified sine wave
UPS Architecture - line-interactive
vendpn - DN-170063-LCD-B
Voltage - 230 V
Weight - 4.35 kg
