ID: 1124790
Product code: 5P1150IG2
Can be ordered 1 units Availability: 14 days after order approval
Warranty: 2 years

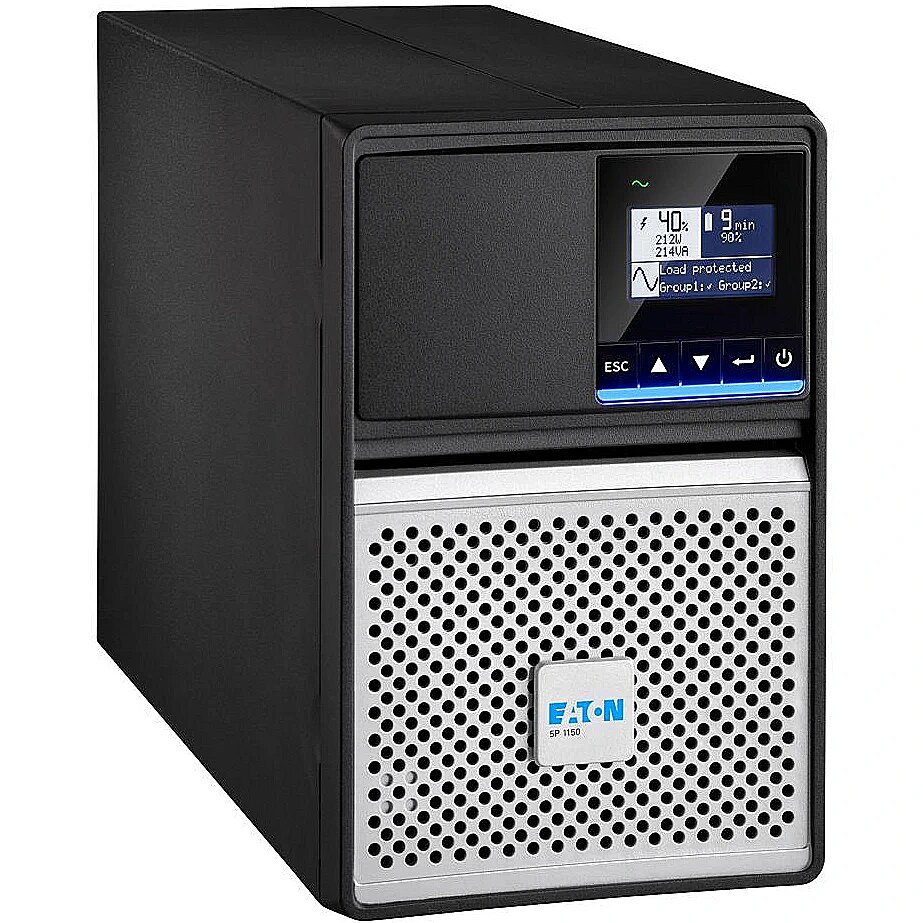

Eaton 5P1150IG2, 1150VA 920W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days12.99 €
Main product parameters All parameters
- Battery capacity (VA): 1150
- Output power (W): 920
Description
This UPS Eaton 5P1150IG2, 1150VA 920W, IEC with an output power of 920 W and battery capacity of 1150 VA is suitable for workstations and data storage solutions. It reduces the risk of operational downtime in case of power fluctuations.

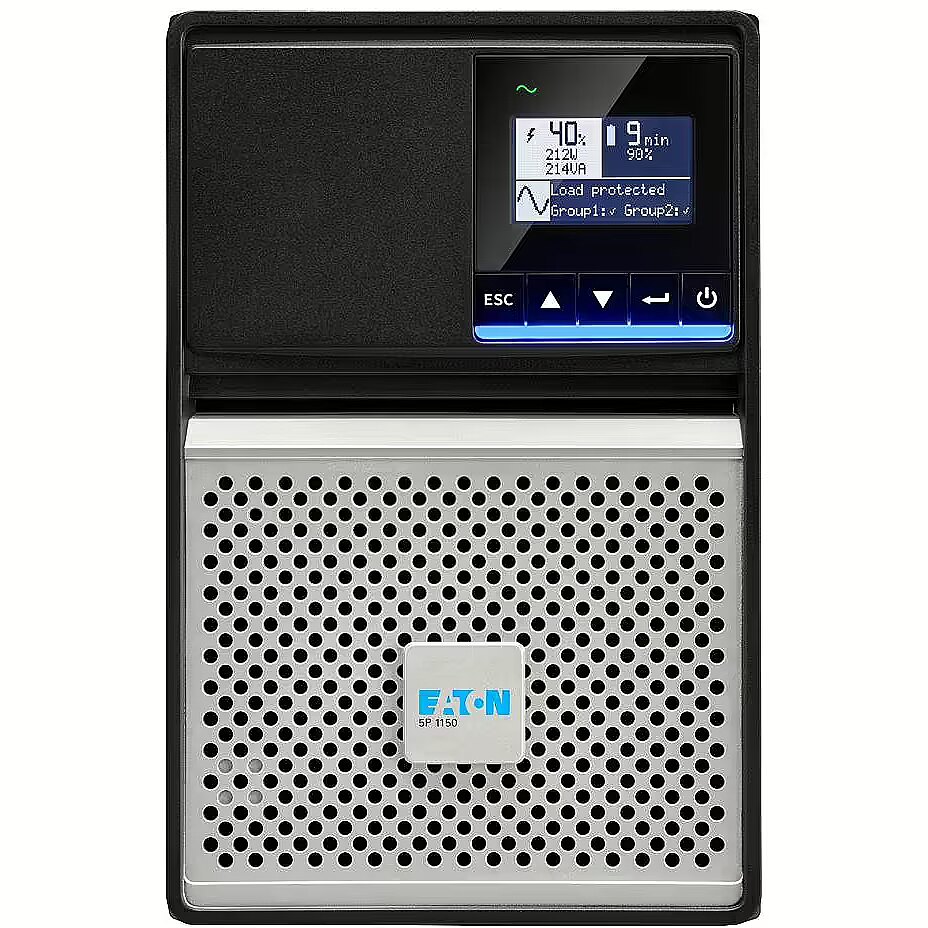

Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
The presence of a IEC320 connection type in a UPS device ensures standardized device connection using removable power cables. Such a connector facilitates the replacement and maintenance of connected devices, ensures a secure electrical contact and broad compatibility with server and office equipment.
Warranty
Eaton provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: 5P1150IG2
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
1150
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: Not specified
Output power (W)
: 920
Ports and equipment
Number of nests (total)
: 8
Number of sockets (Battery Backup)
: 8
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Accessories included - Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa
ACoutletsquantity - 8 AC outlet(s)
AC outlets quantity Ports & interfaces - 8 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 920 W
Apparent power - 1150 VA
ARTIKEL1 - EATON 5P 1150I G2
ARTIKEL2 -
AutomaticVoltageRegulationAVR -
Auto shut-off Features - Yes
Backup time (100% load) - 3 min
Battery -
Batterycapacity - 9 Ah
Battery capacity - 9 Ah
Battery capacity Battery - 9 Ah
Batterytechnology - Lead-Acid
Battery technology Battery - Lead-Acid
Batteryvoltage - 12 V
Battery voltage Battery - 12 V
Breite - 0
Cablesincluded -
Category Code - UPW
Certification Certificates - IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Chassis type - Tower
Code - 5P1150IG2
Color - Black
Color - Silver
Compliance certificates Certificates - Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE
Depth - 345 mm
Depth Weight & dimensions - 345 mm
Description - 5P1150IG2 UPS Eaton 5P, 1150 VA, 920 W, wejście: C14, wyjścia: (8) C13, Tower System automatycznej regulacji napięcia (AVR) Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu 1 slot na opcjonalną kartę komunikacyjną (karta sieciowa, karta przekaźnikowa lub karta sieciowa obsługująca protokoły przemysłowe) Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Złącza zdalnego wł./wył. oraz zdalnego wyłączania zasilania
Design -
Designation - CE+WEEE
dimension depth - 435 mm
dimension height - 328 mm
Dimensions - 345 x 233 x 150 mm
dimension weight - 12000 g
dimension width - 235 mm
Displaytype - LCD
Display type Design - LCD
EAN - 3553340710278
ean - 3553340710278
EANCode - 3553340710278
Efficiency - 98.2%
Efficiency Features - 98.2%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Tower
Form factor Design - Tower
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation -
Height - 233 mm
Height Weight & dimensions - 233 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0
Hotswapbattery -
HSTNUMMER - 5P1150IG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 50/60 Hz
Input frequency Features - 50/60 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 160 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 160 V
Input power ports - IEC-C14
Laenge - 0
Link - https://www.eaton.com/lt/lt-lt/skuPage.5P1150IG2.html
LongDesc -
ManufDatasheet -
Model - 5P Gen2
Name - Eaton 5P Gen2 UPS | 5P1150IG2 | 1150 VA | 920 W
name - UPS 5P 1150i G2 1150VA / 920W ABM+
Networkcardslot -
No. of batteries - 2
Noiselevel - 35 dB
Noise level Features - 35 dB
Number of batteries supported Battery - 2
Numberofbatterycells -
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Other features > Dimensions (WxDxH) - 150 x 345 x 233 mm

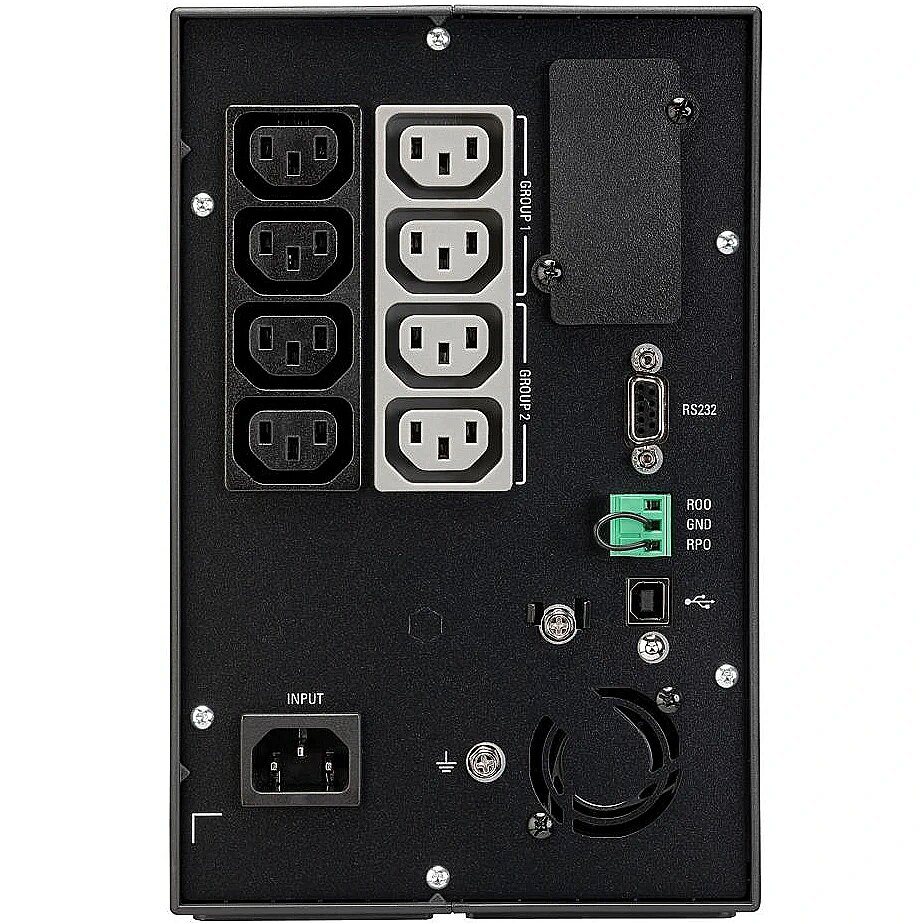

Other features > Special features - Input: C14, Outputs: (8) C13
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 230 V
Outputoperationvoltagemax - 230 V
Outputoperationvoltagemin -
Outputpower - 920 W
Outputpowercapacity -
Output power Features - 920 W
Output power ports - 8 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 235.00 mm
Package features > Gross height (mm) - 325.00 mm
Package features > Gross width (mm) - 435.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 26 pc(s)
Package features > Paper/Pasteboard - 1000.00 g
Package features > Plastic (No PET) - 400.00 g
Package features > Tare weight (kg) - 1.40 kg
Package features > TI weight (kg) - 10.00 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.03 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1150 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Powerfactor -
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P 1150i G2
producer - Eaton
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1150IG2_3.jpg
ProductPicture3 -
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rackmountkit -
RS232ports -
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Summary - Eaton 5P Gen2. UPS topology: Line-Interactive, Output power: 920 W, Waveform: Sine. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Silver, Display type: LCD. Compliance certificates: Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS, WEEE, Certification: IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Technical details > Capacity - 920 W
Technical details > Gross weight - 12.40 kg
Technical details > Net weight - 11.00 kg
Technical details > Producer - Eaton
Technical details > Producer product family - 5P Gen2 UPS
Technical details > Producer product name - 5P1150IG2
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload -
Unit Box Height - 0.325
Unit Box Length - 0.235
Unit Box Width - 0.435
Unit Calculated Volume - 0.03322 cubm
Unit Calculated Weight - 12.4 kg
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype -
Vendor Homepage - https://www.eaton.com/gb/en-gb/skuPage.5P1150IG2.html
vendpn - 5P1150IG2
Voltage - 12 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waveform - Sine
Waveform Features - Sine
Weight - 11 kg
Weight - 11 kg
Weightdimensions -
Weight Weight & dimensions - 11 kg
Width - 150 mm
Width Weight & dimensions - 150 mm
