ID: 1122644
Product code: 5P1550IRNG2
In stock 2 units
Warranty: 2 years

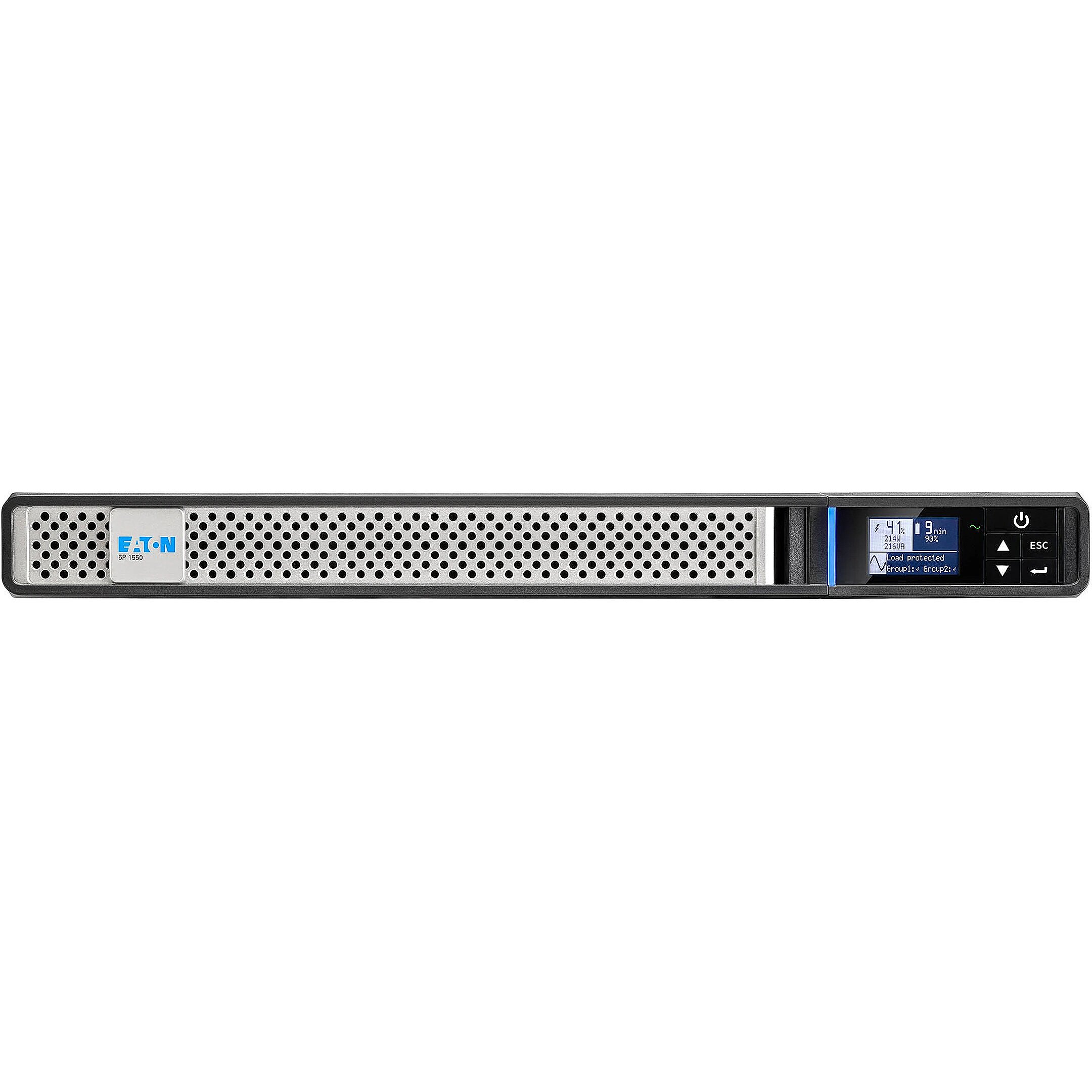

Eaton 5P1550IRNG2, 1550VA 1350W, IEC 1U
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Delivery with Posti courier mailWithin 1-2 working days15.99 €
Main product parameters All parameters
- Battery capacity (VA): 1550 VA
- Output power (W): 1350 W
All parameters
Model
: 5P1550IRNG2
Display characteristics
Display
: Ir
Basic information
Battery capacity (VA)
1550 VA
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: Not specified
Output power (W)
: 1350 W
Ports and equipment
Number of nests (total)
: 6
Number of sockets (Battery Backup)
: 6
RJ-45
: 1
Socket type
: IEC320
USB
: 1
More detailed specification
Accessories included - Zestaw do montażu w szafie rack System blokady przewodów Kabel USB 2 x Przewód IEC-IEC Szybki start Instrukcje dotyczące bezpieczeństwa Karta sieciowa
ACoutletsquantity - 6 AC outlet(s)
AC outlets quantity Ports & interfaces - 6 AC outlet(s)
ACoutlettypes - C13 coupler
AC outlet types Ports & interfaces - C13 coupler
Active power - 1350 W
Apparent power - 1550 VA
ARTIKEL1 - EATON 5P 1550I RACK 1U NETPACK
ARTIKEL2 - G2
Automatic Voltage Regulation (AVR) Features - Yes
AutomaticVoltageRegulationAVR - Yes
Backup time (100% load) - 2 min
Battery -
Batterycapacity - 9 Ah
Battery capacity - 9 Ah
Battery capacity Battery - 9 Ah
Batterytechnology - Sealed Lead Acid (VRLA)
Battery technology Battery - Sealed Lead Acid (VRLA)
Batteryvoltage - 6 V
Battery voltage Battery - 6 V
Breite - 0.59
Cablesincluded - USB cable
Cables included Packaging content - USB cable
Category Code - UPW
Certification Certificates - EMC
IEC/EN 62040-1
IEC/EN 62040-2
IEC/EN 62040-3
UL 1778
CSA-C22.2
CE
UKCA
Cm
Ukr
KCC
cTUVus
BIS
Chassis type - Rack
Code - 5P1550IRNG2
Color - Black
Color - Silver
Compliance certificates Certificates - Low Voltage Directive (LVD), RoHS
Depth - 555 mm
Depth Weight & dimensions - 555 mm
Description - 5P1550IRNG2 UPS Eaton 5P, 1550 VA, 1350 W, wejście: C14, wyjścia: (6) C13, rack, 1U, karta sieciowa System automatycznej regulacji napięcia (AVR) Ochrona zasilania dla zastosowań o wysokiej gęstości: tylko 1U Energooszczędność, redukcja kosztów energii i chłodzenia Czysta sinusoida na wyjściu Kompatybilność ze środowiskami wirtualnymi (VMware, Hyper-V, Citrix Xen, Redhat) Pełna integracja z oprogramowaniem Eaton Brightlayer Software suite 1 port USB + 1 port szeregowy Technologia zaawansowanego zarządzania bateriami (ABM+) zwiększająca żywotność baterii oraz poprawiająca dokładność przewidywania żywotności Wyświetlacz graficzny LCD nowej generacji Baterie wymienialne podczas pracy urządzenia Zdalny restart i optymalizacja czasu podtrzymania dzięki 2 zarządzanym grupom gniazd Karta sieciowa w zestawie
Design -
Designation - CE+WEEE
dimension depth - 580 mm
dimension height - 175 mm
Dimensions - 555 x 43.2 x 438 mm
dimension weight - 24000 g
dimension width - 760 mm

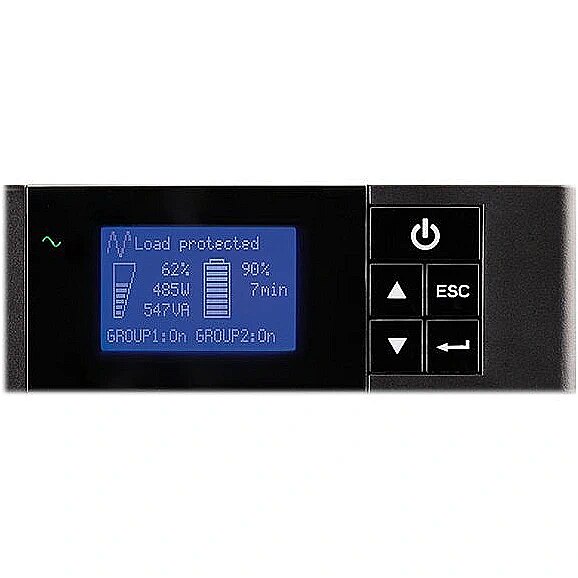

Displaytype - LCD
Display type Design - LCD
EAN - 2000001358153
ean - 3553340710414
EANCode - 3553340710414
Efficiency - 98.2%
Efficiency Features - 98.2%
Environment requirements - Wilgotność względna: 0-90%, bez kondensacji
Features -
Filters / protection - Automatic Voltage Regulation (AVR)
Filters / protection - Overdischarge
Formfactor - Rackmount
Form factor Design - Rackmount
Gewicht - 24.32
GRUPPE1 - Power Protection
GRUPPE2 - UPS (Uninterruptable Power Supply)
guarantee - 24
guarantee_type - external
Heatdissipation - 654 BTU/h
Heat dissipation Features - 654 BTU/h
Height - 43.2 mm
Height Weight & dimensions - 43.2 mm
HERSTELLER - EATON
HighLights -
Hoehe - 0.18
Hot-swap battery Battery - Yes
Hotswapbattery - Yes
HSTNUMMER - 5P1550IRNG2
I/O connectors - 1 x RS-232 (COM)
I/O connectors - 1 x Terminal
I/O connectors - 1 x USB (Type B)
Inputfrequency - 47/70 Hz
Input frequency Features - 47/70 Hz
Input operation voltage (max) Features - 294 V
Input operation voltage (min) Features - 150 V
Inputoperationvoltagemax - 294 V
Inputoperationvoltagemin - 150 V
Input power ports - IEC-C14
Laenge - 0.77
LED indicators Design - Yes
Link - https://www.eaton.com/za/en-gb/skuPage.5P1550IRNG2.html
LongDesc -
ManufDatasheet - https://www.tdbaltic.ee/leaflets/EATON/5P1550IRNG2.pdf
Model - 5P1550IRNG2
Name - Eaton UPS | 5P1550IRNG2 | 1550 VA | 1350 W
name - UPS 5P 1550i Rack 1U NetpackG2 1550VA/1350W
Networkcardslot - Yes
Network card slot Ports & interfaces - Yes
No. of batteries - 6
Noiselevel - 35 dB
Noise level Features - 35 dB
Numberofbatterycells - 6
Number of battery cells Battery - 6
Numberofinputphases - 1
Number of input phases Features - 1
Numberofoutputphases - 1
Number of output phases Features - 1
Number of phases input - 1 (230V)
Operatingaltitude - 0 - 3000 m
Operating altitude Operational conditions - 0 - 3000 m
Operating relative humidity (H-H) Operational conditions - 0 - 90%
OperatingrelativehumidityHH - 0 - 90%
Operating temperature (T-T) Operational conditions - 0 - 40 °C
OperatingtemperatureTT - 0 - 40 °C
Operationalconditions -
Other features -
Other features > Dimensions (WxDxH) - 438 x 555 x 43.2 mm
Outputfrequency - 50/60 Hz
Output frequency Features - 50/60 Hz
Output operation voltage (max) Features - 240 V
Output operation voltage (min) Features - 200 V
Outputoperationvoltagemax - 240 V
Outputoperationvoltagemin - 200 V
Outputpower - 1350 W
Outputpowercapacity - 1.55 kVA
Output power capacity Features - 1.55 kVA
Output power Features - 1350 W
Output power ports - 6 x IEC-C13
Package features > Classification of battery - CL126:NE:2016-12-09
Package features > Composition of battery - CL127:KT:2016-12-09
Package features > Embeeded battery - Yes
Package features > Gross depth (mm) - 550 mm
Package features > Gross height (mm) - 165 mm
Package features > Gross width (mm) - 595 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 16 pc(s)
Package features > Paper/Pasteboard - 3000 g
Package features > Plastic (No PET) - 960 g
Package features > Tare weight (kg) - 3.96 kg
Package features > TI weight (kg) - 14 kg
Package features > Type of battery - Accumulator
Package features > Volume (m3) - 0.05399625 m³
Package features > WEE classification - CL109:5:2017-04-01
Package features > WEEE tax - Yes
Packagingcontent -
Performance > Capacity - 1550 VA
Performance > UPS topology - Line-Interactive
Portsinterfaces -
Power > AC input frequency - 50-60 Hz
Powerfactor - 0.9
Power factor Features - 0.9
Powerplug - C14 coupler
Power plug Ports & interfaces - C14 coupler
ProdDesc - Eaton 5P 1550i Rack 1U Netpack G2
producer - Eaton
Productcolour - Black, Silver
Product colour Design - Black, Silver
Productcondition - Original
ProductHighLights -
ProductPicture - https://www.tdbaltic.ee/images/products/EATON/5P1550IRNG2_1.jpg
ProductPicture1 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRNG2_2.jpg
ProductPicture2 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRNG2_3.jpg
ProductPicture3 - https://www.tdbaltic.ee/images/products/EATON/5P1550IRNG2_4.jpg
ProductPicture4 -
ProductPicture5 -
Quickinstallationguide - Yes
Quick installation guide Packaging content - Yes
Rack capacity Design - 1U
Rackmountkit - Yes
Rack mount kit Packaging content - Yes
RS232ports -
Serialinterface - Yes
Serial interface Ports & interfaces - Yes
Serialinterfacetype - RS-232
Serial interface type Ports & interfaces - RS-232
Serialportsquantity - 1
Serial ports quantity Ports & interfaces - 1
Software - Eaton Brightlayer Software suite
Special functions - Automatyczny test baterii
Stck_Kart - 1
Stck_Pal - 5
Storno - Y
Summary - Eaton 5P1550IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.55 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Technical details > Capacity - 1350 W
Technical details > Gross weight - 22.66 kg
Technical details > Net weight - 18.7 kg
Technical details > Producer - Eaton
Technical details > Producer product family - UPS
Technical details > Producer product name - 5P1550IRNG2
The shape of the output voltage - Full sine wave
Typicalbackuptimeathalfload - 13.5 min
Typical backup time at half load Battery - 13.5 min
Unit Box Height - 0.585
Unit Box Length - 0.76
Unit Box Width - 0.175
Unit Calculated Volume - 0.0778 cubm
Unit Calculated Weight - 24 kg
Units per Pallet - 0
Units per Shipping Box - 1
UPS Architecture - line-interactive
UPStopology - Line-Interactive
UPS topology Features - Line-Interactive
USBport - Yes
USB port Ports & interfaces - Yes
USBporttype - USB Type-B
USB port type Ports & interfaces - USB Type-B
Vendor Homepage - https://www.eaton.com/gr/en-gb/skuPage.5P1550IRNG2.html
vendpn - 5P1550IRNG2
Voltage - 6 V
Warranty - 24 months
Warranty - 36
Warranty - 36 month(s)
Warrantyandmisc -
Waste Electrical and Electronic Equipment (WEEE) compliance Certificates - Yes
Waveform - Sine
Waveform Features - Sine
Weight - 18.7 kg
Weight - 18.8 kg
Weightdimensions -
Weight Weight & dimensions - 18.8 kg
Width - 438 mm
Width Weight & dimensions - 438 mm
