ID: 1006432
Product code: PPF24A1807
In stock 2 units
Warranty: 2 years

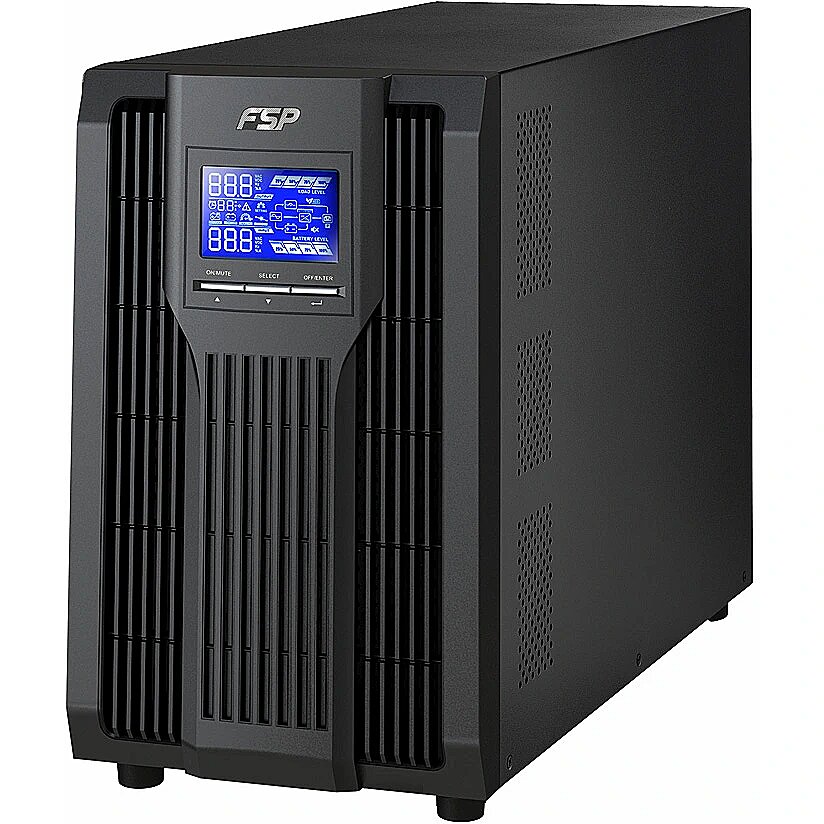

FSP Champ Tower 3K, 3000VA 2700W, IEC
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days15.99 €
Main product parameters All parameters
- Battery capacity (VA): 3000
- Output power (W): 2700
Description
This UPS FSP Champ Tower 3K, 3000VA 2700W, IEC with an output power of 2700 W and battery capacity of 3000 VA is designed for servers and IT infrastructure. It provides high load resistance and sufficient backup time for stable system operation.
Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
A UPS with a Lead-acid battery provides a time-tested technical solution for backup power. The battery ensures stable electrical parameters, resistance to cyclic loads, and a simple charging scheme, which reduces the overall complexity of the system and increases operational reliability.
The use of a IEC320 type connection in a UPS device ensures a universal and secure electrical connection of the device. This type of connection format reduces the mechanical load on the contacts, simplifies cable organization, and supports stable system operation under typical workload conditions.
Warranty
FSP provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: Champ Tower 3K
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
3000
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Lead acid
Charging time (hours)
: 4
Output power (W)
: 2700
Ports and equipment
Number of nests (total)
: 4
Number of sockets (Battery Backup)
: 4
RJ-45
: 0
Socket type
: IEC320
USB
: 0
More detailed specification
Battery - Battery capacity - 9 Ah
Battery - Battery recharge time (90%) - 4 h
Battery - Battery voltage - 12 V
Battery - Number of battery cells - 6
Battery - Typical backup time at full load - 3.5 min
Battery - Typical backup time at half load - 9.8 min
Brand - FSP
BrandPartCode - PPF24A1807
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Code - CHAMP 3K TOWER
Description - FSP CHAMP 3K TOWER CHAMP 3K,ONLINE ,UPS,3000VA,2700W,230V,IEC*4
Design - Control type - Buttons
Design - Display type - LCD
Design - Form factor - Tower
Design - LED indicators - Yes
Design - Product colour - Black
EAN - 4711140487618
Features - Audible alarm(s) - Yes
Features - Audible alarm modes - Alarm when on battery, Fault, Low battery alarm, Overload alarm
Features - Crest factor - 3:1
Features - Input frequency - 40 - 70 Hz
Features - Input operation voltage (max) - 300 V
Features - Input operation voltage (min) - 120 V
Features - Noise level - 50 dB
Features - Output frequency - 47/63 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 200 V
Features - Output power - 2700 W
Features - Output power capacity - 3 kVA
Features - Output voltage regulation - 1%
Features - Power factor - 0.99
Features - Response time - 0 ms
Features - Total Harmonic Distortion (THD) (linear load) - 3%
Features - Total Harmonic Distortion (THD) (non-linear load) - 6%
Features - UPS topology - Double-conversion (Online)
Features - Waveform - Sine
Form factor - Tower
Gross weight - 28 kg
GTIN - 2000000852225
GTIN - 4711140487618
Height - 470.000000
Length - 560.000000
Link - http://fsp-europe.com/champ-tower-series-1k2k3k/
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - FSP Champ is the high density version of double-conversion online UPS with an output power factor that reaches 0.9 and featured with ECO mode for energy saving.FSP Champ is the high density version of double-conversion online UPS with a output power factor 0.9. It’s designed in small cabinet with microprocessor controller.Champ also have USB and RS-232 communication ports as standard, with a built-in intelligent slot for additional adapters, protocol converters and relate contact cards.
LongProductName - 3000 VA, 2700 W, 200 - 240 V, 3:1, 190 x 421 x 318 mm, 27.6 kg
LongSummaryDescription - FSP Champ Tower 3K. UPS topology: Double-conversion (Online), Output power capacity: 3 kVA, Output power: 2700 W. AC outlet types: C13 coupler, USB port type: USB Type-B, Serial interface type: RS-232. Battery capacity: 9 Ah, Battery voltage: 12 V, Typical backup time at full load: 3.5 min. Form factor: Tower, Product colour: Black, Control type: Buttons. Cables included: Input power cable, USB cable
Manufacturer - FSP
ManufacturerPartNumber - PPF24A1807
MPN - PPF24A1807
Name - FSP Champ 3K Tower Online UPS 3000VA 2700W USB RS-232 4xIEC
Name - FSP | CHAMP 3K TOWER | 3000 VA | 300 V | ± 1% (Batt. Mode) V
Operational conditions - Operating relative humidity (H-H) - 20 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Other features - Packaging content - UPS, Power cable, USB cable, Software on CD, User manual
Other features > Dimensions (WxDxH) - 190 x 421 x 318 mm
Other features > Special features - 4 x IEC
Output power, W - 2700
Output power capacity (VA) - 3000
Package features > Gross depth (mm) - 560 mm
Package features > Gross height (mm) - 460 mm
Package features > Gross width (mm) - 325 mm
Package features > Palette Qty - 10 pc(s)
Package features > Paper/Pasteboard - 1400 g
Package features > Volume (m3) - 0.08372 m³
Package features > WEE classification - CL109:5:2017-04-01
Packaging content - Batteries included - Yes
Packaging content - Cables included - Input power cable, USB cable
Packaging content - Manual - Yes
Packaging data - Software CD - Yes
Performance > Capacity - 3000 VA
Performance > UPS topology - Online UPS
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlet types - C13 coupler
Ports & interfaces - Number of output IEC jumpers - 4
Ports & interfaces - RS-232 ports - 1
Ports & interfaces - Serial interface - Yes
Ports & interfaces - Serial interface type - RS-232
Ports & interfaces - USB 2.0 ports quantity - 1
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-B
Power > AC input frequency - 40 - 70 Hz
Power > Input operation voltage (max) - 300 V
Power > Output operation voltage (min) - ± 1% (Batt. Mode) V
Power > Output power - 2700 W
Producer product name - CHAMP 3K TOWER
ProductName - Champ Tower 3K
ShortSummaryDescription - FSP Champ Tower 3K, Double-conversion (Online), 3 kVA, 2700 W, Sine, 120 V, 300 V
Technical details > Net weight - 26.6 kg
Technical details > Producer - FSP
Technical details > Warranty - 24 month(s)
Title - FSP Champ Tower 3K uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W
UPS devices and accessories - Yes
URL - https://www.fsplifestyle.com/PROP161000117/
Warranty - 24
WarrantyInfo -
Weight - 28.000000
Weight - 28.12
Weight & dimensions - Depth - 421 mm
Weight & dimensions - Height - 318 mm
Weight & dimensions - Weight - 27.6 kg
Weight & dimensions - Width - 190 mm
Weight & dimensions > Weight - 9800 g
Width - 325.000000
