ID: 1006423
Product code: PPF4801702
Can be ordered 8 units Availability: 14 days after order approval
Warranty: 2 years

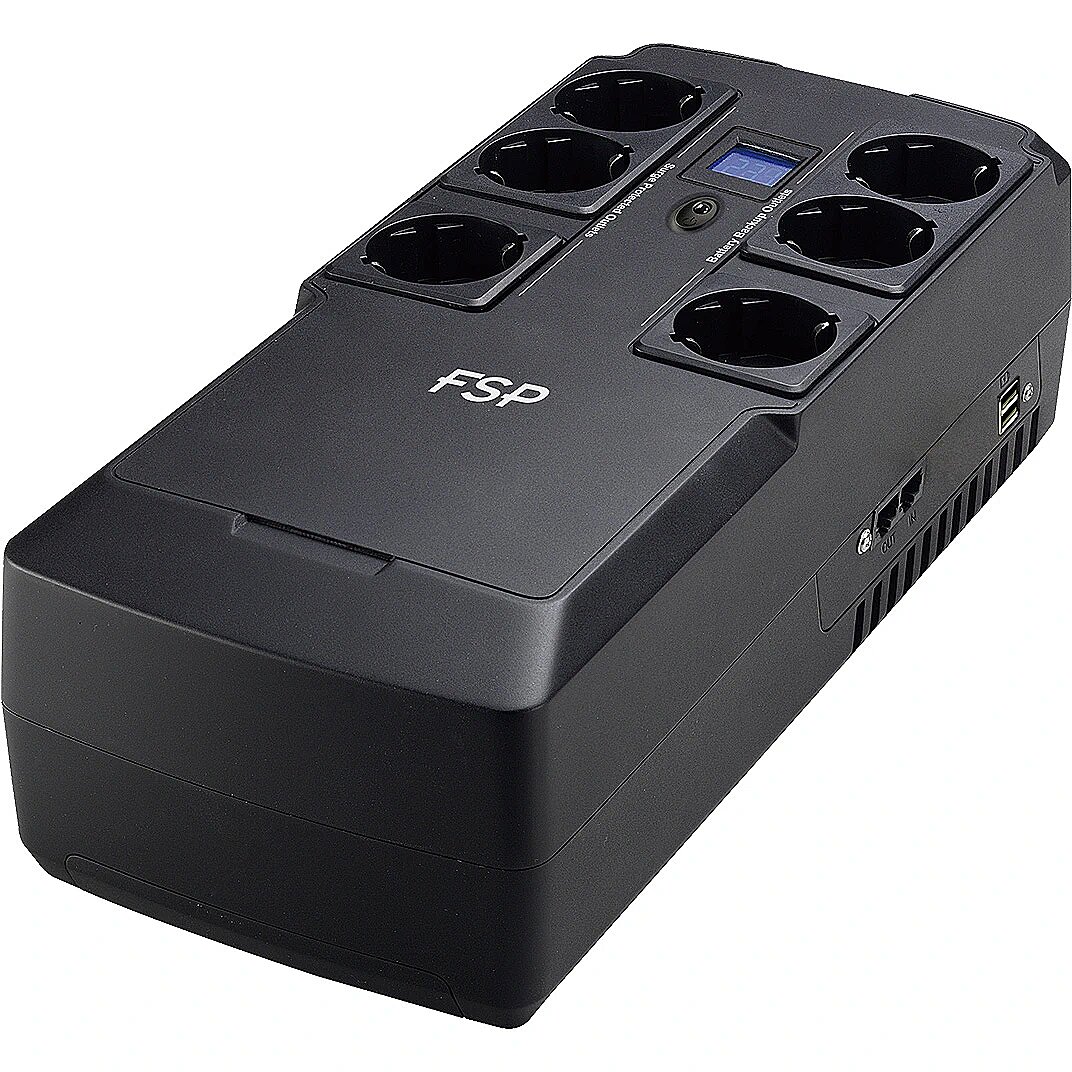

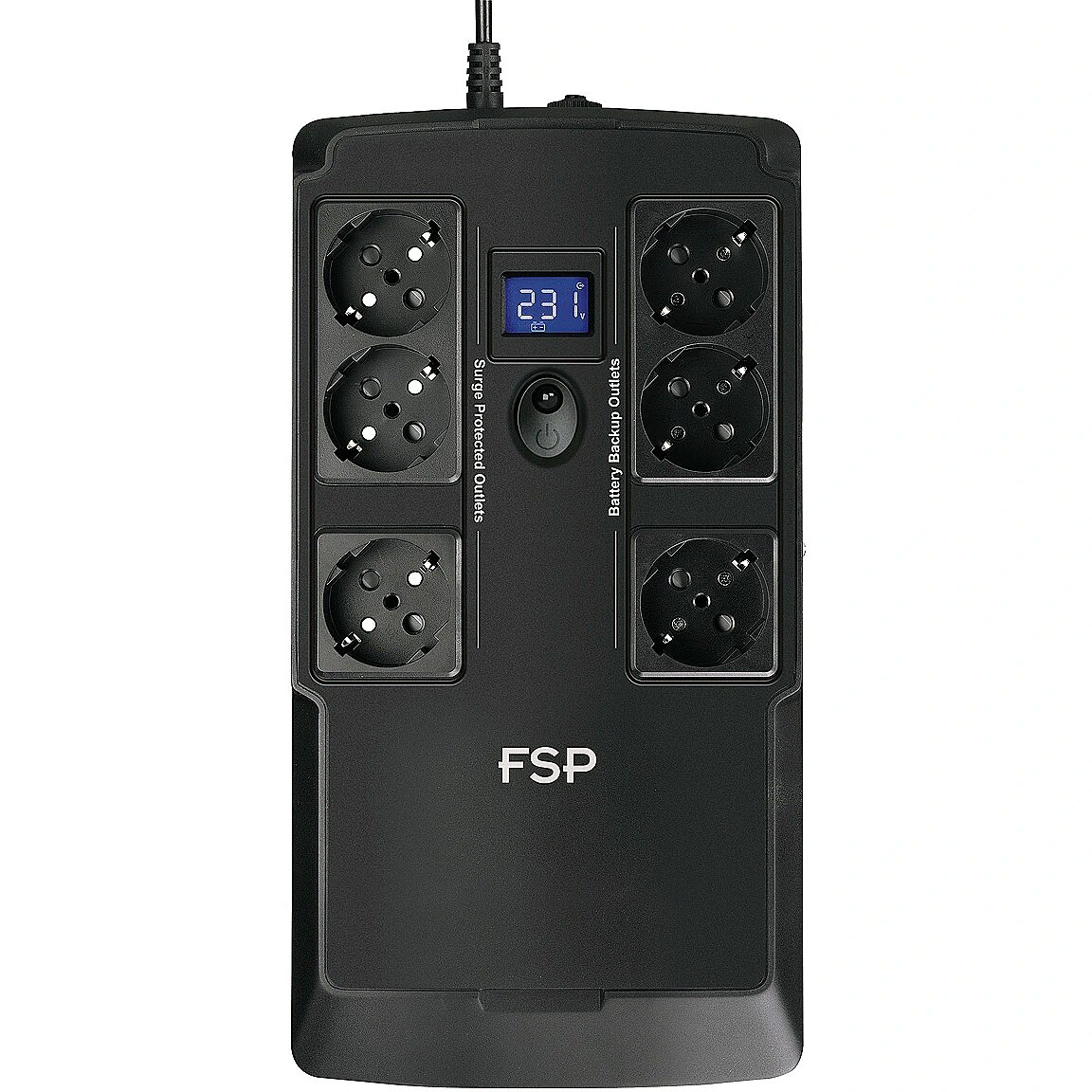

FSP NanoFit 800, 800VA 480W
Picture may differ from actual product, there can be accessories and parts not supplied with the actual product.
-
Posti parcel machineWithin 1-2 working days6.99 € -
Post OfficeWithin 1-2 working days6.99 €
-
Delivery with Posti courier mailWithin 1-2 working days10.99 €
Main product parameters All parameters
- Battery capacity (VA): 800
- Output power (W): 480
Description
This UPS FSP NanoFit 800, 800VA 480W with an output power of 480 W and a battery capacity of 800 VA is designed for home and office systems. It provides stable power supply to computers and monitors, reducing the risk of data loss during power interruptions.
Display in the UPS device provides a visual representation of the operating parameters. It facilitates the diagnosis of the device's condition and allows the user to promptly assess readiness for operation in the event of power supply disruptions.
A UPS with a Schuko connection type allows devices to be connected without additional adapters, ensuring safe grounding. The standard connector reduces mechanical load on the contacts, simplifies technical maintenance, and is compatible with a wide range of household and office equipment.
Warranty
FSP provides a 2 year warranty for this model at all certified service centres.
All parameters
Model
: NanoFit 800
Display characteristics
Display
: Is
Basic information
Battery capacity (VA)
800
The capacity of the battery pack is the index of the long-term operation of the UPS device without a permanent power supply source. This parameter applies to a UPS device with a fully charged battery pack. If you want to verify how big capacity is required for your computer equipment visit www.apc.ru where you will find the UPS capacity determination configuration tool.
Battery type
: Not specified
Charging time (hours)
: 8
Output power (W)
: 480
Ports and equipment
Number of nests (total)
: 6
Number of sockets (Battery Backup)
: 3
RJ-45
: 2
Socket type
: Schuko
USB
: 2
More detailed specification
Battery - Battery capacity - 5 Ah
Battery - Battery recharge time - 8 h
Battery - Battery voltage - 12 V
Battery - Number of batteries supported - 1
Battery - Typical backup time at full load - 14 min
Brand - FSP
BrandPartCode - PPF4801702
Category - Uninterruptible Power Supplies (UPSs)
Category 1 - Energie & USV
Category 2 - USV & Stromversorgung
Description - FSP NANOFIT 800 800VA/480W,WITH USB POWER, LCD,RJ45, INPUT/VOLTAGE RANGE: 180-270VAC, INPUT FREQUENZ 60/50 HZ, 1*12V/5AH, 6*SCHUKO
Design - Display type - LCD
Design - Form factor - Compact
Design - Product colour - Black
EAN - 4713224521157
Features - Input frequency - 50/60 Hz
Features - Input operation voltage (max) - 240 V
Features - Input operation voltage (min) - 220 V
Features - Noise level - 40 dB
Features - Output frequency - 50/60 Hz
Features - Output frequency regulation - ±1 Hz
Features - Output operation voltage (max) - 240 V
Features - Output operation voltage (min) - 220 V
Features - Output power - 480 W
Features - Output power capacity - 0.8 kVA
Features - Output voltage regulation - ±10%%
Features - Power protection features - Overcharge, Overdischarge, Overload
Features - Response time - 6 ms
Features - Surge protection - Yes
Features - Surge protection features - Network
Features - UPS topology - Standby (Offline)
Features - Waveform - Sine
GTIN - 4713224521157
Height - 235.000000
Length - 380.000000
Logistics data - Harmonized System (HS) code - 85078000
LongDesc - A compact size with stand and mounting flexibility Off line UPS to provide the expected backup power for home, gaming or personal appliances.Compact size can be desktop or wall-mountedRJ45 Surge Protection safeguards your equipment against damaging surges and spikes that travel along utility and internet lines.Nanofit 600/800 can be monitored by computer software(This function only available for UPS with Type-B com. Port)FSP UPS provides back up battery power so you can work through short and medium length power outages.Protect your productivity from the constant threat of bad power and lost data.
LongProductName - 800VA, 480W, 220-240V, 50/60Hz, Sinewave, 40dB
LongSummaryDescription - FSP NanoFit 800. UPS topology: Standby (Offline), Output power capacity: 0.8 kVA, Output power: 480 W. AC outlet types: Type F, AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-A. Battery capacity: 5 Ah, Battery voltage: 12 V, Typical backup time at full load: 14 min. Form factor: Compact, Product colour: Black, Display type: LCD. Safety: CE
Manufacturer - FSP
ManufacturerPartNumber - PPF4801702
MPN - PPF4801702
Name - FSP NanoFit 800 800VA 480W RJ45 LCD 6xSCHUKO
Operational conditions - Operating relative humidity (H-H) - 0 - 90%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Output power, W - 480
Output power capacity (VA) - 800
PeriodofWarranty - 2 Y
Ports & interfaces - AC outlets quantity - 6 AC outlet(s)
Ports & interfaces - AC outlet types - Type F
Ports & interfaces - Ethernet LAN (RJ-45) ports - 2
Ports & interfaces - USB 2.0 ports quantity - 2
Ports & interfaces - USB port - Yes
Ports & interfaces - USB port type - USB Type-A
ProductName - NanoFit 800
Safety regulation & standards - Safety - CE
ShortSummaryDescription - FSP NanoFit 800, Standby (Offline), 0.8 kVA, 480 W, Sine, 220 V, 240 V
Title - FSP NanoFit 800 uninterruptible power supply (UPS) Standby (Offline) 0.8 kVA 480 W 6 AC outlet(s)
UPS devices and accessories - Yes
URL - https://www.fsplifestyle.com/PROP17c003018/
WarrantyInfo -
Weight - 3.34
Weight - 3.410000
Weight & dimensions - Depth - 305 mm
Weight & dimensions - Height - 95 mm
Weight & dimensions - Weight - 2.9 kg
Weight & dimensions - Width - 158.5 mm
Weight, kg - 2.9
Width - 145.000000
