Accessories included - 1 x Wireless HDMI Transmitter 1 x User Manual
ARTIKEL1 - WIREL. TRANSMITTER FOR DS-55317
ARTIKEL2 -
Breite - 0.11
Category 1 - Audio & Video
Category 2 - Konferenzsysteme
Category_1 - Network and Servers
Category_2 - Network - KVM Switches
Color - Black
Connectors #1 - HDMI Type A Male

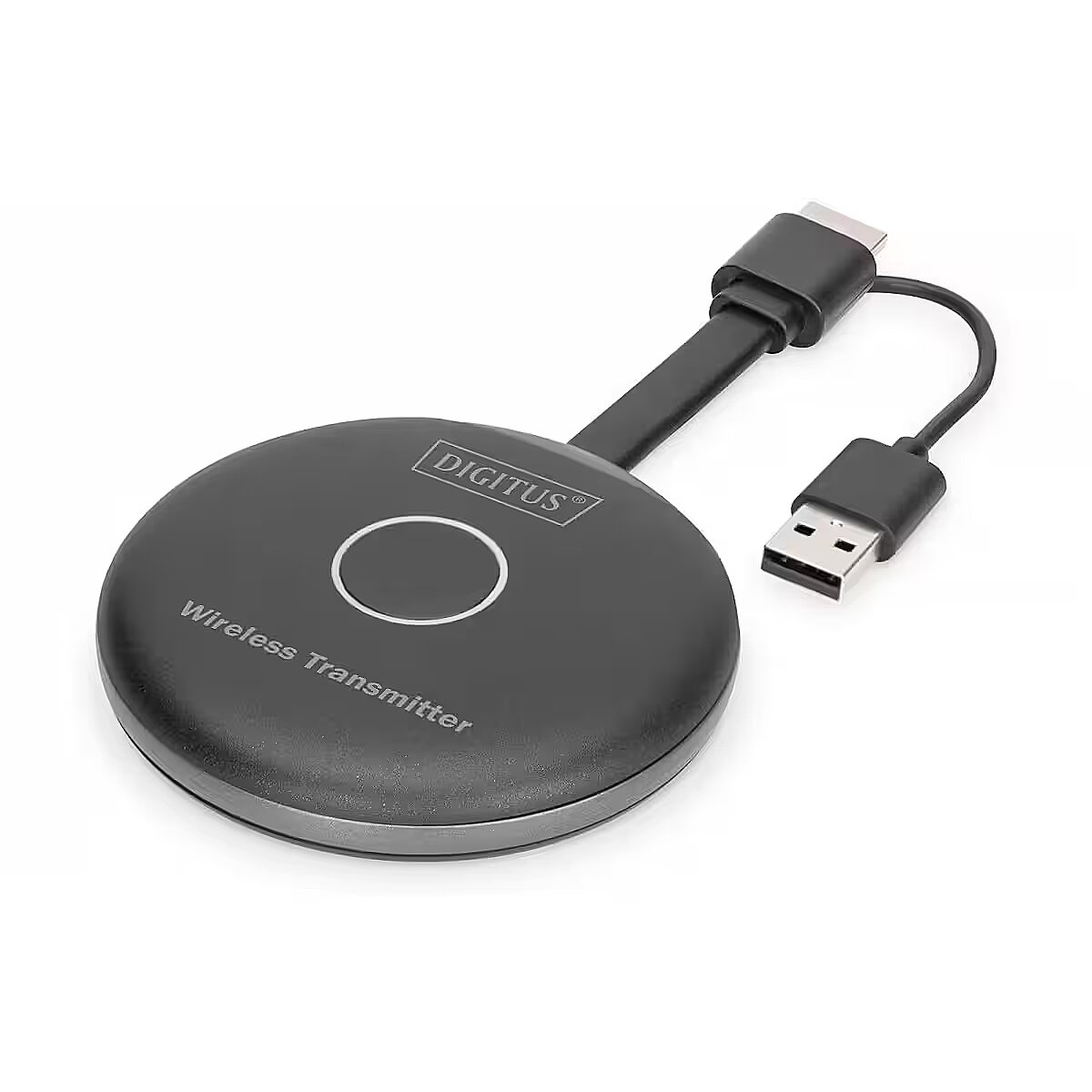

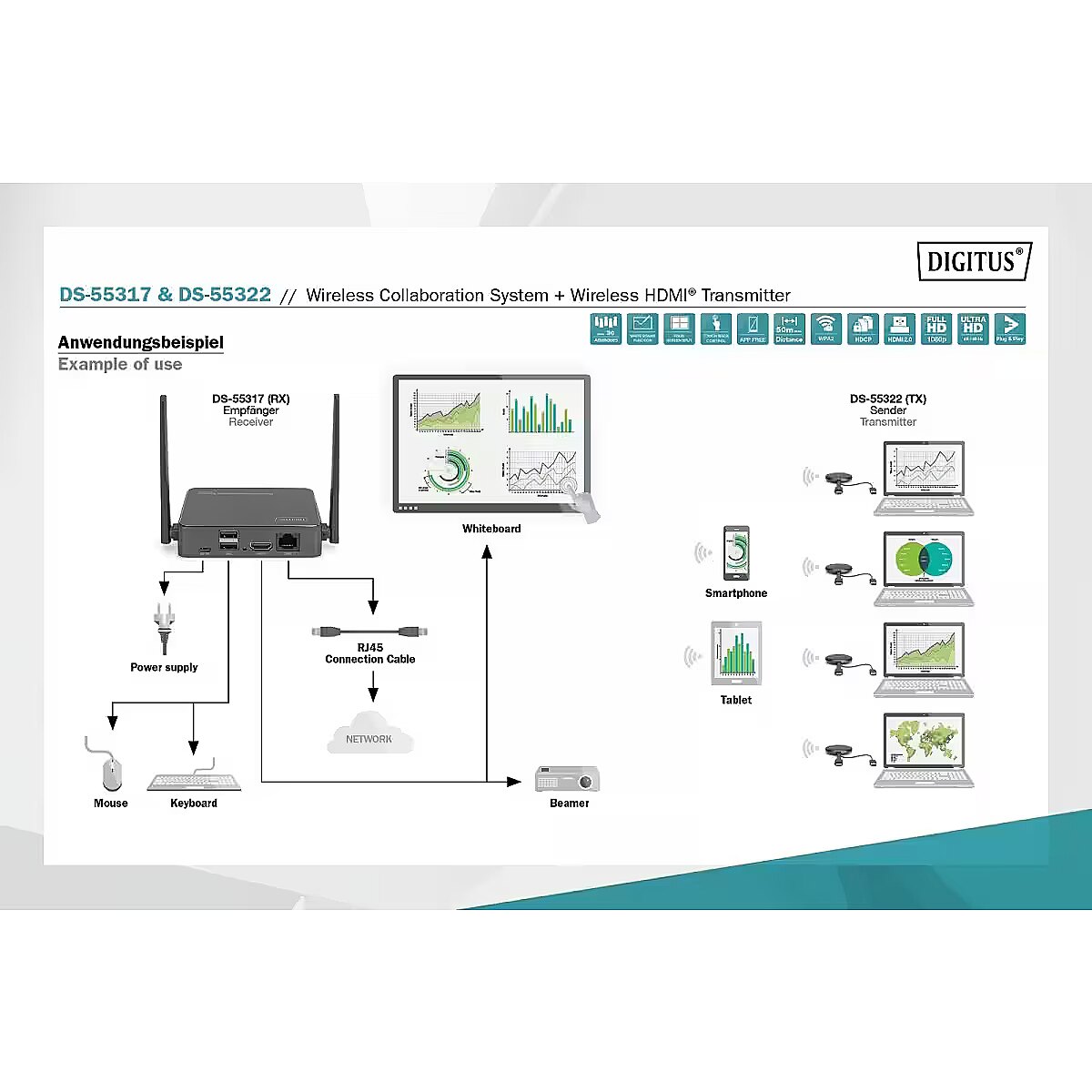

Description - Wireless HDMI (TX) transmitter - additional unit for DS-55317 The product allows you to extend the DIGITUS Click & Present Pro wireless collaboration system (DS-55317) with additional transmitters (transmitters) to enable even more participants in conferences and presentations. Up to 30 transmitters can be connected to the receiver. Connect the HDMI dongle to your notebook through the HDMI port and the USB-A port for power. You can easily and quickly connect to the receiver at the touch of a button, then you will be able to share content - no software installation required. Enables Content Sharing, Presentation, and Collaboration: The HDMI Transmitter Module extends the Click & Present Pro wireless presentation and team collaboration system and can be used with any device that has an HDMI output (compatible with Windows, macOS) No need to install any software: In order to share the image from the computer via the HDMI transmitter module (transmitter), you only need to pair the transmitter once with the receiver module Multi-user and split-screen support: Up to 30 participants can simultaneously connect to the receiver and alternately start screen sharing (Split-Screen function with up to 4 participants simultaneously) Multicast and group mode: The HDMI transmitter can optionally be connected in parallel with two or more receivers and stream video to all receivers at the same time Touch Panel Back Control: The touch screen can be connected to the receiver module via USB to directly operate connected notebooks via touch panel gesture control (the laptop must have a USB port) Application examples: Business applications (meeting and conference room, meeting room, office, trade show booth, boardroom) / Education applications (schools, colleges, universities, classroom) Range: In the absence of interfering obstacles, the signal transmission range is up to 50 m, while in the case of restrictions interfering with the transmission, the range cannot be clearly defined and depends on local conditions Device requirements: All devices with HDMI interface are supported / features such as Touch Panel Back Control are compatible with computers with Windows and macOS operating systems
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 110 mm
Dimensions - L 80 x W 80 x H 14 mm
dimension weight - 240 g
dimension width - 195 mm
ean - 4016032478911
EAN - 4016032478911
EANCode - 4016032478911
EAN_code - 4016032478911
Gewicht - 0.26
GRUPPE1 - Network
GRUPPE2 - Kvm Switch Cable/Acc
guarantee - 24
guarantee_type - external
HERSTELLER - DIGITUS
Hoehe - 0.03
HSTNUMMER - DS-55322
Laenge - 0.19
Manufacturer - Digitus
Manufacturer_code - DS-55322
MPN - DS-55322
Name - Digitus Wireless HDMI Transmitter Click & Present PRO, HDMI extension (black)
Name - Digitus Wireless HDMI Transmitter für Click & Present Pro (DS-55317)
name - Wireless HDMI Transmitte DS-55322

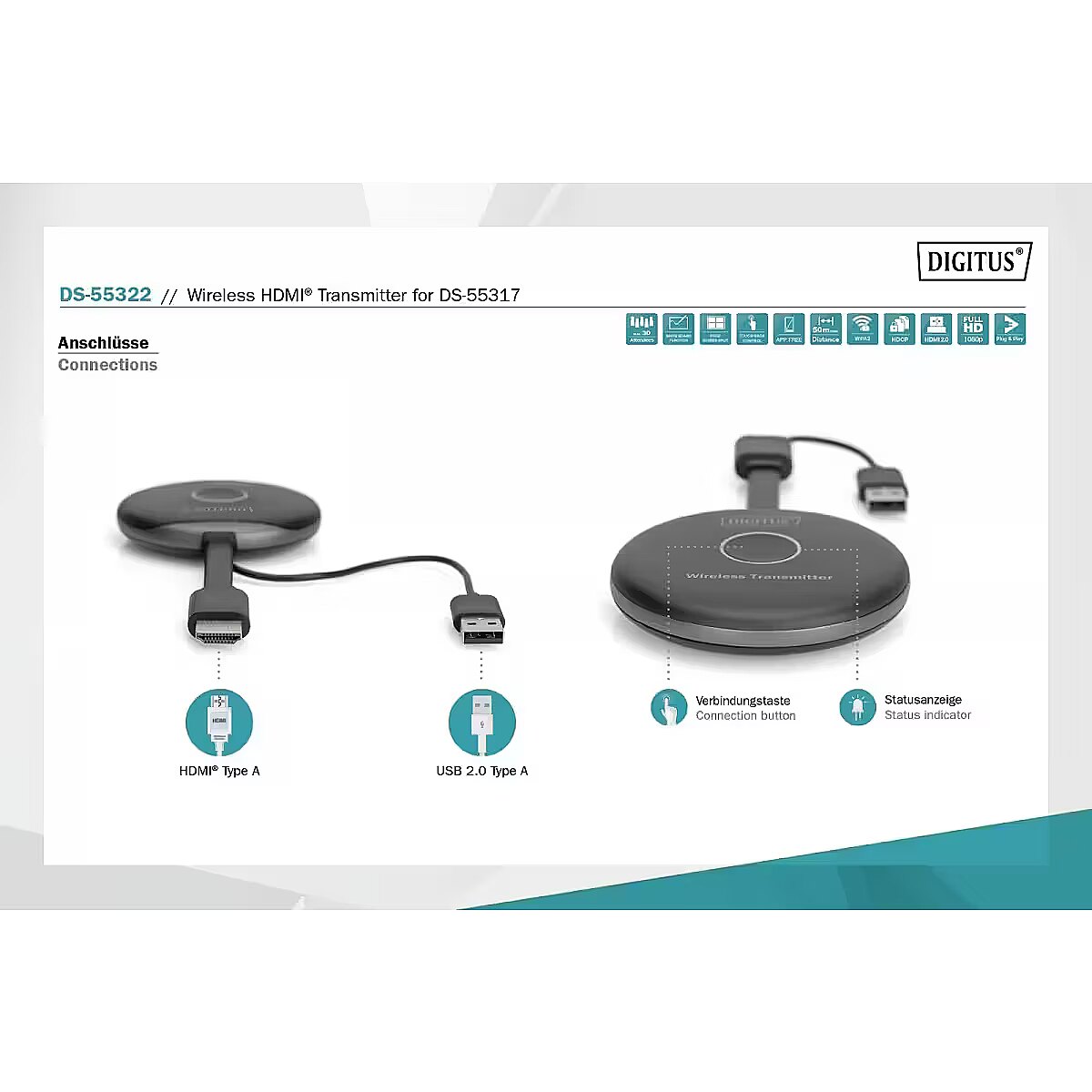

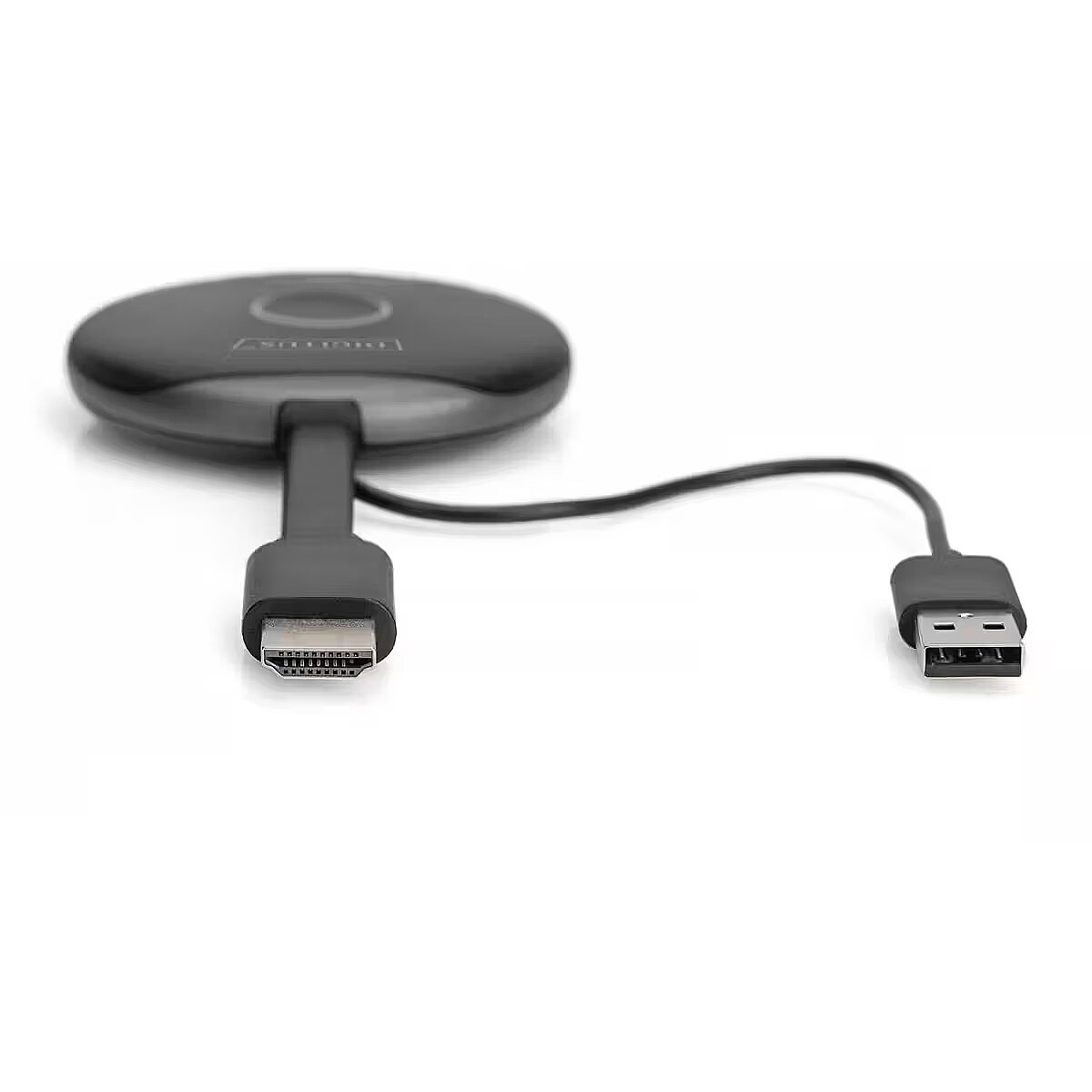

Other features - The Wireless Collaboration System (DS-55317) Click & Present Pro can be extended to up to 30 HDMI transmitters Simple installation no software needed Plug, Press & Play solution Transmission range: up to 50 m (with no physical obstructions) Transmitter (transmitter) connectors: 1 x HDMI, plug (Full HD, 1080p) for connection to notebook, video output, cable length: 5 cm 1 x USB-A, plug for connecting to a notebook, for power supply, cable length: 12 cm 1 x connection button for easy sharing 1 x status LED indicator light Wireless transmission standard: IEEE 802.11 b/g/n/ac, 2.4G/5GHz, 2T2R AES 128-bit encryption Authentication using WPA2/WPA-PSK/WPA2-PSK Latency level: approx. 100 ms Supports Windows, macOS Housing: ABS plastic Notes: In case of limited visibility, the transmission range cannot be clearly determined and depends on local conditions Walls, glass etc. shorten the signal range or cause signal loss
producer - Digitus
Standard - HDMI Ultra HD 4K
Stck_Kart - 9998
Stck_Pal - 0
Storno - N
System Requirements -
Type - Extension cord
Usage - Audio
Usage - Computer
Usage - Video
vendpn - DS-55322
Weight - 0,27
