Incase 8-Port HDMI Cat 5 Splitter

Brand - ATEN
BrandPartCode - VS1808T-AT-G
Category - Video Splitters
Code - VS1808T-AT-G
EAN - 4710423775749
Features - 3D - Yes
Features - Bandwidth - 225 MHz
Features - Dolby technologies - DTS-HD Master Audio, Dolby TrueHD
Features - HDCP - Yes
Features - HD type - Full HD
Features - Housing material - Metal
Features - LED indicators - Yes
Features - Maximum operating distance - 60 m
Features - Maximum refresh rate - 60 Hz
Features - Maximum resolution - 1920 x 1080 pixels
Features - Product colour - Black
Features - Rack mounting - Yes
Gross weight - 2.84 kg
GTIN - 4710423775749
GTIN - 6727920031030
Headphones > Impedance - 100 Ω
Logistics data - Harmonized System (HS) code - 85176990
Logistics data - Master (outer) case gross weight - 9.37 kg
Logistics data - Master (outer) case height - 258 mm
Logistics data - Master (outer) case length - 565 mm
Logistics data - Master (outer) case net weight - 7.29 kg
Logistics data - Master (outer) case width - 375 mm
Logistics data - Products per master (outer) case - 3 pc(s)

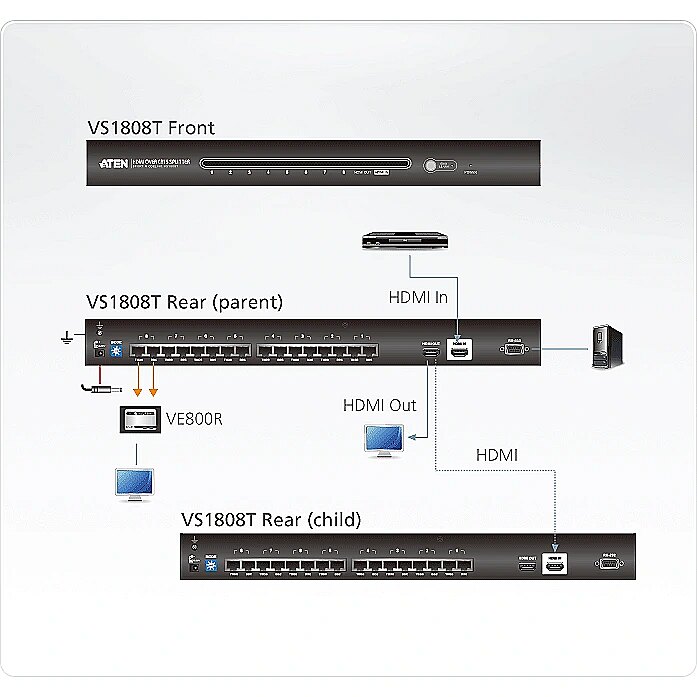

LongDesc - The VS1808T HDMI Over Cat 5 Splitter is a splitter designed to connect one source to 8 displays over a long distance. Incorporating suggested compatible receivers *, the VS1808T HDMI Over Cat 5 Splitter can be a complete solution ideal for any professional A/V installation that requires multimedia content to be delivered to multiple destinations located up to 60 m away from the source.* Compatible Receiver Units:VB802 HDMI Over Cat 5 Repeater – cadcadable up to five levelsVE800R HDMI ReceiverVS1808T combined with VB802 and VE800R units can transmit signals up to 300 mThe VS1808T solution is perfect for a wide range of applications:- In-store or tradeshow digital signage- Broadcasting information in public (news, airline or train arrival/departure information)- Sporting events- Theater and lecture rooms- Company training facilities
LongProductName - 6.75 Gb/s, 225 MHz, HDMI, HDCP, RJ-45, RS-232, 437.2x157.8x44 mm
LongSummaryDescription - ATEN 8-Port HDMI CAT5e/6 Splitter. Video port type: HDMI, Video out: HDMI. Maximum resolution: 1920 x 1080 pixels, Product colour: Black, Housing material: Metal. AC input voltage: 5.3 V, Power consumption (typical): 7.77 W. Width: 437.2 mm, Depth: 157.8 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 116 mm, Package depth: 540 mm
Name - Aten 8-Port HDMI Cat 5 Splitter | Aten | HDMI | 8-Port HDMI Cat 5 Splitter
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 50 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 80%
Operational conditions - Storage temperature (T-T) - -20 - 60 °C
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 545 mm
Package features > Gross height (mm) - 235 mm
Package features > Gross width (mm) - 115 mm
Package features > Packing quantity - 1 pc(s)
Package features > Palette Qty - 117 pc(s)
Package features > Paper/Pasteboard - 170 g
Package features > Plastic (No PET) - 30 g
Package features > Tare weight (kg) - 0.2 kg
Package features > Volume (m3) - 0.014728625 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Packaging content - AC adapter included - Yes
Packaging content - Manual - Yes
Packaging data - Package depth - 540 mm
Packaging data - Package height - 233 mm
Packaging data - Package weight - 2.84 kg
Packaging data - Package width - 116 mm
Packaging data - Quantity per pack - 1 pc(s)
Ports & interfaces - Consumer Electronics Control (CEC) support - Yes
Ports & interfaces - DC-in jack - Yes
Ports & interfaces - Ethernet LAN (RJ-45) ports - 16
Ports & interfaces - Serial ports quantity - 1
Ports & interfaces - Video out - HDMI
Ports & interfaces - Video ports quantity - 2
Ports & interfaces - Video port type - HDMI
Ports & interfaces > Audio input - HDMI Type A Female
Ports & interfaces > Audio output - HDMI Type A Female
Ports & interfaces > DC-in jack - Yes
Ports & interfaces > Output connections - Video 1 x HDMI Type A Female (Black) - Local Output. 8 x RJ-45 Female
Power - AC input voltage - 5.3 V
Power - Power consumption (typical) - 7.77 W
Producer product family - HDMI
Producer product name - 8-Port HDMI Cat 5 Splitter
ProductName - 8-Port HDMI CAT5e/6 Splitter
ShortSummaryDescription - ATEN 8-Port HDMI CAT5e/6 Splitter, HDMI, HDMI, 1920 x 1080 pixels, Black, Metal, Full HD
Technical details > Net weight - 2.64 kg
Technical details > Producer - Aten
Title - ATEN 8-Port HDMI CAT5e/6 Splitter
URL - https://www.atten.eu/
Warranty - 24
Warranty - 24 month(s)
WarrantyInfo -
Weight & dimensions - Depth - 157.8 mm
Weight & dimensions - Height - 44 mm
Weight & dimensions - Weight - 2.43 kg
Weight & dimensions - Width - 437.2 mm
