Techly Universal projector ceiling mount 22 cm 10 kg white

Accessories included - - Ceiling mount for the projector
- Fitting elements
- User's Guide
Brand - Techly
BrandPartCode - ICA-PM 100WH
Category - Projector Mounts
Category - Root/Electronics/PC peripherals/Projectors and screens/Handels
Color - White
Compatible with - Universal
Dane techniczne: Gwarancja - 3 lata w serwisie zewnętrznym
Dane techniczne: Kolor - biały
Dane techniczne: Materiał - aluminium
Dane techniczne: Materiał - stal
Dane techniczne: Max. udźwig - 10 kg
Dane techniczne: Montaż uchwytu - sufitowy
Dane techniczne: Montaż urządzenia - śruby
Dane techniczne: Obrót w poziomie - tak
Dane techniczne: Producent - Techly
Dane techniczne: Regulacja kąta nachylenia (tilt) - tak
Dane techniczne: Rodzaj produktu - uchwyt do projektora
Dane techniczne: Rodzaj uchwytu - regulowany
Dane techniczne: Waga - 1.61 kg
Dane techniczne: Zakres regulacji kąta nachylenia - -90⁰ / +90⁰
Dane techniczne: Zastosowanie - mocowanie projektora

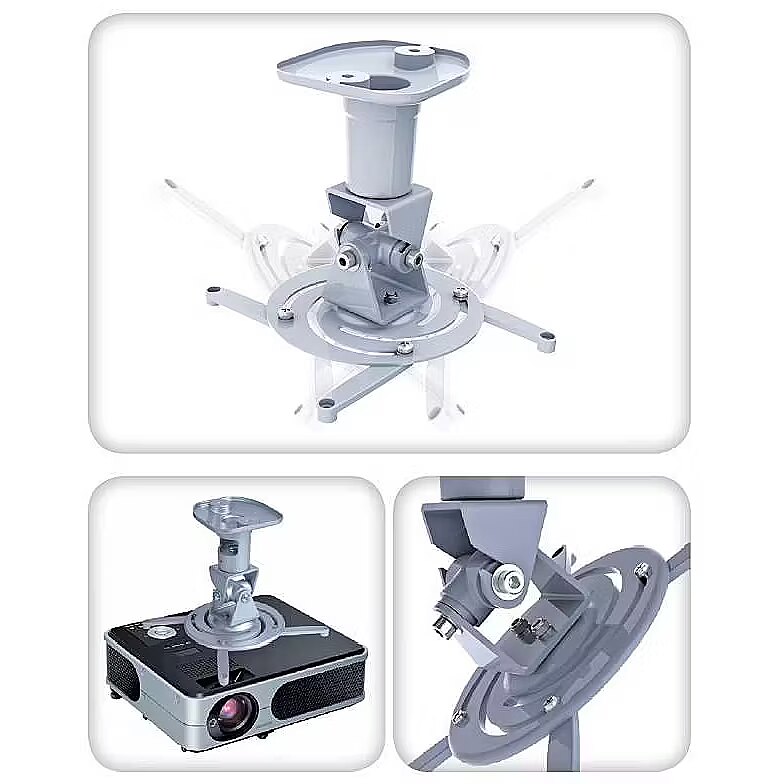

Description - Arm for projector 22cm 10kg ceiling
- Enables secure ceiling mounting for most types of projectors
- Steel-aluminum construction guarantees maximum safety
- Universal mounting plate for use with most projectors
- Ability to adjust the tilt angle by 180 °
- The ability to adjust the rotation in the horizontal plane
- Ideal for home, office and commercial use
Designation - Kosz zgodnie z zasadami recyklingu
dimensionalWeight - 919
dimension depth - 115 mm
dimension height - 225 mm
Dimensions -
dimension weight - 1552 g
dimension width - 195 mm
ean - 8054529022397
Eans - 8054529022397
GTIN - 8054529022397
guarantee - 36
guarantee_type - external

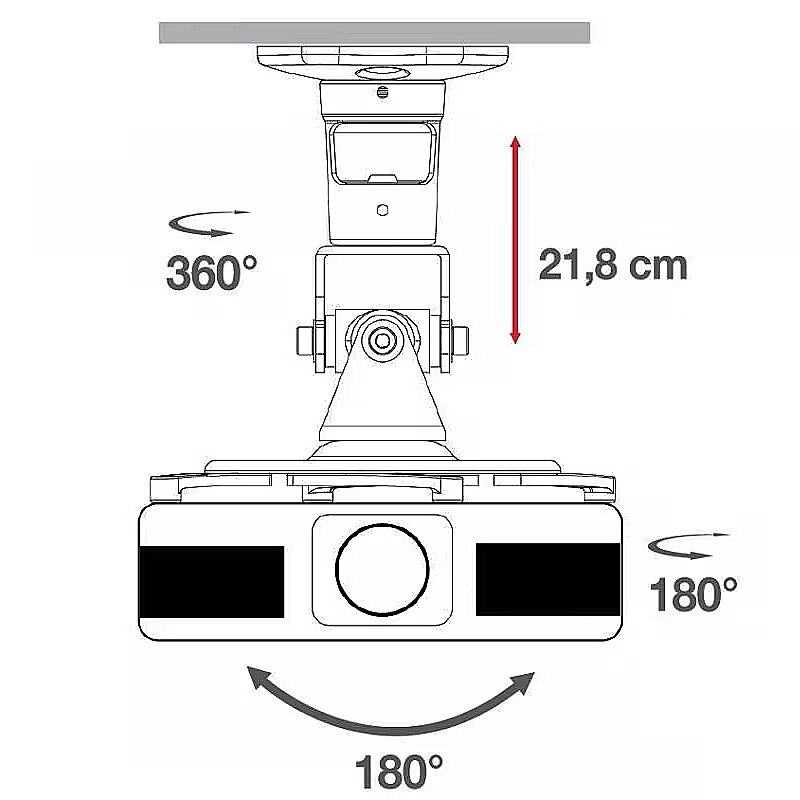

Horizontal adjustment - 360 °
Load (max) - 10 kg
Logistics data - Harmonized System (HS) code - 83024190
LongDesc - ICA PM-100 BK is a universal ceiling support for projectors up to 10 kg. It provides a multidirectional positioning with four support arms adjustable that can adapt to a wide range of mounting holes. The cables required for the installation pass in the middle column and therefore are not visible. This media projector is perfect for use in classrooms, meeting rooms, hotels, bars and restaurants and much more.Characteristics- Universal bracket ceiling projector;- Compatible with most projectors on the market;- Maximum weight supported: 10 kg.Technical specifications- Ceiling mount for projectors;- With 4 support arms adjustable;- Material: Aluminum;- horizontal inclination: 180°;- Vertical Tilt: 180°;- Rotation: 360°;- With cable management system;- Finish: powder coating;- White color.Dimensions- Base width: 130 mm;- Depth base: 130 mm;- Height: 218 mm;- Width mounting bracket: 307 mm.Package Contents- Ceiling mount for projectors;- Mounting screws;- User manual.
LongProductName - Universal Ceiling Bracket for Projector, White
LongSummaryDescription - Techly Universal Ceiling Bracket for Projector, White ICA-PM 100WH. Mounting type: Ceiling, Maximum weight capacity: 10 kg, Product colour: White. Height: 218 mm, Depth (min): 17 cm, Depth (max): 30.7 cm
Name - Techly 22397
name - Universal projector ceiling mount 22cm 10kg
Other features -
Packaging content - Manual - Yes
Packaging content - Screws included - Yes

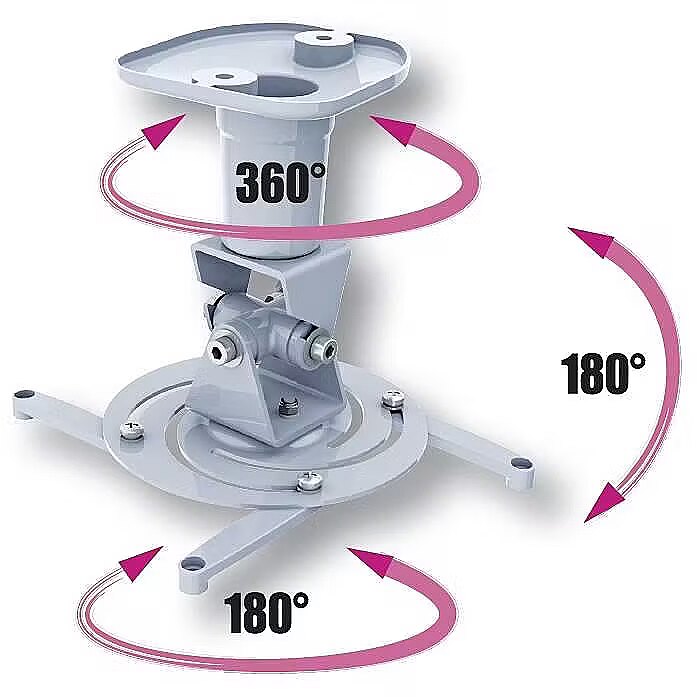

Performance - Angle of rotation - 360°
Performance - Cable management - Yes
Performance - Distance to the wall (max) - 21.8 cm
Performance - Distance to the wall (min) - 21.8 cm
Performance - Housing material - Aluminium
Performance - Maximum distance to ceiling - 21.8 cm
Performance - Maximum weight capacity - 10 kg
Performance - Mounting type - Ceiling
Performance - Product colour - White
Performance - Swivel angle - 180°
Performance - Tilt angle range - 0 - 180°
Producent: Nazwa producenta / importera - Techly
IC Intracom Italia Spa
Viale Europa 33
33077 Sacile

producer - Techly
Producer - Techly
producerCode - 022397
ProducerCode - 022397
productName - Techly Universal Ceiling Bracket for Projector, White ICA-PM 100WH
ProductName - Universal Ceiling Bracket for Projector, White ICA-PM 100WH
productSize - Normal
Range (max) - 22 cm
Range adjustment - No
ShortDescription - Białe ramię z regulacją w wielu płaszczyznach
ShortSummaryDescription - Techly Universal Ceiling Bracket for Projector, White ICA-PM 100WH, Ceiling, 10 kg, White, Aluminium, 180°, 360°
sizeX - 220
sizeY - 190
sizeZ - 110
Stuff - Aluminum
Stuff - Steel
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
Technical details - Warranty period - 10 year(s)
Title - Techly Universal Ceiling Bracket for Projector, White ICA-PM 100WH
Type - Ceiling
URL - https://www.techly.com/universal-ceiling-bracket-for-projector-white.html
Usage - Projectors
vendpn - 022397
Vertical adjustment - 180 °
WarrantyInfo -
warrantyLength - 36
warrantyType - G
Weight - 1.61 kg
weight - 1520

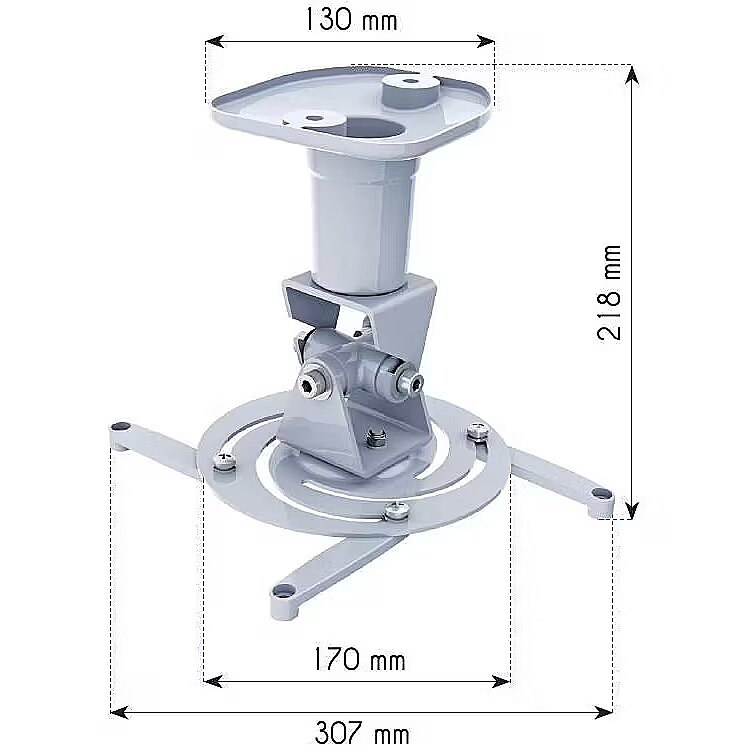

Weight & dimensions - Base length - 13 cm
Weight & dimensions - Base width - 13 cm
Weight & dimensions - Depth (max) - 30.7 cm
Weight & dimensions - Depth (min) - 17 cm
Weight & dimensions - Height - 218 mm
Weight & dimensions - Weight - 1.57 kg
