BIOS - ACPI version - 2.0
BIOS - BIOS memory size - 256 Mbit
BIOS - BIOS type - AMI
BIOS - System Management BIOS (SMBIOS) version - 2.8
dimensionalWeight - 1554
Expansion slots - Number of M.2 (M) slots - 2
Expansion slots - PCI Express x16 (Gen 4.x) slots - 7
Features - Compatible operating systems - Microsoft® Windows®
- Server 2016 (64 bit)
- Server 2019 (64 bit)
Linux
- RedHat Enterprise Linux Server 8.0 (64 bit) / 7.6 (64 bit)
- CentOs 8.0 (64 bit) / 7.6 ( 64 bit)
- SUSE SLES 15.1 (64 bit) / 12.4 (64 bit)
- UBuntu 18.04.3 (64 bit) / 16.04.6 (64 bit)
- CITRIX Hypervisor 8.1
Virtual
- VMWare® ESXi 6.5 u3 / 6.7 u3
- vSphere 6.5 u3/ / 6.7 u3
Features - Motherboard form factor - ATX
Graphics - Graphics card - AST2500
Internal I/O - ATX Power connector (24-pin) - Yes
Internal I/O - CPU fan connector - Yes
Internal I/O - Number of chassis fan connectors - 7
Internal I/O - Number of SATA III connectors - 8
Internal I/O - Power fan connector - Yes
Internal I/O - TPM connector - Yes
Internal I/O - USB 3.2 Gen 1 (3.1 Gen 1) connectors - 1
Internal I/O - USB 3.2 Gen 2 (3.1 Gen 2) connectors - 1
Logistics data - Harmonized System (HS) code - 84733020
Memory - Memory channels - Octa-channel
Memory - Memory slots type - DIMM
Memory - Memory voltage - 1.2 V
Memory - Number of memory slots - 8
Memory - Supported memory clock speeds - 2400
Memory - Supported memory clock speeds - 2666
Memory - Supported memory clock speeds - 2933
Memory - Supported memory clock speeds - 3200
Memory - Supported memory module capacities - 8GB
Memory - Supported memory module capacities - 16GB
Memory - Supported memory module capacities - 32GB
Memory - Supported memory module capacities - 64GB
Memory - Supported memory module capacities - 128MB
Memory - Supported memory module capacities - 256MB
Memory - Supported memory types - DDR4-SDRAM
Network - Ethernet interface type - 10 Gigabit Ethernet
Network - Ethernet LAN - Yes
Network - LAN controller - Realtek RTL8211E
Network - Wake-on-LAN ready - Yes
Network - Wi-Fi - No
Operational conditions - Operating temperature (T-T) - 10 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Weight - 1.69 kg
Processor - Compatible processor series - AMD EPYC
Processor - Maximum number of SMP processors - 1
Processor - Processor manufacturer - AMD
Processor - Processor socket - LGA 4094
producerCode - ROMED8-2T

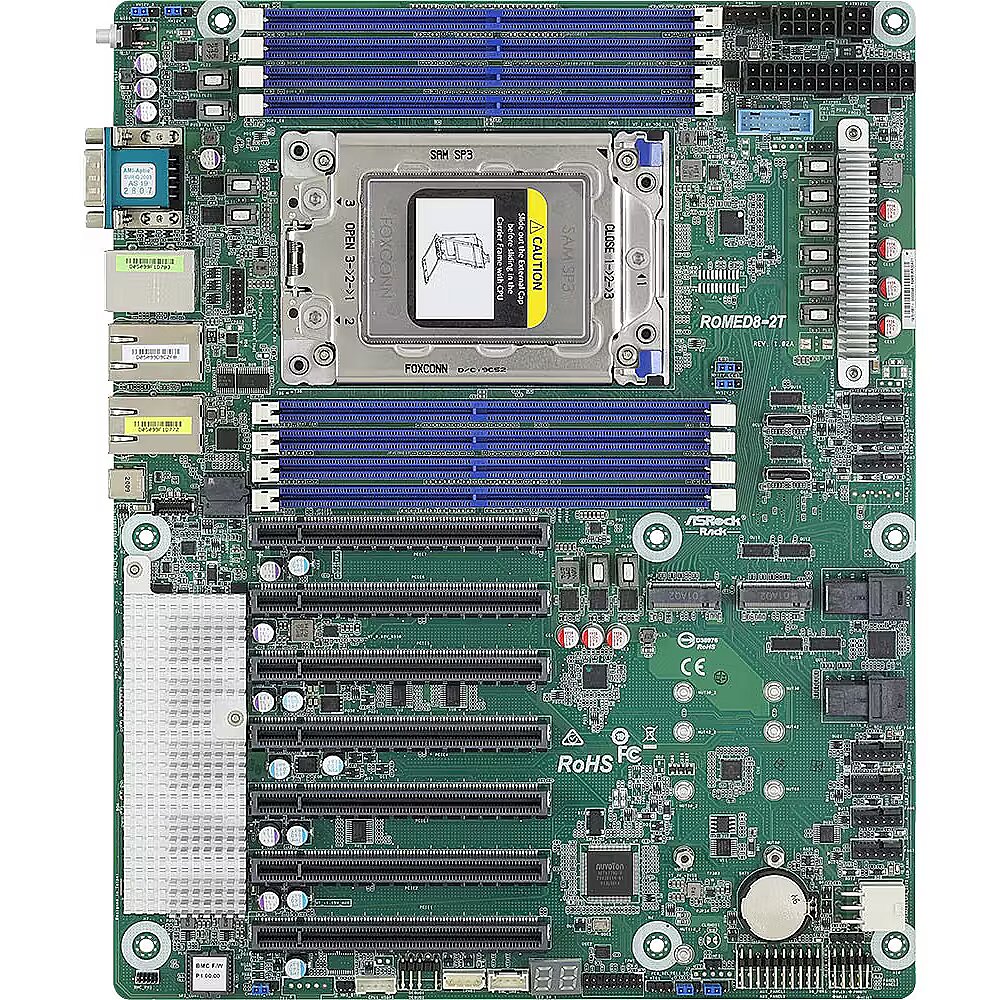

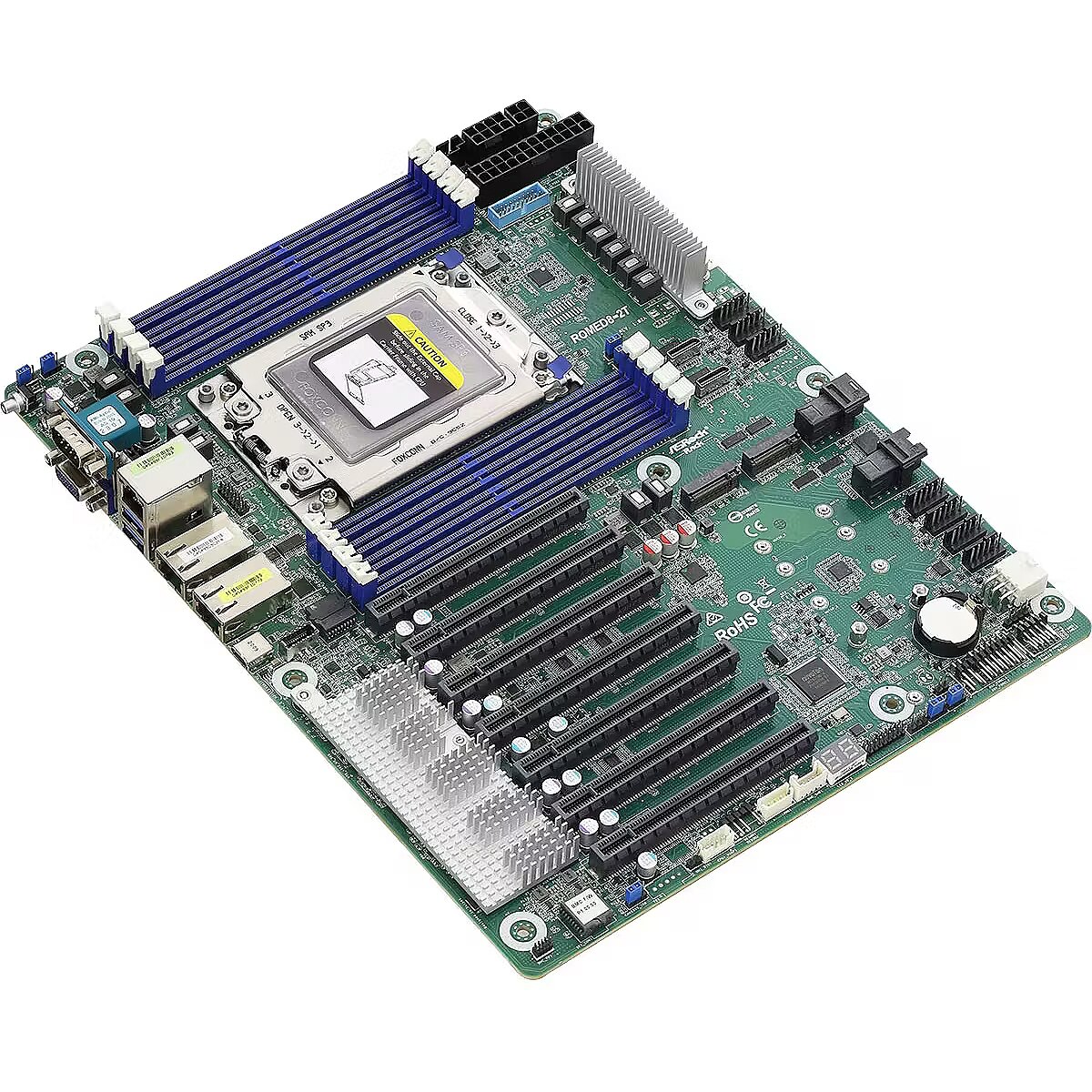

productName - Asrock ROMED8-2T motherboard LGA 4094 ATX
productSize - Normal

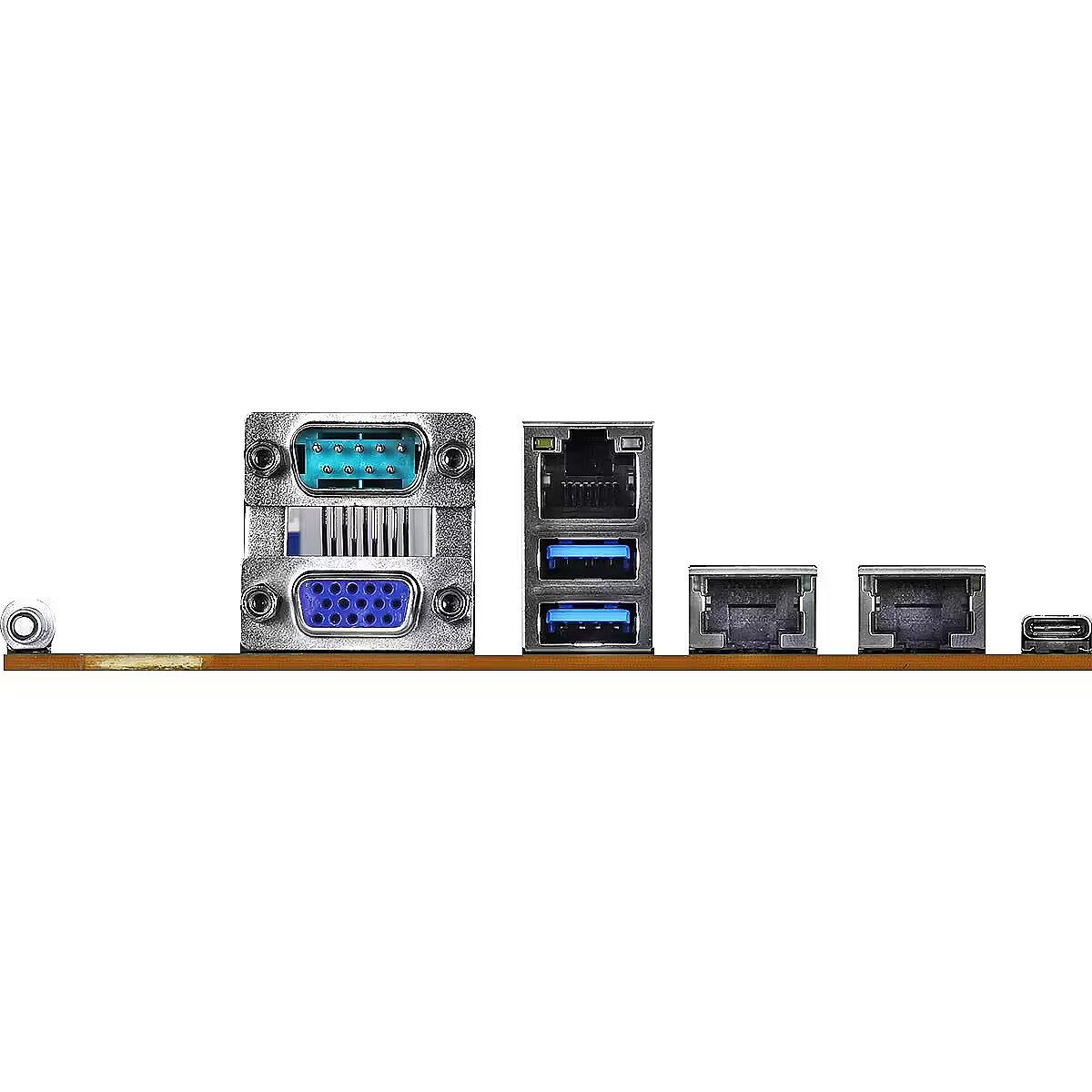

Rear panel I/O ports - COM ports quantity - 1
Rear panel I/O ports - Ethernet LAN (RJ-45) ports - 3
Rear panel I/O ports - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 2
Rear panel I/O ports - USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity - 1
Rear panel I/O ports - VGA (D-Sub) ports quantity - 1
Safety warning - Warnings - Do not open or disassemble the motherboard.
Safety warning - Warnings - The motherboard may contain electronic components hazardous to health - avoid direct contact.
Safety warning - Warnings - Use only in a dry and well-ventilated area.
sizeX - 355
sizeY - 300
sizeZ - 73
Storage controllers - Supported storage drive interfaces - M.2, SATA III
Storage controllers - Supported storage drive types - HDD & SSD
Technical details - Compliance certificates - RoHS
Technical details - Sustainability certificates - RoHS
warrantyLength - 36
warrantyType - G
weight - 1640
Weight & dimensions - Depth - 244 mm
Weight & dimensions - Height - 70 mm
Weight & dimensions - Width - 305 mm
