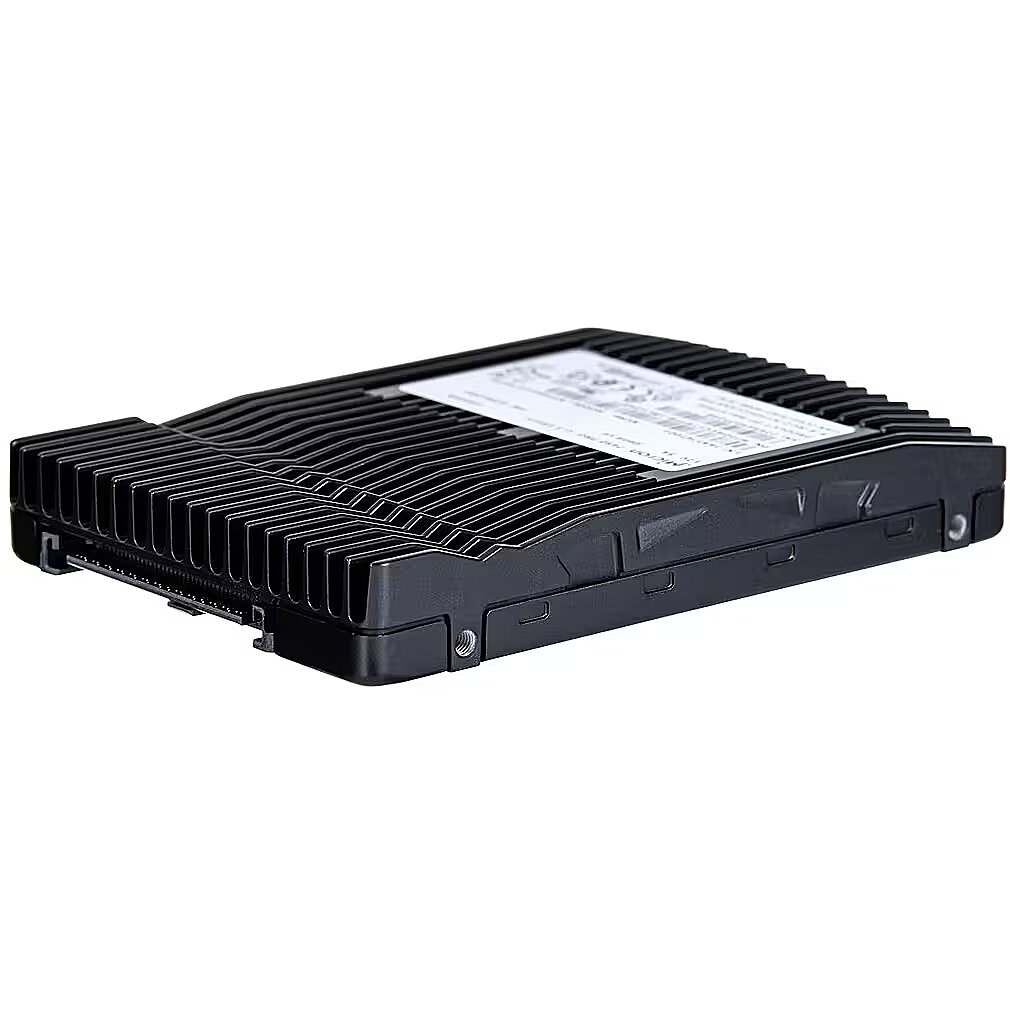

Micron SSD Micron 7450 PRO 960GB U.3 (7mm) NVMe PCI 4.0 MTFDKCB960TFR-1BC1ZABYYR (DWPD 1)

Category - Root/Electronics/PC parts/Hard drives
Category Code - SSP
Color - Not applicable
Component for Features - Server/workstation
Dane fizyczne: Kolor - czarny
Dane fizyczne: Wysokość - 7 mm
Dane techniczne: Gwarancja - 5 lat w serwisie zewnętrznym
Dane techniczne: Interfejs - U.3
Dane techniczne: Pojemność - 960 GB
Dane techniczne: Producent - Micron Technology
Dane techniczne: Rodzaj dysku - wewnętrzny
Dane techniczne: Typ - SSD
Description - Drive SSD 7450 PRO The Micron 7450 SSD with NVMe is the worlds most advanced 176-layer NAND data center SSD, delivering exceptional latency and PCIe Gen4 with extensive deployment options.
Description - The Micron 7450 SSD with NVMe™ is the world’s most advanced 176-layer NAND data center SSD, delivering exceptional latency and PCIe Gen4 with extensive deployment options. World’s Most Advanced NAND in a Data Center SSD
The Micron 7450 SSD enables flexible cloud and data center designs to support a wide variety of workloads. The 7450 SSD is built on Micron’s state-of-the-art, 176-layer NAND. Available in the broadest range of PCIe® Gen4 SSD form factors enabling you to use the Micron 7450 for all major platform functions (boot, cache and main data storage). The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS1 and offers next-generation security features such as Micron’s unique Secure Execution Environment.2 It is designed for high-capacity SSD needs and includes a PCIe Gen4 M.2 22x80mm with power-loss protection model — specifically designed for server boot use. Improves Storage Performance Across Data Center Workloads
The Micron 7450 SSD utilizes Micron's innovative 176-layer NAND, which combines the highest layer count with Micron CMOS-under-array technology and PCIe Gen4 to provide industry-leading performance,3 enabling faster booting and improved application responsiveness. Enables Rapid, Reliable and Responsive Data Center Workloads
The Micron 7450 SSD consistently delivers 2ms and lower latency for 99.9999% QoS4 improving performance in databases such as Microsoft SQL Server, Oracle, MySQL, RocksDB, Cassandra and Aerospike.5 Supports a Wide Variety of Data Centers - Reducing Qualification Time, Cost and Complexity
Capacities range from 400GB to 15.36TB5— including an industry-leading 8TB E1.@ capacity and a new 15.36TB capacity. It has the industry’s broadest variety of form factors to meet evolving power and thermal needs — U.3, M.2, E1.S — including the only PCIe Gen4 U.3 SSD with both 15mm and 7mm thicknesses available.
Designation - CE+WEEE
dimensionalWeight - 39
dimension depth - 13 mm
dimension height - 100 mm
dimension weight - 84 g
dimension width - 132 mm
Disk type - SSD
Drive type - Internal
ean - 649528926104
Eans - 649528926104
Features - Component for - Server/workstation
Features - DWPD - 1
Features - Hardware encryption - Yes
Features - Interface - PCI Express 4.0
Features - Memory type - 3D TLC NAND
Features - NVMe - Yes
Features - NVMe version - 1.4
Features - PCI Express interface data lanes - x4
Features - Product series - 7450 PRO
Features - Random read (4KB) - 530000 IOPS
Features - Random write (4KB) - 85000 IOPS
Features - Read latency - 80 µs
Features - SSD capacity - 960 GB
Features - SSD form factor - U.3
Features - Target workload - Read Intensive (RI)
Features - Uncorrectable Bit Error Rate (UBER) - < 1 per 10^17 bits read
Features - Write latency - 15 µs
Form factor (width) - U.3
guarantee - 60
guarantee_type - normal
Hardware encryption Features - Yes
HDD capacity - 960 GB
HDD interface - PCIe 4.0
Height - 7 mm
Informacje dodatkowe: Model - Micron SSD 7450 PRO
Informacje dodatkowe: Zastosowane technologie - NVMe
Interface Features - PCI Express 4.0
Memory type Features - 3D TLC NAND
Model - 7450 PRO
Name - Micron SSD 7450 PRO NVMe U.3 960GB
name - SSD drive 7450 PRO 960GB NVMe U.3 7mm Single pack
NVMe Features - Yes
NVMe version Features - 1.4
Operating temperature (T-T) Operational conditions - 0 - 70 °C
Operational conditions - Operating temperature (T-T) - 0 - 70 °C
Other features -
PCI Express interface data lanes Features - x4
producer - Micron
Producer - Micron Technology
producerCode - MTFDKCB960TFR-1BC1ZABYYR
ProducerCode - MTFDKCB960TFR-1BC1ZABYYR
productName - SSD Micron 7450 PRO 960GB U.3 (7mm) NVMe PCI 4.0 MTFDKCB960TFR-1BC1ZABYYR (DWPD 1)
productSize - Normal
Random read (4KB) Features - 530000 IOPS
Random read IOPS (max) - 530 K
Random write (4KB) Features - 85000 IOPS
Random write IOPS (max) - 85 K
Reading speed - 6800 MB/s
Read latency Features - 80 µs
ShortDescription - | SSD | 960GB | 6800/1400MB/s | U3 7mm
sizeX - 130
sizeY - 15
sizeZ - 100
SSD capacity Features - 960 GB
SSD form factor Features - U.3
SSD series - 7450 PRO
Summary - Micron 7450 PRO. SSD capacity: 960 GB, SSD form factor: U.3, Component for: Server/workstation
Target workload Features - Read Intensive (RI)
TBW - 1700 TB
Trwałość: TBW - 1700 TB
Uncorrectable Bit Error Rate (UBER) Features - < 1 per 10^17 bits read
Unit Box Height - 0.015
Unit Box Length - 0.135
Unit Box Width - 0.1
Unit Calculated Volume - 0.0002025 cubm
Unit Calculated Weight - 0.09 kg
Units per Shipping Box - 1
Vendor Homepage - https://www.micron.com/products/ssd/product-lines/7450
vendpn - MTFDKCB960TFR-1BC1ZABYYR
Warranty - 60L months
warrantyLength - 60
warrantyType - G
weight - 85
Write latency Features - 15 µs
Writing speed - 1400 MB/s
Wydajność: Prędkość obrotowa - nie dotyczy obr./min.
Wydajność: Szybkość odczytu - 6800 MB/s
Wydajność: Szybkość zapisu - 1400 MB/s
