ARTIKEL1 - USB4 DUAL 4K MULTI-PORT HUB
ARTIKEL2 -
Brand - j5create
BrandPartCode - JCD401-N
Breite - 0.13
Category - Laptop Docks & Port Replicators
EANCode - 4712795086348
Gewicht - 0.19
GRUPPE1 - Network
GRUPPE2 - USB Hub / Controller
GTIN - 4712795086348
HERSTELLER - J5CREATE
Hoehe - 0.03
HSTNUMMER - JCD401-N
Laenge - 0.19
Logistics data - Export Control Classification Number (ECCN) - EAR99
Logistics data - Master (outer) case gross weight - 4.1 kg
Logistics data - Master (outer) case height - 190 mm
Logistics data - Master (outer) case length - 445 mm
Logistics data - Master (outer) case width - 226 mm
Logistics data - Products per master (outer) case - 18 pc(s)
Logistics data - Products per shipping (inner) case - 6 pc(s)
Logistics data - Shipping (inner) case height - 13.7 cm
Logistics data - Shipping (inner) case length - 21.2 cm
Logistics data - Shipping (inner) case net weight - 1.2 kg
Logistics data - Shipping (inner) case width - 16.5 cm

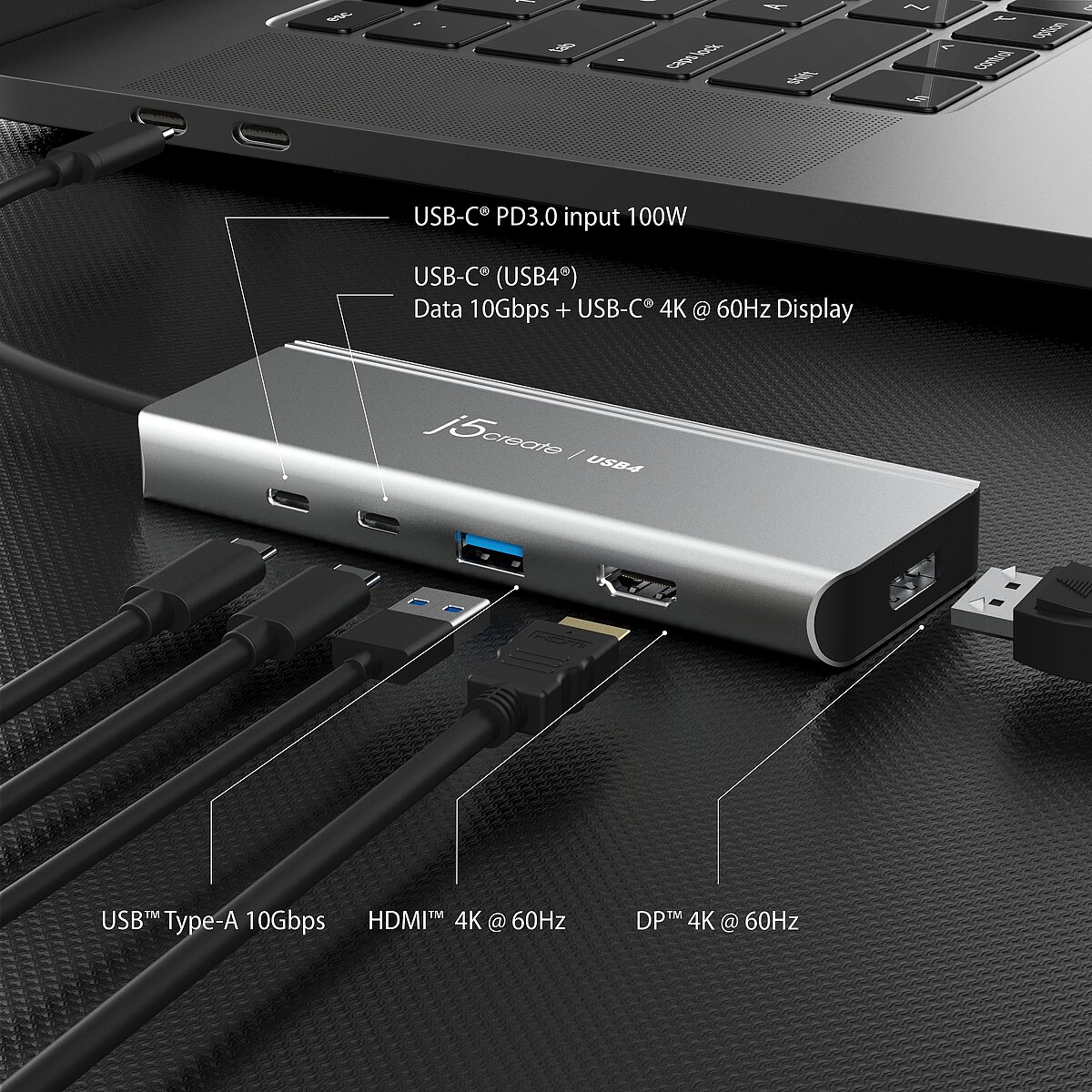

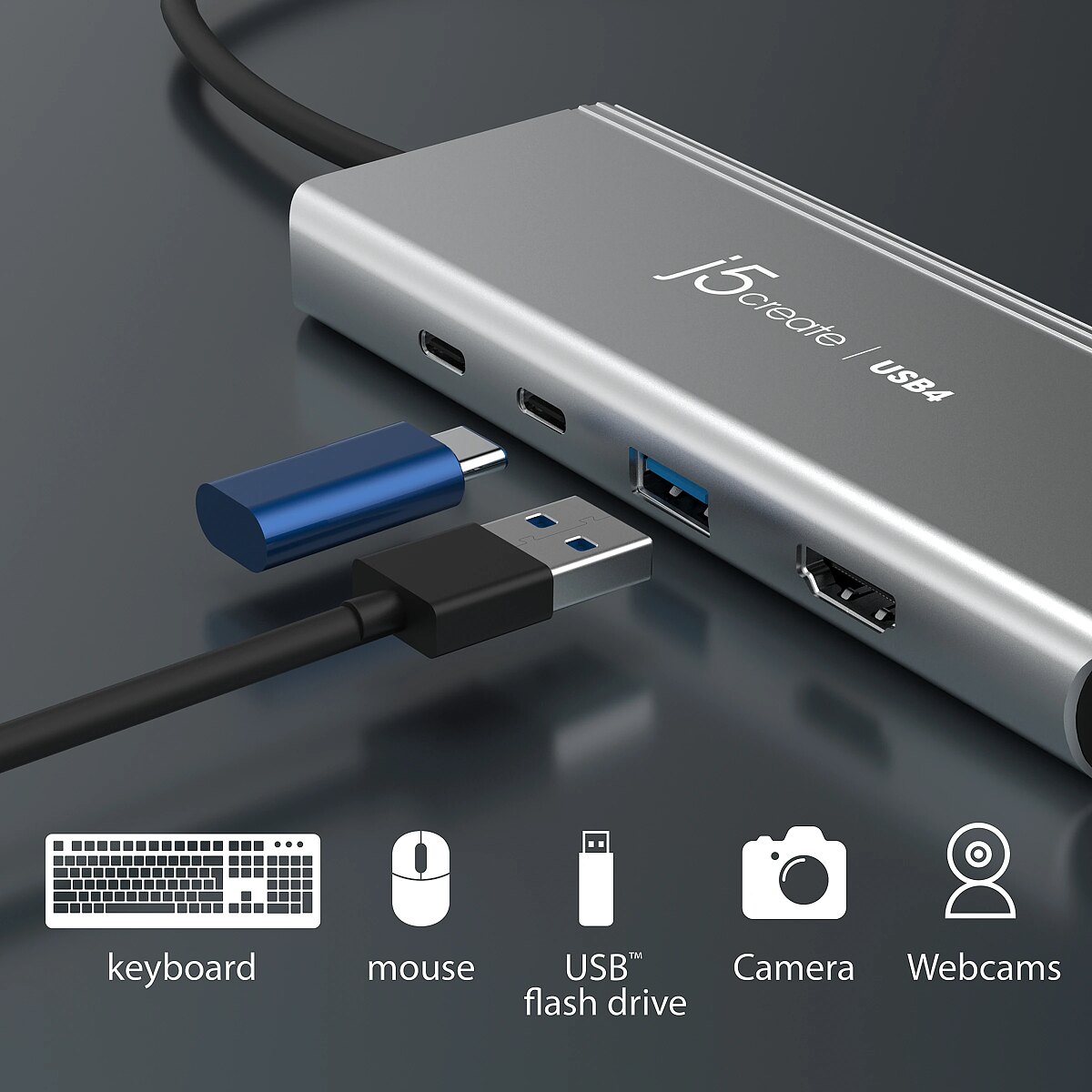

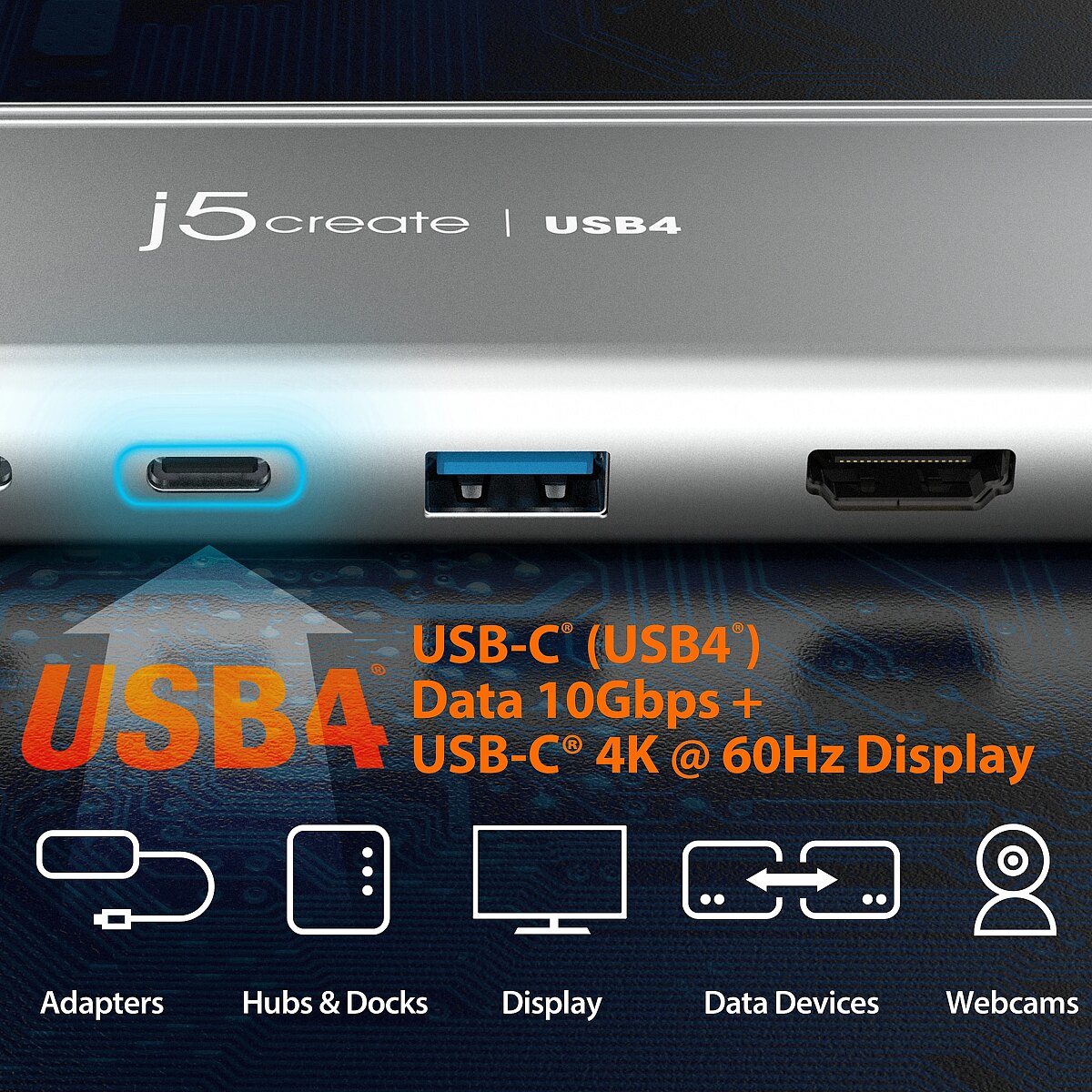

LongDesc - This high-performance USB4® multi-port hub is the first USB-C® hub to incorporate the latest USB4® controller from Intel®, offering compatibility with Thunderbolt™ and older USB™ specifications.With up to 20Gbps of throughput, dynamic data, and display bandwidth allocation for efficient display data flow, you can easily create a dual-monitor setup. Enjoy up to 4K resolution using DisplayPort™, HDMI™, or USB-C® and access data faster without affecting system performance. Additionally, it has two USB™ SuperSpeed+ 10Gbps ports (1 USB-C® and 1 Type-A) for charging or connecting peripherals. It is also equipped with a USB-C® Power Delivery port to charge your laptop and power your connected devices with up to 85W pass-through power.

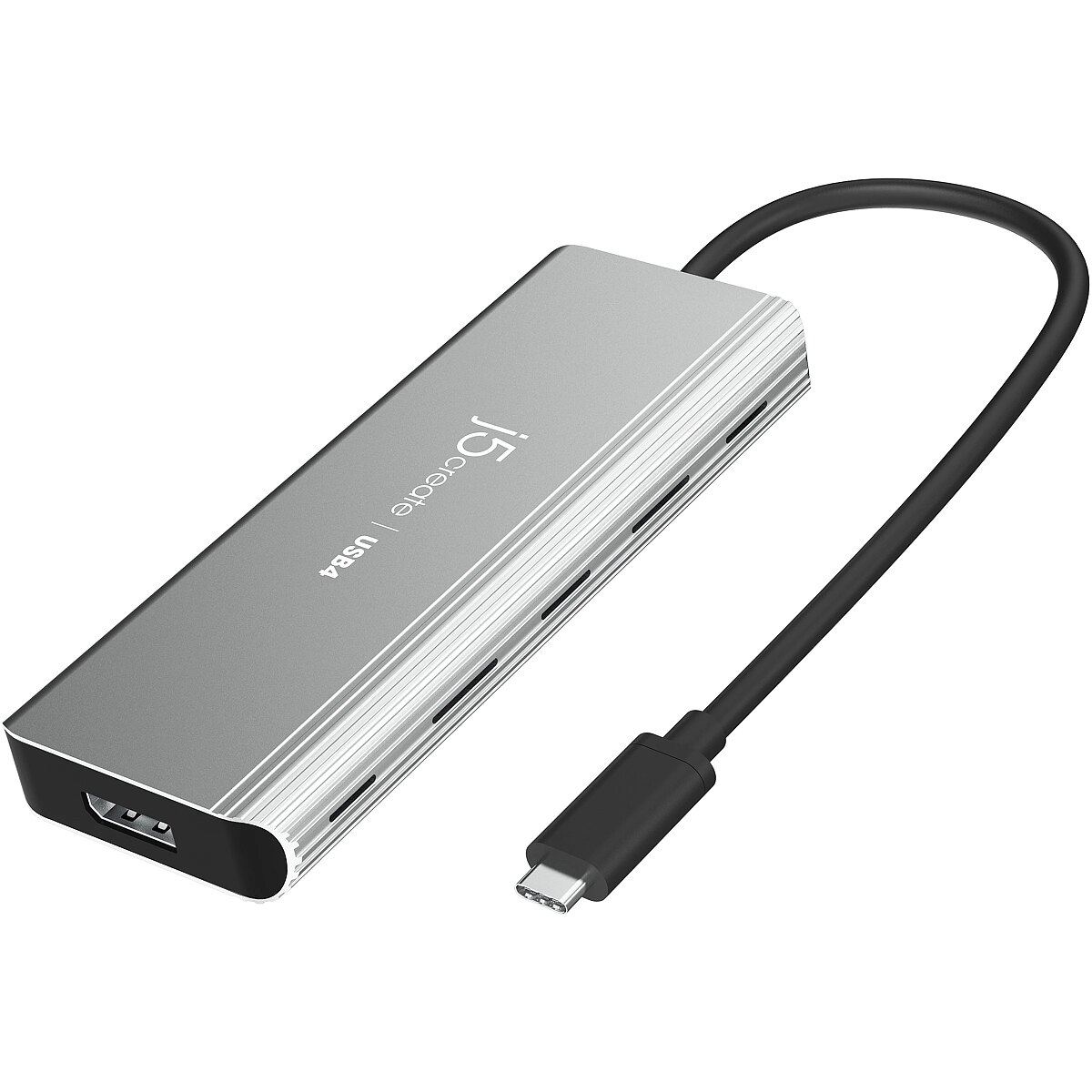

LongProductName - JCD401 USB4 Dual 4K Multi-Port Hub, Silver
LongSummaryDescription - j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver. Connectivity technology: Wired, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 85 W. Product colour: Silver, Data transfer rate: 10 Gbit/s, HD type: 4K Ultra HD. Power source type: USB, Power connector: USB Type-C, Output voltage: 20 V. Width: 51 mm, Depth: 200 mm, Height: 135 mm. Quantity per pack: 1 pc(s), Package width: 193 mm, Package depth: 125 mm
Network - Ethernet LAN - No
Operational conditions - Operating relative humidity (H-H) - 0 - 85%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -17 - 68 °C

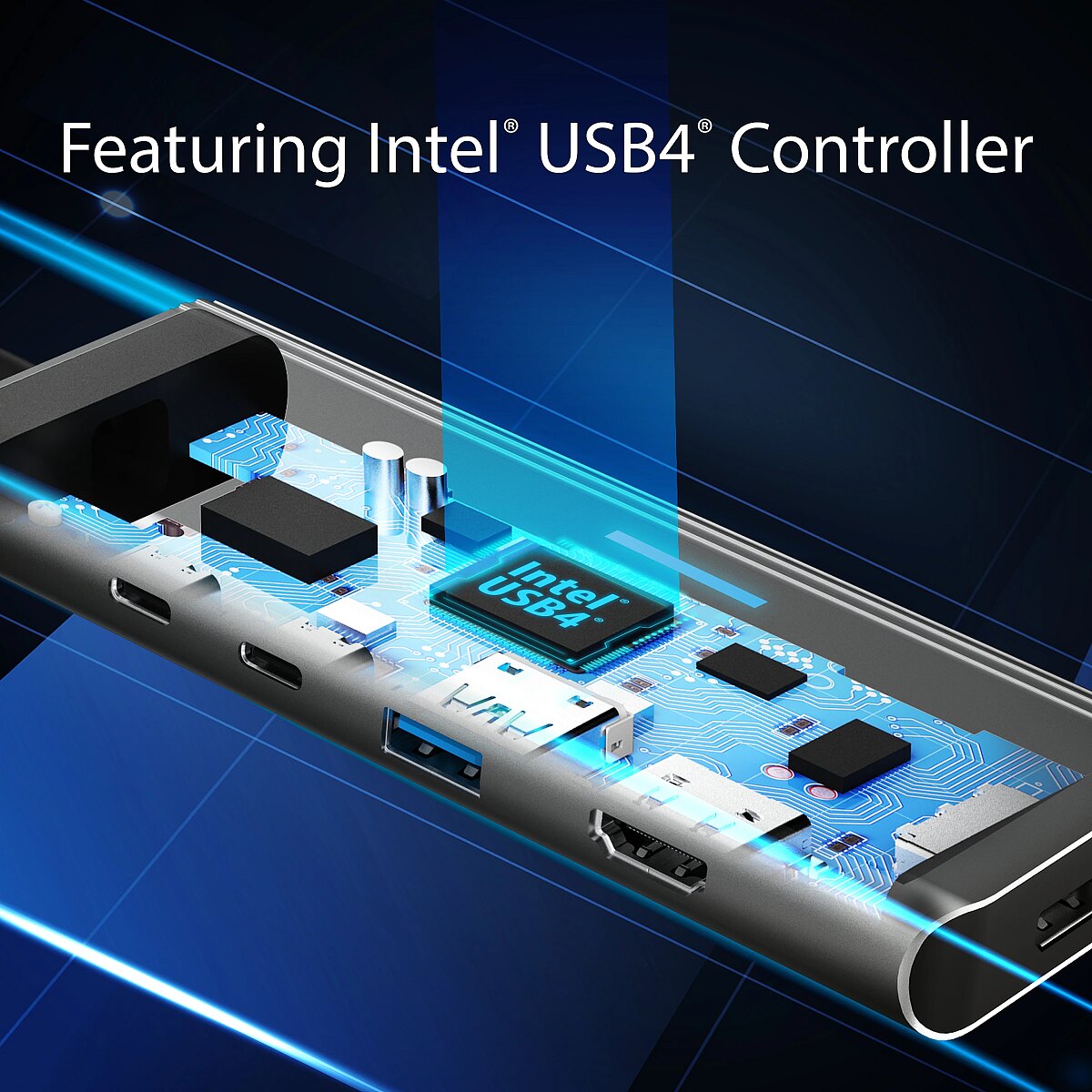

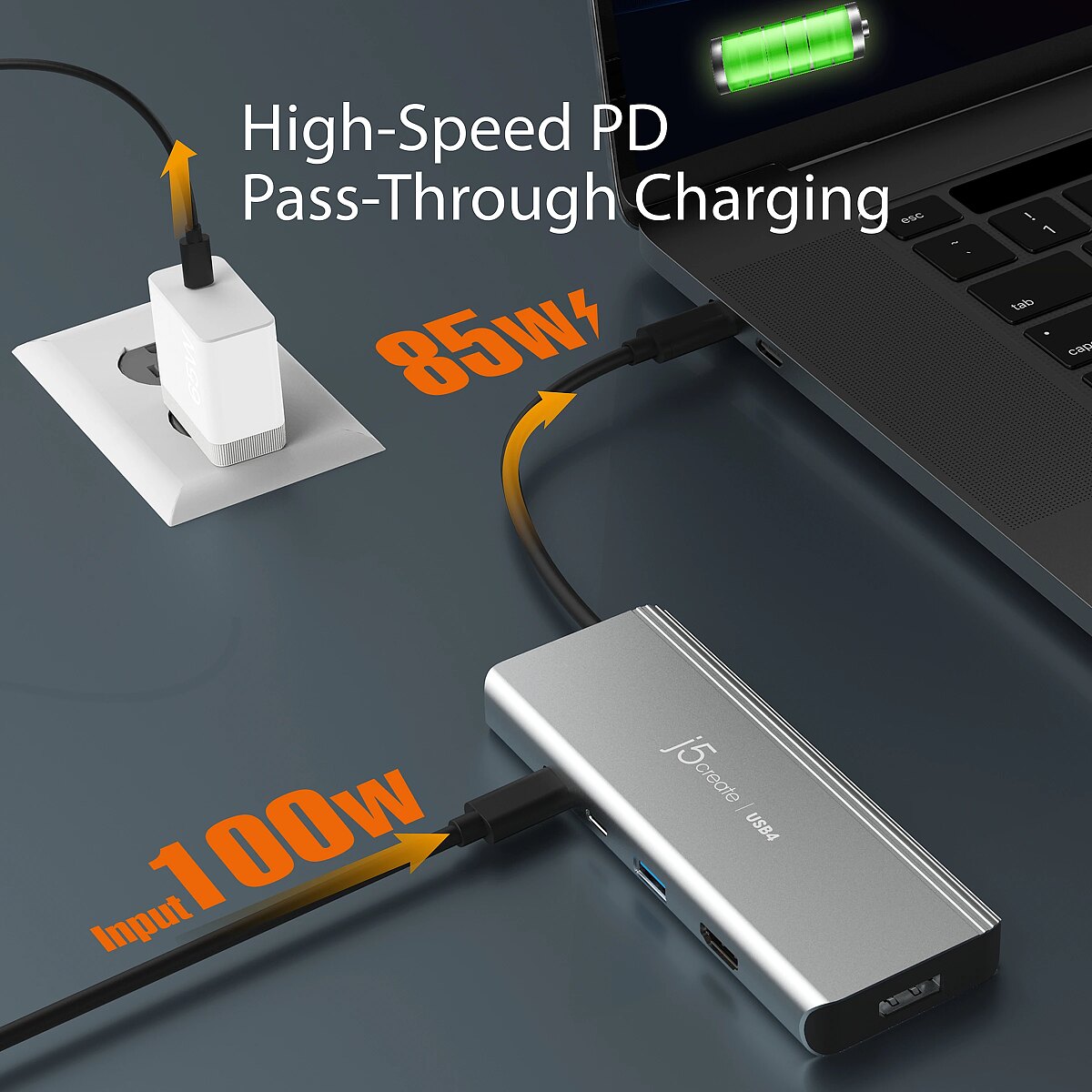

Other features - Special features - Intel® USB4® controller ensures industry-leading quality and reliability, Up to two 4K displays with flexible monitor connections, Power Delivery 3.0 offers up to 85W of pass-through charging with a USB-C® power adapter
Packaging content - Cables included - USB Type-C
Packaging content - Manual - Yes
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 125 mm
Packaging data - Package height - 22.5 mm
Packaging data - Package weight - 177 g
Packaging data - Package width - 193 mm
Packaging data - Quantity per pack - 1 pc(s)
Performance - Card reader integrated - No
Performance - Compatibility - Thunderbolt™ 4 computers
Thunderbolt™ 3 computers
USB4® computers
Performance - Country of origin - Taiwan
Performance - Data transfer rate - 10 Gbit/s
Performance - HD type - 4K Ultra HD
Performance - Housing material - Aluminium
Performance - Hub interfaces - DisplayPort, HDMI, Mini DisplayPort, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, mini DisplayPort
Performance - Maximum refresh rate - 60 Hz
Performance - Number of displays supported - 2
Performance - Plug and Play - Yes
Performance - Product colour - Silver
Ports & interfaces - Connectivity technology - Wired
Ports & interfaces - DisplayPorts quantity - 1
Ports & interfaces - HDMI ports quantity - 1
Ports & interfaces - Host interface - USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Ports & interfaces - Microphone in - No
Ports & interfaces - USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity - 1
Ports & interfaces - USB4 ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 3.0
Ports & interfaces - USB Power Delivery up to - 85 W
Ports & interfaces - USB Type-C DisplayPort Alternate Mode - Yes
Power - Output current - 0.25 A
Power - Output voltage - 20 V
Power - Power connector - USB Type-C
Power - Power consumption (typical) - 1.25 W
Power - Power source type - USB
Power - USB cable length - 0.2 m
ProductName - JCD401 USB4™ Dual 4K Multi-Port Hub, Silver
ShortSummaryDescription - j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 85 W, Silver, 10 Gbit/s, 4K Ultra HD
Software - Mac operating systems supported - Yes
Software - Windows operating systems supported - Yes
Stck_Kart - 18
Stck_Pal - 0
Storno - Y
Technical details - Master (outer) case GTIN (EAN/UPC) - 24712795086342
Technical details - Warranty period - 2 year(s)
Title - j5create JCD401 USB4™ Dual 4K Multi-Port Hub, Silver
URL - https://en.j5create.com/products/JCD401
WarrantyInfo - 2 year manufacturer warranty
Weight & dimensions - Depth - 200 mm
Weight & dimensions - Height - 135 mm
Weight & dimensions - Weight - 109 g
Weight & dimensions - Width - 51 mm
