Startech DUAL USB C DOCK - WINDOWS - PD .

ARTIKEL1 - DUAL USB C DOCK - WINDOWS - PD
ARTIKEL2 - .
Brand - StarTech.com
BrandPartCode - MST30C2HHPDU
Category - Laptop Docks & Port Replicators
EANCode - 0065030872690
GRUPPE1 - Accessories
GRUPPE2 - Port
GTIN - 0065030872690
GTIN - 065030872690
HERSTELLER - STARTECH
HSTNUMMER - MST30C2HHPDU
Logistics data - Harmonized System (HS) code - 84733020
Logistics data - Master (outer) case height - 304 mm
Logistics data - Master (outer) case length - 337 mm
Logistics data - Master (outer) case width - 287 mm
Logistics data - Products per master (outer) case - 6 pc(s)

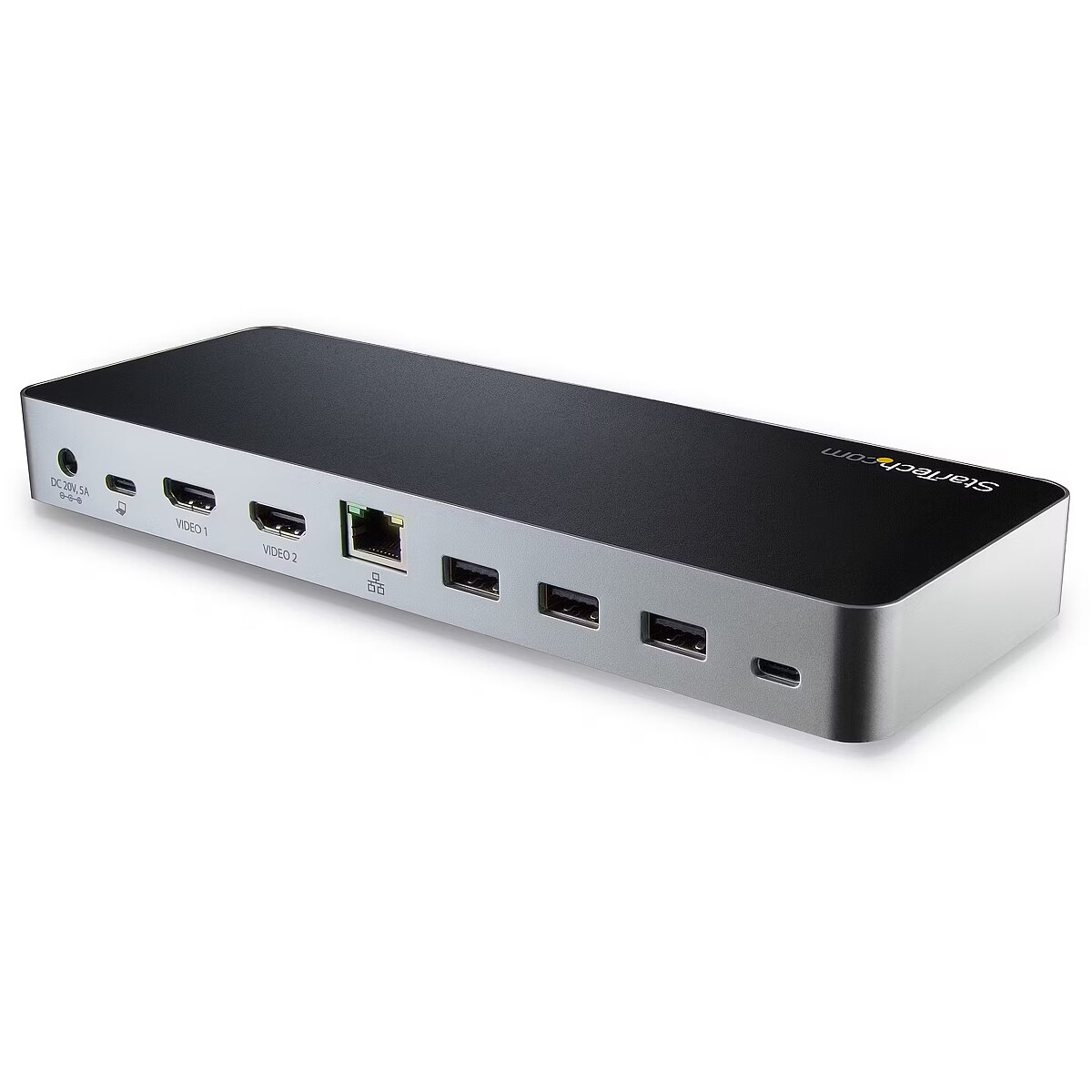

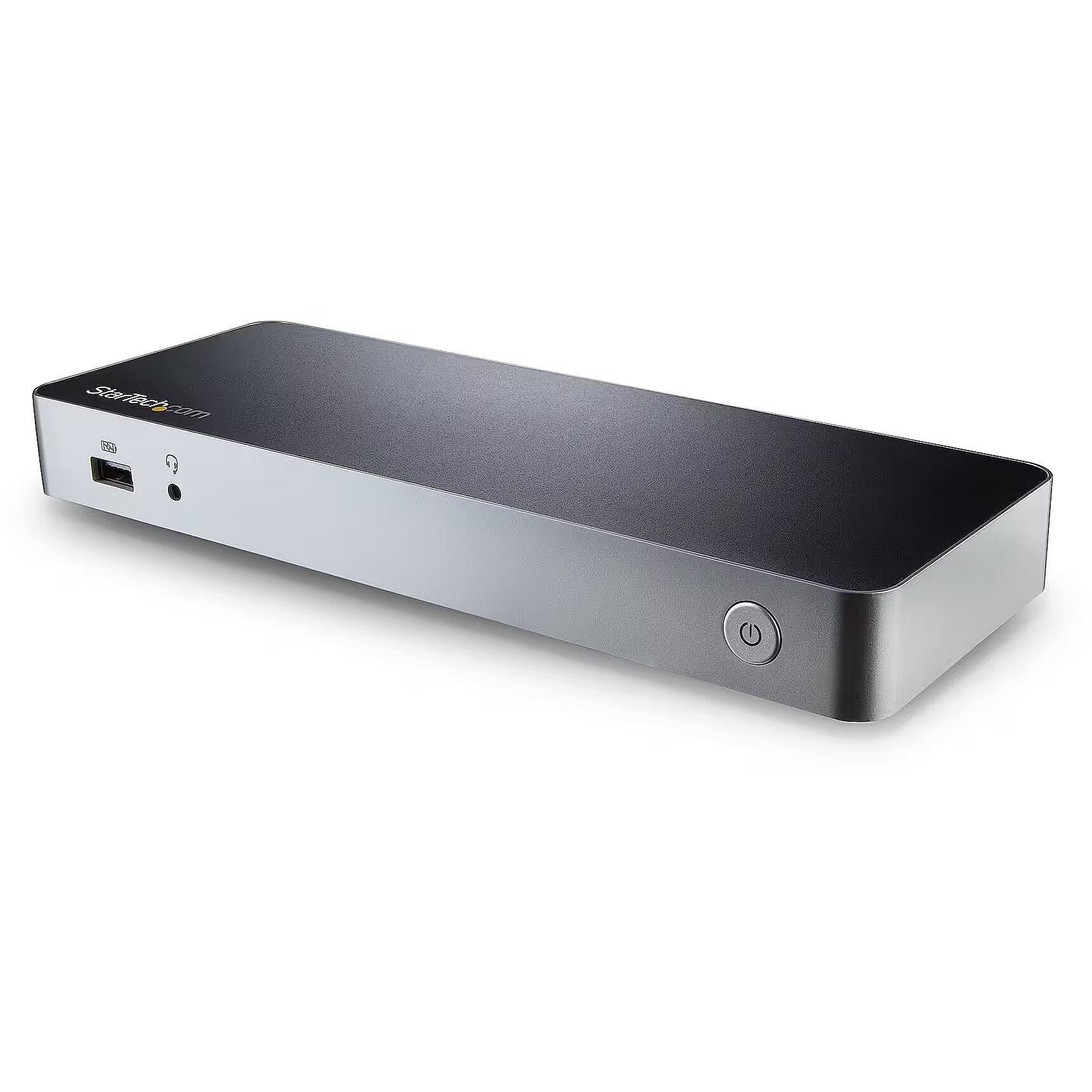

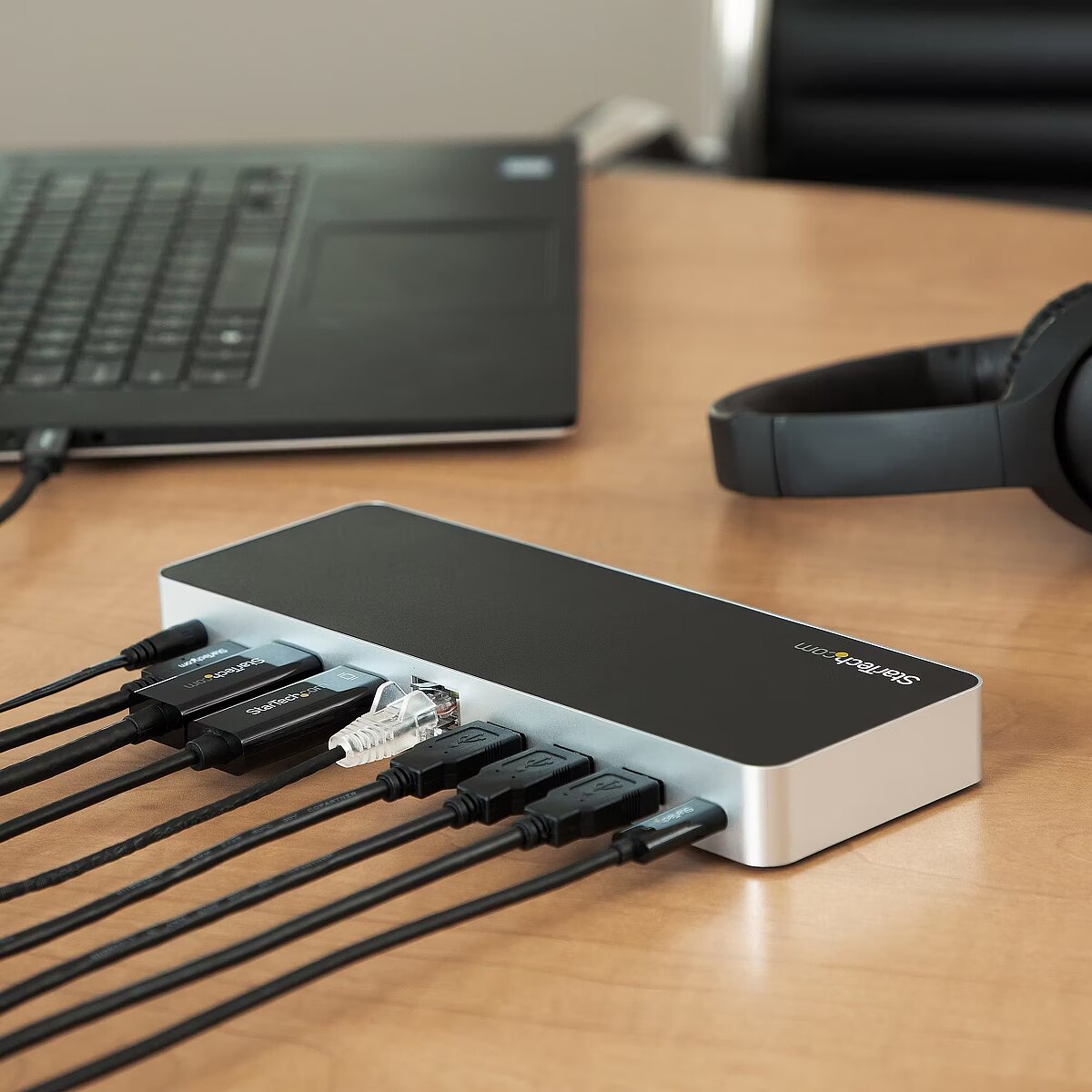

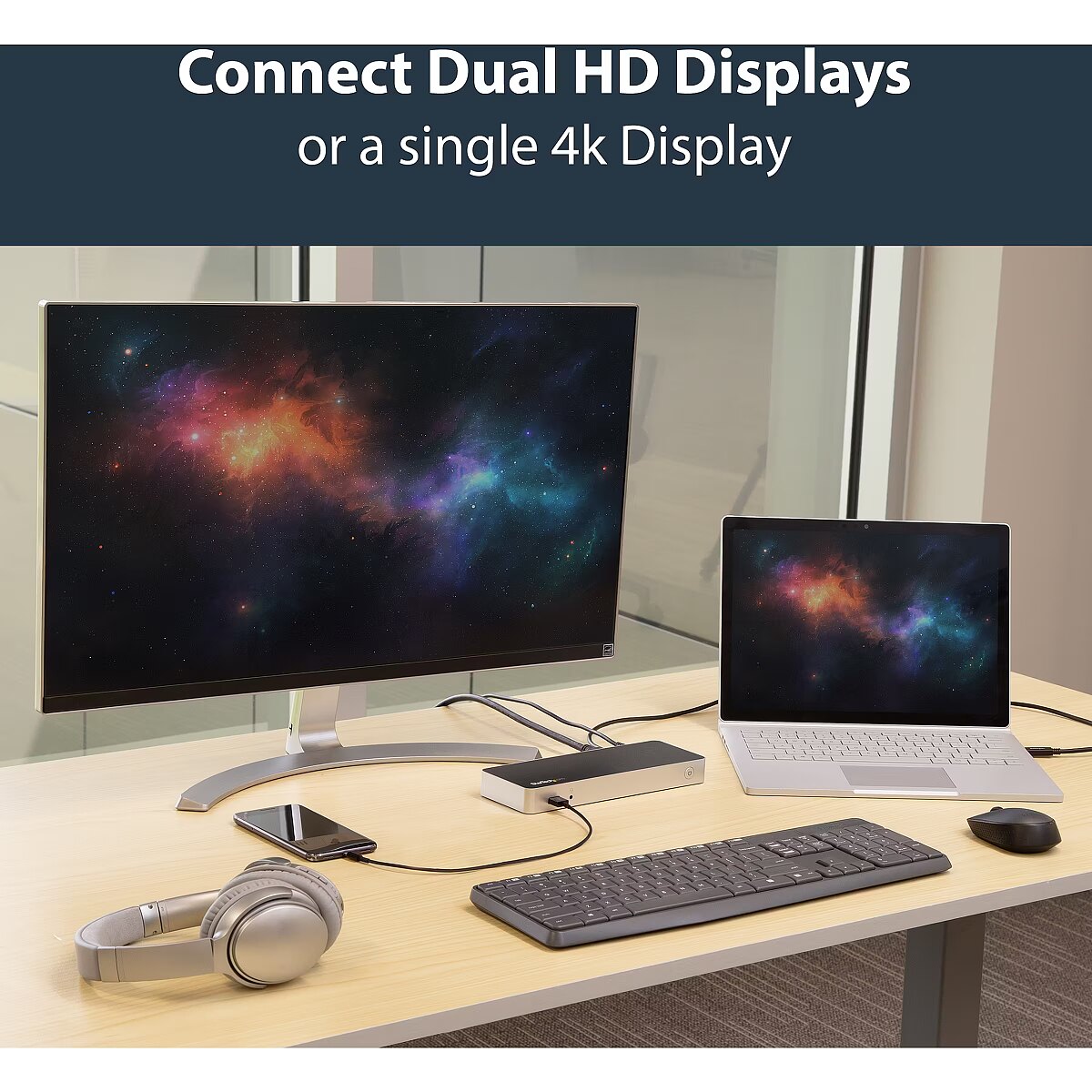

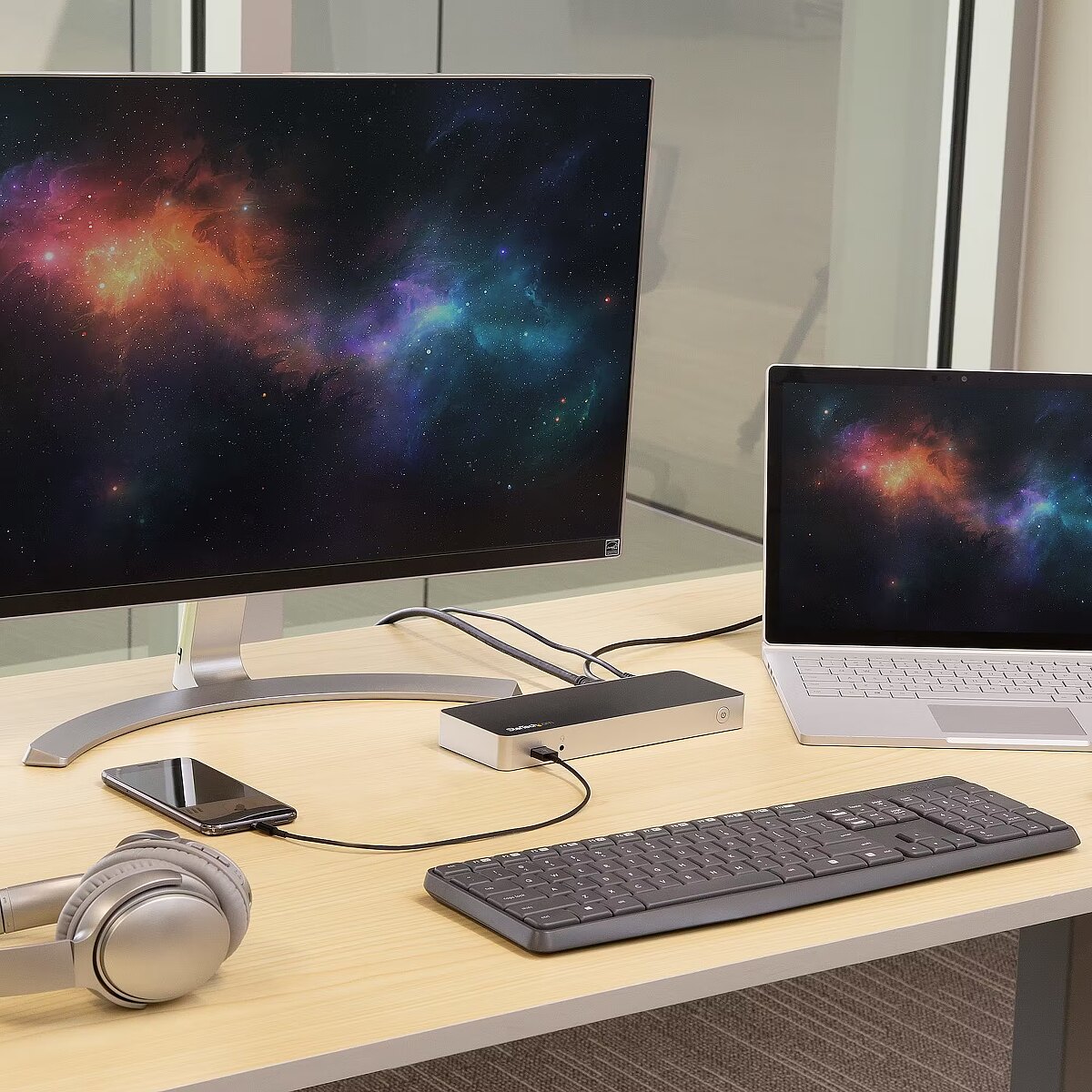

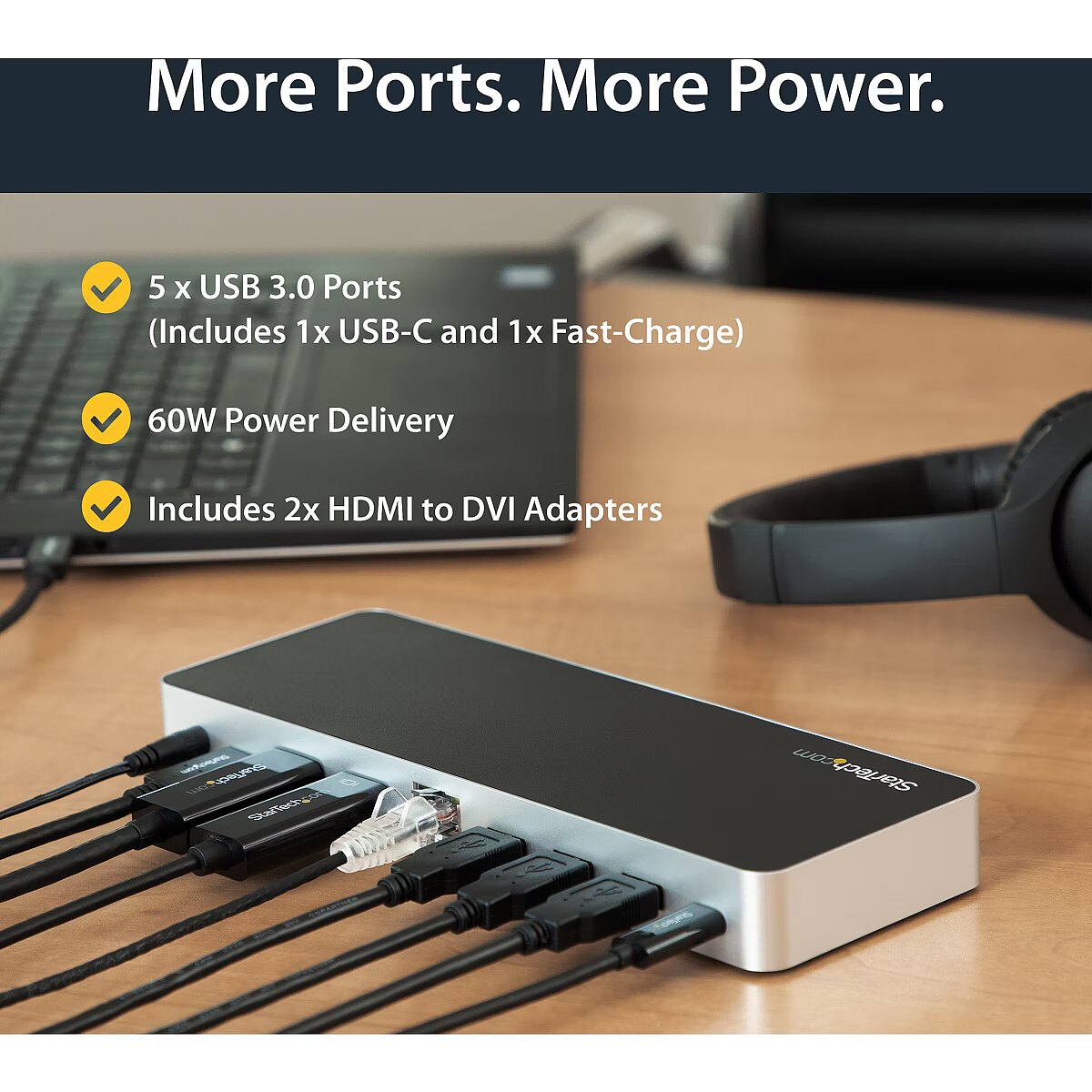

LongDesc - Laptop Docking Station | 60W PD | Dual HDMI/DVI | No Display Driver SetupEnhance your productivity by turning your Windows® USB-C™ laptop into a full-scale workstation. This dual-monitor USB-C dock lets you easily connect two HDMI monitors or DVI monitors (with included adapters) using one USB-C cable, with no setup of display drivers required, right out of the box. The USB-C dock provides 60W charging power, and five USB 3.0 ports to connect devices. With easy dual-monitor setup, the dock is ideal for wide-scale use in office workstations.Create a Dual-Monitor WorkstationThe USB-C dock lets you connect dual monitors with flexible options. Connect to:• 2x HDMI or 2x DVI displays at 1920 x 1200p @ 60Hz• 1x HDMI + 1x DVI displayYou can also connect a single 4K HDMI display.Connect More DevicesUnlike some USB-C docks that may drop to USB 2.0 and limit Ethernet performance, this USB Type-C™ dock offers full USB 3.0 and network bandwidth. This provides faster data transfer speeds when using your USB 3.0 peripherals and supports true Gigabit Ethernet network throughput.This USB Type-C docking station gives you five USB 3.0 ports (1x USB-C and 4x USB-A including 1x Fast-Charge), a Gigabit Ethernet port (PXE Boot support), plus audio and microphone connections.60W Charging PowerThe USB-C docking station with Power Delivery will power and charge (up to 60W) your laptop, while powering your devices.Fast, Easy SetupThe dock features automatic driver installation for easy setup. It works with Windows based laptops with a USB-C port that supports DP Alt Mode and USB Power Delivery.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe MST30C2HHPDU is backed by a StarTech.com 3-year warranty and free lifetime technical support.Notes:• Ensure your laptop’s drivers, firmware, and operating system are current prior to using the docking station.• Video output capabilities depend on the video card and hardware specifications of the connected laptop.• Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop’s USB-C port supports DP Alt Mode and USB Power Delivery for the full functionality of the USB Type-C standard.• Not all Thunderbolt 3 USB-C ports support the full functionality of the Thunderbolt 3 standard. Ensure that your laptop Thunderbolt 3 port supports USB Power Delivery.The StarTech.com Advantage
LongProductName - StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible (MST30C2HHPDU)
LongSummaryDescription - StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB Power Delivery up to: 60 W. Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u. Product colour: Black, Silver, Data transfer rate: 5 Gbit/s, Maximum digital resolution: 4096 x 2160 pixels. Power source type: AC, AC input voltage: 100 - 240 V, Input current: 1.5 A. Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10...
Network - Auto MDI/MDI-X - Yes
Network - Ethernet LAN - Yes
Network - Ethernet LAN (RJ-45) ports - 1
Network - Ethernet LAN data rates - 10,100,1000 Mbit/s
Network - Full duplex - Yes
Network - Networking standards - IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Operational conditions - Operating relative humidity (H-H) - 5 - 95%
Operational conditions - Operating temperature (T-T) - 5 - 35 °C
Operational conditions - Storage temperature (T-T) - -40 - 70 °C
Other features - Chipset - VIA/VLI - VL813, MegaChips - STDP4320, Realtek - RTL8153, C-Media - CM6533, Texas Instruments - TPS65983

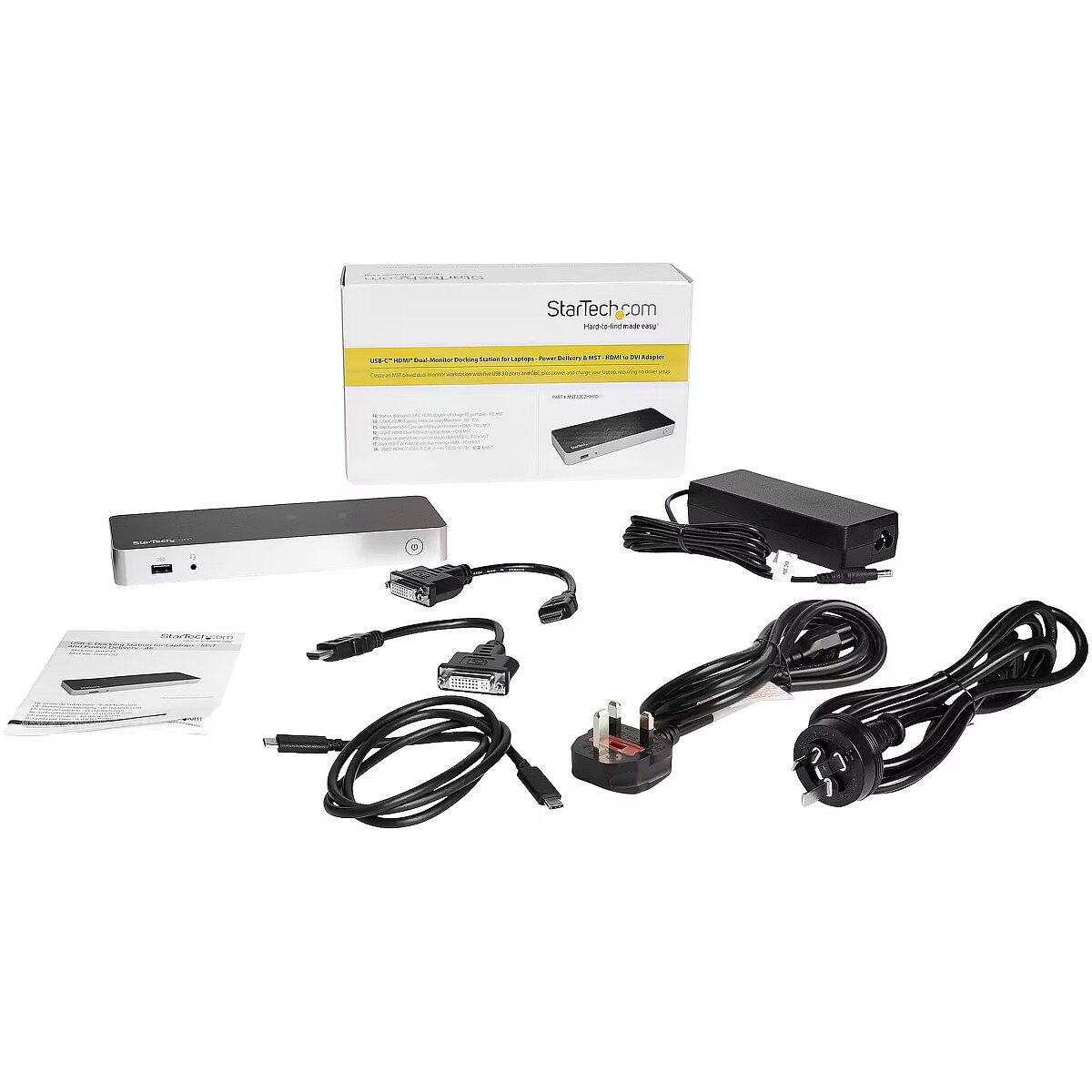

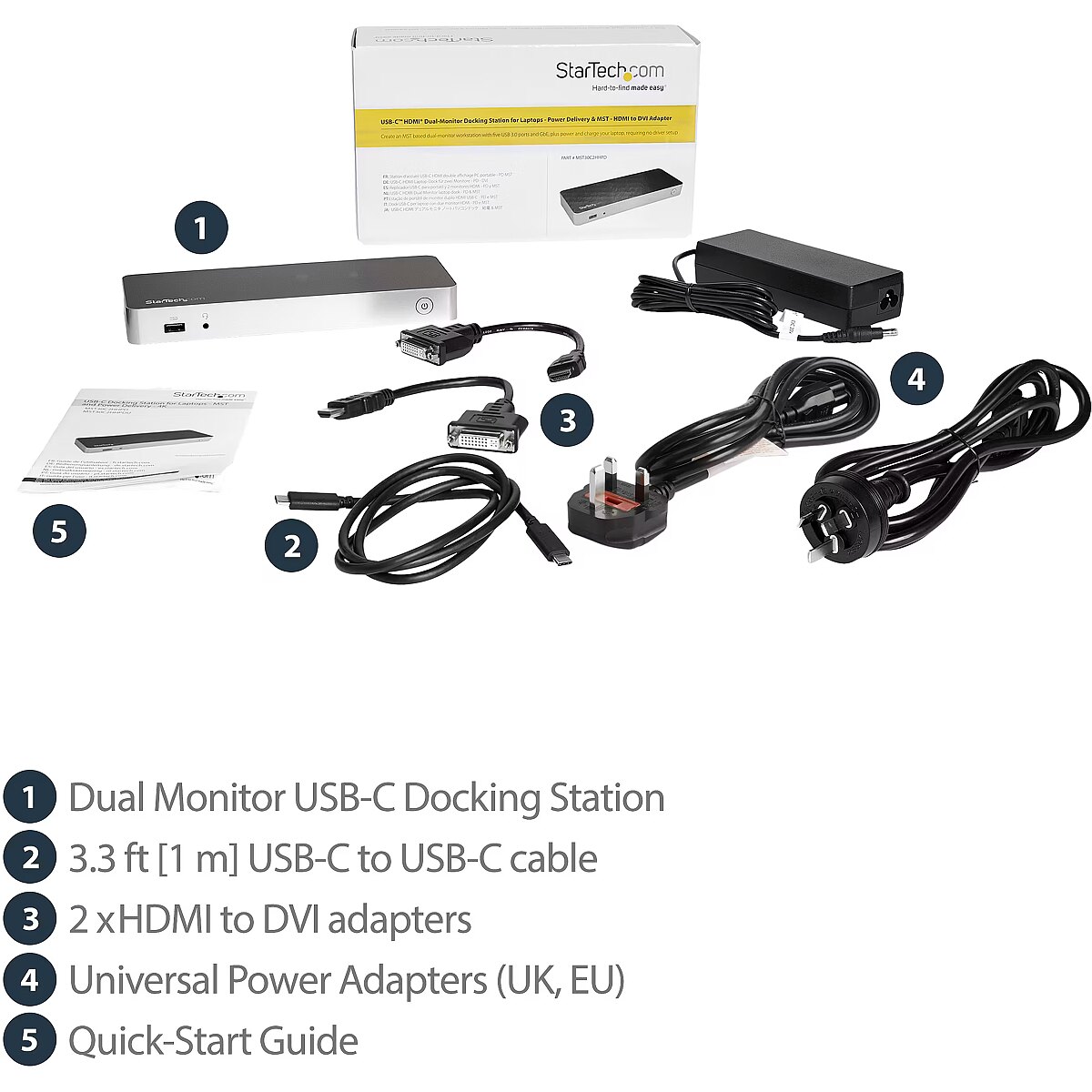

Packaging content - AC adapter included - Yes
Packaging content - Cables included - USB Type-C
Packaging content - Quick start guide - Yes
Packaging data - Package depth - 267 mm
Packaging data - Package height - 90 mm
Packaging data - Package weight - 1.5 kg
Packaging data - Package width - 157 mm
Performance - Card reader integrated - No
Performance - Data transfer rate - 5 Gbit/s
Performance - Housing material - Plastic
Performance - Maximum digital resolution - 4096 x 2160 pixels
Performance - Plug and Play - Yes
Performance - Product colour - Black, Silver
Performance - UASP support - Yes

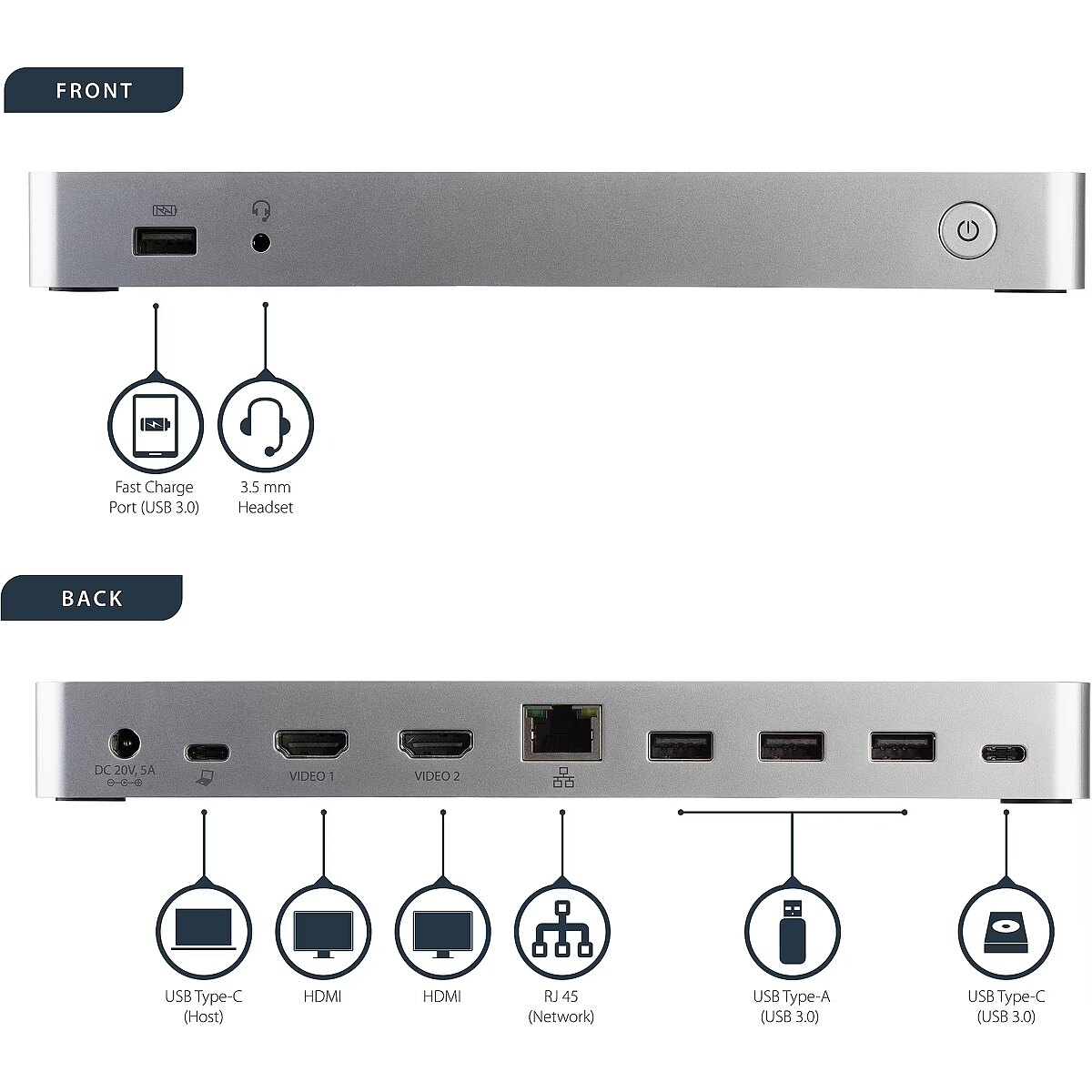

Ports & interfaces - Combo headphone/mic port - Yes
Ports & interfaces - Connectivity technology - Wired

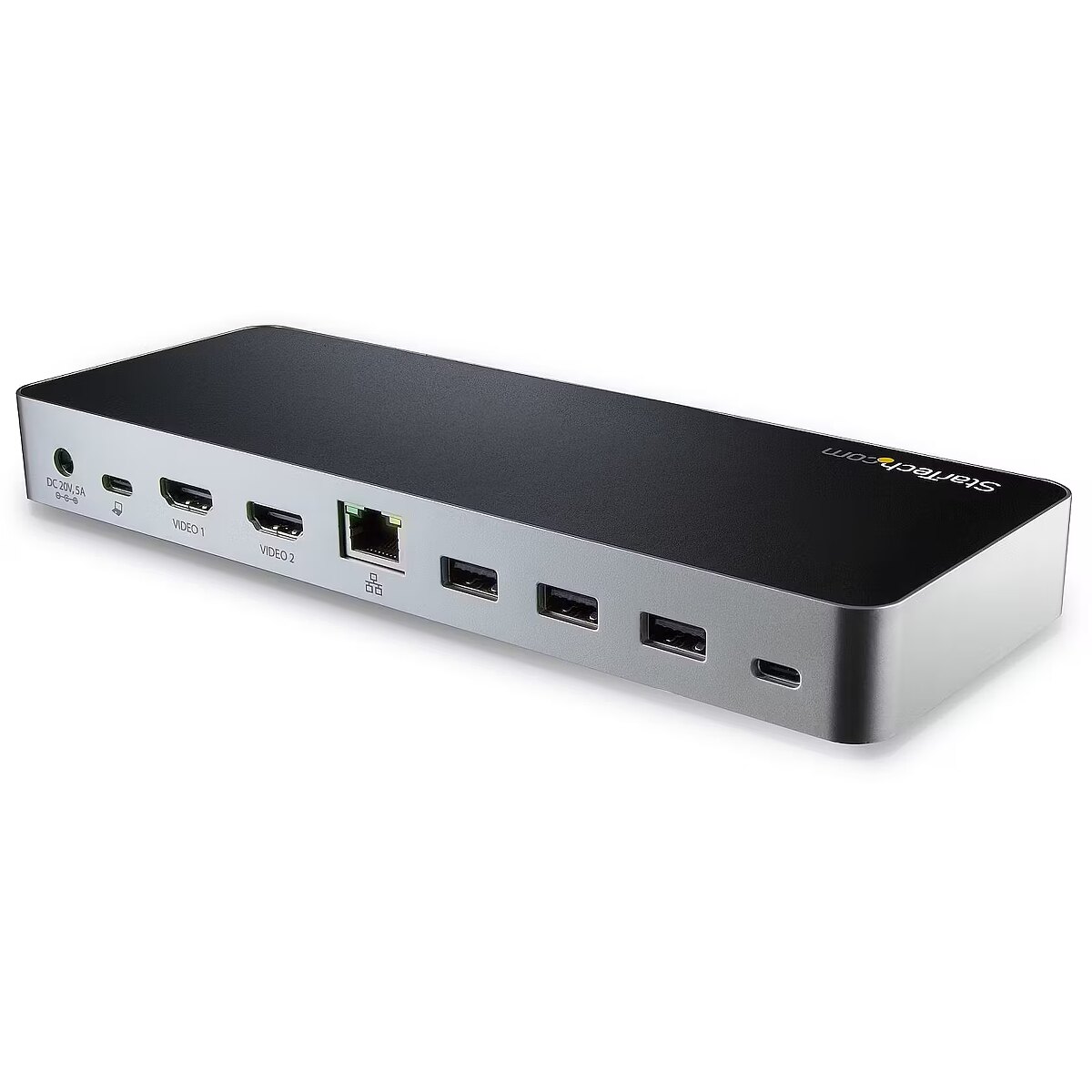

Ports & interfaces - HDMI ports quantity - 2
Ports & interfaces - Headphone connectivity - 3.5 mm
Ports & interfaces - Headphone outputs - 1
Ports & interfaces - Host interface - USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity - 4
Ports & interfaces - USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity - 1
Ports & interfaces - USB Power Delivery (USB PD) - Yes
Ports & interfaces - USB Power Delivery revision - 2.0
Ports & interfaces - USB Power Delivery up to - 60 W
Power - AC input voltage - 100 - 240 V
Power - Compatible power plug types - EU, UK
Power - Input current - 1.5 A
Power - Output current - 4.5 A
Power - Output voltage - 20 V
Power - Power consumption (typical) - 100 W
Power - Power plug type - Type N
Power - Power source type - AC
ProductName - Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible
ShortSummaryDescription - StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, 60 W, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Software - Windows operating systems supported - Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Stck_Kart - 6
Stck_Pal - 0
Storno - Y
Sustainability - Sustainability compliance - Yes
Technical details - Compliance certificates - CE, RoHS
Title - StarTech.com Dual Monitor USB C Docking Station with 60W Power Delivery for Windows Laptops - USB C to HDMI / DVI Dock - USB 3.1 Gen 1 Type C Dock w/ Charging - Thunderbolt 3 Compatible
URL - https://www.startech.com/
WarrantyInfo - 3 Years

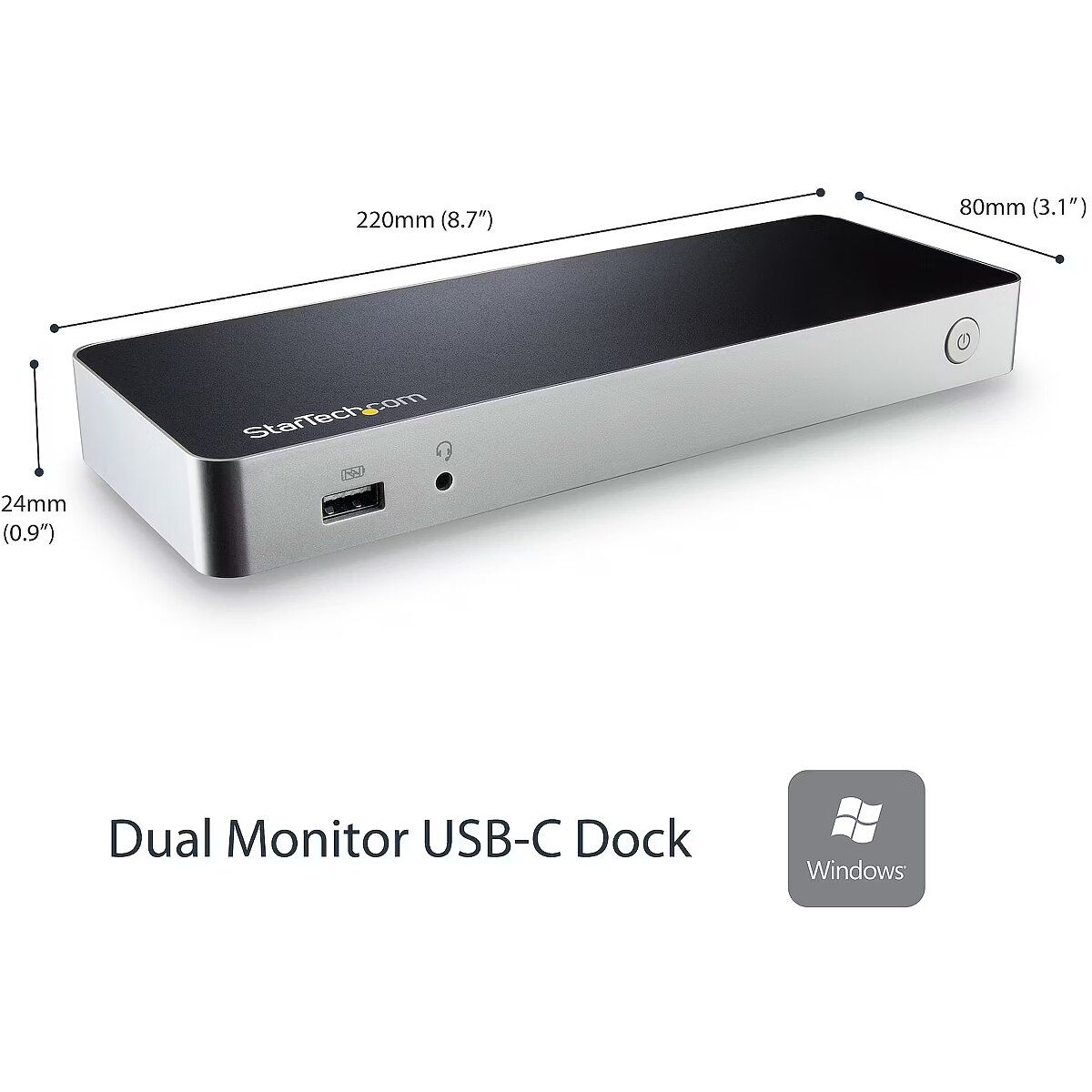

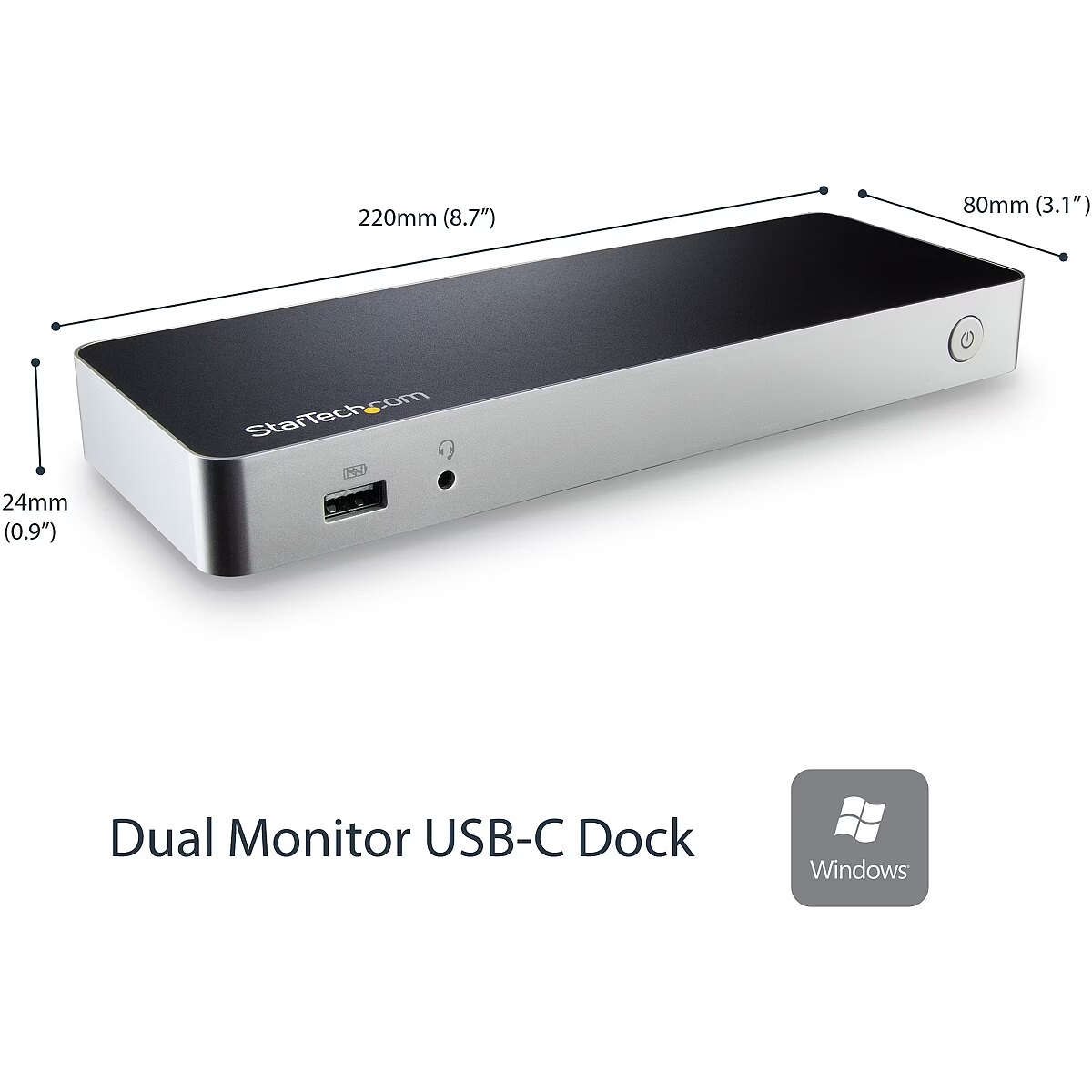

Weight & dimensions - Depth - 220 mm
Weight & dimensions - Height - 24 mm
Weight & dimensions - Weight - 259 g
Weight & dimensions - Width - 80 mm
