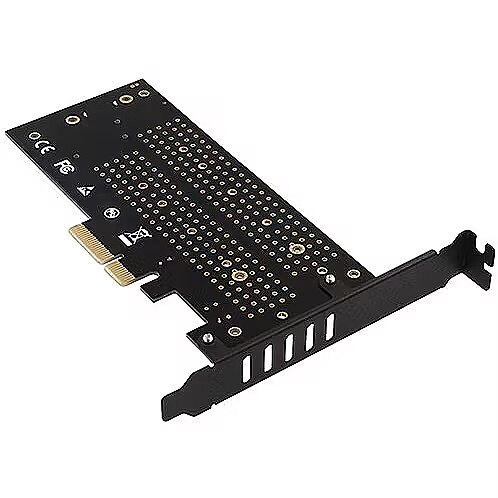

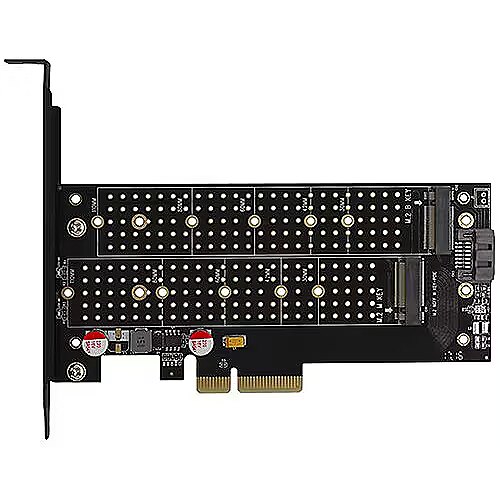

Axagon PCEM2-D PCI-E 3.0 4x - DUAL M.2 SSD (NVMe + SATA), dual voltage, up to 110mm SSD

Accessories included - PCI-Express adapter with standard peg Low profile herring 2 pcs of heat conductive pads 50 cm SATA data cable Mounting material and screwdriver Printed installation manual Packed in a cardboard box
Box Weight Brutto (kg) - 8.5 kg
Brand - Axagon
BrandPartCode - PCEM2-D
Category - Interface Cards/Adapters
category - PC Components|Network & Adapter Cards|Adapter Cards|M.2
Category Code - HDA
CnCode CnCode - 84733080
code - PCEM2-D
Code - PCEM2-D
Connectors #1 - SATA 7pin Male
Controller Features - TRIM Support
Controller Form Factor - Plug-in Card
Data Transfer Rate - 8 Gbps
Description - PCEM2-D PCIe NVMe+SATA M.2 adapter A PCI-Express x4 adapter to connect up to two M.2 disks to a computer. 1x NVMe M-key + 1x SATA B-key. The internal AXAGON PCEM2-D adapter allows to connect as many as two M.2 SSD to a desktop. So, it is an ideal choice for upgrading a desktop computer that has no M.2 slot. The adapter supports the use of both one-sided and double-sided SATA and NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a length up to 110 mm can be used. The simultaneous operation of both disks is commonplace. Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. When compared to standard SATA SSDs, bit rates of NVMe SSDs are many times higher. The high quality card design, including copper-plated vents, assists in a better dissipation of heat generated during the M.2 SSDs operation. Double LEDs indicate either power on or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases.
Description - The internal AXAGON PCEM2-D adapter allows to connect as many as two M.2 SSD to a desktop. So, it is an ideal choice for upgrading a desktop computer that has no M.2 slot.   The adapter supports the use of both one-sided and double-sided SATA and NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a length up to 110 mm can be used. The simultaneous operation of both disks is commonplace. Thanks to PCI-Express interface compatible with x4, x8 and x16 slots, a maximum transmission rates can be achieved. When compared to standard SATA SSDs, bit rates of NVMe SSDs are many times higher. The high quality card design, including copper-plated vents, assists in a better dissipation of heat generated during the M.2 SSDs operation. Double LEDs indicate either power on or data transfer in the M.2 slot. The package also contains a low profile bracket for mounting the adapter into low profile cases. Input:
PCI-Express interface compatible version PCI-Express: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a.
Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.
SATA connector to connect the motherboard when a SATA M.2 SSD is used. To achieve the best possible bit rates, the use of a SATA 6G controller is recommended. Output:
NGFF 75-pin M-key slot to install the NVMe (PCI-Express) M.2 SSDs.
NGFF 75-pin B-key slot to install the SATA (AHCI) M.2 SSDs Other features:
Full Plug and Play support.
Support of M.2 disks of any size - 2230, 2242, 2260, 2280, 22110 mm.
Support of M.2 disks of any capacity.
Simultaneous operation of both disks.
Support of both one-sided and double-sided M.2 disks.
A better dissipation of heat from M.2 SSDs thanks to copper-plated vents.
Support of booting from SSD cards.
Dimensions 142 x 64 x 12 mm.
Weight 46 g.
No drivers need to be installed.
Note: CAUTION! The adapter allows to insert B+M-key disks in both M.2 slots. It is important to check the disk parameters, i.e. to make sure whether the disk is designed for SATA or NVMe (PCI Express) interface, and to connect it to the right slot. SATA drives are pluged into the B-key slot, NVMe drives are pluged into the M-key slot. Power supply:
The adapter is directly supplied from PCI-Express bus; no external power supply is needed.
The system of dual power supply ensures a sufficient power for connected M.2 SSDs.
In addition, the system of redundant power supply reduces the adapter thermal load. Supported operating systems:
MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit as well as 64-bit versions of OS Windows are supported), Linux with kernel 2.6.31 and higher.
Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported, especially when NVMe disks are used. Package contains:
PCI-Express adapter with a standard bracket,
low profile bracket,
2 pcs. thermally conductive pads,
SATA data cable 50 cm long,
mounting material and a screwdriver,
printed installation manual CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / TR / BG / CN / ARA,
packed in a cardboard box.
Design - Certification - CE
Design - Country of origin - China
Design - Easy to install - Yes
Design - Internal - Yes
Design - LED indicators - Yes
Design - Product colour - Black, Gold
Design - Purpose - PC
Designation - CE+WEEE
dimension depth - 30 mm
dimension height - 170 mm
Dimensions -
Dimensions - 142 x 64 x 12 mm
dimension weight - 130 g
dimension width - 130 mm
EAN - 8595247903846
ean - 8595247903846
EAN Code - 8595247903846
Features - Data transfer rate (max) - 8 Gbit/s
Features - Plug and Play - Yes
Features - TRIM support - Yes
GTIN - 8595247903846
guarantee - 24
guarantee_type - normal
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190815160007909042.jpg
Image - https://content.it4profit.com/pimg/s/resize/500x500x500x500/190815160007921689.jpg
Included Accessories - • PCI-Express adapter with a standard bracket,
• low profile bracket,
• 2 pcs. thermally conductive pads,
• SATA data cable 50 cm long,
• mounting material and a screwdriver
Link - https://www.axagon.eu/en/produkty/pcem2-d
LongDesc - The internal AXAGON PCEM2-D adapter allows to connect as many as two M.2 SSD to a desktop. So, it is an ideal choice for upgrading a desktop that has no M.2 slot. The adapter supports the use of both one-sided and double-sided SATA and NVMe (PCI-Express) M.2 SSDs. The reduction does not limit SSD capacity, and any M.2 cards with a length up to 110 mm can be used. The simultaneous operation of both disks is commonplace.Thanks to PCI-Express 3.0 4-lane interface compatible with x4, x8 and x16 slots, a speed as high as 8GBps can be achieved. When compared to standard SATA SSDs, bit rates of NVMe SSDs are many times higher.The high quality card design, including copper-plated vents, assists in a better dissipation of heat generated during the M.2 SSDs operation.Double blue LEDs indicate either power on or data transfer in the M.2 slot. The package also contains a low profile blanking plug for mounting the adapter into low profile cases.Input:• PCI-Express 3.0 interface compatible with PCI-Express 1.0a / 1.1 / 2.0 / 2.1.• Number of 4-Lane lines, compatible with x4 / x8 / x16 PCIe slots.• Bandwidth of 4-Lane PCI-Express 3.0 bus of up to 8 GB/s (two-way).• SATA connector to connect the motherboard when a SATA M.2 SSD is used.To achieve the best possible bit rates, the use of a SATA 6G controller is recommended.Output:• NGFF 75-pin M-key slot to install the NVMe (PCI-Express) M.2 SSDs.• NGFF 75-pin B-key slot to install the SATA (AHCI) M.2 SSDsOther features:• Full Plug and Play support.• Support of M.2 disks of any size - 2230, 2242, 2260, 2280, 22110 mm.• Support of M.2 disks of any capacity.• Simultaneous operation of both disks.• Support of both one-sided and double-sided M.2 disks.• A better dissipation of heat from M.2 SSDs thanks to copper-plated vents.• Support of booting from SSD cards.• No drivers need to be installed.• Note: CAUTION! The adapter allows to insert B+M-key disks in both M.2 slots. It is important to check the disk parameters, i.e. to make sure whether the disk is designed for SATA or NVMe (PCI Express) interface, and to connect it to the right slot. SATA drives are pluged into the B-key slot, NVMe drives are pluged into the M-key slot.Power supply:• The adapter is directly supplied from PCI-Express bus; no external power supply is needed.• The system of dual power supply ensures a sufficient power for connected M.2 SSDs.• In addition, the system of redundant power supply reduces the adapter thermal load.Supported operating systems:• MS Windows 7 / 8 / 8.1 / 10, Windows Server 2008 R2 / 2012 / 2016 (all 32-bit as well as 64-bit versions of OS Windows are supported), Linux with kernel 2.6.31 and higher.• Note: When operating under Windows 7, contact the manufacturer of the M.2 SSD to find whether this OS is supported, especially when NVMe disks are used.Package contains:• PCI-Express adapter with a standard blanking plug,• low profile blanking plug,• mounting material and a screwdriver,• printed installation manual EN/CZ/DE/ESP/FR/HU/IT/PL/RO/RU/SK/BG,• packed in a cardboard box with clearly indicated parameters.
LongProductName - PCI-Express 3.0 + Serial ATA 3.1, 142 x 64 x 12 mm
LongSummaryDescription - Axagon PCEM2-D. Host interface: PCIe, Output interface: M.2, SATA, Expansion card form factor: Full-height / Low-profile. Product colour: Black, Gold, Purpose: PC, Country of origin: China. Data transfer rate (max): 8 Gbit/s. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016. Width: 142 mm, Depth: 64 mm, Height: 12 mm
M.2 - 1 (M.2 (Key B)); 1 (M.2 (Key M))
Model - PCEM2-D
name - AXAGON PCEM2-D PCIe-3.0-Adapter, 1x M.2-NVMe, 1x M.2-SATA, bis 22110 - passive Kühlung
Name - AXAGON PCI-Express x4 adapter to connect up to two M.2 disks to a computer | PCEM2-D
name - PCI-E 3.0 PCEM2-D 4x - DUAL M.2 SSD (NVMe + SATA), dual voltage, up to 110mm SSD
Number of Input-Output Channels - 2
Other features - Full Plug and Play support. Support for M.2 drives of all sizes - 2230, 2242, 2260, 2280, 22110 mm. Support for M.2 drives of all capacities. Use both drives simultaneously. Support single-sided and double-sided M.2 drives. Better heat dissipation from M.2 SSDs thanks to copper vents. Support booting from SSD card. ATTENTION! In the adapter, you can insert B+M-key disks into both M.2 slots. It is important to check the disk parameters - i.e. whether the disk is designed for the SATA or NVMe (PCI-Express) interface and connect it to the correct slot. SATA drives are connected to the B-key slot, NVMe drives are connected to the M-key slot. Input: PCI-Express interface, compatible PCI-Express version: 4.0 / 3.0 / 2.1 / 2.0 / 1.1 / 1.0a. Number of lanes 4-Lane, compatible with x4 / x8 / x16 PCIe slots. SATA connector for connecting to the motherboard when using a SATA M.2 SSD. In order to achieve the best transmission speeds, we recommend using a SATA 6G controller. Output: NGFF 75-pin M-key slot for mounting the NVMe (PCI-Express) M.2 SSD. NGFF 75-pin B-key slot for mounting a SATA (AHCI) M.2 SSD. Power: The adapter is powered directly from the PCI-Express bus, external power is not necessary. The dual power system gives enough power to the connected M.2 SSDs. The redundant power system also reduces the load on the adapter.
Package features > Embeeded battery - No
Package features > Gross depth (mm) - 175.00 mm
Package features > Gross height (mm) - 30.00 mm
Package features > Gross width (mm) - 130.00 mm
Package features > Packing quantity - 1.00 pc(s)
Package features > Palette Qty - 2532 pc(s)
Package features > Paper/Pasteboard - 53.60 g
Package features > Plastic (No PET) - 13.40 g
Package features > Tare weight (kg) - 0.07 kg
Package features > Volume (m3) - 0.00 m³
Package features > WEE classification - CL109:6:2017-04-01
Package features > WEEE tax - Yes
Package Type - Retail
Packaging data - Manual - Yes
Packaging data - Package depth - 130 mm
Packaging data - Package height - 30 mm
Packaging data - Package type - Box
Packaging data - Package weight - 128 g
Packaging data - Package width - 175 mm
Packaging data - Quantity per pack - 1 pc(s)
Packs in Box - 64
Pack Weight Brutto (kg) - 0.05 kg
Pack Weight Netto (kg) - 0.119 kg
Pieces in pack - 1
Ports & interfaces - Expansion card form factor - Full-height / Low-profile
Ports & interfaces - Expansion card standard - PCIe 4.0
Ports & interfaces - Host interface - PCIe
Ports & interfaces - Number of M.2 (B) slots - 1
Ports & interfaces - Number of M.2 (M) slots - 1
Ports & interfaces - NVMe - Yes
Ports & interfaces - Output interface - M.2, SATA
producer - AXAGON
ProductCard - https://content.it4profit.com/itshop/itemcard_cs.jsp?ITEM=190815105740751911&THEME=asbis&LANG=lv
ProductCategory - Adapteri
ProductCode - PCEM2-D
ProductDescription - AXAGON PCEM2-D PCI-E 3.0 4x - DUAL M.2 SSD (NVMe + SATA), dual voltage, up to 110mm SSD
ProductName - PCEM2-D
Product Net Weight - 0.046 kg
ProductType - Controller Card
Provides Data Channel - PCIe NVMe/SATA III
Requires Expansion Slot Standard - PCI Express 3.0 x4
Retail Packaging Net Weight Carton - 0.119 kg
Retail Packaging Net Weight Plastic - 0.119 kg
Shipping Box Depth Shipping/Package Box Dimensions - 3 cm
Shipping Box Height Shipping/Package Box Dimensions - 17 cm
Shipping Box Weight Shipping/Package Box Dimensions - 0.13 kg
Shipping Box Width Shipping/Package Box Dimensions - 13 cm
ShortSummaryDescription - Axagon PCEM2-D, PCIe, M.2, SATA, Full-height / Low-profile, PCIe 4.0, Black, Gold, PC
Supports Number of Devices - 2
System Requirements -
System requirements - Linux operating systems supported - Yes
System requirements - Mac operating systems supported - Yes
System requirements - Server operating systems supported - Windows Server 2008 R2, Windows Server 2012, Windows Server 2016
System requirements - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1
Technical details - Compliance certificates - RoHS
Technical details > Gross weight - 0.13 kg
Technical details > Net weight - 0.06 kg
- AXAGON
Technical details > Producer product family - PCI-Express x4 adapter to connect up to two M.2 disks to a computer
Technical details > Producer product name - PCEM2-D
Title - Axagon PCEM2-D interface cards/adapter Internal M.2, SATA
Type - Adapter
Unit Box Height - 0.17
Unit Box Length - 0.03
Unit Box Width - 0.13
Unit Calculated Volume - 0.000663 cubm
Unit Calculated Weight - 0.13 kg
Units per Shipping Box - 1
URL - https://www.axagon.eu/en/produkty/pcem2-d
Usage - Computer
Vendor - AXAGON
Vendor Homepage - www.axagon.eu/en/produkty/pcem2-d?ami=204
vendpn - PCEM2-D
Warranty - 24
Warranty - 24 month(s)
Warranty - 24 months
WarrantyInfo - 2 years
Warranty Products Returnable - Yes
Warranty Term (month) - 24 mēneši
Warranty validation Criteria - Serial Number
Weight & dimensions - Depth - 64 mm
Weight & dimensions - Height - 12 mm
Weight & dimensions - Weight - 46 g
Weight & dimensions - Width - 142 mm
