ARTIKEL1 - DUAL HDMI VIDEO CAPTURE
ARTIKEL2 -
Audio - Supported audio channels - 2
Brand - j5create
BrandPartCode - JVA06-N
Category - Video Capturing Devices
EANCode - 4712795085563
GRUPPE1 - Multimedia & Games
GRUPPE2 - Video Accelerator
GTIN - 4712795085563
HERSTELLER - J5CREATE
HSTNUMMER - JVA06-N

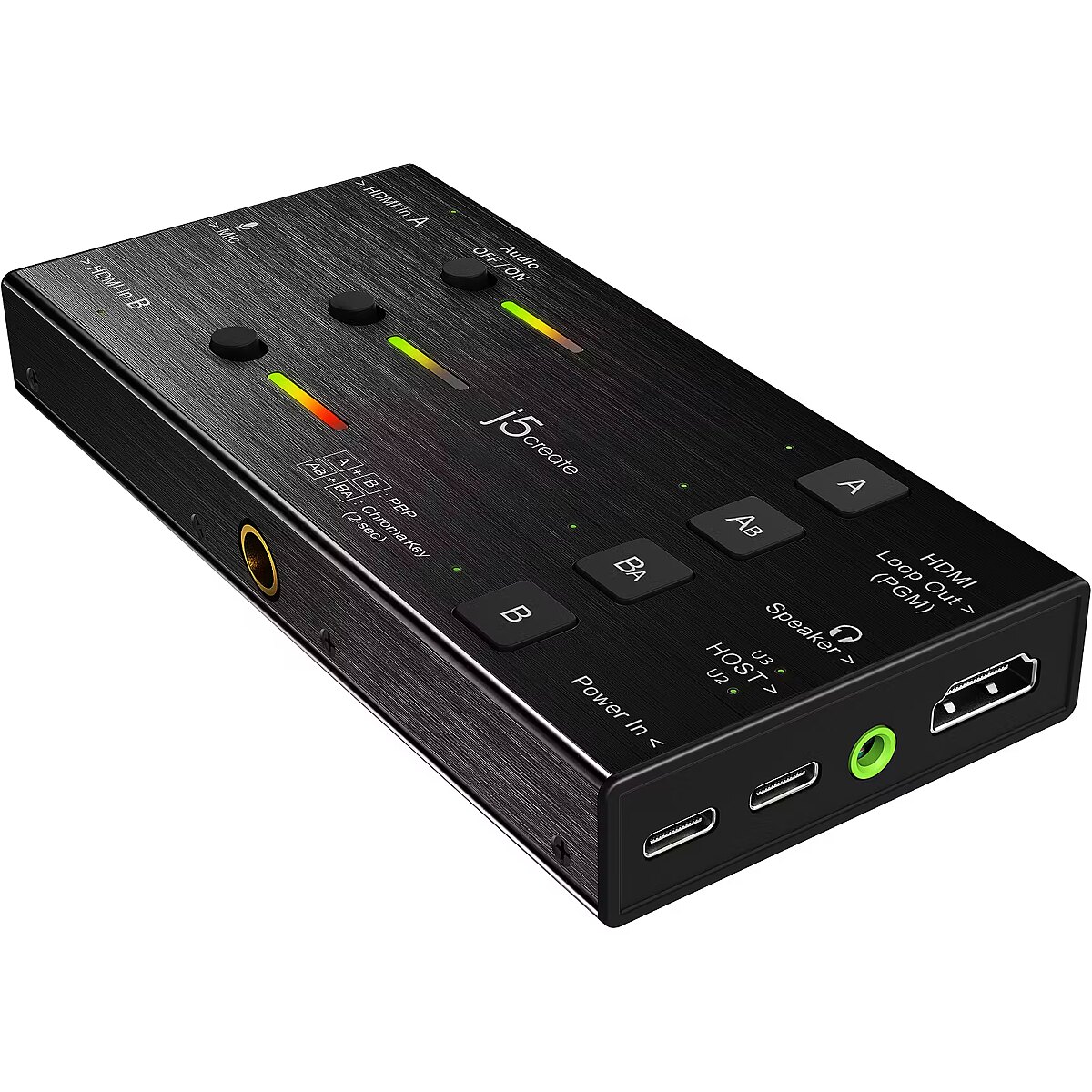

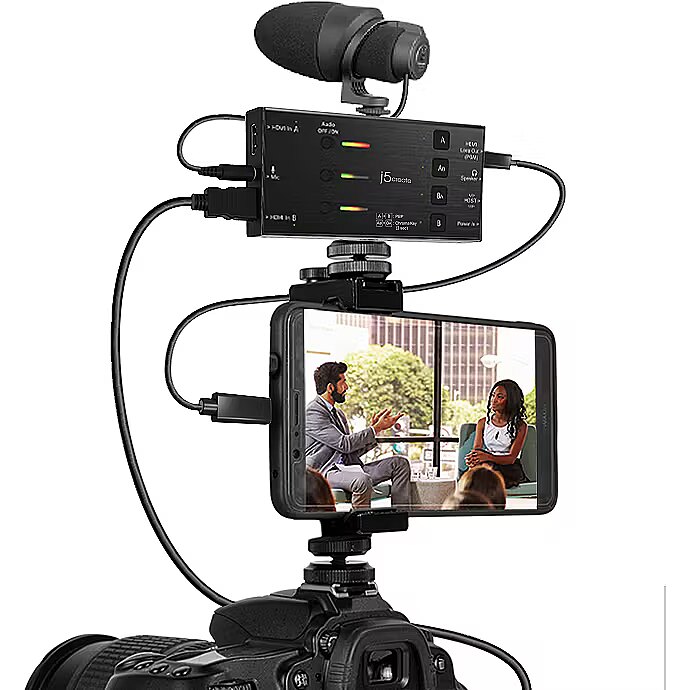

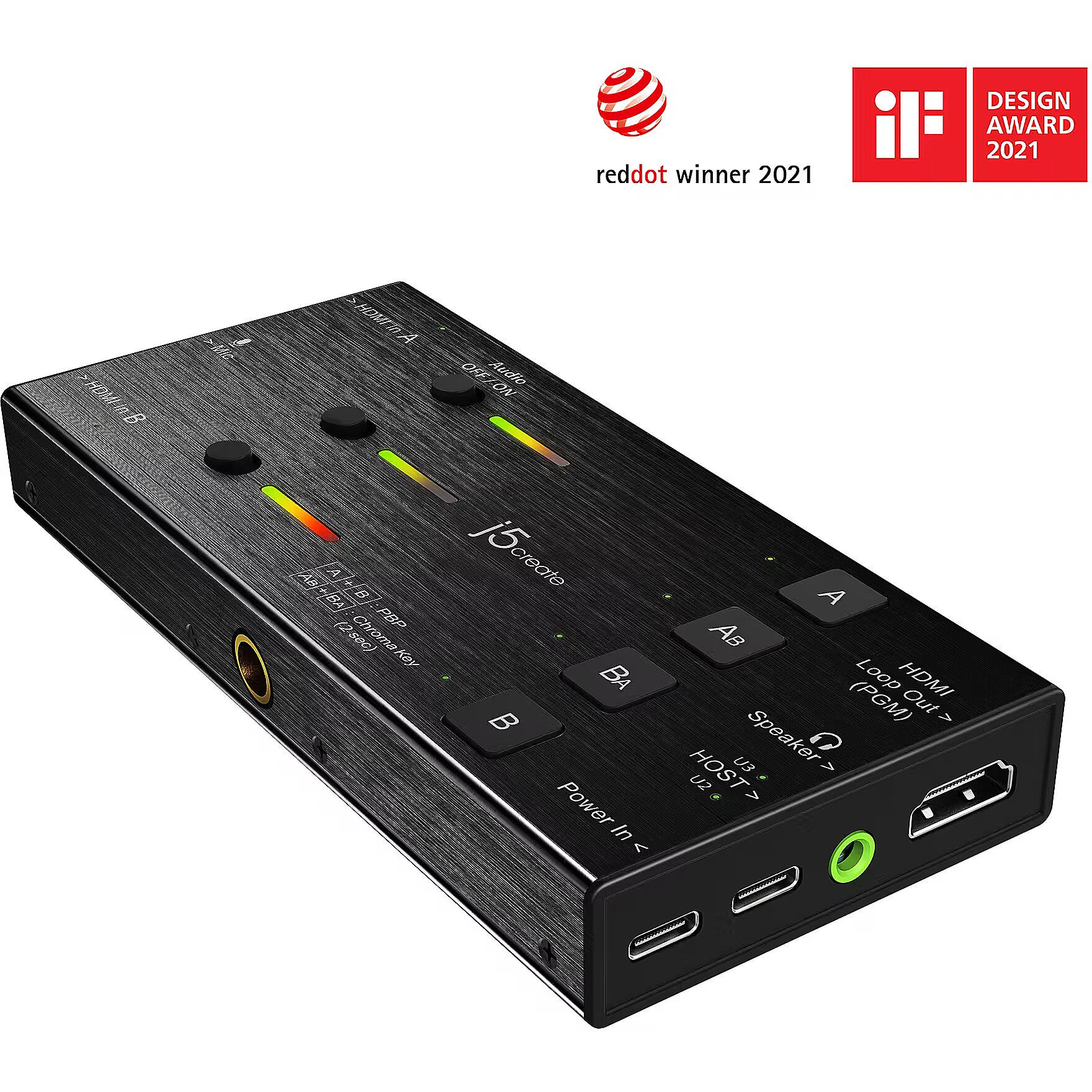

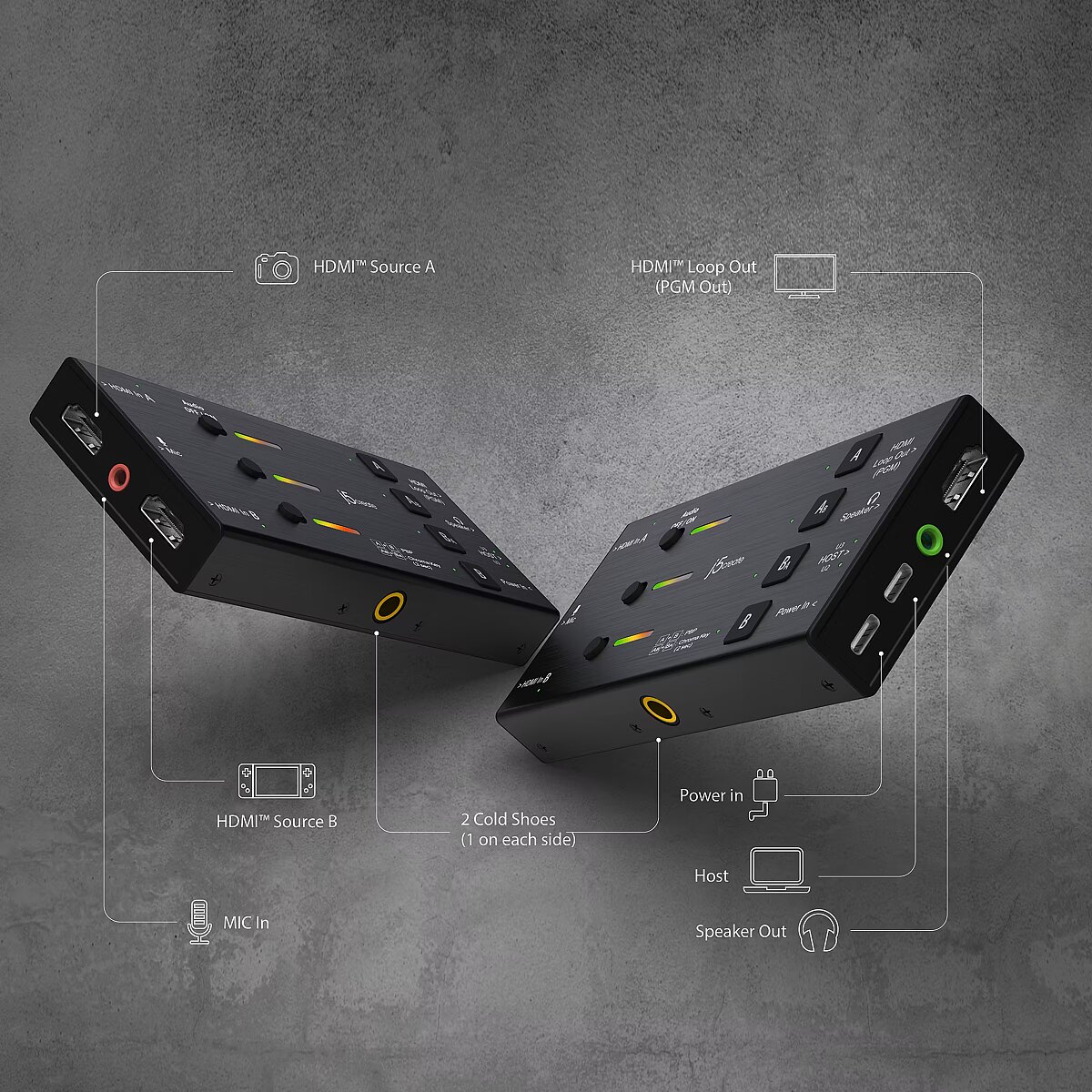

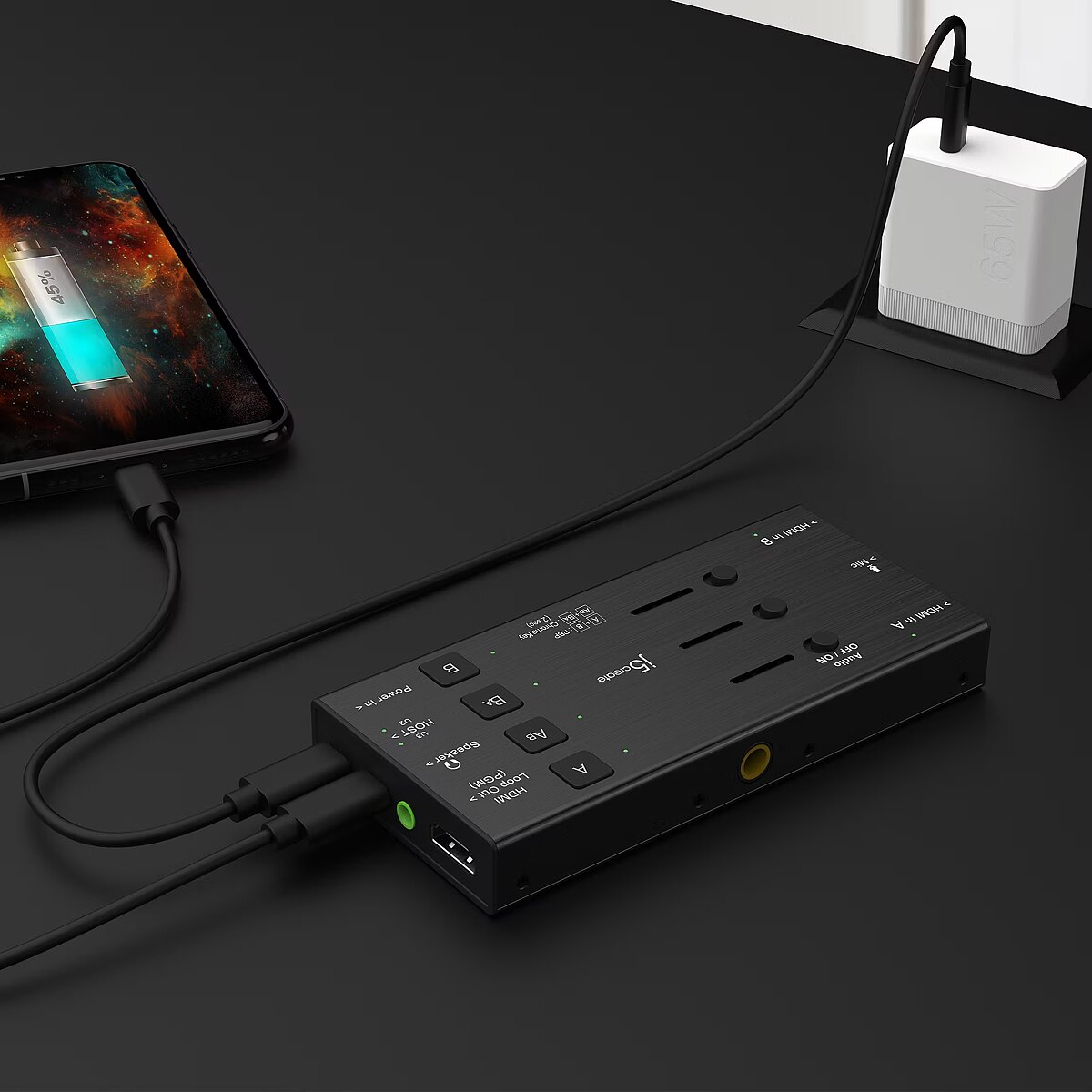

LongDesc - The JVA06 Dual HDMI™ Video Capture allows users to capture uncompressed 1080p video from two HDMI™ sources simultaneously and customize the content in real time. Whether you’re live streaming or recording, there are six screen mode configurations available, including PIP (Picture in Picture) and PBP (Picture by Picture) displays. You can quickly adjust the display settings and transitions with the built-in buttons on the device. The JVA06 also features a Chroma Key application allowing users to drop in a new background image. With a flexible audio connection via HDMI™ or analog 3.5 mm port, you can record audio directly from your HDMI™ sources and microphone. It has a built-in audio mixer function allowing users to toggle between four different audio settings and three audio inputs (Mic In, HDMI™ A and HDMI™ B). The JVA06 is perfect for content creators/producers who want to level up their content without spending a fortune and live streamers who want to simplify their setup without compromising the quality of their content. It features a USB-C® host connection with Power Delivery 3.0 and two cold shoe adapters to attach to your DSLR for the perfect combination of ease-of-use and mobility, giving you the ability to live stream without interruptions and charge your connected USB-C device at the same time.
LongProductName - JVA06 Dual HDMI Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black
LongSummaryDescription - j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black. Product colour: Black, Host interface: USB 3.2 Gen 1 (3.1 Gen 1), Video capture resolution (max): 1920 x 1080 pixels. Supported resolutions: 640 x 480 720 x 480 720 x 576 800 x 600 1280 x 720 1024 x 768 1360 x 768 1280 x 800 1152 x..., Maximum frame rate: 60 fps, Supported video modes: 1080p. USB connector type: USB Type-A, USB Type-C, USB version: 2.0/3.2 Gen 1 (3.1 Gen 1). Power supply type: USB, Output voltage: 20 V, Output current: 0.9 A. Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1, Yes, Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Bundled software: Recommended software: OBS™
Operational conditions - Operating relative humidity (H-H) - 0 - 80%
Operational conditions - Operating temperature (T-T) - 0 - 40 °C
Operational conditions - Storage relative humidity (H-H) - 0 - 85%
Operational conditions - Storage temperature (T-T) - -10 - 65 °C
Packaging content - Cables included - HDMI, USB Type-C, USB Type-C to USB Type-A
Packaging content - Manual - Yes
Packaging content - Packaging content - 1 x JVA06 Dual HDMI™ Video Capture, 1 x Quick Installation Guide, 1 x USBxC™ 2.0 to USBxC™ cable, 1 x USBxC™ 3.0 to USB™ TypexA cable, 1 x 39.4 in./100 cm HDMI™ cable
Packaging content - Quantity - 1
Packaging content - Quick installation guide - Yes
Packaging data - Package depth - 95 mm
Packaging data - Package height - 70 mm
Packaging data - Package type - Box
Packaging data - Package weight - 415 g
Packaging data - Package width - 155 mm
Performance - Cable length - 0.6 m

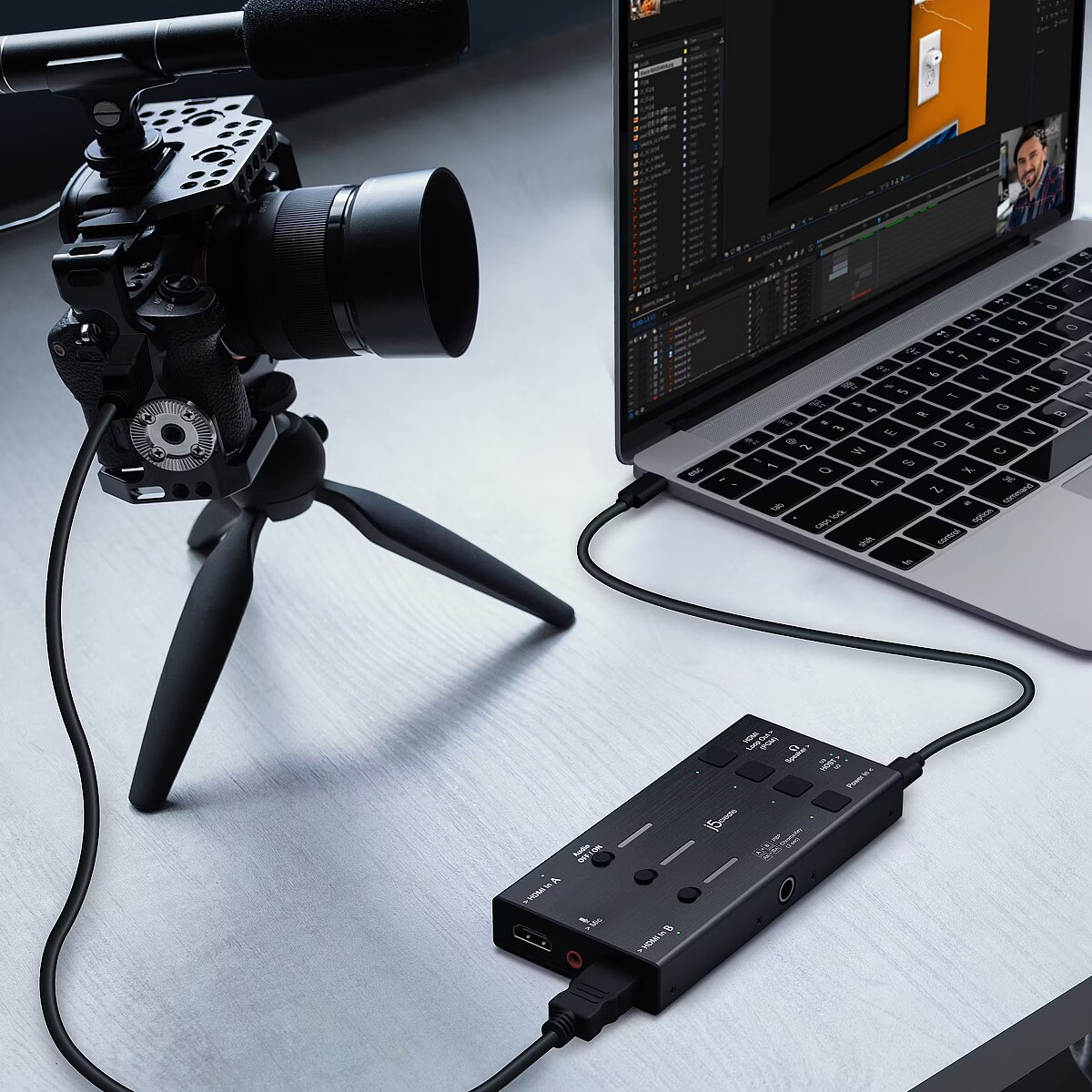

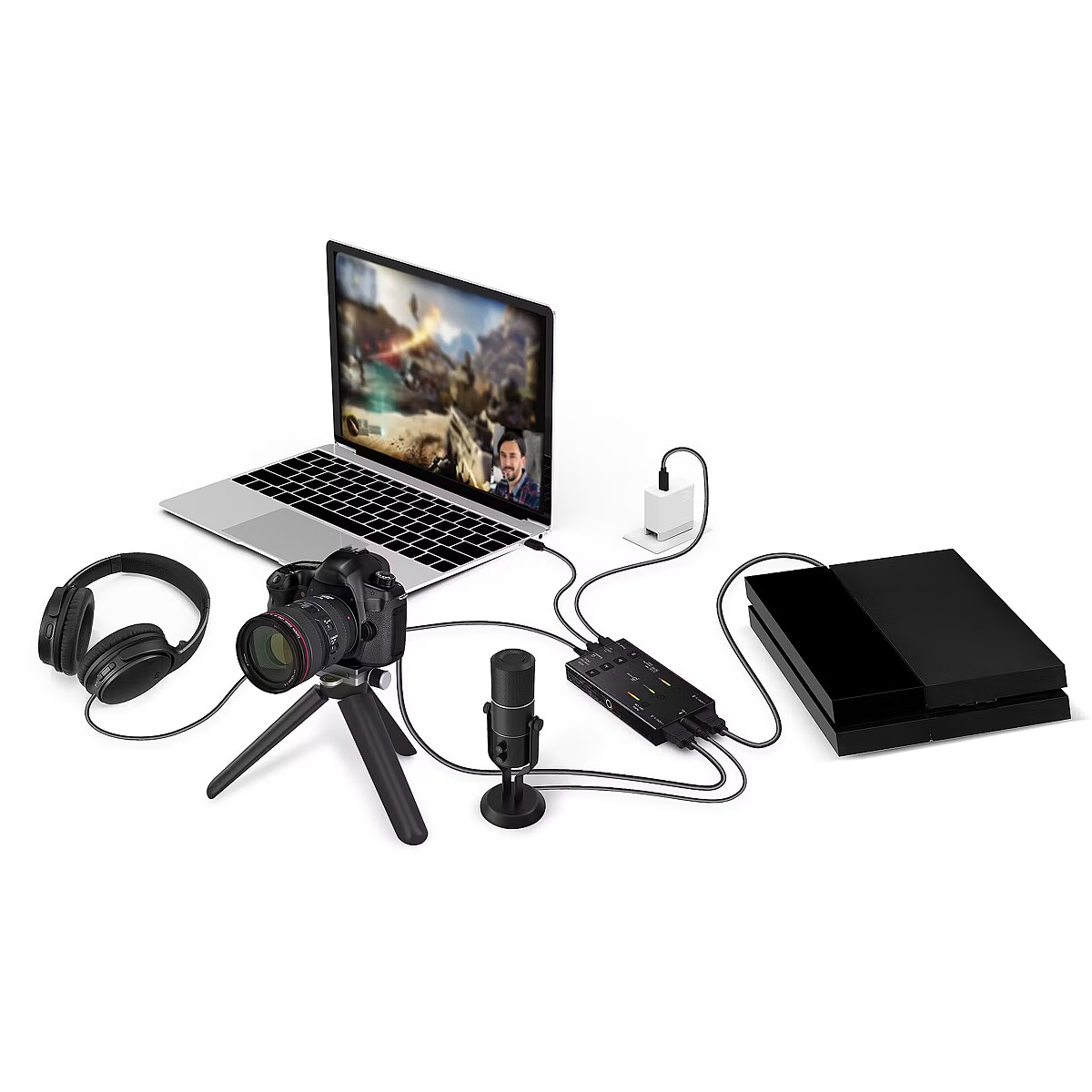

Performance - Capturing from - Digital camera, Game console, PC
Performance - Country of origin - Taiwan
Performance - Host interface - USB 3.2 Gen 1 (3.1 Gen 1)
Performance - Housing material - Aluminium
Performance - Internal - No
Performance - LED indicators - USB
Performance - Product colour - Black
Performance - Supported aspect ratios - 16:9
Performance - Video capture resolution (max) - 1920 x 1080 pixels

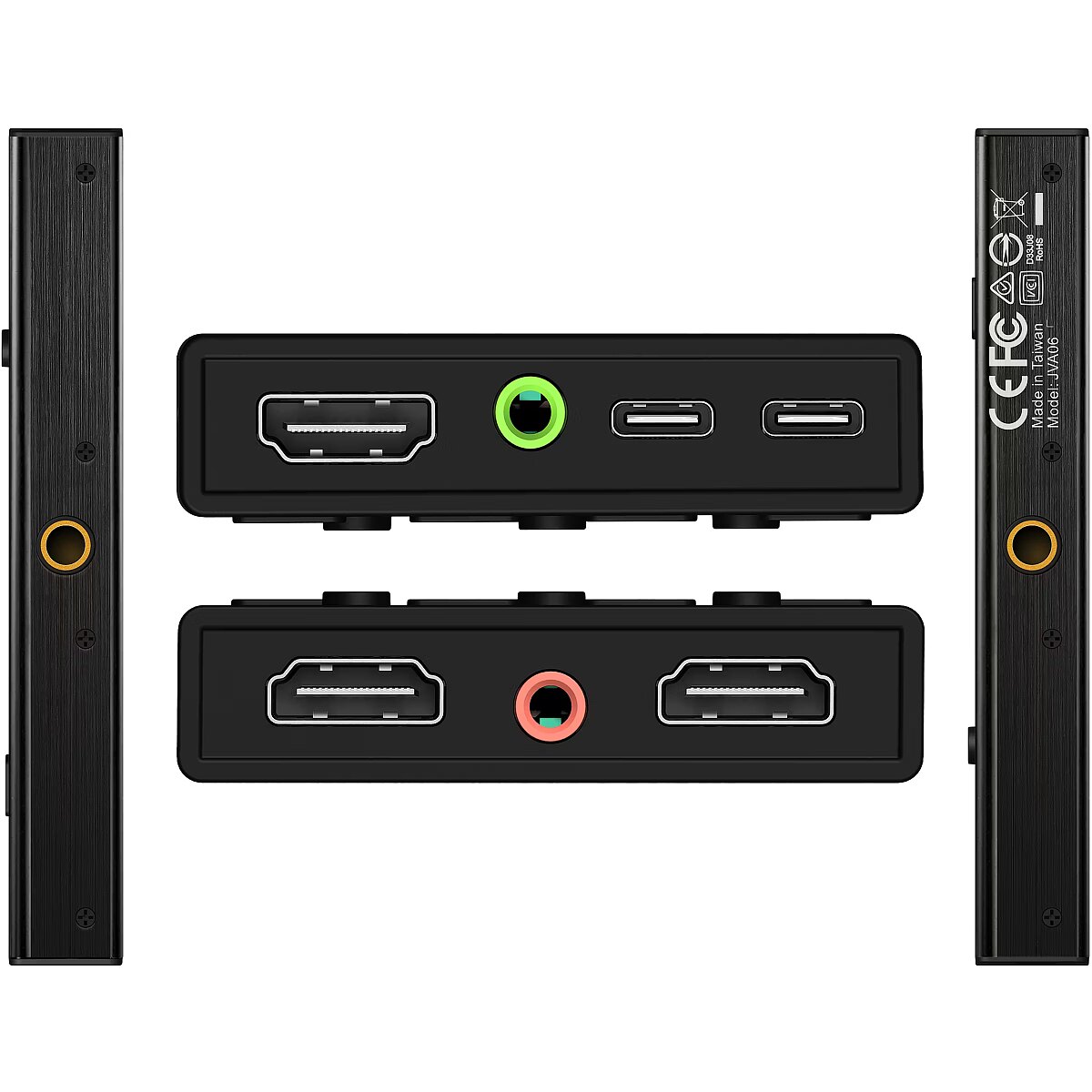

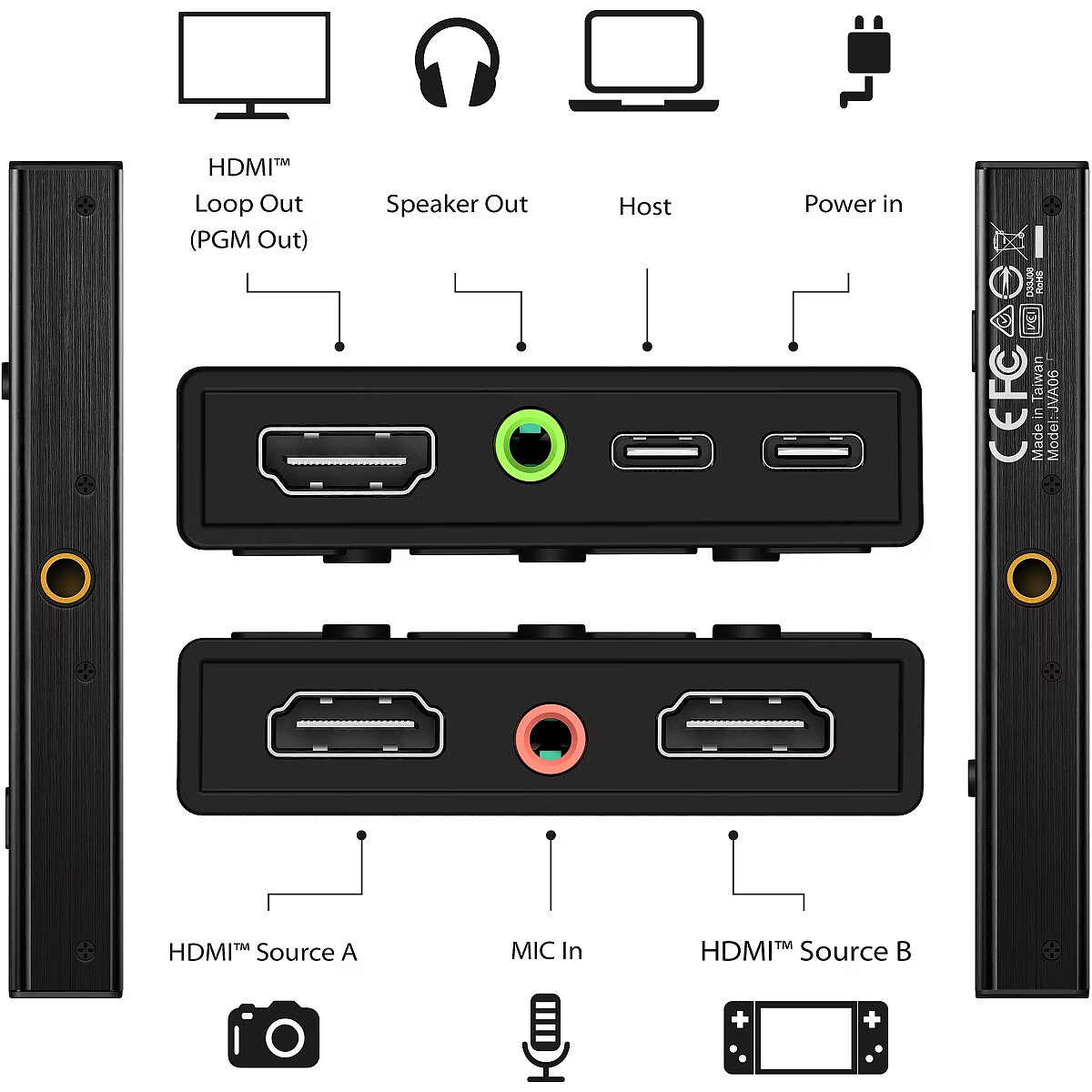

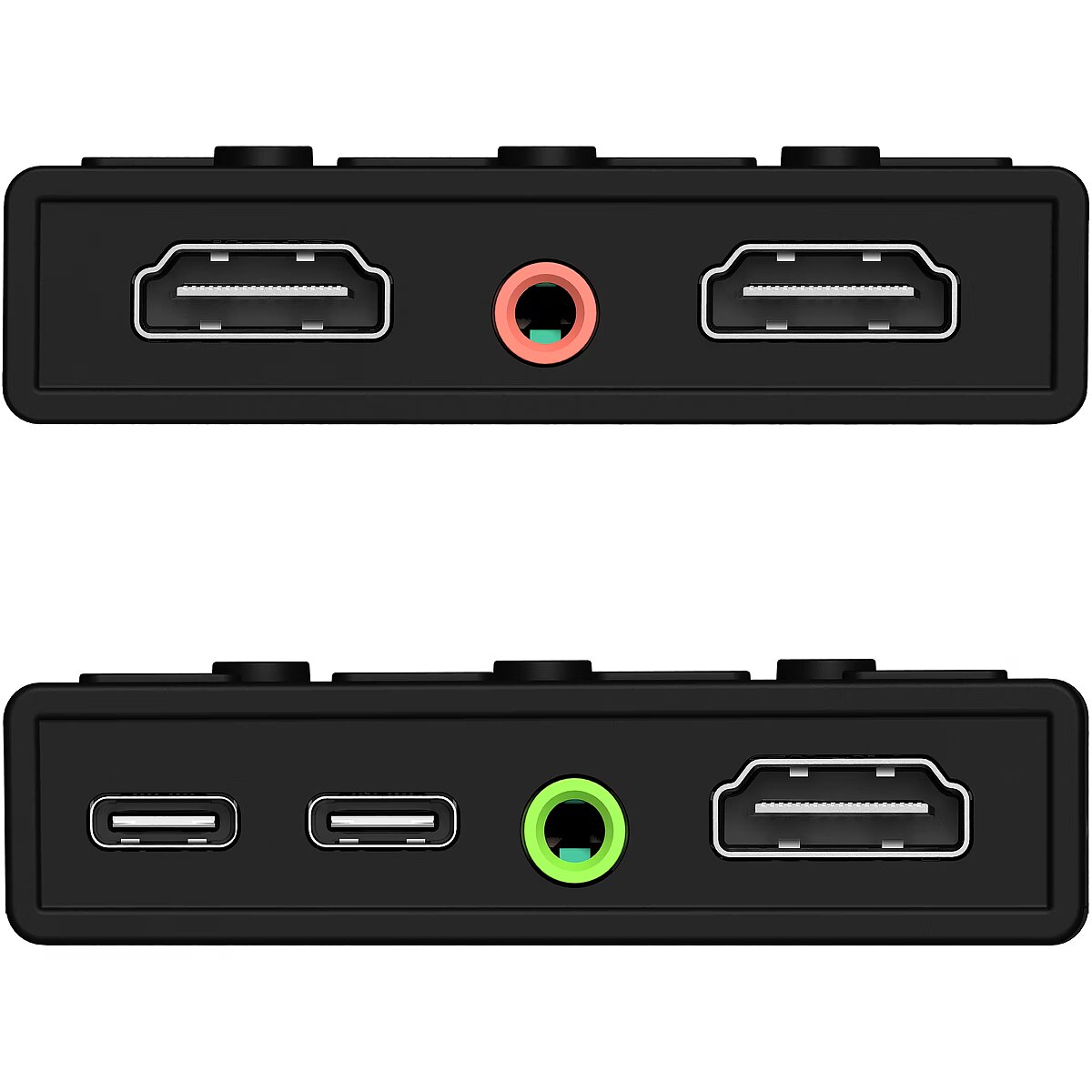

Ports & interfaces - HDMI in - 2
Ports & interfaces - HDMI ports quantity - 3
Ports & interfaces - Number of HDMI outputs - 1
Ports & interfaces - USB connector type - USB Type-A, USB Type-C
Ports & interfaces - USB port - Yes
Ports & interfaces - USB ports quantity - 2
Ports & interfaces - USB version - 2.0/3.2 Gen 1 (3.1 Gen 1)
Power - Output current - 0.9 A
Power - Output voltage - 20 V
Power - Power supply type - USB
ProductName - JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black
ShortSummaryDescription - j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black, Black, USB 3.2 Gen 1 (3.1 Gen 1), 1920 x 1080 pixels, USB, Digital camera, Game console, PC, 16:9
Software - Bundled software - Recommended software: OBS™
Software - Linux operating systems supported - Yes
Software - Mac compatibility - Yes
Software - Mac operating systems supported - Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Yes
Software - Windows operating systems supported - Windows 10, Windows 7, Windows 8, Windows 8.1, Yes
Stck_Kart - 12
Stck_Pal - 0
Storno - N
Technical details - Warranty period - 2 year(s)
Title - j5create JVA06 Dual HDMI™ Video Capture Card, 1920*1080 Video Capture Resolution, 3 x HDMI ports and 2 x USB ports, Black
URL - https://en.j5create.com/products/JVA06
Video - Analog signal format system - Not supported
Video - Maximum frame rate - 60 fps
Video - Supported resolutions - 640 x 480
720 x 480
720 x 576
800 x 600
1280 x 720
1024 x 768
1360 x 768
1280 x 800
1152 x 864
1440 x 900
1280 x 1024
1400 x 1050
1680 x 1050
1600 x 1200
1920 x 1080
Video - Supported video modes - 1080p
WarrantyInfo - 2 year manufacturer warranty
Weight & dimensions - Depth - 63.7 mm
Weight & dimensions - Height - 18.4 mm
Weight & dimensions - Weight - 175 g
Weight & dimensions - Width - 134.6 mm
